Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

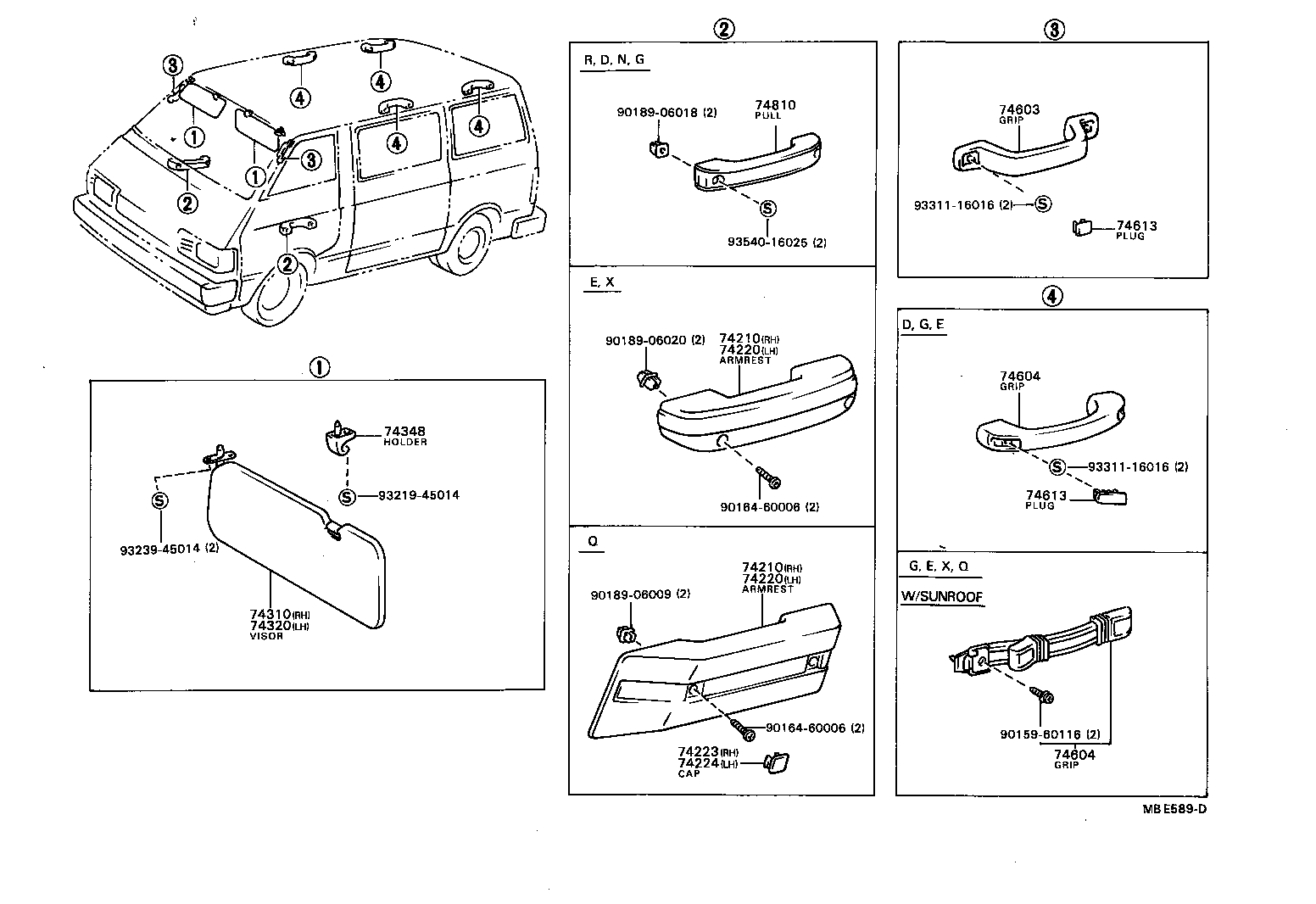

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74210 — Armrest Assy, Front, RH | ||||
| 74210-20110-02 note |
Armrest Assy, Front, RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74210-20110-03 note |
Armrest Assy, Front, RH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 74210-20110-05 note |
Armrest Assy, Front, RH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 74210-20110-14 note |
Armrest Assy, Front, RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74250-20010-02 note |
Armrest Assy, Front, RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74250-20010-03 note |
Armrest Assy, Front, RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥3,500 | |
| 74250-20010-03 note |
Armrest Assy, Front, RH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74250-20010-14 note |
Armrest Assy, Front, RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74250-20010-15 note |
Armrest Assy, Front, RH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74220 — Armrest Assy, Front, LH | ||||
| 74220-20110-02 note |
Armrest Assy, Front, LH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74220-20110-03 note |
Armrest Assy, Front, LH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 74220-20110-05 note |
Armrest Assy, Front, LH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 74220-20110-14 note |
Armrest Assy, Front, LH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74250-20010-02 note |
Armrest Assy, Front, LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74250-20010-03 note |
Armrest Assy, Front, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥3,500 | |
| 74250-20010-03 note |
Armrest Assy, Front, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74250-20010-14 note |
Armrest Assy, Front, LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74250-20010-15 note |
Armrest Assy, Front, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,X | ¥3,500 | |
| 74223 — Cap, Door Armrest, RH | ||||
| 74223-20020-02 note |
Cap, Door Armrest, RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74223-20020-03 note |
Cap, Door Armrest, RH
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥350 | |
| 74223-20020-05 note |
Cap, Door Armrest, RH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 74223-20020-24 note |
Cap, Door Armrest, RH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74224 — Cap, Door Armrest, LH | ||||
| 74223-20020-02 note |
Cap, Door Armrest, LH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74223-20020-03 note |
Cap, Door Armrest, LH
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥350 | |
| 74223-20020-05 note |
Cap, Door Armrest, LH
1982-11 → 1984-08
ended
|
YR20,21 Q | — | |
| 74223-20020-24 note |
Cap, Door Armrest, LH
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 74310 — Visor Assy, RH | ||||
| 74310-87022-03 note |
Visor Assy, RH
1982-11 → 1986-08
ended
|
CR21,YR20,21 E | ¥2,130 | |
| 74310-87022-05 note |
Visor Assy, RH
1982-11 → 1984-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥2,130 | |
| 74310-87022-15 note |
Visor Assy, RH
1984-08 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | — | |
| 74310-87022-25 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20 5S,06S,08S HRF E;YR20 +6 | ¥2,130 | |
| 74310-87026-03 note |
Visor Assy, RH
1982-11 → 1983-10
ended
|
YR20,21 E,Q,X | — | |
| 74310-87026-03 note |
Visor Assy, RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 74310-87026-05 note |
Visor Assy, RH
1982-11 → 1983-10
ended
|
YR21 07S;YR20 HRF;YR20 MRF +1 | — | |
| 74310-87026-05 note |
Visor Assy, RH
1983-05 → 1983-10
ended
|
YR21 G | — | |
| 74310-87028-03 note |
Visor Assy, RH
1983-04 → 1983-10
ended
|
CR21 | — | |
| 74310-87028-05 note |
Visor Assy, RH
1983-04 → 1983-10
ended
|
CR21 | — | |
| 74310-87032-03 note |
Visor Assy, RH
1983-10 → 1984-08
ended
|
YR20,21 E,Q,X | ¥4,300 | |
| 74310-87032-05 note |
Visor Assy, RH
1983-10 → 1984-08
ended
|
YR21 07S;YR20 HRF;YR20 MRF +1 | ¥4,300 | |
| 74310-87032-05 note |
Visor Assy, RH
1983-10 → 1984-08
ended
|
YR21 G | ¥4,300 | |
| 74310-87034-03 note |
Visor Assy, RH
1983-10 → 1984-08
ended
|
CR21 | — | |
| 74310-87034-05 note |
Visor Assy, RH
1983-10 → 1984-08
ended
|
CR21 | — | |
| 74310-87036-03 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20,21 HRF E | ¥2,820 | |
| 74310-87036-03 note |
Visor Assy, RH
1984-08 → 1985-08
ended
|
YR20,21 E,Q,X | ¥2,820 | |
| 74310-87036-05 note |
Visor Assy, RH
1984-08 → 1985-08
ended
|
YR20,21 HRF;YR20 MRF E | — | |
| 74310-87036-05 note |
Visor Assy, RH
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 74310-87036-15 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20,21 HRF E | — | |
| 74310-87038-03 note |
Visor Assy, RH
1984-08 → 1985-08
ended
|
CR21 E | ¥2,820 | |
| 74310-87038-05 note |
Visor Assy, RH
1984-08 → 1985-08
ended
|
CR21 E | — | |
| 74310-87038-13 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
CR21 E | — | |
| 74310-87038-15 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
CR21 E | — | |
| 74310-87039-03 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20,21 Q | ¥2,820 | |
| 74310-87039-03 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20,21 HRF E | ¥2,820 | |
| 74310-87039-05 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20,21 Q | ¥2,820 | |
| 74310-87039-05 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
YR20,21 HRF E | ¥2,820 | |
| 74310-87040-03 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
CR21 Q | ¥2,820 | |
| 74310-87040-03 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
CR21 E | ¥2,820 | |
| 74310-87040-05 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
CR21 Q | ¥2,820 | |
| 74310-87040-05 note |
Visor Assy, RH
1985-08 → 1986-08
ended
|
CR21 E | ¥2,820 | |
| 74310-87045-03 note |
Visor Assy, RH
1987-08 → 1988-08
ended
|
YR20,21 E | ¥3,070 | |
| 74310-87045-05 note |
Visor Assy, RH
1987-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥3,070 | |
| 74310-87046-03 note |
Visor Assy, RH
1987-08 → 1988-08
ended
|
CR21 E | ¥3,070 | |
| 74310-87046-05 note |
Visor Assy, RH
1987-08 → 1988-08
ended
|
CR2#,KR26,YR26 B,D,E,G,N | ¥3,070 | |
| 74310-87049-03 note |
Visor Assy, RH
1986-08 → 1987-08
ended
|
YR20,21 E | ¥3,060 | |
| 74310-87049-05 note |
Visor Assy, RH
1986-08 → 1987-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥3,060 | |
| 74310-87050-03 note |
Visor Assy, RH
1986-08 → 1987-08
ended
|
CR21 E | ¥3,060 | |
| 74310-87050-05 note |
Visor Assy, RH
1986-08 → 1987-08
ended
|
CR2#,KR26,YR26 B,D,E,G,N | ¥3,060 | |
| 74310-87052-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR20,21 HRF E | ¥3,580 | |
| 74310-87052-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR20,21 HRF E | ¥3,580 | |
| 74310-87054-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR21 E | ¥3,580 | |
| 74310-87054-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR21 E | ¥3,580 | |
| 74310-87056-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR20,21 HRF E | ¥3,580 | |
| 74310-87056-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR21 Q | ¥3,580 | |
| 74310-87056-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR21 Q | ¥3,580 | |
| 74310-87056-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR20,21 HRF E | ¥3,580 | |
| 74310-87058-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR21 Q | ¥3,580 | |
| 74310-87058-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR21 E | ¥3,580 | |
| 74310-87058-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR21 Q | ¥3,580 | |
| 74310-87058-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR21 E | ¥3,580 | |
| 74310-95D00-03 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
YR30 E | ¥3,050 | |
| 74310-95D00-05 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
YR30 | ¥3,050 | |
| 74310-95D01-03 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
CR30 E | ¥3,050 | |
| 74310-95D01-05 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
CR3# 02S,05S,08S | ¥3,050 | |
| 74310-95D02-03 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
YR30 E | ¥3,570 | |
| 74310-95D02-05 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
YR30 E | ¥3,570 | |
| 74310-95D03-03 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
CR30 E,Q | ¥3,570 | |
| 74310-95D03-05 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
CR30 E,Q | ¥3,570 | |
| 74310-95D05-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR30 E,Q | ¥3,580 | |
| 74310-95D05-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR30 E,Q | ¥3,580 | |
| 74310-95D06-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR30 E | ¥3,060 | |
| 74310-95D06-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
YR3# 05S,08S | ¥3,060 | |
| 74310-95D07-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR30 E,Q | ¥3,580 | |
| 74310-95D07-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR30 E,Q | ¥3,580 | |
| 74310-95D08-03 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR30 E | ¥3,060 | |
| 74310-95D08-05 note |
Visor Assy, RH
1986-08 → 1988-08
ended
|
CR3# 02S,05S,08S | ¥3,060 | |
| 74320 — Visor Assy, LH | ||||
| 74320-87006-03 note |
Visor Assy, LH
1982-11 → 1983-10
ended
|
CR21,YR20,21 E,Q,X | — | |
| 74320-87006-03 note |
Visor Assy, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 74320-87006-05 note |
Visor Assy, LH
1983-05 → 1983-10
ended
|
YR21 G | — | |
| 74320-87006-05 note |
Visor Assy, LH
1982-11 → 1983-10
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | — | |
| 74320-87015-03 note |
Visor Assy, LH
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥1,920 | |
| 74320-87015-05 note |
Visor Assy, LH
1982-11 → 1984-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N | ¥1,920 | |
| 74320-87015-15 note |
Visor Assy, LH
1984-08 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N | ¥1,920 | |
| 74320-87015-35 note |
Visor Assy, LH
1985-08 → 1988-08
ended
|
YR20 ,E,G,N HRF E;YR20 +6 | ¥1,920 | |
| 74320-87016-03 note |
Visor Assy, LH
1983-10 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | — | |
| 74320-87016-05 note |
Visor Assy, LH
1983-10 → 1984-08
ended
|
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 | — | |
| 74320-87016-05 note |
Visor Assy, LH
1983-10 → 1984-08
ended
|
YR21 G | — | |
| 74320-87019-03 note |
Visor Assy, LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥3,480 | |
| 74320-87019-05 note |
Visor Assy, LH
1984-08 → 1985-08
ended
|
YR21 G | — | |
| 74320-87019-05 note |
Visor Assy, LH
1984-08 → 1985-08
ended
|
YR20 HRF;YR20 MRF E;CR21,YR21 +1 | — | |
| 74320-87019-13 note |
Visor Assy, LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥3,470 | |
| 74320-87019-15 note |
Visor Assy, LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥3,470 | |
| 74348 — Holder, Visor | ||||
| 74348-32010-13 note |
Holder, Visor
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥410 | |
| 74348-32010-13 note |
Holder, Visor
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥410 | |
| 74348-32010-15 note |
Holder, Visor
1982-11 → 1984-08
ended
|
KR26 R | ¥410 | |
| 74348-32010-15 note |
Holder, Visor
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# D,E,G,N,Q,X | ¥410 | |
| 74348-32010-25 note |
Holder, Visor
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,Q,X | ¥410 | |
| 74348-32010-25 note |
Holder, Visor
1984-08 → 1985-08
ended
|
KR26 R | ¥410 | |
| 74348-32010-35 note |
Holder, Visor
1985-08 → 1986-08
ended
|
KR26 R | ¥410 | |
| 74348-32010-35 note |
Holder, Visor
1985-08 → 1988-08
ended
|
YR20 .B,D,E,G,N,Q HRF (E,Q);YR20 +5 | ¥410 | |
| 74603 — Grip Sub-assy, Assist, Front | ||||
| 74603-16010-03 note |
Grip Sub-assy, Assist, Front
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥1,590 | |
| 74603-16010-03 note |
Grip Sub-assy, Assist, Front
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥1,590 | |
| 74603-16010-05 note |
Grip Sub-assy, Assist, Front
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥1,590 | |
| 74603-16010-15 note |
Grip Sub-assy, Assist, Front
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,590 | |
| 74603-16010-25 note |
Grip Sub-assy, Assist, Front
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,590 | |
| 74604 — Grip Sub-assy, Assist, Rear | ||||
| 74610-10020-15 note |
Grip Sub-assy, Assist, Rear
1982-11 → 1984-08
ended
|
CR21,YR20,21 08S,09S | ¥730 | |
| 74610-10020-23 note |
Grip Sub-assy, Assist, Rear
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥730 | |
| 74610-10020-23 note |
Grip Sub-assy, Assist, Rear
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥730 | |
| 74610-10020-35 note |
Grip Sub-assy, Assist, Rear
1984-08 → 1985-08
ended
|
CR21,YR20,21 08S,09S | — | |
| 74610-10020-45 note |
Grip Sub-assy, Assist, Rear
1985-08 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +5 | ¥730 | |
| 74610-14030-05 note |
Grip Sub-assy, Assist, Rear
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,840 | |
| 74610-14030-05 note |
Grip Sub-assy, Assist, Rear
1982-11 → 1984-08
ended
|
YR20 HRF G | ¥2,840 | |
| 74610-14030-13 note |
Grip Sub-assy, Assist, Rear
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,840 | |
| 74610-14030-13 note |
Grip Sub-assy, Assist, Rear
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥2,840 | |
| 74610-14030-25 note |
Grip Sub-assy, Assist, Rear
1984-08 → 1985-08
ended
|
YR20 HRF G | ¥2,840 | |
| 74610-14030-25 note |
Grip Sub-assy, Assist, Rear
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,840 | |
| 74610-14030-35 note |
Grip Sub-assy, Assist, Rear
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥2,840 | |
| 74613 — Plug, Assist Grip | ||||
| 74617-14010-05 note |
Plug, Assist Grip
1982-11 → 1984-08
ended
|
CR21,YR20,21 08S,09S | — | |
| 74617-14010-25 note |
Plug, Assist Grip
1984-08 → 1985-08
ended
|
CR21,YR20,21 08S,09S | ¥200 | |
| 74617-14010-33 note |
Plug, Assist Grip
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥200 | |
| 74617-14010-33 note |
Plug, Assist Grip
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥200 | |
| 74617-14010-45 note |
Plug, Assist Grip
1985-08 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +5 | ¥200 | |
| 74617-16010-05 note |
Plug, Assist Grip
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥190 | |
| 74617-16010-13 note |
Plug, Assist Grip
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥190 | |
| 74617-16010-13 note |
Plug, Assist Grip
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥190 | |
| 74617-16010-35 note |
Plug, Assist Grip
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥190 | |
| 74617-16010-45 note |
Plug, Assist Grip
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥190 | |
| 74810 — Pull Assy, Door, Inside | ||||
| 69285-95403-05 note |
Pull Assy, Door, Inside
1982-11 → 1984-08
ended
|
CR26,KR26,YR2# D,G,N,R | ¥800 | |
| 69285-95403-15 note |
Pull Assy, Door, Inside
1984-08 → 1985-08
ended
|
CR2#,KR26,YR2# D,G,N,R | ¥920 | |
| 69285-95403-16 note |
Pull Assy, Door, Inside
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥800 | |
| 74811-87001-04 note |
Pull Assy, Door, Inside
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥1,610 | |
| 74811-87001-06 note |
Pull Assy, Door, Inside
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥1,610 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
