Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

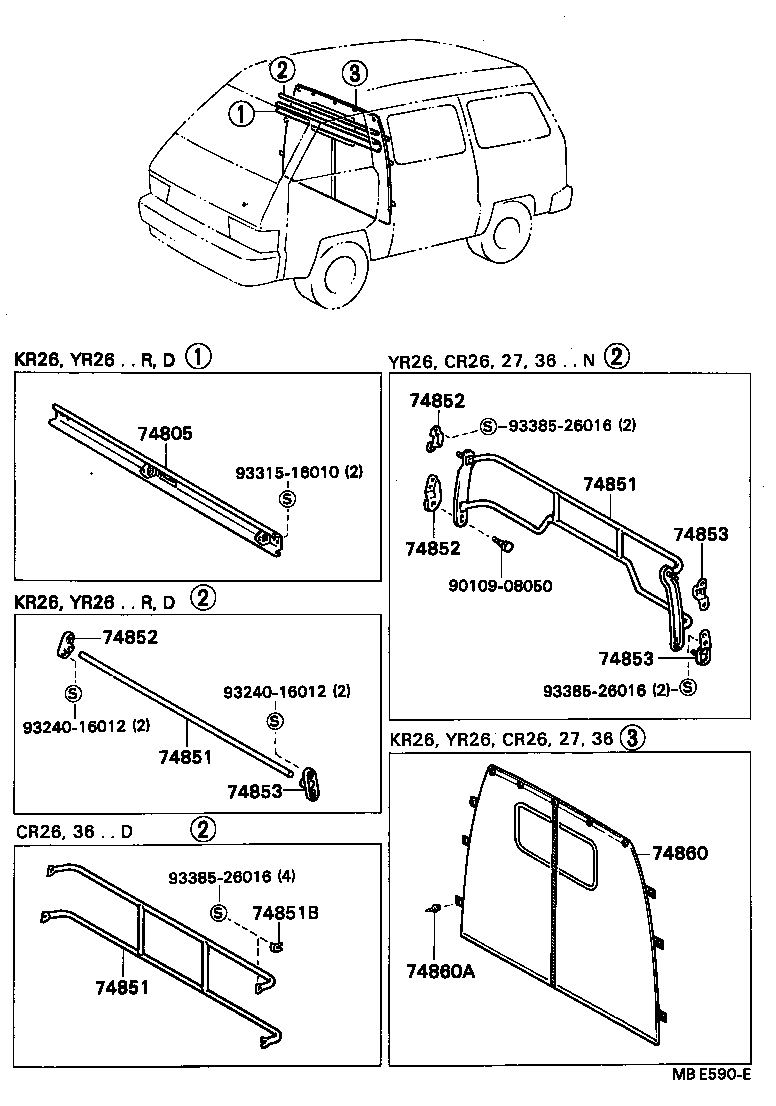

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74805 — Separator Sub-assy | ||||
| 74805-87003 |
Separator Sub-assy
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥10,800 | |
| 74851 — Bar, Separator | ||||
| 74850-87003 |
Bar, Separator
1982-11 → 1988-08
ended
|
CR26,36 D | ¥29,000 | |
| 74850-87004 |
Bar, Separator
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥32,800 | |
| 74855-87004 |
Bar, Separator
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥4,220 | |
| 74851B — Shim, Separator Bar | ||||
| 90565-07005 |
Shim, Separator Bar
1982-11 → 1988-08
ended
|
CR26,36 D | ¥310 | |
| 74852 — Bracket, Separator, RH | ||||
| 74851-87003 note |
Bracket, Separator, RH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥660 | |
| 74853-87001 note |
Bracket, Separator, RH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥1,570 | |
| 74855-95700 |
Bracket, Separator, RH
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥610 | |
| 74853 — Bracket, Separator, LH | ||||
| 74852-87002 note |
Bracket, Separator, LH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥660 | |
| 74854-87002 note |
Bracket, Separator, LH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥1,570 | |
| 74855-95700 |
Bracket, Separator, LH
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥610 | |
| 74860 — Curtain Assy, Separate | ||||
| 74870-87003 |
Curtain Assy, Separate
1983-05 → 1988-08
ended
|
CR26,27,36,KR26,YR26 SRF | ¥20,500 | |
| 74870-87007 |
Curtain Assy, Separate
1983-05 → 1988-08
ended
|
CR26,27,36,KR26,YR26 HRF | ¥22,600 | |
| 74860A — Hook, Male (FOR SEPARATE CURTAIN SET HOOK) | ||||
| 58521-87202 |
Hook, Male (FOR SEPARATE CURTAIN SET HOOK)
1983-05 → 1988-08
ended
|
CR26,27,36,KR26,YR26 SRF | ¥390 | |
| 58521-87202 |
Hook, Male (FOR SEPARATE CURTAIN SET HOOK)
1983-05 → 1988-08
ended
|
CR26,27,36,KR26,YR26 HRF | ¥390 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
