Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

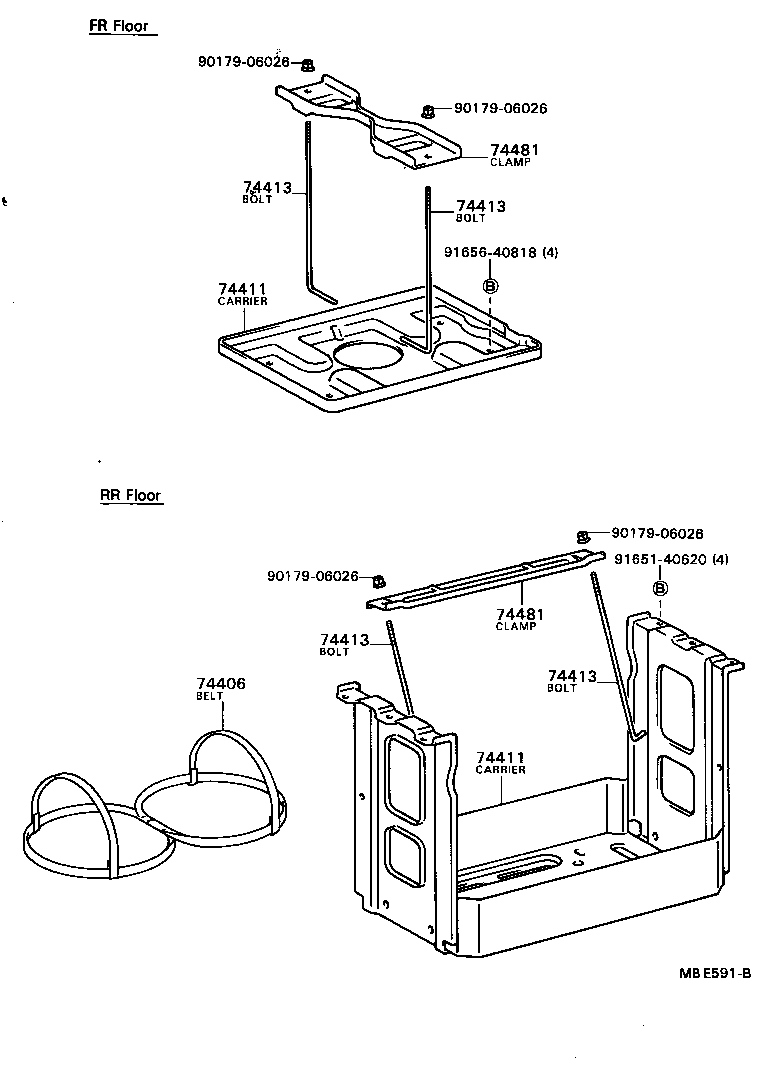

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74406 — Belt Sub-assy, Battery | ||||
| 74446-95700 |
Belt Sub-assy, Battery
1982-11 → 1983-07
ended
|
YR20,21 | ¥800 | |
| 74446-95700 note |
Belt Sub-assy, Battery
1983-01 → 1983-07
ended
|
YR26 V4D N | ¥800 | |
| 74446-95700 note |
Belt Sub-assy, Battery
1983-01 → 1988-08
ended
|
KR26,YR26,28 | ¥800 | |
| 74446-95700 note |
Belt Sub-assy, Battery
1982-11 → 1983-01
ended
|
CR26,YR26 V4D (02S,05S) | ¥800 | |
| 74446-95702 note |
Belt Sub-assy, Battery
1983-01 → 1988-08
ended
|
CR28,30,37,YR30;CR26,27,36 V4D | ¥840 | |
| 74446-95702 note |
Belt Sub-assy, Battery
1983-01 → 1988-08
ended
|
CR26,27,28,36,37,YR36 | ¥840 | |
| 74446-95702 note |
Belt Sub-assy, Battery
1983-04 → 1988-08
ended
|
CR21 | ¥840 | |
| 74411 — Carrier, Battery | ||||
| 74403-87003 |
Carrier, Battery
1982-11 → 1983-07
ended
|
YR20,21 | ¥11,600 | |
| 74403-87003 note |
Carrier, Battery
1982-11 → 1983-07
ended
|
YR26 V4D N | ¥11,600 | |
| 74403-87003 |
Carrier, Battery
1983-07 → 1985-01
ended
|
YR20,21 | ¥11,600 | |
| 74403-87003 note |
Carrier, Battery
1983-07 → 1985-01
ended
|
YR26 V4D 5F | ¥11,600 | |
| 74403-87004 note |
Carrier, Battery
1982-11 → 1985-01
ended
|
CR21,27;CR26 V4D | ¥11,600 | |
| 74403-87004 note |
Carrier, Battery
1985-01 → 1988-08
ended
|
YR20 ,28,30,37,YR21,28,3# HRF 5F +6 | ¥11,600 | |
| 74411-87005 note |
Carrier, Battery
1982-11 → 1983-01
ended
|
KR26,YR26;CR26 V5D | ¥3,090 | |
| 74411-87005 note |
Carrier, Battery
1983-01 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥3,090 | |
| 74411-87008 note |
Carrier, Battery
1987-08 → 1988-08
ended
|
CR36 V4D | ¥4,160 | |
| 74411-87008 note |
Carrier, Battery
1986-08 → 1988-08
ended
|
CR26,27,36 V5D | ¥4,160 | |
| 74413 — Bolt, Battery Clamp | ||||
| 74451-87002 |
Bolt, Battery Clamp
1982-11 → 1988-08
ended
|
YR20,21 | ¥350 | |
| 74451-87002 note |
Bolt, Battery Clamp
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 V4D (02S,05S) | ¥350 | |
| 74451-87002 note |
Bolt, Battery Clamp
1984-08 → 1988-08
ended
|
CR21,28,3#,YR28,3# | ¥350 | |
| 74451-87003 note |
Bolt, Battery Clamp
1982-11 → 1983-01
ended
|
KR26,YR26;CR26 V5D | ¥350 | |
| 74451-87003 note |
Bolt, Battery Clamp
1983-01 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥350 | |
| 74481 — Clamp, Battery Hold Down | ||||
| 74481-87005 note |
Clamp, Battery Hold Down
1982-11 → 1983-07
ended
|
CR26 V4D | ¥390 | |
| 74481-87005 note |
Clamp, Battery Hold Down
1983-04 → 1983-07
ended
|
CR21 | ¥390 | |
| 74481-87005 note |
Clamp, Battery Hold Down
1983-07 → 1988-08
ended
|
CR28,30,37;CR26,27,36 V4D | ¥390 | |
| 74481-87005 note |
Clamp, Battery Hold Down
1983-07 → 1988-08
ended
|
CR21 | ¥390 | |
| 74481-87006 note |
Clamp, Battery Hold Down
1982-11 → 1983-01
ended
|
KR26,YR26;CR26 V5D | ¥2,030 | |
| 74481-87006 note |
Clamp, Battery Hold Down
1983-01 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | ¥2,030 | |
| 74481-87007 note |
Clamp, Battery Hold Down
1985-08 → 1988-08
ended
|
YR28,3# | ¥2,030 | |
| 74481-87007 note |
Clamp, Battery Hold Down
1982-11 → 1988-08
ended
|
YR26 V4D N | ¥2,030 | |
| 74481-87007 |
Clamp, Battery Hold Down
1982-11 → 1988-08
ended
|
YR20,21 | ¥2,030 | |
| 74481-87007 note |
Clamp, Battery Hold Down
1983-04 → 1983-07
ended
|
CR21 | ¥2,030 | |
| 74481-87007 note |
Clamp, Battery Hold Down
1982-11 → 1983-07
ended
|
CR26 V4D | ¥2,030 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
