Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

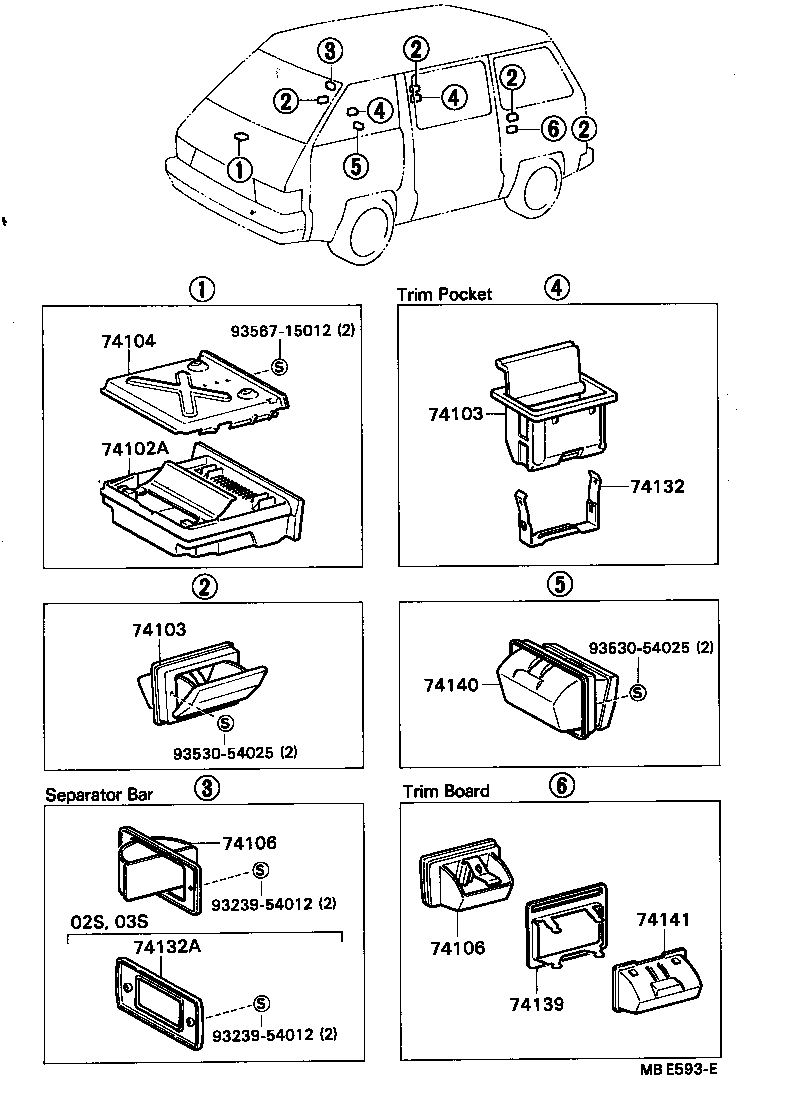

Exploded illustration MBE593E 9356715012 — not listed in this catalogue 74104 — RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1 (2 parts) 74103 — RECEPTACLE SUB-ASSY, ASH, NO.1 (9 parts) 74102A — RECEPTACLE ASSY, FRONT ASH (4 parts) 74132 — HOLDER, REAR ASH RECEPTACLE (1 parts) 74103 — RECEPTACLE SUB-ASSY, ASH, NO.1 (9 parts) 9353054025 — not listed in this catalogue 74140 — RECEPTACLE ASSY, ASH(FOR SEAT) (10 parts) 9353054025 — not listed in this catalogue 74106 — RECEPTACLE SUB-ASSY, ASH, NO.2 (5 parts) 9323954012 — not listed in this catalogue 74141 — RETAINER, REAR ASH RECEPTACLE, INNER (1 parts) 74132A — COVER, ASH RECEPTACLE HOLE (1 parts) 74106 — RECEPTACLE SUB-ASSY, ASH, NO.2 (5 parts) 74139 — RETAINER, REAR ASH RECEPTACLE, OUTER (1 parts) 9323954012 — not listed in this catalogue
MBE593E · 11 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
74102A — Receptacle Assy, Front Ash
74102-87001-01 note Receptacle Assy, Front Ash
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥4,570
74102-87001-01 note Receptacle Assy, Front Ash
1982-11 → 1984-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥4,570
74102-87001-02 note Receptacle Assy, Front Ash
1982-11 → 1984-08 ended
YR20,21 07S ¥4,570
74102-87001-04 note Receptacle Assy, Front Ash
1982-11 → 1984-08 ended
YR20,21 07S ¥4,570
74103 — Receptacle Sub-assy, Ash, NO.1
74130-14020-05 note Receptacle Sub-assy, Ash, NO.1
1982-11 → 1984-08 ended
YR20,21 D,G ¥5,200
74130-14020-20 note Receptacle Sub-assy, Ash, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 D,G ¥5,200
74130-14020-30 note Receptacle Sub-assy, Ash, NO.1
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥5,200
74130-16020-04 note Receptacle Sub-assy, Ash, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥4,920
74130-16020-12 note Receptacle Sub-assy, Ash, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥4,920
74130-16020-24 note Receptacle Sub-assy, Ash, NO.1
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥4,920
74130-16020-26 note Receptacle Sub-assy, Ash, NO.1
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥4,920
74130-22040-02 note Receptacle Sub-assy, Ash, NO.1
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥5,100
74130-22040-04 note Receptacle Sub-assy, Ash, NO.1
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥5,100
74104 — Retainer Sub-assy, Ash Receptacle, NO.1
74104-87008 Retainer Sub-assy, Ash Receptacle, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥2,350
74104-87009 Retainer Sub-assy, Ash Receptacle, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥2,350
74106 — Receptacle Sub-assy, Ash, NO.2
74105-10010-02 note Receptacle Sub-assy, Ash, NO.2
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥2,240
74105-10010-20 note Receptacle Sub-assy, Ash, NO.2
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥2,240
74105-10010-24 note Receptacle Sub-assy, Ash, NO.2
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥2,240
74105-10010-34 note Receptacle Sub-assy, Ash, NO.2
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥2,240
74106-87201-05 note Receptacle Sub-assy, Ash, NO.2
1982-11 → 1988-08 ended
KR26,YR26 06S ¥5,900
74132 — Holder, Rear Ash Receptacle
74239-22020 Holder, Rear Ash Receptacle
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥300
74132A — Cover, Ash Receptacle Hole
74132-87501 Cover, Ash Receptacle Hole
1982-11 → 1988-08 ended
KR26,YR26 03S —
74139 — Retainer, Rear Ash Receptacle, Outer
74135-10030 Retainer, Rear Ash Receptacle, Outer
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥710
74140 — Receptacle Assy, Ash(FOR SEAT)
74130-14020-02 note Receptacle Assy, Ash(FOR SEAT)
1982-11 → 1984-08 ended
CR21,YR20,21 ¥5,200
74130-14020-02 note Receptacle Assy, Ash(FOR SEAT)
1982-11 → 1984-08 ended
CR26,YR26 05S ¥5,200
74130-14020-34 note Receptacle Assy, Ash(FOR SEAT)
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥5,200
74130-22020-02 note Receptacle Assy, Ash(FOR SEAT)
1984-08 → 1985-08 ended
CR21,YR20,21 ¥5,200
74130-22020-02 note Receptacle Assy, Ash(FOR SEAT)
1984-08 → 1985-08 ended
CR26,27,YR26 05S ¥5,200
74130-22020-14 note Receptacle Assy, Ash(FOR SEAT)
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥5,200
74130-22020-24 note Receptacle Assy, Ash(FOR SEAT)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥5,200
74130-22020-26 note Receptacle Assy, Ash(FOR SEAT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,200
74130-22020-26 note Receptacle Assy, Ash(FOR SEAT)
1985-08 → 1988-08 ended
CR26,27,36,YR26 05S ¥5,200
74130-22020-26 note Receptacle Assy, Ash(FOR SEAT)
1987-08 → 1988-08 ended
CR26 SRF 02S ¥5,200
74141 — Retainer, Rear Ash Receptacle, Inner
74137-10030 Retainer, Rear Ash Receptacle, Inner
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥820
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
