Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

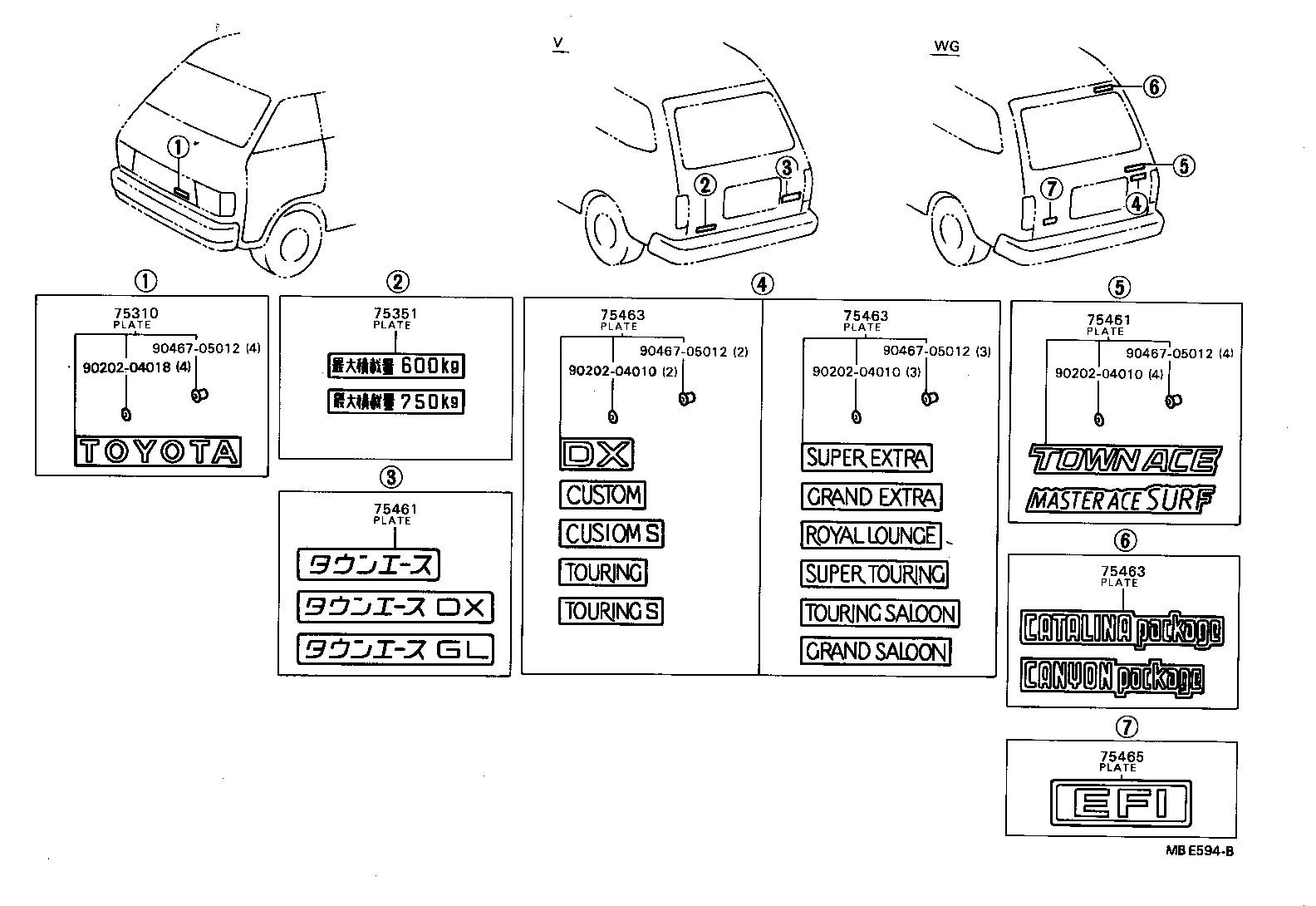

Exploded illustration MBE594B 75310 — PLATE ASSY, FRONT PANEL (6 parts) 75351 — PLATE, REAR NAME, NO.6 (MAXIMUM LOAD) (2 parts) 75463 — PLATE, REAR NAME, NO.4 (GRADE MARK) (18 parts) 75463 — PLATE, REAR NAME, NO.4 (GRADE MARK) (18 parts) 75461 — PLATE, REAR NAME, NO.2 (MODEL MARK) (9 parts) 9046705012 — not listed in this catalogue 9046705012 — not listed in this catalogue 9046705012 — not listed in this catalogue 9046705012 — not listed in this catalogue 9020204018 — not listed in this catalogue 9020204010 — not listed in this catalogue 9020204010 — not listed in this catalogue 9020204010 — not listed in this catalogue 75461 — PLATE, REAR NAME, NO.2 (MODEL MARK) (9 parts) 75463 — PLATE, REAR NAME, NO.4 (GRADE MARK) (18 parts) 75465 — PLATE, REAR NAME, NO.5 (MECHANISM) (8 parts)
MBE594B · 8 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
75310 — Plate Assy, Front Panel
75315-87004 note Plate Assy, Front Panel
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥3,280
75315-87008 note Plate Assy, Front Panel
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥3,310
75315-87010 note Plate Assy, Front Panel
1985-08 → 1987-10 ended
CR26,27,36,KR26,YR26 ¥4,480
75315-87011 note Plate Assy, Front Panel
1985-08 → 1987-10 ended
CR26,27,36,KR26,YR26 ¥4,460
75315-87011-09 note Plate Assy, Front Panel
1987-10 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥4,480
75315-87012-08 note Plate Assy, Front Panel
1987-10 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥4,480
75351 — Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75443-87003 note Plate, Rear Name, NO.6 (MAXIMUM LOAD)
1982-11 → 1988-08 ended
KR26 ¥270
75472-87406 note Plate, Rear Name, NO.6 (MAXIMUM LOAD)
1982-11 → 1988-08 ended
CR26,27,36,YR26 ¥1,380
75461 — Plate, Rear Name, NO.2 (MODEL MARK)
75435-87007 note Plate, Rear Name, NO.2 (MODEL MARK)
1982-11 → 1984-08 ended
CR21,YR20,21 ¥3,310
75435-87008 note Plate, Rear Name, NO.2 (MODEL MARK)
1982-11 → 1984-08 ended
CR21,YR20,21 ¥3,360
75435-87010 note Plate, Rear Name, NO.2 (MODEL MARK)
1984-08 → 1988-08 ended
CR21,30,YR20,21,30 ¥3,310
75435-87011 note Plate, Rear Name, NO.2 (MODEL MARK)
1984-08 → 1988-08 ended
CR21,30,YR20,21,30 ¥3,390
75442-87002 note Plate, Rear Name, NO.2 (MODEL MARK)
1982-11 → 1986-08 ended
KR26 R —
75442-87003 note Plate, Rear Name, NO.2 (MODEL MARK)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 D ¥460
75442-87004 note Plate, Rear Name, NO.2 (MODEL MARK)
1982-11 → 1988-08 ended
CR26,27,36,YR26 N ¥460
75442-87007 note Plate, Rear Name, NO.2 (MODEL MARK)
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥1,480
75442-87008 note Plate, Rear Name, NO.2 (MODEL MARK)
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥1,590
75463 — Plate, Rear Name, NO.4 (GRADE MARK)
75441-87008 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1984-08 ended
YR20 D ¥2,830
75441-87009 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1988-08 ended
CR21,30,YR20,30 G ¥3,190
75441-87010 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,220
75441-87011 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1985-08 ended
YR20,21 X —
75441-87012 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥3,220
75441-87013 note Plate, Rear Name, NO.4 (GRADE MARK)
1983-05 → 1985-08 ended
YR21 G —
75441-87013 note Plate, Rear Name, NO.4 (GRADE MARK)
1983-10 → 1983-11 ended
YR20 MRF 5F G —
75441-87014 note Plate, Rear Name, NO.4 (GRADE MARK)
1984-08 → 1985-08 ended
CR21,YR20 HRF E —
75441-87014 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1984-08 ended
YR20 HRF G —
75441-87015 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1988-08 ended
CR21,30,YR20,30 G ¥3,980
75441-87016 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,460
75441-87017 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1985-08 ended
YR20,21 X —
75441-87018 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥4,750
75441-87019 note Plate, Rear Name, NO.4 (GRADE MARK)
1983-05 → 1985-08 ended
YR21 G —
75441-87020 note Plate, Rear Name, NO.4 (GRADE MARK)
1984-08 → 1985-08 ended
CR21,YR20 HRF E ¥2,940
75441-87020 note Plate, Rear Name, NO.4 (GRADE MARK)
1982-11 → 1984-08 ended
YR20 HRF G ¥2,940
75441-87026 note Plate, Rear Name, NO.4 (GRADE MARK)
1984-08 → 1988-08 ended
CR21,YR20 D ¥2,870
75443-87007 note Plate, Rear Name, NO.4 (GRADE MARK)
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥530
75465 — Plate, Rear Name, NO.5 (MECHANISM)
75441-87028 note Plate, Rear Name, NO.5 (MECHANISM)
1985-08 → 1987-08 ended
CR21 TD ¥1,460
75441-87028 note Plate, Rear Name, NO.5 (MECHANISM)
1987-08 → 1988-08 ended
CR21,28 ¥1,460
75443-87004 note Plate, Rear Name, NO.5 (MECHANISM)
1983-05 → 1984-08 ended
YR21 ¥2,810
75443-87005 note Plate, Rear Name, NO.5 (MECHANISM)
1984-08 → 1985-08 ended
YR21 ¥2,780
75443-87006 note Plate, Rear Name, NO.5 (MECHANISM)
1985-08 → 1988-08 ended
YR21 ¥610
75443-95D00 note Plate, Rear Name, NO.5 (MECHANISM)
1985-10 → 1988-08 ended
CR30,37 ¥1,930
75443-95D01 note Plate, Rear Name, NO.5 (MECHANISM)
1985-10 → 1988-08 ended
YR3# ¥1,940
75443-95D02 note Plate, Rear Name, NO.5 (MECHANISM)
1985-10 → 1988-08 ended
CR36 ¥1,930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
