Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

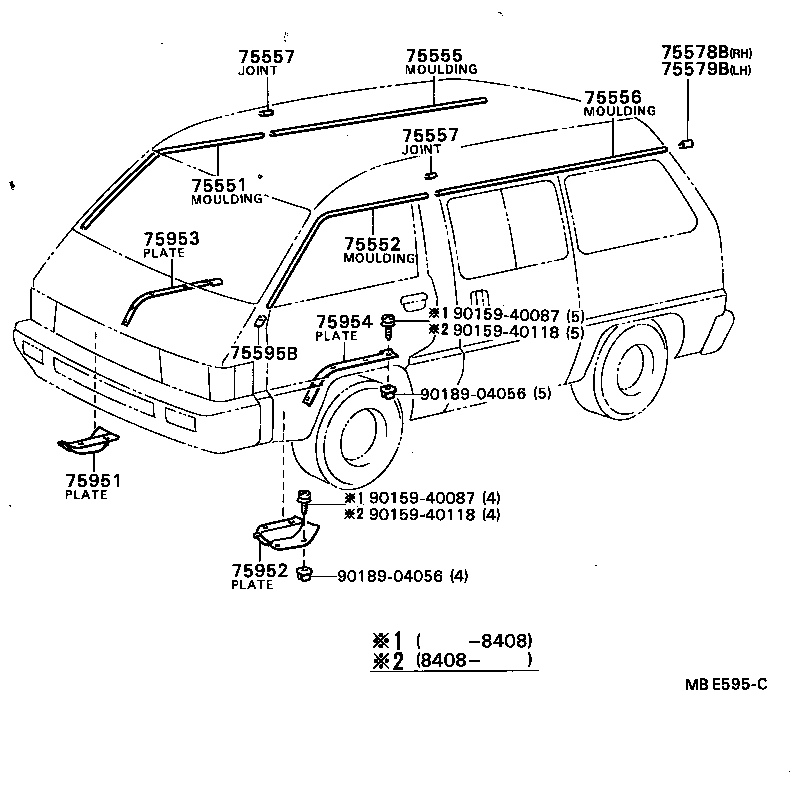

Exploded illustration MBE595C 75578B — COVER, ROOF DRIP MOULDING END, REAR RH (1 parts) 75555 — MOULDING, ROOF DRIP SIDE FINISH, REAR RH (1 parts) 75557 — JOINT, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75579B — COVER, ROOF DRIP MOULDING END, REAR LH (1 parts) 75556 — MOULDING, ROOF DRIP SIDE FINISH, REAR LH (1 parts) 75557 — JOINT, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75551 — MOULDING, ROOF DRIP SIDE FINISH, RH (1 parts) 75953 — PLATE, FRONT DOOR SCUFF, INSIDE RH (6 parts) 75552 — MOULDING, ROOF DRIP SIDE FINISH, LH (1 parts) 9015940087 — not listed in this catalogue 75954 — PLATE, FRONT DOOR SCUFF, INSIDE LH (6 parts) 9015940118 — not listed in this catalogue 75595B — COVER, ROOF DRIP SIDE MOULDING END, FRONT (2 parts) 9018904056 — not listed in this catalogue 75951 — PLATE, FRONT DOOR SCUFF, OUTSIDE RH (6 parts) 9015940087 — not listed in this catalogue 9015940118 — not listed in this catalogue 75952 — PLATE, FRONT DOOR SCUFF, OUTSIDE LH (6 parts) 9018904056 — not listed in this catalogue
MBE595C · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
75551 — Moulding, Roof Drip Side Finish, RH
75551-87005 Moulding, Roof Drip Side Finish, RH
1982-11 → 1988-08 ended
CR21,26,27,30,36,YR20,21,26,30 E,G,N,Q,X ¥2,200
75552 — Moulding, Roof Drip Side Finish, LH
75552-87005 Moulding, Roof Drip Side Finish, LH
1982-11 → 1988-08 ended
CR21,26,27,30,36,YR20,21,26,30 E,G,N,Q,X ¥2,200
75555 — Moulding, Roof Drip Side Finish, Rear RH
75553-87005 Moulding, Roof Drip Side Finish, Rear RH
1982-11 → 1988-08 ended
CR21,26,27,30,36,YR20,21,26,30 E,G,N,Q,X ¥2,740
75556 — Moulding, Roof Drip Side Finish, Rear LH
75554-87005 Moulding, Roof Drip Side Finish, Rear LH
1982-11 → 1988-08 ended
CR21,26,27,30,36,YR20,21,26,30 E,G,N,Q,X ¥2,740
75557 — Joint, Roof Drip Side Finish Moulding
75563-87001 note Joint, Roof Drip Side Finish Moulding
1982-11 → 1988-08 ended
CR21,26,27,30,36,YR20,21,26,30 E,G,N,Q,X ¥580
75563-87002 note Joint, Roof Drip Side Finish Moulding
1982-11 → 1988-08 ended
CR21,26,27,30,36,YR20,21,26,30 E,G,N,Q,X ¥640
75578B — Cover, Roof Drip Moulding End, Rear RH
75578-87001 Cover, Roof Drip Moulding End, Rear RH
1987-05 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥320
75579B — Cover, Roof Drip Moulding End, Rear LH
75579-87001 Cover, Roof Drip Moulding End, Rear LH
1987-05 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥320
75595B — Cover, Roof Drip Side Moulding End, Front
75595-95J00 note Cover, Roof Drip Side Moulding End, Front
1987-05 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥80
75596-95J00 note Cover, Roof Drip Side Moulding End, Front
1987-05 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥80
75951 — Plate, Front Door Scuff, Outside RH
67913-87004-02 note Plate, Front Door Scuff, Outside RH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥2,770
67913-87004-03 note Plate, Front Door Scuff, Outside RH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥2,770
67913-87004-04 note Plate, Front Door Scuff, Outside RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥2,770
67913-87004-05 note Plate, Front Door Scuff, Outside RH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥2,770
67913-87004-06 note Plate, Front Door Scuff, Outside RH
1985-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,770
67913-87004-14 note Plate, Front Door Scuff, Outside RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥2,770
75952 — Plate, Front Door Scuff, Outside LH
67914-87001-02 note Plate, Front Door Scuff, Outside LH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥2,770
67914-87001-03 note Plate, Front Door Scuff, Outside LH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥2,770
67914-87001-04 note Plate, Front Door Scuff, Outside LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥2,770
67914-87001-05 note Plate, Front Door Scuff, Outside LH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥2,770
67914-87001-06 note Plate, Front Door Scuff, Outside LH
1985-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,770
67914-87001-14 note Plate, Front Door Scuff, Outside LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥2,770
75953 — Plate, Front Door Scuff, Inside RH
67933-87002-02 note Plate, Front Door Scuff, Inside RH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥1,730
67933-87002-03 note Plate, Front Door Scuff, Inside RH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥1,730
67933-87002-04 note Plate, Front Door Scuff, Inside RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥1,730
67933-87002-05 note Plate, Front Door Scuff, Inside RH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥1,730
67933-87002-06 note Plate, Front Door Scuff, Inside RH
1985-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,730
67933-87002-14 note Plate, Front Door Scuff, Inside RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,730
75954 — Plate, Front Door Scuff, Inside LH
67934-87002-02 note Plate, Front Door Scuff, Inside LH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥1,690
67934-87002-03 note Plate, Front Door Scuff, Inside LH
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥1,690
67934-87002-04 note Plate, Front Door Scuff, Inside LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥1,690
67934-87002-05 note Plate, Front Door Scuff, Inside LH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥1,690
67934-87002-06 note Plate, Front Door Scuff, Inside LH
1985-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,690
67934-87002-14 note Plate, Front Door Scuff, Inside LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,690
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
