Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

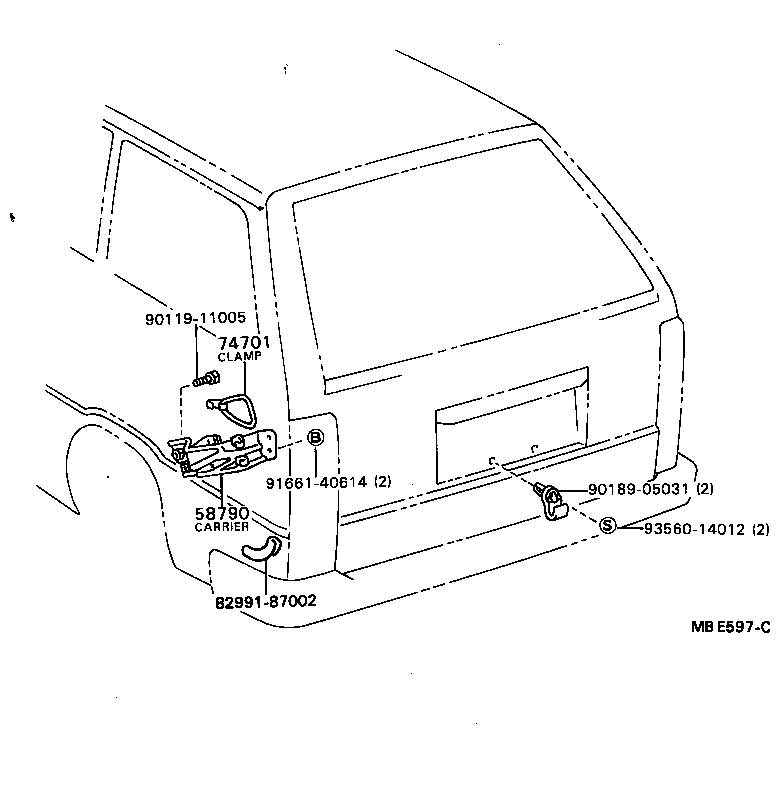

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58790 — Carrier Assy, Jack | ||||
| 58790-87001 note |
Carrier Assy, Jack
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥5,500 | |
| 58790-87001 |
Carrier Assy, Jack
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥5,500 | |
| 74701 — Clamp Sub-assy, Tool Bag | ||||
| 58705-87001 note |
Clamp Sub-assy, Tool Bag
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥1,160 | |
| 58705-87001 |
Clamp Sub-assy, Tool Bag
1982-11 → 1985-08
ended
|
CR21,YR20 E,Q,X | ¥1,160 | |
| 58705-87001 |
Clamp Sub-assy, Tool Bag
1983-05 → 1985-08
ended
|
YR21 | ¥1,160 | |
| 58705-87001 |
Clamp Sub-assy, Tool Bag
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥1,160 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
