Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

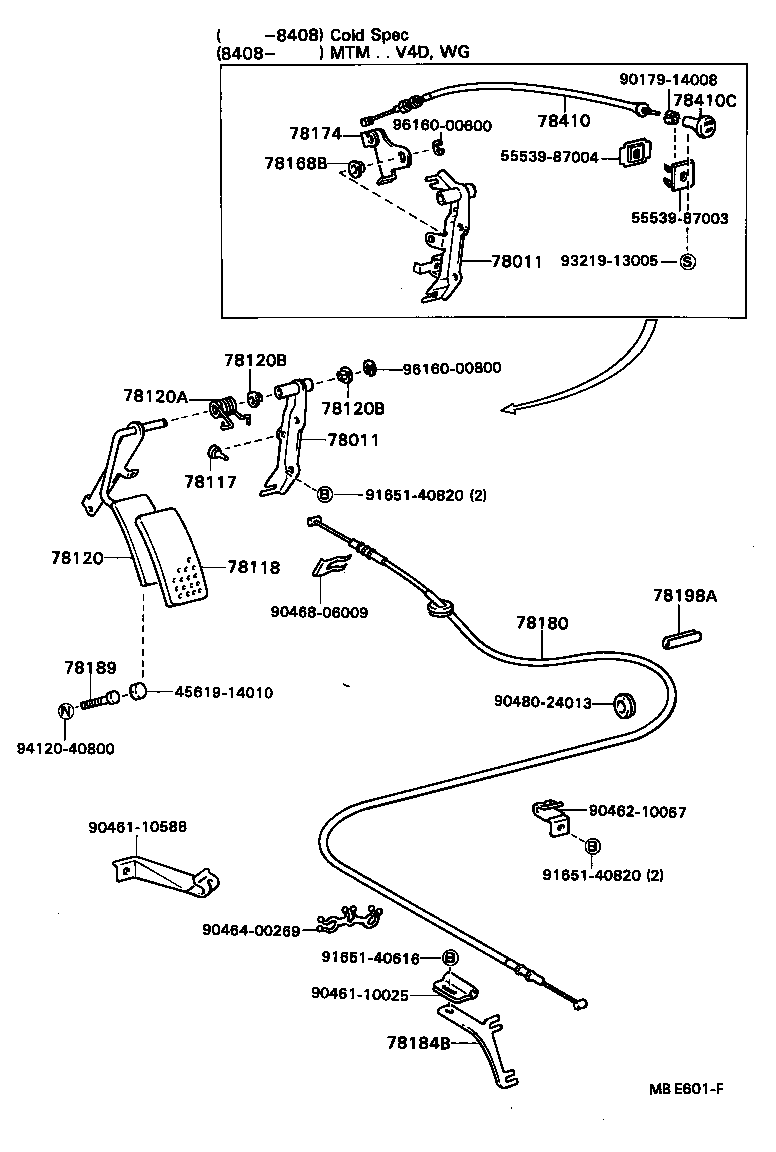

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78011 — Bracket Sub-assy, Accelerator Pedal Support | ||||
| 78011-87004 |
Bracket Sub-assy, Accelerator Pedal Support
1982-11 → 1985-01
ended
|
KR26,YR2# | — | |
| 78011-87005 |
Bracket Sub-assy, Accelerator Pedal Support
1982-11 → 1984-08
ended
|
CR2# | — | |
| 78011-87005 |
Bracket Sub-assy, Accelerator Pedal Support
1984-08 → 1985-01
ended
|
CR21,26 5F | — | |
| 78011-87007 note |
Bracket Sub-assy, Accelerator Pedal Support
1983-12 → 1984-08
ended
|
CR21;CR26 V4D | — | |
| 78011-87007 note |
Bracket Sub-assy, Accelerator Pedal Support
1984-08 → 1985-01
ended
|
CR21,26 5F | — | |
| 78117 — Cushion (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
Cushion (FOR ACCELERATOR ROD)
1982-11 → 1988-08
ended
|
CR2#,30,36,KR26,YR2#,3# | ¥90 | |
| 78118 — Pad, Accelerator Pedal | ||||
| 78119-95700 |
Pad, Accelerator Pedal
1982-11 → 1988-08
ended
|
CR2#,30,36,KR26,YR2#,3# | ¥1,020 | |
| 78120 — Rod, Accelerator Link | ||||
| 78103-87003 |
Rod, Accelerator Link
1982-11 → 1985-01
ended
|
KR26,YR2# | — | |
| 78103-87004 |
Rod, Accelerator Link
1984-08 → 1985-01
ended
|
CR27 | — | |
| 78103-87004 |
Rod, Accelerator Link
1983-05 → 1984-08
ended
|
CR26 | — | |
| 78103-87004 |
Rod, Accelerator Link
1982-11 → 1983-05
ended
|
CR2# | — | |
| 78103-87005 |
Rod, Accelerator Link
1983-05 → 1984-08
ended
|
CR21 | — | |
| 78103-87005 |
Rod, Accelerator Link
1984-08 → 1985-01
ended
|
CR21 5F | — | |
| 78103-87006 note |
Rod, Accelerator Link
1983-12 → 1984-08
ended
|
CR21 | — | |
| 78103-87006 note |
Rod, Accelerator Link
1984-08 → 1985-01
ended
|
CR21 5F | — | |
| 78103-87007 note |
Rod, Accelerator Link
1983-12 → 1984-08
ended
|
CR26 V4D | — | |
| 78103-87007 |
Rod, Accelerator Link
1984-08 → 1985-01
ended
|
CR26 | — | |
| 78120A — Spring, Compression (FOR ACCELERATOR LINK ROD) | ||||
| 90508-20061 |
Spring, Compression (FOR ACCELERATOR LINK ROD)
1982-11 → 1983-09
ended
|
CR2#,KR26,YR2# | ¥520 | |
| 90508-20061 |
Spring, Compression (FOR ACCELERATOR LINK ROD)
1983-09 → 1988-08
ended
|
YR21,3# 4FC | ¥520 | |
| 90508-20061 |
Spring, Compression (FOR ACCELERATOR LINK ROD)
1983-09 → 1988-08
ended
|
CR2#,30,36,KR26,YR20,26,28 | ¥520 | |
| 90508-23078 |
Spring, Compression (FOR ACCELERATOR LINK ROD)
1983-09 → 1988-08
ended
|
YR21,3# 5F | ¥240 | |
| 78120B — Bush (FOR ACCELERATOR LINK ROD) | ||||
| 78118-87001 |
Bush (FOR ACCELERATOR LINK ROD)
1982-11 → 1988-08
ended
|
CR2#,30,36,KR26,YR2#,3# | ¥190 | |
| 78168B — Bush, Accelerator Control NO.1 Bellcrank | ||||
| 78168-87001 note |
Bush, Accelerator Control NO.1 Bellcrank
1983-12 → 1984-08
ended
|
CR21;CR26 V4D | ¥260 | |
| 78168-87001 |
Bush, Accelerator Control NO.1 Bellcrank
1984-08 → 1988-08
ended
|
CR21,26,28,30,36 5F | ¥260 | |
| 78174 — Arm, Accelerator Link, NO.2 | ||||
| 78174-87001 |
Arm, Accelerator Link, NO.2
1983-12 → 1984-08
ended
|
CR21;CR26 V4D | — | |
| 78174-87001 |
Arm, Accelerator Link, NO.2
1984-08 → 1985-08
ended
|
CR21,26 5F | — | |
| 78174-87002 |
Arm, Accelerator Link, NO.2
1985-08 → 1988-08
ended
|
CR21,26,28,30,36 5F | ¥440 | |
| 78180 — Wire Assy, Accelerator | ||||
| 78180-87008 |
Wire Assy, Accelerator
1982-11 → 1988-08
ended
|
YR20,26,28 | ¥7,100 | |
| 78180-87009 |
Wire Assy, Accelerator
1982-11 → 1985-08
ended
|
CR2# | ¥5,900 | |
| 78180-87010 |
Wire Assy, Accelerator
1982-11 → 1988-08
ended
|
KR26 | ¥6,600 | |
| 78180-87011 |
Wire Assy, Accelerator
1983-05 → 1988-08
ended
|
YR21,3# | ¥6,600 | |
| 78180-87012 |
Wire Assy, Accelerator
1985-08 → 1988-08
ended
|
CR2#,3# | ¥7,400 | |
| 78184B — Bracket, Accelerator Control Cable | ||||
| 78184-87004 |
Bracket, Accelerator Control Cable
1982-11 → 1985-08
ended
|
CR2# | — | |
| 78184-87005 |
Bracket, Accelerator Control Cable
1983-05 → 1988-08
ended
|
YR21,3# | ¥1,350 | |
| 78184-87006 |
Bracket, Accelerator Control Cable
1985-08 → 1988-08
ended
|
CR2#,3# | ¥1,060 | |
| 78184-95J00 |
Bracket, Accelerator Control Cable
1982-11 → 1988-08
ended
|
YR20,26,28 | ¥1,300 | |
| 78189 — Bolt, Accelerator Pedal Stopper | ||||
| 91131-40835 |
Bolt, Accelerator Pedal Stopper
1982-11 → 1988-08
ended
|
KR26,YR2# | ¥140 | |
| 91131-40850 |
Bolt, Accelerator Pedal Stopper
1982-11 → 1988-08
ended
|
CR2#,37 | ¥120 | |
| 78198A — Protector, Accelerator Control Cable | ||||
| 78198-87001 |
Protector, Accelerator Control Cable
1983-06 → 1988-08
ended
|
CR2#,3# | ¥310 | |
| 82991-87002 |
Protector, Accelerator Control Cable
1982-11 → 1983-06
ended
|
CR2# | — | |
| 78410 — Cable Assy, Throttle Control | ||||
| 78401-87001 note |
Cable Assy, Throttle Control
1983-12 → 1984-08
ended
|
CR2# | ¥3,440 | |
| 78401-87001 |
Cable Assy, Throttle Control
1984-08 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥3,440 | |
| 78410C — Knob, Throttle Cable | ||||
| 78411-87001 note |
Knob, Throttle Cable
1983-12 → 1984-08
ended
|
CR2# | ¥940 | |
| 78411-87001 |
Knob, Throttle Cable
1984-08 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥940 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
