Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

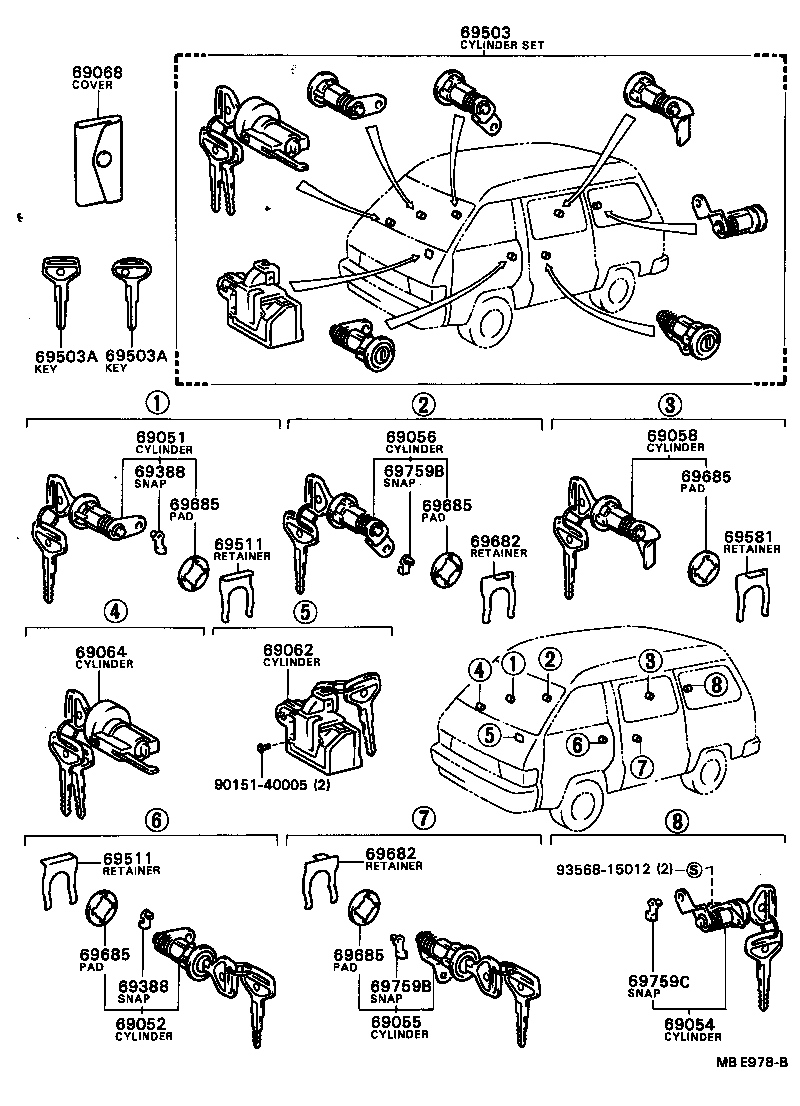

Exploded illustration MBE978B 69503 — CYLINDER SET, LOCK (17 parts) 69068 — COVER SUB-ASSY, KEY (1 parts) 69503A — KEY, BLANK (3 parts) 69503A — KEY, BLANK (3 parts) 69058 — CYLINDER & KEY SET, FUEL FILLER LID (2 parts) 69051 — CYLINDER & KEY SET, DOOR LOCK, RH (3 parts) 69056 — CYLINDER & KEY SET, REAR DOOR LOCK, RH (3 parts) 69388 — SNAP, ROD(FOR DOOR LOCK) (6 parts) 69759B — SNAP, REAR DOOR LOCK CYLINDER (6 parts) 69685 — PAD, LOCK CYLINDER (2 parts) 69685 — PAD, LOCK CYLINDER (2 parts) 69685 — PAD, LOCK CYLINDER (2 parts) 69581 — RETAINER, FUEL FILLER LID CYLINDER (2 parts) 69682 — RETAINER, LOCK CYLINDER (2 parts) 69511 — RETAINER, FRONT DOOR LOCK CYLINDER (1 parts) 69062 — CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK (6 parts) 69064 — CYLINDER & KEY SET, IGNITION SWITCH LOCK (2 parts) 9015140005 — not listed in this catalogue 69682 — RETAINER, LOCK CYLINDER (2 parts) 69511 — RETAINER, FRONT DOOR LOCK CYLINDER (1 parts) 9356815012 — not listed in this catalogue 69685 — PAD, LOCK CYLINDER (2 parts) 69685 — PAD, LOCK CYLINDER (2 parts) 69759C — SNAP, BACK DOOR LOCK CYLINDER (3 parts) 69388 — SNAP, ROD(FOR DOOR LOCK) (6 parts) 69759B — SNAP, REAR DOOR LOCK CYLINDER (6 parts) 69055 — CYLINDER & KEY SET, REAR DOOR LOCK, LH (3 parts) 69052 — CYLINDER & KEY SET, DOOR LOCK, LH (3 parts) 69054 — CYLINDER & KEY SET, BACK DOOR LOCK (3 parts)
MBE978B · 27 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
69051 — Cylinder & Key Set, Door Lock, RH
69051-87003 Cylinder & Key Set, Door Lock, RH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥3,500
69051-87005 Cylinder & Key Set, Door Lock, RH
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,480
69051-87007 Cylinder & Key Set, Door Lock, RH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,520
69052 — Cylinder & Key Set, Door Lock, LH
69052-87003 Cylinder & Key Set, Door Lock, LH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥2,880
69052-87005 Cylinder & Key Set, Door Lock, LH
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,480
69052-87007 Cylinder & Key Set, Door Lock, LH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,520
69054 — Cylinder & Key Set, Back Door Lock
69055-87005 Cylinder & Key Set, Back Door Lock
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥3,760
69055-87007 Cylinder & Key Set, Back Door Lock
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,780
69055-87009 Cylinder & Key Set, Back Door Lock
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,740
69055 — Cylinder & Key Set, Rear Door Lock, LH
69054-87001 Cylinder & Key Set, Rear Door Lock, LH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥3,500
69054-87003 Cylinder & Key Set, Rear Door Lock, LH
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,540
69054-87005 Cylinder & Key Set, Rear Door Lock, LH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,740
69056 — Cylinder & Key Set, Rear Door Lock, RH
69053-87003 Cylinder & Key Set, Rear Door Lock, RH
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D ¥3,500
69053-87005 Cylinder & Key Set, Rear Door Lock, RH
1984-08 → 1987-08 ended
CR26,27,36,KR26,YR26 V5D ¥3,480
69053-87007 Cylinder & Key Set, Rear Door Lock, RH
1987-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥3,620
69058 — Cylinder & Key Set, Fuel Filler Lid
69058-87005 Cylinder & Key Set, Fuel Filler Lid
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥5,700
69058-87005 Cylinder & Key Set, Fuel Filler Lid
1984-08 → 1986-08 ended
CR2#,36,KR26,YR2#,30 B,D,G,N,R ¥5,700
69062 — Cylinder & Key Set, Glove Compartment Lock
69056-87001-02 note Cylinder & Key Set, Glove Compartment Lock
1984-08 → 1985-08 ended
YR20,21 07S ¥6,800
69056-87001-03 note Cylinder & Key Set, Glove Compartment Lock
1982-11 → 1984-08 ended
YR20,21 07S ¥6,800
69056-87001-04 note Cylinder & Key Set, Glove Compartment Lock
1984-08 → 1985-08 ended
YR20,21 07S ¥6,800
69056-87001-05 note Cylinder & Key Set, Glove Compartment Lock
1982-11 → 1984-08 ended
YR20,21 07S ¥6,800
69056-87001-06 note Cylinder & Key Set, Glove Compartment Lock
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥6,800
69056-87001-14 note Cylinder & Key Set, Glove Compartment Lock
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥6,800
69064 — Cylinder & Key Set, Ignition Switch Lock
69057-87001 Cylinder & Key Set, Ignition Switch Lock
1982-11 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,700
69057-87003 Cylinder & Key Set, Ignition Switch Lock
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,700
69068 — Cover Sub-assy, Key
69555-20010 Cover Sub-assy, Key
1982-11 → 1988-08 ended
CR21,30,37,YR20,21,30 ¥780
69388 — Snap, Rod(FOR DOOR LOCK)
69759-20080 note Snap, Rod(FOR DOOR LOCK)
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥280
69759-20090 note Snap, Rod(FOR DOOR LOCK)
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥280
69759-24080 note Snap, Rod(FOR DOOR LOCK)
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥200
69759-24090 note Snap, Rod(FOR DOOR LOCK)
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥180
69759-30040 note Snap, Rod(FOR DOOR LOCK)
1987-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥320
69759-30050 note Snap, Rod(FOR DOOR LOCK)
1987-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥350
69503 — Cylinder Set, Lock
69005-87021-03 note Cylinder Set, Lock
1982-11 → 1984-08 ended
YR20,21 07S ¥30,600
69005-87021-05 note Cylinder Set, Lock
1982-11 → 1984-08 ended
YR20,21 07S ¥30,600
69005-87022 Cylinder Set, Lock
1982-11 → 1984-08 ended
CR26,KR26,YR26 V4D;CR21,YR20,21 08S,09S ¥30,500
69005-87023 Cylinder Set, Lock
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D —
69005-87024-04 note Cylinder Set, Lock
1987-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥18,800
69005-87024-06 note Cylinder Set, Lock
1987-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥18,800
69005-87028-02 note Cylinder Set, Lock
1984-08 → 1985-08 ended
YR20,21 07S ¥20,100
69005-87028-04 note Cylinder Set, Lock
1984-08 → 1985-08 ended
YR20,21 07S ¥20,100
69005-87028-06 note Cylinder Set, Lock
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 Q ¥20,100
69005-87028-14 note Cylinder Set, Lock
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 Q ¥20,100
69005-87029 Cylinder Set, Lock
1986-08 → 1987-08 ended
YR20 28,30,YR21,28,3# HRF 05S,06S,08S +7 ¥16,900
69005-87029 Cylinder Set, Lock
1984-08 → 1986-08 ended
CR21,30,YR20,21,30 E ¥16,900
69005-87030 Cylinder Set, Lock
1984-08 → 1986-08 ended
CR26,36,KR26,YR26 V4D;CR21,27,28,30,YR20,21,28,30 B,D,G,N ¥19,400
69005-87031 Cylinder Set, Lock
1984-08 → 1986-08 ended
CR26,36,KR26,YR26 V5D ¥22,100
69005-87037 Cylinder Set, Lock
1986-08 → 1987-08 ended
CR26,27,36,KR26,YR26 V5D ¥18,200
69005-87039 Cylinder Set, Lock
1987-08 → 1988-08 ended
YR20 28,30,37,YR21,28,3# HRF 05S,06S,08S +7 ¥15,300
69005-87040 Cylinder Set, Lock
1987-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥18,100
69503A — Key, Blank
90999-00067 note Key, Blank
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,550
90999-00071 note Key, Blank
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 07S ¥1,550
90999-00124 note Key, Blank
1986-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,060
69511 — Retainer, Front Door Lock Cylinder
69511-32010 Retainer, Front Door Lock Cylinder
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥160
69581 — Retainer, Fuel Filler Lid Cylinder
69512-87001 Retainer, Fuel Filler Lid Cylinder
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥140
69512-87001 Retainer, Fuel Filler Lid Cylinder
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥140
69682 — Retainer, Lock Cylinder
69512-87001 Retainer, Lock Cylinder
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3#;CR26,27,36,KR26,YR26 V4D ¥140
69512-87001 Retainer, Lock Cylinder
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥140
69685 — Pad, Lock Cylinder
69513-87001 Pad, Lock Cylinder
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥350
69513-87001 Pad, Lock Cylinder
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥350
69759B — Snap, Rear Door Lock Cylinder
69759-20090 note Snap, Rear Door Lock Cylinder
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥280
69759-20090 note Snap, Rear Door Lock Cylinder
1984-08 → 1987-08 ended
CR26,27,36,KR26,YR26 V5D ¥280
69759-24080 note Snap, Rear Door Lock Cylinder
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D ¥200
69759-24090 note Snap, Rear Door Lock Cylinder
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥180
69759-30050 note Snap, Rear Door Lock Cylinder
1987-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥350
69759-30050 note Snap, Rear Door Lock Cylinder
1987-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥350
69759C — Snap, Back Door Lock Cylinder
69759-20090 Snap, Back Door Lock Cylinder
1984-08 → 1987-08 ended
CR2#,3#,KR26,YR2#,3# ¥280
69759-24090 Snap, Back Door Lock Cylinder
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥180
69759-30050 Snap, Back Door Lock Cylinder
1987-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
