Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

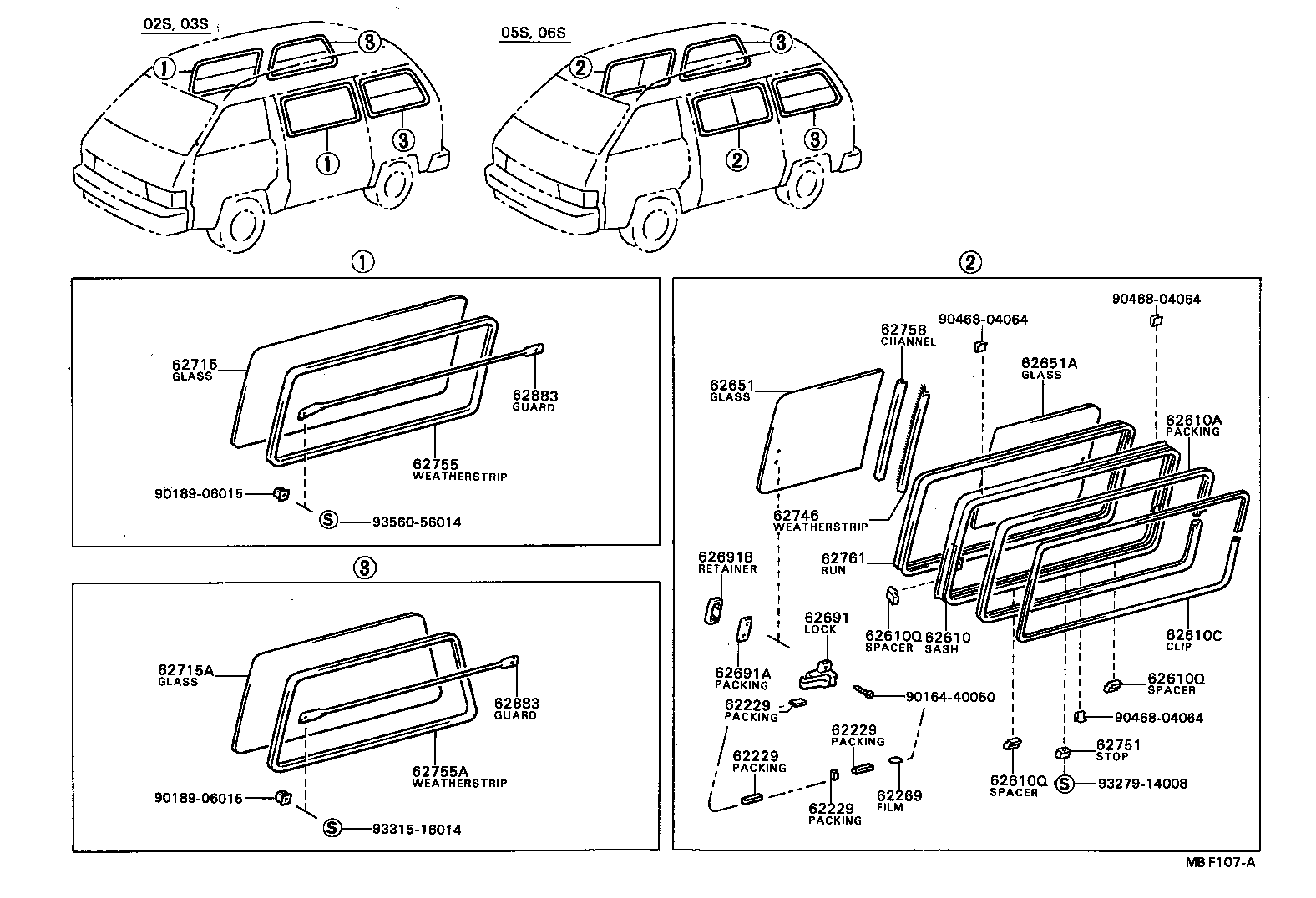

Exploded illustration MBF107A 9046804064 — not listed in this catalogue 9046804064 — not listed in this catalogue 62758 — CHANNEL, SIDE WINDOW GLASS, NO.1 (2 parts) 62651A — GLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE) (9 parts) 62715 — GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE) (3 parts) 62651 — GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE) (9 parts) 62883 — GUARD ASSY, SIDE WINDOW (2 parts) 62610A — PACKING, SIDE WINDOW OUTER SASH, NO.1 (3 parts) 62755 — WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE) (3 parts) 9018906015 — not listed in this catalogue 62746 — WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1 (2 parts) 9356056014 — not listed in this catalogue 62691B — RETAINER, SIDE WINDOW LOCK, NO.1 (4 parts) 62761 — RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE) (10 parts) 62691 — LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE) (2 parts) 62610Q — SPACER, SIDE WINDOW FRAME (4 parts) 62610C — CLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE) (13 parts) 62610 — SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE) (5 parts) 62715A — GLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE) (6 parts) 62691A — PACKING, SIDE WINDOW LOCK, NO.1 (2 parts) 62610Q — SPACER, SIDE WINDOW FRAME (4 parts) 9016440050 — not listed in this catalogue 62883 — GUARD ASSY, SIDE WINDOW (2 parts) 62229 — PACKING, SIDE WINDOW (8 parts) 9046804064 — not listed in this catalogue 62229 — PACKING, SIDE WINDOW (8 parts) 62751 — STOP, SIDE WINDOW FIX GLASS (2 parts) 62229 — PACKING, SIDE WINDOW (8 parts) 62755A — WEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE) (5 parts) 62610Q — SPACER, SIDE WINDOW FRAME (4 parts) 9327914008 — not listed in this catalogue 62269 — FILM, SIDE WINDOW FRAME, RH (2 parts) 9018906015 — not listed in this catalogue 62229 — PACKING, SIDE WINDOW (8 parts) 9331516014 — not listed in this catalogue
MBF107A · 26 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
96 parts on this figure
Part number Description Fitment Price
62229 — Packing, Side Window
62229-87001 note Packing, Side Window
1982-11 → 1983-01 ended
CR26,KR26,YR26 05S,06S ¥210
62229-87001 note Packing, Side Window
1982-11 → 1983-01 ended
YR20 ¥210
62229-87001 note Packing, Side Window
1983-01 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥210
62229-87001 note Packing, Side Window
1983-01 → 1988-08 ended
CR21,30,YR20,21,30 ¥210
62229-87002 note Packing, Side Window
1983-01 → 1988-08 ended
CR21,30,YR20,21,30 ¥210
62229-87002 note Packing, Side Window
1983-01 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥210
62229-95J00 note Packing, Side Window
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥120
62229-95J00 note Packing, Side Window
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥120
62269 — Film, Side Window Frame, RH
62269-87001 Film, Side Window Frame, RH
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥210
62269-87001 Film, Side Window Frame, RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥210
62610 — Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
62707-87001 note Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥11,800
62707-87002 note Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR28,37,YR28,36;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥11,800
67043-87002 note Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D (05S,06S) ¥22,500
67044-87001 note Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥11,800
67044-87002 note Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥22,500
62610A — Packing, Side Window Outer Sash, NO.1
62119-87001 note Packing, Side Window Outer Sash, NO.1
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3#;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥2,360
62346-87001 note Packing, Side Window Outer Sash, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# 05S,06S,07S,08S,09S ¥2,260
67527-87001 note Packing, Side Window Outer Sash, NO.1
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V5D (05S,06S) ¥2,260
62610C — Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
62282-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1982-11 → 1983-12 ended
CR21,YR20,21;CR26,KR26,YR26 V4D (05S,06S) ¥2,690
62282-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1983-12 → 1985-08 ended
CR27,YR20 D,N;CR26,KR26,YR26 V4D ¥2,690
62282-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1983-12 → 1985-08 ended
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 ¥2,690
62282-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1985-08 → 1988-08 ended
CR21,28,37,YR20,28,36 B,D;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥2,690
62282-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥2,690
62282-87002 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1983-12 → 1988-08 ended
CR21,30,YR20,21,30 E,G ¥5,800
63319-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1982-11 → 1983-12 ended
CR21,YR20,21;CR26,KR26,YR26 V4D (05S,06S) ¥5,100
63319-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1983-12 → 1985-08 ended
CR27,YR20 D,N;CR26,KR26,YR26 V4D ¥5,100
63319-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1983-12 → 1985-08 ended
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 ¥5,100
63319-87001 Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,KR26,YR26 V5D (05S,06S) ¥5,100
63319-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1985-08 → 1988-08 ended
CR21,28,37,YR20,28,36 B,D;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥5,100
63319-87001 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥5,100
63319-87002 note Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
1983-12 → 1988-08 ended
CR21,30,YR20,21,30 E,G ¥5,500
62610Q — Spacer, Side Window Frame
62918-87001 note Spacer, Side Window Frame
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥400
62918-87001 note Spacer, Side Window Frame
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥400
62918-87002 note Spacer, Side Window Frame
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥640
62918-87002 note Spacer, Side Window Frame
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥640
62651 — Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62281-87005 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V5D (05S,06S) ¥8,600
62712-87001 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 D,E,G,X ¥10,100
62712-87003 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥13,600
62712-87005 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR28,37,YR28,36;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥8,900
62712-87009 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥13,600
62733-87005 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 D,E,G,X ¥9,400
62733-87006 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥12,900
62733-87010 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥8,600
62733-87014 note Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥12,700
62651A — Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62113-87002 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 D,E,G,X ¥0
62113-87003 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥13,400
62113-87007 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR28,37,YR28,36;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥8,100
62113-87011 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥14,100
62287-87003 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V5D (05S,06S) ¥7,500
62288-87001 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 D,E,G,X ¥9,400
62288-87002 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥12,700
62288-87006 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥7,500
62288-87010 note Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥13,400
62691 — Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
62910-95702 Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28,36 05S,06S ¥820
62910-95702 Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥820
62691A — Packing, Side Window Lock, NO.1
62792-95A00 Packing, Side Window Lock, NO.1
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28,36 05S,06S ¥140
62792-95A00 Packing, Side Window Lock, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥140
62691B — Retainer, Side Window Lock, NO.1
62793-95704 Retainer, Side Window Lock, NO.1
1985-10 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28,36 05S,06S ¥660
62793-95704 Retainer, Side Window Lock, NO.1
1985-10 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥660
62793-95J00 Retainer, Side Window Lock, NO.1
1982-11 → 1985-10 ended
CR26,27,28,KR26,YR26,28 05S,06S ¥300
62793-95J00 Retainer, Side Window Lock, NO.1
1982-11 → 1985-10 ended
CR21,YR20,21 ¥300
62715 — Glass, Side Window, NO.1(FOR FIXED TYPE)
62711-87009 note Glass, Side Window, NO.1(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V4D (02S,03S) ¥13,600
68113-87001 note Glass, Side Window, NO.1(FOR FIXED TYPE)
1982-11 → 1988-08 ended
KR26 V5D 03S ¥9,300
68114-87009 note Glass, Side Window, NO.1(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 02S,03S ¥12,700
62715A — Glass, Side Window, NO.2(FOR FIXED TYPE)
62713-87007 note Glass, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥12,900
62714-87006 note Glass, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 D,E,G,X ¥14,700
62714-87007 note Glass, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥20,600
62714-87008 note Glass, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥12,900
62714-87009 note Glass, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR21,YR20,21 G ¥20,100
62714-87009 note Glass, Side Window, NO.2(FOR FIXED TYPE)
1985-10 → 1988-08 ended
CR30,YR30 ¥20,100
62746 — Weatherstrip, Side Window Glass Channel, NO.1
62253-87002 Weatherstrip, Side Window Glass Channel, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥1,010
62746-87001 Weatherstrip, Side Window Glass Channel, NO.1
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥1,010
62751 — Stop, Side Window Fix Glass
62751-95661 Stop, Side Window Fix Glass
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥370
62751-95661 Stop, Side Window Fix Glass
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥370
62755 — Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
62741-87002 note Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V4D (02S,03S) ¥6,500
68163-87002 note Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V4D (02S,03S) ¥6,400
68163-87002 Weatherstrip, Side Window, NO.1(FOR FIXED TYPE)
1982-11 → 1988-08 ended
KR26 V5D 03S ¥6,400
62755A — Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
67883-87001 note Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1986-07 ended
CR21,30,YR20,21,30 E,Q,X ¥8,800
67883-87001 note Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
1986-07 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥8,800
67883-87002 note Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1986-07 ended
CR21,30,YR20,21,30 D,G ¥6,100
67883-87002 Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥6,100
67883-87002 note Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
1986-07 → 1988-08 ended
CR21,YR20 D ¥6,100
62758 — Channel, Side Window Glass, NO.1
62232-87001 Channel, Side Window Glass, NO.1
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥2,350
67436-87002 Channel, Side Window Glass, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥2,600
62761 — Run, Side Window, NO.1(FOR SLIDE TYPE)
62755-87003 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1982-11 → 1984-03 ended
CR26,KR26,YR26 V5D (05S,06S) ¥5,700
62755-87004 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1984-03 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D (05S,06S) ¥5,700
62756-87001 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1982-11 → 1984-03 ended
CR21,YR20,21 ¥5,700
62756-87002 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1982-11 → 1984-03 ended
CR26,KR26,YR26 05S,06S ¥5,700
62756-87003 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1984-03 → 1988-08 ended
CR21,30,YR20,21,30 ¥5,700
62756-87004 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1984-03 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 05S,06S ¥5,700
68141-87002 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1982-11 → 1984-03 ended
CR21,YR20,21 ¥6,100
68141-87003 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1982-11 → 1984-03 ended
CR26,KR26,YR26 V4D (05S,06S) ¥6,100
68141-87004 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1984-03 → 1988-08 ended
CR21,30,YR20,21,30 ¥6,000
68141-87005 note Run, Side Window, NO.1(FOR SLIDE TYPE)
1984-03 → 1988-08 ended
CR28,37,YR28,36;CR26,27,36,KR26,YR26 V4D (05S,06S) ¥6,000
62883 — Guard Assy, Side Window
62884-87002 note Guard Assy, Side Window
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥2,860
62885-87002 note Guard Assy, Side Window
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V4D (02S,03S) ¥2,960
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
