Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

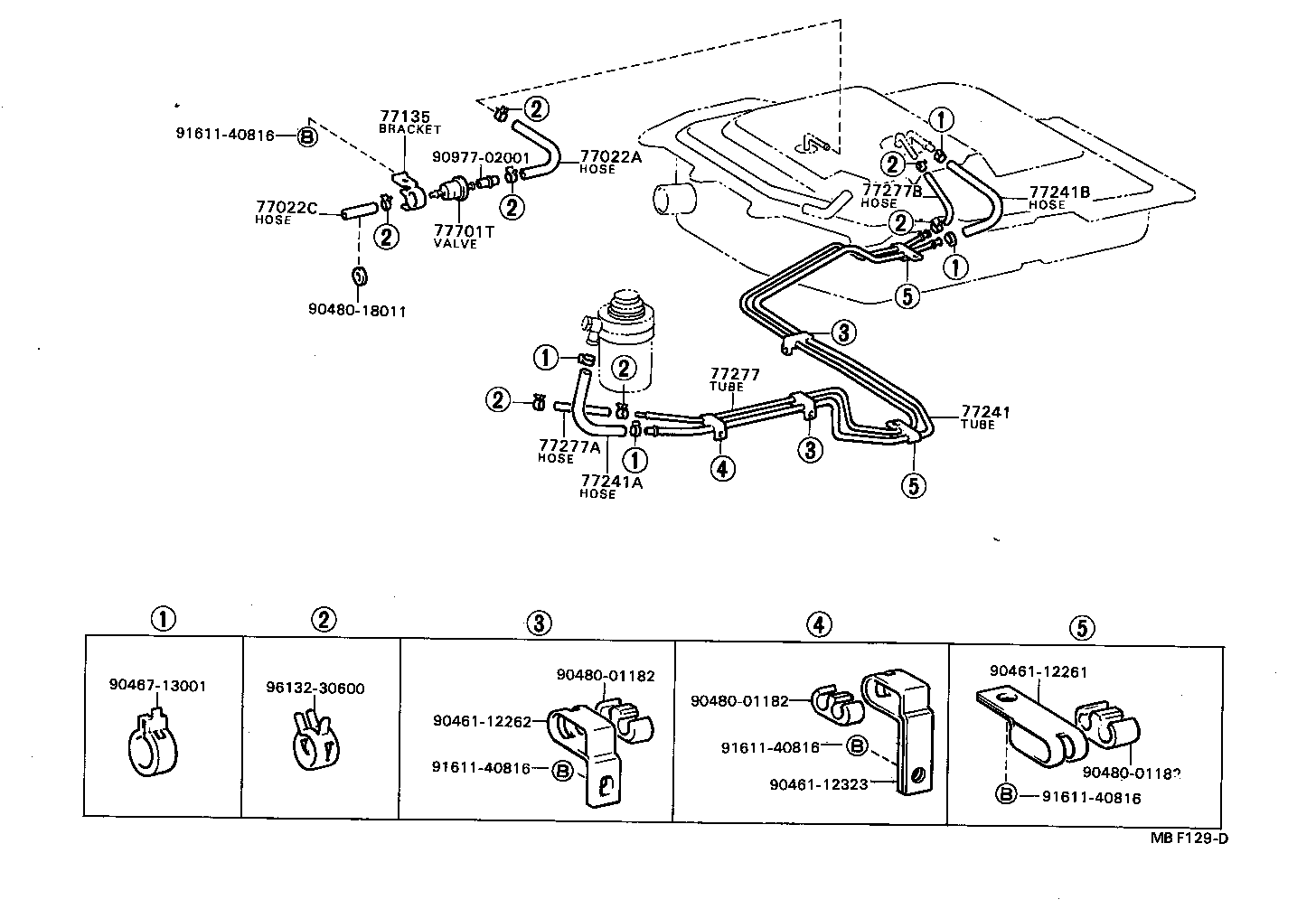

Exploded illustration MBF129D 77135 — BRACKET, CHECK VALVE (2 parts) 9161140816 — not listed in this catalogue 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (2 parts) 9097702001 — not listed in this catalogue 77277B — HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) (10 parts) 77241B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) (8 parts) 77022C — HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) (2 parts) 77701T — VALVE, CHECK (FOR MAIN FUEL TANK) (1 parts) 9048018011 — not listed in this catalogue 77277 — TUBE, FUEL RETURN, NO.1 (8 parts) 77241 — TUBE, FUEL MAIN, NO.1 (11 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (8 parts) 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (5 parts) 9046112261 — not listed in this catalogue 9048001182 — not listed in this catalogue 9046713001 — not listed in this catalogue 9613230600 — not listed in this catalogue 9048001182 — not listed in this catalogue 9046112262 — not listed in this catalogue 9161140816 — not listed in this catalogue 9161140816 — not listed in this catalogue 9048001182 — not listed in this catalogue 9046112323 — not listed in this catalogue 9161140816 — not listed in this catalogue
MBF129D · 10 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
77022A — Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06020 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1982-11 → 1987-02 ended
CR2#,3# ¥350
95333-06020 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1987-02 → 1988-08 ended
CR2#,3# ¥480
77022C — Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06010 note Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
1982-11 → 1987-02 ended
CR2#,3# ¥300
95333-06010 note Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
1987-02 → 1988-08 ended
CR2#,3# ¥300
77135 — Bracket, Check Valve
77277-28010 Bracket, Check Valve
1982-11 → 1984-06 ended
CR2# ¥730
77277-28011 Bracket, Check Valve
1984-06 → 1988-08 ended
CR2#,3# ¥740
77241 — Tube, Fuel Main, NO.1
77251-28030 Tube, Fuel Main, NO.1
1982-11 → 1982-12 ended
KR26,YR2# —
77251-28031 Tube, Fuel Main, NO.1
1982-12 → 1985-08 ended
KR26,YR20,26 ¥1,270
77251-28040 Tube, Fuel Main, NO.1
1982-11 → 1984-08 ended
CR2# —
77251-28041 Tube, Fuel Main, NO.1
1984-08 → 1988-08 ended
CR2# ¥1,470
77251-28050 Tube, Fuel Main, NO.1
1983-05 → 1988-08 ended
YR21 ¥1,470
77251-28060 Tube, Fuel Main, NO.1
1985-08 → 1986-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,070
77251-28061 Tube, Fuel Main, NO.1
1986-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,150
77251-28070 Tube, Fuel Main, NO.1
1985-10 → 1988-08 ended
CR3# ¥1,950
77251-28080 Tube, Fuel Main, NO.1
1985-10 → 1986-05 ended
YR30 ¥2,700
77251-28081 Tube, Fuel Main, NO.1
1986-05 → 1986-08 ended
YR30 —
77251-28082 Tube, Fuel Main, NO.1
1986-08 → 1988-08 ended
YR3# ¥2,490
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77279-28020 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-12 → 1988-08 ended
KR26,YR20,26,28 ¥1,020
95332-06020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-11 → 1982-12 ended
KR26,YR2# ¥350
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-11 → 1983-03 ended
CR26 ¥480
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1983-03 → 1987-02 ended
CR2#,3# ¥480
95333-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1987-02 → 1988-08 ended
CR2#,3# ¥660
77241B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1982-11 → 1983-10 ended
KR26,YR20,26 ¥350
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1983-10 → 1986-05 ended
KR26,YR20,26,28 ¥350
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-05 → 1986-11 ended
KR26,YR26 ¥350
95332-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1982-11 → 1984-08 ended
CR2# ¥480
95332-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1984-08 → 1987-02 ended
CR2#,3# ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-11 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-05 → 1986-11 ended
YR20 HRF 5F G;YR20 +4 ¥480
95333-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1987-02 → 1988-08 ended
CR2#,3# ¥660
77277 — Tube, Fuel Return, NO.1
77255-28010 Tube, Fuel Return, NO.1
1982-11 → 1985-08 ended
KR26,YR20,26 ¥1,070
77255-28020 Tube, Fuel Return, NO.1
1982-11 → 1984-08 ended
CR2# —
77255-28021 Tube, Fuel Return, NO.1
1984-08 → 1988-08 ended
CR21,26,27 ¥1,350
77255-28030 Tube, Fuel Return, NO.1
1983-05 → 1986-08 ended
YR21,30 ¥1,350
77255-28031 Tube, Fuel Return, NO.1
1986-08 → 1988-08 ended
YR21,3# ¥1,740
77255-28040 Tube, Fuel Return, NO.1
1985-08 → 1986-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,450
77255-28041 Tube, Fuel Return, NO.1
1986-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,290
77255-28050 Tube, Fuel Return, NO.1
1985-10 → 1988-08 ended
CR3# ¥1,550
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-73030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1983-05 → 1988-08 ended
YR21,30 ¥2,250
90447-12038 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1985-08 ended
CR26 V4D ¥270
90447-12063 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1985-08 → 1988-08 ended
CR2#,30,36 ¥880
95332-04030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1987-02 ended
YR20,26 ¥520
95332-04040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1987-02 ended
KR26 ¥670
95332-06040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1985-08 ended
CR2# ¥760
95333-04030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥660
95333-04040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
KR26 ¥670
77277B — Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
95332-04030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1982-11 → 1986-11 ended
KR26,YR20,26,28 ¥520
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-10 → 1984-08 ended
CR2#,YR21 ¥350
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1984-08 → 1986-05 ended
YR21,30 ¥350
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-08 → 1983-10 ended
CR2#,YR21 ¥350
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1982-11 → 1983-08 ended
CR2#,YR21 ¥350
95332-06030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1984-08 → 1987-02 ended
CR2#,3# ¥590
95333-04022 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1986-11 → 1987-02 ended
YR20 HRF 5F G;YR20 +4 ¥520
95333-04030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥660
95333-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1986-05 → 1988-08 ended
YR21,3# ¥480
95333-06030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
CR2#,3# ¥580
77701T — Valve, Check (FOR MAIN FUEL TANK)
90917-10020 Valve, Check (FOR MAIN FUEL TANK)
1982-11 → 1988-08 ended
CR2#,3# ¥1,580
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
