Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

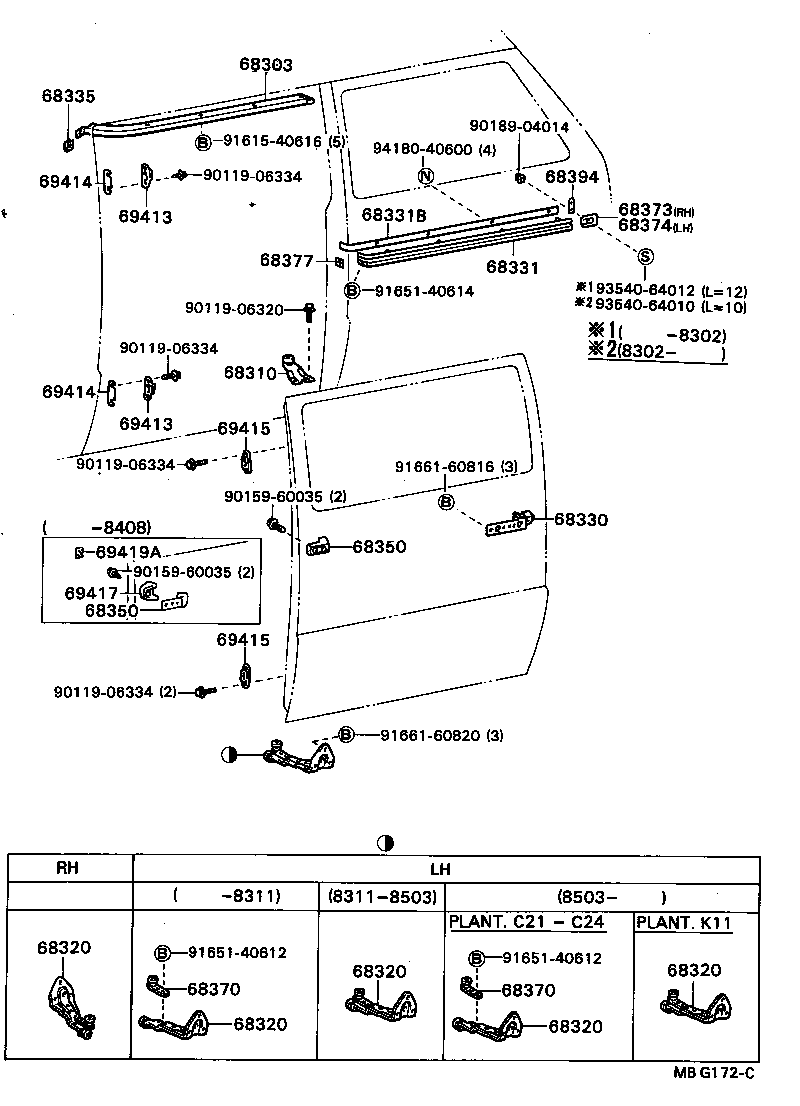

Exploded illustration MBG172C 68303 — RAIL SUB-ASSY, SLIDE DOOR, UPPER (2 parts) 68335 — PAD, SLIDE DOOR UPPER RAIL (2 parts) 9018904014 — not listed in this catalogue 9161540616 — not listed in this catalogue 9418040600 — not listed in this catalogue 69414 — SHIM, SLIDE DOOR DOWN STOP MALE (4 parts) 9011906334 — not listed in this catalogue 68394 — PROTECTOR, SLIDE RAIL END MOULDING (2 parts) 68373 — MOULDING, SLIDE RAIL END, RH (1 parts) 68331B — PAD, SLIDE DOOR CENTER RAIL (2 parts) 69413 — STOP, SLIDE DOOR DOWN MALE (4 parts) 68374 — MOULDING, SLIDE RAIL END, LH (1 parts) 68377 — PAD, SLIDE DOOR CENTER RAIL, FRONT (2 parts) 68331 — RAIL, SLIDE DOOR, CENTER (2 parts) 9354064012 — not listed in this catalogue 9165140614 — not listed in this catalogue 9354064010 — not listed in this catalogue 9011906320 — not listed in this catalogue 9011906334 — not listed in this catalogue 68310 — ROLLER ASSY, SLIDE DOOR, UPPER (2 parts) 69414 — SHIM, SLIDE DOOR DOWN STOP MALE (4 parts) 69413 — STOP, SLIDE DOOR DOWN MALE (4 parts) 69415 — STOPPER, SLIDE DOOR DOWN FEMALE (7 parts) 9011906334 — not listed in this catalogue 9166160816 — not listed in this catalogue 9015960035 — not listed in this catalogue 68330 — ROLLER ASSY, SLIDE DOOR, CENTER (4 parts) 68350 — STOPPER ASSY, SLIDE DOOR OPEN (4 parts) 69419A — PLUG, SLIDE DOOR OPEN STOP COVER (4 parts) 9015960035 — not listed in this catalogue 69417 — COVER, SLIDE DOOR OPEN STOP (4 parts) 68350 — STOPPER ASSY, SLIDE DOOR OPEN (4 parts) 69415 — STOPPER, SLIDE DOOR DOWN FEMALE (7 parts) 9011906334 — not listed in this catalogue 9166160820 — not listed in this catalogue 68320 — ROLLER ASSY, SLIDE DOOR, LOWER (6 parts) 9165140612 — not listed in this catalogue 9165140612 — not listed in this catalogue 68320 — ROLLER ASSY, SLIDE DOOR, LOWER (6 parts) 68320 — ROLLER ASSY, SLIDE DOOR, LOWER (6 parts) 68370 — ROLLER ASSY, SLIDE DOOR, LOWER SUB (3 parts) 68370 — ROLLER ASSY, SLIDE DOOR, LOWER SUB (3 parts) 68320 — ROLLER ASSY, SLIDE DOOR, LOWER (6 parts) 68320 — ROLLER ASSY, SLIDE DOOR, LOWER (6 parts)
MBG172C · 27 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
68303 — Rail Sub-assy, Slide Door, Upper
68308-87001 note Rail Sub-assy, Slide Door, Upper
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥2,900
68309-87001 note Rail Sub-assy, Slide Door, Upper
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,900
68310 — Roller Assy, Slide Door, Upper
68310-87001 note Roller Assy, Slide Door, Upper
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥2,020
68320-87001 note Roller Assy, Slide Door, Upper
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,020
68320 — Roller Assy, Slide Door, Lower
68350-87001 note Roller Assy, Slide Door, Lower
1982-11 → 1983-11 ended
CR26,KR26,YR26 V5D ¥3,210
68350-87002 note Roller Assy, Slide Door, Lower
1983-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥3,050
68360-87001 note Roller Assy, Slide Door, Lower
1982-11 → 1983-11 ended
CR2#,KR26,YR2# ¥3,070
68360-87001 note Roller Assy, Slide Door, Lower
1985-03 → 1988-08 ended
YR20 # HRF 5F +5 ¥3,070
68360-87002 note Roller Assy, Slide Door, Lower
1983-11 → 1985-03 ended
CR2#,KR26,YR2# ¥3,050
68360-87002 note Roller Assy, Slide Door, Lower
1985-03 → 1988-08 ended
YR20 # HRF 5F +5 ¥3,050
68330 — Roller Assy, Slide Door, Center
68330-87001 note Roller Assy, Slide Door, Center
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D ¥5,700
68330-87002 note Roller Assy, Slide Door, Center
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥5,800
68340-87001 note Roller Assy, Slide Door, Center
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥5,700
68340-87002 note Roller Assy, Slide Door, Center
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,800
68331 — Rail, Slide Door, Center
68303-87001 note Rail, Slide Door, Center
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥11,600
68304-87003 note Rail, Slide Door, Center
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥11,400
68331B — Pad, Slide Door Center Rail
68367-87002 Pad, Slide Door Center Rail
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥270
68367-87002 Pad, Slide Door Center Rail
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥270
68335 — Pad, Slide Door Upper Rail
69243-87002 Pad, Slide Door Upper Rail
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥330
69243-87002 Pad, Slide Door Upper Rail
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥330
68350 — Stopper Assy, Slide Door Open
69418-87001 Stopper Assy, Slide Door Open
1982-11 → 1984-08 ended
CR21,YR20,21;CR26,KR26,YR26 V4D ¥1,920
69418-87001 Stopper Assy, Slide Door Open
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D ¥1,920
69418-87003 Stopper Assy, Slide Door Open
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥2,500
69418-87003 Stopper Assy, Slide Door Open
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥2,500
68370 — Roller Assy, Slide Door, Lower Sub
68370-87001 Roller Assy, Slide Door, Lower Sub
1982-11 → 1983-11 ended
CR21,YR20,21;CR26,KR26,YR26 V4D ¥1,450
68370-87001 Roller Assy, Slide Door, Lower Sub
1982-11 → 1983-11 ended
CR26,KR26,YR26 V5D ¥1,450
68370-87001 note Roller Assy, Slide Door, Lower Sub
1985-03 → 1988-08 ended
YR20 # HRF 5F +5 ¥1,450
68373 — Moulding, Slide Rail End, RH
68373-87001 Moulding, Slide Rail End, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥1,200
68374 — Moulding, Slide Rail End, LH
68374-87001 Moulding, Slide Rail End, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,200
68377 — Pad, Slide Door Center Rail, Front
68377-87001 Pad, Slide Door Center Rail, Front
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V5D ¥170
68377-87001 Pad, Slide Door Center Rail, Front
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 V4D;CR21,28,30,37,YR20,21,28,3# ¥170
68394 — Protector, Slide Rail End Moulding
68394-87002 Protector, Slide Rail End Moulding
1982-11 → 1983-09 ended
CR21,YR20,21;CR26,KR26,YR26 V4D ¥390
68394-87002 Protector, Slide Rail End Moulding
1982-11 → 1983-09 ended
CR26,KR26,YR26 V5D ¥390
69413 — Stop, Slide Door Down Male
69416-87001 Stop, Slide Door Down Male
1982-11 → 1988-08 ended
CR26,27,YR26 V4D N;CR21,30,36,YR20,21,30 E,N,Q,X ¥1,350
69416-87001 Stop, Slide Door Down Male
1982-11 → 1988-08 ended
CR26,27,YR26 V5D N ¥1,350
69416-87001 Stop, Slide Door Down Male
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V4D (D,R);CR21,28,30,37,YR20,21,28,3# B,D,G ¥1,350
69416-87001 Stop, Slide Door Down Male
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V5D D ¥1,350
69414 — Shim, Slide Door Down Stop Male
69418-95700 Shim, Slide Door Down Stop Male
1982-11 → 1988-08 ended
CR26,27,YR26 V4D N;CR21,30,36,YR20,21,30 E,N,Q,X ¥130
69418-95700 Shim, Slide Door Down Stop Male
1982-11 → 1988-08 ended
CR26,27,YR26 V5D N ¥130
69418-95700 Shim, Slide Door Down Stop Male
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V4D (D,R);CR21,28,30,37,YR20,21,28,3# B,D,G ¥130
69418-95700 Shim, Slide Door Down Stop Male
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V5D D ¥130
69415 — Stopper, Slide Door Down Female
69415-87001 Stopper, Slide Door Down Female
1982-11 → 1988-08 ended
CR26,27,YR26 V4D N;CR21,30,36,YR20,21,30 E,N,Q,X ¥1,470
69415-87001 note Stopper, Slide Door Down Female
1983-12 → 1988-08 ended
CR26,36,KR26,YR26 V4D (D,R);CR21,28,30,37,YR20,21,28,3# B,D,G ¥1,470
69415-87001 note Stopper, Slide Door Down Female
1983-12 → 1988-08 ended
CR26,36,KR26,YR26 V4D (D,R);CR21,28,30,YR20,21,28,3# B,D,G ¥1,470
69415-87001 Stopper, Slide Door Down Female
1982-11 → 1988-08 ended
CR26,36,KR26,YR26 V5D D ¥1,470
69415-87001 Stopper, Slide Door Down Female
1982-11 → 1988-08 ended
CR26,27,YR26 V5D N ¥1,470
69415-87001 Stopper, Slide Door Down Female
1982-11 → 1983-12 ended
YR20,21 D,G;CR26,KR26,YR26 V4D (D,R) ¥1,470
69415-87002 note Stopper, Slide Door Down Female
1983-12 → 1988-08 ended
CR21,30,YR20,21,30 D,G;CR26,27,36,KR26,YR26 V4D ¥640
69417 — Cover, Slide Door Open Stop
69417-87001-03 note Cover, Slide Door Open Stop
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥300
69417-87001-03 note Cover, Slide Door Open Stop
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥300
69417-87001-05 note Cover, Slide Door Open Stop
1982-11 → 1984-08 ended
CR21,YR20,21;CR26,KR26,YR26 V4D ¥300
69417-87001-05 note Cover, Slide Door Open Stop
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D ¥300
69419A — Plug, Slide Door Open Stop Cover
69419-87001-03 note Plug, Slide Door Open Stop Cover
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥230
69419-87001-03 note Plug, Slide Door Open Stop Cover
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥230
69419-87001-05 note Plug, Slide Door Open Stop Cover
1982-11 → 1984-08 ended
CR21,YR20,21;CR26,KR26,YR26 V4D ¥230
69419-87001-05 note Plug, Slide Door Open Stop Cover
1982-11 → 1984-08 ended
CR26,KR26,YR26 V5D ¥230
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
