Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

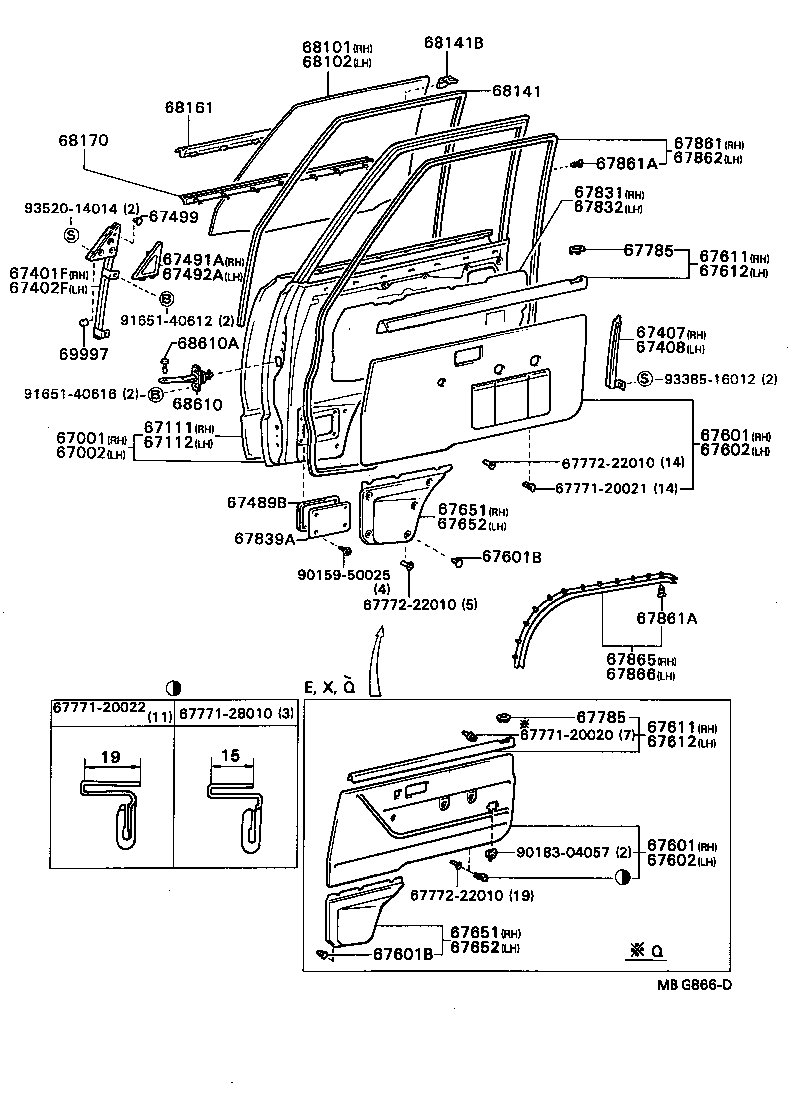

Exploded illustration MBG866D 68141B — CLIP, DOOR GLASS RUN (3 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (4 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (4 parts) 68141 — RUN, FRONT DOOR GLASS (5 parts) 68161 — WEATHERSTRIP, FRONT DOOR GLASS, OUTER (3 parts) 68170 — WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER (7 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (1 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (1 parts) 67861A — RETAINER(FOR FRONT DOOR WEATHERSTRIP) (1 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (9 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (4 parts) 9352014014 — not listed in this catalogue 67499 — RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH (1 parts) 67785 — HOLDER, FRONT DOOR LOCKING BUTTON COLLAR (6 parts) 67611 — BOARD, FRONT DOOR TRIM, UPPER RH (15 parts) 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (1 parts) 67612 — BOARD, FRONT DOOR TRIM, UPPER LH (15 parts) 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (6 parts) 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (1 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (8 parts) 9165140612 — not listed in this catalogue 67407 — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (1 parts) 68610A — PIN(FOR FRONT DOOR CHECK) (4 parts) 67408 — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (1 parts) 69997 — SPACER, FRONT DOOR GLASS GUIDE (2 parts) 9338516012 — not listed in this catalogue 9165140616 — not listed in this catalogue 68610 — CHECK ASSY, FRONT DOOR (2 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (4 parts) 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (44 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (7 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (4 parts) 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (41 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (7 parts) 6777222010 — not listed in this catalogue 6777120021 — not listed in this catalogue 67489B — PACKING, FRONT DOOR LOWER COVER (1 parts) 67651 — BOARD, FRONT DOOR TRIM, LOWER RH (12 parts) 67652 — BOARD, FRONT DOOR TRIM, LOWER LH (12 parts) 67839A — COVER, FRONT DOOR SERVICE HOLE, LOWER (1 parts) 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (7 parts) 9015950025 — not listed in this catalogue 6777222010 — not listed in this catalogue 67861A — RETAINER(FOR FRONT DOOR WEATHERSTRIP) (1 parts) 67865 — WEATHERSTRIP, FRONT DOOR, LOWER RH (4 parts) 67866 — WEATHERSTRIP, FRONT DOOR LOWER, LH (4 parts) 6777120022 — not listed in this catalogue 6777128010 — not listed in this catalogue 67785 — HOLDER, FRONT DOOR LOCKING BUTTON COLLAR (6 parts) 67611 — BOARD, FRONT DOOR TRIM, UPPER RH (15 parts) 6777120020 — not listed in this catalogue 67612 — BOARD, FRONT DOOR TRIM, UPPER LH (15 parts) 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (44 parts) 9018304057 — not listed in this catalogue 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (41 parts) 6777222010 — not listed in this catalogue 67651 — BOARD, FRONT DOOR TRIM, LOWER RH (12 parts) 67652 — BOARD, FRONT DOOR TRIM, LOWER LH (12 parts) 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (7 parts)
MBG866D · 46 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
253 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-87009 Panel Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D,R ¥52,000
67001-87010 Panel Sub-assy, Front Door, RH
1982-11 → 1983-09 ended
CR21,YR2# 4FC,5F ¥49,000
67001-87011 Panel Sub-assy, Front Door, RH
1983-09 → 1984-08 ended
CR21,YR2# 4FC,5F ¥49,000
67001-87012 Panel Sub-assy, Front Door, RH
1984-08 → 1985-08 ended
CR2#,YR2# E,G,N,Q,X ¥48,800
67001-87013 Panel Sub-assy, Front Door, RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥52,200
67001-87015 note Panel Sub-assy, Front Door, RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥52,200
67001-87015 note Panel Sub-assy, Front Door, RH
1985-10 → 1988-08 ended
CR30,YR30 ¥52,200
67002 — Panel Sub-assy, Front Door, LH
67002-87009 Panel Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D,R ¥52,000
67002-87010 Panel Sub-assy, Front Door, LH
1982-11 → 1983-09 ended
CR21,YR2# 4FC,5F ¥49,000
67002-87011 Panel Sub-assy, Front Door, LH
1983-09 → 1984-08 ended
CR21,YR2# 4FC,5F ¥49,000
67002-87012 Panel Sub-assy, Front Door, LH
1984-08 → 1985-08 ended
CR2#,YR2# E,G,N,Q,X ¥48,800
67002-87013 Panel Sub-assy, Front Door, LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥52,200
67002-87015 note Panel Sub-assy, Front Door, LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥52,200
67002-87015 note Panel Sub-assy, Front Door, LH
1985-10 → 1988-08 ended
CR30,YR30 ¥52,200
67111 — Panel, Front Door, Outer RH
67111-87004 Panel, Front Door, Outer RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥23,700
67111-87004 Panel, Front Door, Outer RH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥23,700
67111-87006 note Panel, Front Door, Outer RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥21,200
67111-87006 note Panel, Front Door, Outer RH
1985-10 → 1988-08 ended
CR30,YR30 ¥21,200
67112 — Panel, Front Door, Outer LH
67112-87003 Panel, Front Door, Outer LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥24,200
67112-87003 Panel, Front Door, Outer LH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥24,200
67112-87004 note Panel, Front Door, Outer LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥21,200
67112-87004 note Panel, Front Door, Outer LH
1985-10 → 1988-08 ended
CR30,YR30 ¥21,200
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-87001 Frame Sub-assy, Front Door, Front Lower RH
1982-11 → 1985-11 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥3,180
67401-87001 Frame Sub-assy, Front Door, Front Lower RH
1985-11 → 1988-08 ended
CR26,27,36,37,KR26,YR26 ¥3,180
67401-87001 Frame Sub-assy, Front Door, Front Lower RH
1986-08 → 1988-08 ended
YR36 ¥3,180
67401-87002 Frame Sub-assy, Front Door, Front Lower RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥3,180
67401-87003 Frame Sub-assy, Front Door, Front Lower RH
1985-11 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,200
67401-87003 note Frame Sub-assy, Front Door, Front Lower RH
1986-08 → 1988-08 ended
CR37,YR36 ¥3,200
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-87001 Frame Sub-assy, Front Door, Front Lower LH
1986-08 → 1988-08 ended
YR36 ¥3,030
67402-87001 Frame Sub-assy, Front Door, Front Lower LH
1982-11 → 1985-11 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥3,030
67402-87001 Frame Sub-assy, Front Door, Front Lower LH
1985-11 → 1988-08 ended
CR26,27,36,37,KR26,YR26 ¥3,030
67402-87002 note Frame Sub-assy, Front Door, Front Lower LH
1983-07 → 1985-08 ended
CR21,YR20,21 G ¥3,380
67402-87004 Frame Sub-assy, Front Door, Front Lower LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥3,030
67402-87005 note Frame Sub-assy, Front Door, Front Lower LH
1983-07 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥3,360
67402-87006 Frame Sub-assy, Front Door, Front Lower LH
1985-11 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,180
67402-87006 note Frame Sub-assy, Front Door, Front Lower LH
1986-08 → 1988-08 ended
CR37,YR36 ¥3,180
67407 — Frame Sub-assy, Front Door, Rear Lower RH
67403-87001 Frame Sub-assy, Front Door, Rear Lower RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,140
67408 — Frame Sub-assy, Front Door, Rear Lower LH
67404-87001 Frame Sub-assy, Front Door, Rear Lower LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,140
67489B — Packing, Front Door Lower Cover
67489-87001 Packing, Front Door Lower Cover
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥640
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-87001 Garnish, Front Door Lower Frame Bracket, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,830
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-87001 Garnish, Front Door Lower Frame Bracket, LH
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥2,830
67499 — Retainer, Front Door Lower Frame Bracket Garnish
67499-30010 Retainer, Front Door Lower Frame Bracket Garnish
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥510
67601 — Board Sub-assy, Front Door Trim, RH
67610-87021 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1984-08 ended
CR26,KR26,YR20,26 D,R —
67610-87022 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1984-08 ended
YR26 N —
67610-87023 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1984-08 ended
YR20,21 G —
67610-87025-03 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1983-08 ended
CR21,YR20,21 E,X ¥28,000
67610-87025-05 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1983-08 ended
CR21,YR20,21 E,X ¥28,000
67610-87025-13 note Board Sub-assy, Front Door Trim, RH
1983-08 → 1984-08 ended
CR21,YR20,21 E,X —
67610-87025-15 note Board Sub-assy, Front Door Trim, RH
1983-08 → 1984-08 ended
CR21,YR20,21 E,X —
67610-87025-23 note Board Sub-assy, Front Door Trim, RH
1984-04 → 1984-05 ended
YR20 HRF E —
67610-87027-03 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1983-12 ended
YR20,21 Q —
67610-87027-05 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1983-12 ended
YR20,21 Q —
67610-87030-03 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1983-08 ended
YR20,21 X —
67610-87030-05 note Board Sub-assy, Front Door Trim, RH
1982-11 → 1983-08 ended
YR20,21 X ¥28,000
67610-87030-13 note Board Sub-assy, Front Door Trim, RH
1983-08 → 1984-08 ended
YR20,21 X —
67610-87030-15 note Board Sub-assy, Front Door Trim, RH
1983-08 → 1984-08 ended
YR20,21 X —
67610-87032-04 note Board Sub-assy, Front Door Trim, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67610-87032-06 note Board Sub-assy, Front Door Trim, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67610-87035 note Board Sub-assy, Front Door Trim, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
67610-87036-03 note Board Sub-assy, Front Door Trim, RH
1983-12 → 1984-08 ended
YR20,21 Q ¥35,600
67610-87036-05 note Board Sub-assy, Front Door Trim, RH
1983-12 → 1984-08 ended
YR20,21 Q ¥39,100
67610-87043-05 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
KR26,YR20,26 D,R ¥10,000
67610-87043-15 note Board Sub-assy, Front Door Trim, RH
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥10,000
67610-87044-05 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# (05S,08S) (D,G,N) ¥8,600
67610-87044-05 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
CR26 D ¥8,600
67610-87044-15 note Board Sub-assy, Front Door Trim, RH
1985-08 → 1988-08 ended
YR20 MRF G;YR20 HRF +4 ¥8,600
67610-87045-04 note Board Sub-assy, Front Door Trim, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67610-87045-06 note Board Sub-assy, Front Door Trim, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67610-87046-03 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X ¥28,000
67610-87046-05 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X ¥28,000
67610-87048-03 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
YR20,21 Q ¥35,200
67610-87048-05 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
YR20,21 Q —
67610-87050-03 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
YR20,21 X —
67610-87050-05 note Board Sub-assy, Front Door Trim, RH
1984-08 → 1985-08 ended
YR20,21 X —
67610-87051-04 note Board Sub-assy, Front Door Trim, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥28,900
67610-87051-06 note Board Sub-assy, Front Door Trim, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥28,900
67610-87052-04 note Board Sub-assy, Front Door Trim, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥28,700
67610-87052-04 note Board Sub-assy, Front Door Trim, RH
1987-04 → 1987-09 ended
CR21,30,YR20,21,30 HRF E ¥28,700
67610-87052-04 note Board Sub-assy, Front Door Trim, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥28,700
67610-87052-06 note Board Sub-assy, Front Door Trim, RH
1986-12 → 1987-09 ended
CR21,30,YR20,21,30 HRF E ¥28,700
67610-87052-06 note Board Sub-assy, Front Door Trim, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥28,700
67610-87052-06 note Board Sub-assy, Front Door Trim, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥28,700
67610-87056-03 note Board Sub-assy, Front Door Trim, RH
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥35,200
67610-87056-05 note Board Sub-assy, Front Door Trim, RH
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
67610-87057-04 note Board Sub-assy, Front Door Trim, RH
1987-09 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥28,900
67610-87057-06 note Board Sub-assy, Front Door Trim, RH
1987-09 → 1988-08 ended
CR21,30,YR21,30 E ¥28,900
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-10017-02 note Clip(FOR FRONT DOOR TRIM BOARD)
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥180
90467-10017-03 note Clip(FOR FRONT DOOR TRIM BOARD)
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥180
90467-10017-03 note Clip(FOR FRONT DOOR TRIM BOARD)
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥180
90467-10017-05 note Clip(FOR FRONT DOOR TRIM BOARD)
1982-11 → 1984-08 ended
CR21,YR2# 4FC,5F ¥180
90467-10017-14 note Clip(FOR FRONT DOOR TRIM BOARD)
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥180
90467-10017-24 note Clip(FOR FRONT DOOR TRIM BOARD)
1985-08 → 1988-08 ended
YR20 N,Q MRF 08S;YR20 +6 ¥180
90467-10017-36 note Clip(FOR FRONT DOOR TRIM BOARD)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥180
67602 — Board Sub-assy, Front Door Trim, LH
67620-87007 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G,N,R —
67620-87009-03 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1983-08 ended
CR21,YR20,21 E,X ¥28,000
67620-87009-05 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1983-08 ended
CR21,YR20,21 E,X ¥28,000
67620-87009-13 note Board Sub-assy, Front Door Trim, LH
1983-08 → 1984-08 ended
CR21,YR20,21 E,X ¥28,000
67620-87009-15 note Board Sub-assy, Front Door Trim, LH
1983-08 → 1984-08 ended
CR21,YR20,21 E,X —
67620-87009-23 note Board Sub-assy, Front Door Trim, LH
1984-04 → 1984-05 ended
YR20 HRF E ¥28,000
67620-87011-03 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1983-12 ended
YR20,21 Q —
67620-87011-05 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1983-12 ended
YR20,21 Q —
67620-87014-03 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1983-08 ended
YR20,21 X ¥28,000
67620-87014-05 note Board Sub-assy, Front Door Trim, LH
1982-11 → 1983-08 ended
YR20,21 X ¥28,000
67620-87014-13 note Board Sub-assy, Front Door Trim, LH
1983-08 → 1984-08 ended
YR20,21 X —
67620-87014-15 note Board Sub-assy, Front Door Trim, LH
1983-08 → 1984-08 ended
YR20,21 X —
67620-87016-04 note Board Sub-assy, Front Door Trim, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67620-87016-06 note Board Sub-assy, Front Door Trim, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67620-87019 note Board Sub-assy, Front Door Trim, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
67620-87020-03 note Board Sub-assy, Front Door Trim, LH
1983-12 → 1984-08 ended
YR20,21 Q ¥35,600
67620-87020-05 note Board Sub-assy, Front Door Trim, LH
1983-12 → 1984-08 ended
YR20,21 Q —
67620-87027-05 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
CR2#,KR26,YR2# D,G,N,R ¥8,600
67620-87027-15 note Board Sub-assy, Front Door Trim, LH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥8,600
67620-87028-04 note Board Sub-assy, Front Door Trim, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67620-87028-06 note Board Sub-assy, Front Door Trim, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥26,000
67620-87029-03 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X —
67620-87029-05 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X ¥28,000
67620-87031-03 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
YR20,21 Q ¥35,200
67620-87031-05 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
YR20,21 Q —
67620-87033-03 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
YR20,21 X —
67620-87033-05 note Board Sub-assy, Front Door Trim, LH
1984-08 → 1985-08 ended
YR20,21 X —
67620-87034-04 note Board Sub-assy, Front Door Trim, LH
1985-08 → 1987-01 ended
CR21,30,YR20,21,30 Q ¥28,900
67620-87034-06 note Board Sub-assy, Front Door Trim, LH
1985-08 → 1987-01 ended
CR21,30,YR20,21,30 Q ¥28,900
67620-87035-04 note Board Sub-assy, Front Door Trim, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
67620-87035-04 note Board Sub-assy, Front Door Trim, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
67620-87035-06 note Board Sub-assy, Front Door Trim, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
67620-87035-06 note Board Sub-assy, Front Door Trim, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
67620-87044-03 note Board Sub-assy, Front Door Trim, LH
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
67620-87044-05 note Board Sub-assy, Front Door Trim, LH
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
67620-87045-04 note Board Sub-assy, Front Door Trim, LH
1987-04 → 1987-09 ended
CR21,30,YR20,21,30 HRF E —
67620-87045-06 note Board Sub-assy, Front Door Trim, LH
1986-12 → 1987-09 ended
CR21,30,YR20,21,30 HRF E ¥28,900
67620-87046-04 note Board Sub-assy, Front Door Trim, LH
1987-01 → 1988-08 ended
CR21,30,YR21,30 Q ¥28,900
67620-87046-06 note Board Sub-assy, Front Door Trim, LH
1987-01 → 1988-08 ended
CR21,30,YR21,30 Q ¥28,900
67620-87049-04 note Board Sub-assy, Front Door Trim, LH
1987-09 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥28,900
67620-87049-06 note Board Sub-assy, Front Door Trim, LH
1987-09 → 1988-08 ended
CR21,30,YR21,30 E ¥28,900
67611 — Board, Front Door Trim, Upper RH
67601-87001-02 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
YR20,21 Q ¥13,300
67601-87001-03 note Board, Front Door Trim, Upper RH
1984-08 → 1985-08 ended
YR20,21 Q ¥13,300
67601-87001-04 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
YR20,21 Q ¥13,300
67601-87001-05 note Board, Front Door Trim, Upper RH
1984-08 → 1985-08 ended
YR20,21 Q ¥13,300
67623-87002-02 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
YR20,21 X —
67623-87002-03 note Board, Front Door Trim, Upper RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥3,690
67623-87002-03 note Board, Front Door Trim, Upper RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X ¥3,690
67623-87002-03 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
CR21,YR20 E ¥3,690
67623-87002-04 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
YR20,21 X ¥3,690
67623-87002-05 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
CR21,YR20,21 08S,09S ¥3,690
67623-87002-05 note Board, Front Door Trim, Upper RH
1982-11 → 1984-08 ended
YR26 N ¥3,690
67623-87002-15 note Board, Front Door Trim, Upper RH
1984-08 → 1985-08 ended
CR26,27,YR26 N ¥3,690
67623-87002-15 note Board, Front Door Trim, Upper RH
1984-08 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥3,690
67623-87002-25 note Board, Front Door Trim, Upper RH
1985-08 → 1988-08 ended
CR26,27,36,YR26 N ¥3,690
67623-87002-25 note Board, Front Door Trim, Upper RH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,690
67612 — Board, Front Door Trim, Upper LH
67602-87001-02 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
YR20,21 Q —
67602-87001-03 note Board, Front Door Trim, Upper LH
1984-08 → 1985-08 ended
YR20,21 Q ¥13,300
67602-87001-04 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
YR20,21 Q ¥13,300
67602-87001-05 note Board, Front Door Trim, Upper LH
1984-08 → 1985-08 ended
YR20,21 Q ¥13,300
67624-87002-02 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
YR20,21 X —
67624-87002-03 note Board, Front Door Trim, Upper LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥3,690
67624-87002-03 note Board, Front Door Trim, Upper LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X ¥3,690
67624-87002-03 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
CR21,YR20 E ¥3,690
67624-87002-04 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
YR20,21 X ¥3,690
67624-87002-05 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
CR21,YR20,21 08S,09S ¥3,690
67624-87002-05 note Board, Front Door Trim, Upper LH
1982-11 → 1984-08 ended
YR26 N ¥3,690
67624-87002-15 note Board, Front Door Trim, Upper LH
1984-08 → 1985-08 ended
CR26,27,YR26 N ¥3,690
67624-87002-15 note Board, Front Door Trim, Upper LH
1984-08 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥3,690
67624-87002-25 note Board, Front Door Trim, Upper LH
1985-08 → 1988-08 ended
CR26,27,36,YR26 N ¥3,690
67624-87002-25 note Board, Front Door Trim, Upper LH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,690
67651 — Board, Front Door Trim, Lower RH
67060-87001-02 note Board, Front Door Trim, Lower RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X —
67060-87001-04 note Board, Front Door Trim, Lower RH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X —
67060-87002-02 note Board, Front Door Trim, Lower RH
1984-08 → 1985-08 ended
YR20,21 Q —
67060-87002-04 note Board, Front Door Trim, Lower RH
1984-08 → 1985-08 ended
YR20,21 Q ¥5,300
67060-87003-04 note Board, Front Door Trim, Lower RH
1985-08 → 1986-02 ended
CR21,30,YR20,21 Q ¥5,300
67060-87003-06 note Board, Front Door Trim, Lower RH
1985-08 → 1986-02 ended
CR21,30,YR20,21 Q ¥5,300
67060-87005-04 note Board, Front Door Trim, Lower RH
1986-02 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥5,300
67060-87005-06 note Board, Front Door Trim, Lower RH
1986-02 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥5,300
67763-87001 note Board, Front Door Trim, Lower RH
1982-11 → 1984-08 ended
YR2# G,N ¥3,430
67763-87005-02 note Board, Front Door Trim, Lower RH
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# (05S,08S) (D,G,N) ¥3,440
67763-87005-04 note Board, Front Door Trim, Lower RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,440
67763-87005-06 note Board, Front Door Trim, Lower RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥3,440
67652 — Board, Front Door Trim, Lower LH
67070-87001-02 note Board, Front Door Trim, Lower LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X —
67070-87001-04 note Board, Front Door Trim, Lower LH
1984-08 → 1985-08 ended
CR21,YR20,21 E,X —
67070-87002-02 note Board, Front Door Trim, Lower LH
1984-08 → 1985-08 ended
YR20,21 Q —
67070-87002-04 note Board, Front Door Trim, Lower LH
1984-08 → 1985-08 ended
YR20,21 Q ¥5,300
67070-87003-04 note Board, Front Door Trim, Lower LH
1985-08 → 1986-02 ended
CR21,30,YR20,21 Q ¥5,300
67070-87003-06 note Board, Front Door Trim, Lower LH
1985-08 → 1986-02 ended
CR21,30,YR20,21 Q ¥5,300
67070-87006-04 note Board, Front Door Trim, Lower LH
1986-02 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥5,300
67070-87006-06 note Board, Front Door Trim, Lower LH
1986-02 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥5,300
67764-87001 note Board, Front Door Trim, Lower LH
1982-11 → 1984-08 ended
YR2# G,N ¥3,430
67764-87005-02 note Board, Front Door Trim, Lower LH
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# (05S,08S) (D,G,N) ¥3,440
67764-87005-04 note Board, Front Door Trim, Lower LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,440
67764-87005-06 note Board, Front Door Trim, Lower LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥3,440
67785 — Holder, Front Door Locking Button Collar
69751-20031 Holder, Front Door Locking Button Collar
1982-11 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R —
69751-20040 Holder, Front Door Locking Button Collar
1982-11 → 1985-08 ended
CR21,YR20,21 ¥350
69751-20040 Holder, Front Door Locking Button Collar
1982-11 → 1988-08 ended
CR26,27,YR26 N ¥350
69751-20040 Holder, Front Door Locking Button Collar
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥350
69751-20060-05 note Holder, Front Door Locking Button Collar
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥390
69751-20060-24 note Holder, Front Door Locking Button Collar
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥390
67831 — Cover, Front Door Service Hole, RH
67801-87001 Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
YR20,21 Q —
67801-87002 Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
CR21,YR2# E,N,X ¥1,200
67801-87003 note Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
YR20,21 X ¥1,240
67801-87004 Cover, Front Door Service Hole, RH
1984-08 → 1985-08 ended
YR20,21 Q ¥1,020
67801-87005 Cover, Front Door Service Hole, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥1,020
67801-87005 note Cover, Front Door Service Hole, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥1,020
67831-87002 Cover, Front Door Service Hole, RH
1984-08 → 1988-08 ended
CR21,26,27,30,36,KR26,YR20,21,26,30 D,E,G,N,R,X ¥670
67831-87002 Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G,R ¥670
67831-87008 note Cover, Front Door Service Hole, RH
1984-08 → 1985-08 ended
YR20,21 X ¥660
67832 — Cover, Front Door Service Hole, LH
67802-87001 Cover, Front Door Service Hole, LH
1982-11 → 1985-08 ended
YR20,21 Q ¥870
67802-87002 Cover, Front Door Service Hole, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥1,020
67802-87002 note Cover, Front Door Service Hole, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥1,020
67831-87002 Cover, Front Door Service Hole, LH
1982-11 → 1988-08 ended
CR21,26,28,3#,KR26,YR2#,3# B,D,E,G,R,X ¥670
67839A — Cover, Front Door Service Hole, Lower
67839-87001 Cover, Front Door Service Hole, Lower
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,210
67861 — Weatherstrip, Front Door, RH
67861-87003 Weatherstrip, Front Door, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥8,800
67861A — Retainer(FOR FRONT DOOR WEATHERSTRIP)
67868-30040 Retainer(FOR FRONT DOOR WEATHERSTRIP)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
67862 — Weatherstrip, Front Door, LH
67862-87003 Weatherstrip, Front Door, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥8,800
67865 — Weatherstrip, Front Door, Lower RH
67863-87001 Weatherstrip, Front Door, Lower RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,300
67863-87004 note Weatherstrip, Front Door, Lower RH
1984-08 → 1986-08 ended
CR26,36 V4D ¥5,100
67863-87004 note Weatherstrip, Front Door, Lower RH
1984-08 → 1986-08 ended
CR21,27,28,30,KR26,YR2#,30 ¥5,100
67863-87004 note Weatherstrip, Front Door, Lower RH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,100
67866 — Weatherstrip, Front Door Lower, LH
67864-87001 Weatherstrip, Front Door Lower, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,300
67864-87004 note Weatherstrip, Front Door Lower, LH
1984-08 → 1986-08 ended
CR26,36 V4D ¥5,100
67864-87004 note Weatherstrip, Front Door Lower, LH
1984-08 → 1986-08 ended
CR21,27,28,30,KR26,YR2#,30 ¥5,100
67864-87004 note Weatherstrip, Front Door Lower, LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,100
68101 — Glass Sub-assy, Front Door, RH
68111-87002 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R ¥12,900
68111-87004 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥14,600
68111-87004 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR26,27,36,YR26 N ¥14,600
68111-87005 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥20,000
68102 — Glass Sub-assy, Front Door, LH
68112-87002 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R ¥12,900
68112-87003 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥14,600
68112-87003 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR26,27,36,YR26 N ¥14,600
68112-87004 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥20,000
68141 — Run, Front Door Glass
68141-87001 Run, Front Door Glass
1982-11 → 1984-07 ended
CR2#,KR26,YR2# ¥4,360
68141-87001 Run, Front Door Glass
1984-07 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥4,360
68141-87001 note Run, Front Door Glass
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥4,360
68141-87006 note Run, Front Door Glass
1984-07 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥5,100
68141-87006 Run, Front Door Glass
1984-07 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R ¥5,100
68141B — Clip, Door Glass Run
62367-16010 note Clip, Door Glass Run
1982-11 → 1983-02 ended
YR20 07S,08S ¥650
62367-87001 note Clip, Door Glass Run
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥620
62367-87001 note Clip, Door Glass Run
1983-02 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥620
68161 — Weatherstrip, Front Door Glass, Outer
68160-87001 Weatherstrip, Front Door Glass, Outer
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥2,930
68160-87002 note Weatherstrip, Front Door Glass, Outer
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥6,100
68210-87001 note Weatherstrip, Front Door Glass, Outer
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥6,100
68170 — Weatherstrip Assy, Front Door Glass, Inner
68170-87007 note Weatherstrip Assy, Front Door Glass, Inner
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,620
68171-87004 Weatherstrip Assy, Front Door Glass, Inner
1982-11 → 1983-01 ended
CR26,KR26,YR2# ¥2,690
68171-87004 Weatherstrip Assy, Front Door Glass, Inner
1983-01 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R ¥2,690
68171-87005 Weatherstrip Assy, Front Door Glass, Inner
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥2,700
68171-87005 Weatherstrip Assy, Front Door Glass, Inner
1983-01 → 1988-08 ended
CR26,27,36,YR26 N ¥2,700
68171-87005 Weatherstrip Assy, Front Door Glass, Inner
1983-01 → 1985-08 ended
CR21,YR20,21 ¥2,700
68220-87005 note Weatherstrip Assy, Front Door Glass, Inner
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,620
68610 — Check Assy, Front Door
68610-12030 Check Assy, Front Door
1983-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,700
68610-89101 Check Assy, Front Door
1982-11 → 1983-08 ended
CR2#,KR26,YR2# ¥3,540
68610A — Pin(FOR FRONT DOOR CHECK)
68617-12010 Pin(FOR FRONT DOOR CHECK)
1984-11 → 1985-07 ended
YR20 HRF 5F G;YR20 +4 ¥280
68617-22010 Pin(FOR FRONT DOOR CHECK)
1982-11 → 1984-11 ended
CR2#,KR26,YR2# ¥300
68617-90A00 Pin(FOR FRONT DOOR CHECK)
1985-07 → 1986-06 ended
YR20 0 HRF 5F +5 ¥280
68617-90A01 Pin(FOR FRONT DOOR CHECK)
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥300
69997 — Spacer, Front Door Glass Guide
53381-87701 Spacer, Front Door Glass Guide
1982-11 → 1983-12 ended
CR2#,KR26,YR2# ¥1,630
69997-87001 Spacer, Front Door Glass Guide
1983-12 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥450
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
