Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

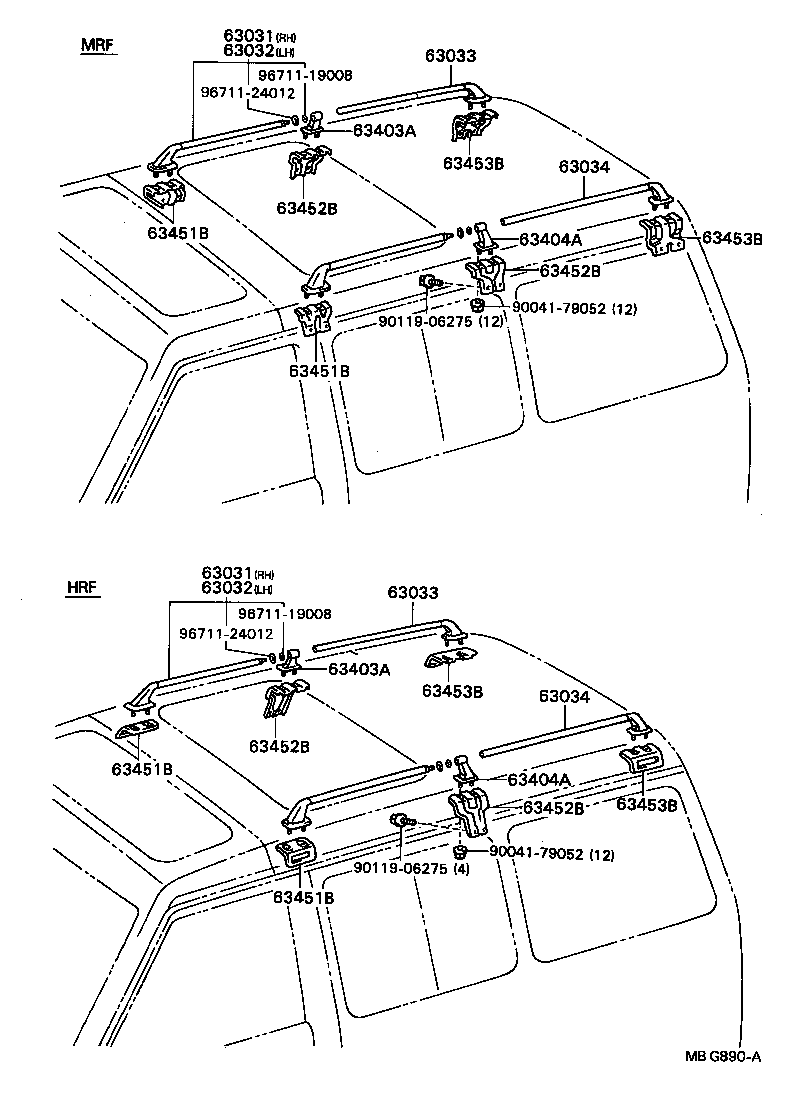

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63031 — Rack Sub-assy, Roof, Front RH | ||||
| 63031-87001 |
Rack Sub-assy, Roof, Front RH
1984-08 → 1985-06
ended
|
CR21,YR20 MRF E | ¥12,700 | |
| 63031-87002 |
Rack Sub-assy, Roof, Front RH
1984-08 → 1985-06
ended
|
CR21,YR20,21 HRF | ¥12,700 | |
| 63031-87003 |
Rack Sub-assy, Roof, Front RH
1985-06 → 1985-08
ended
|
CR21,YR20 MRF E | ¥12,900 | |
| 63031-87004 |
Rack Sub-assy, Roof, Front RH
1985-06 → 1988-08
ended
|
YR20 HRF 5F G;CR21,YR20,21 +2 | ¥12,900 | |
| 63032 — Rack Sub-assy, Roof, Front LH | ||||
| 63032-87001 |
Rack Sub-assy, Roof, Front LH
1984-08 → 1985-06
ended
|
CR21,YR20 MRF E | ¥12,700 | |
| 63032-87002 |
Rack Sub-assy, Roof, Front LH
1984-08 → 1985-06
ended
|
CR21,YR20,21 HRF | ¥12,700 | |
| 63032-87003 |
Rack Sub-assy, Roof, Front LH
1985-06 → 1985-08
ended
|
CR21,YR20 MRF E | ¥12,900 | |
| 63032-87004 |
Rack Sub-assy, Roof, Front LH
1985-06 → 1988-08
ended
|
YR20 HRF 5F G;CR21,YR20,21 +2 | ¥12,900 | |
| 63033 — Rack Sub-assy, Roof, Rear RH | ||||
| 63033-87001 |
Rack Sub-assy, Roof, Rear RH
1984-08 → 1985-06
ended
|
CR21,YR20 MRF E | ¥11,100 | |
| 63033-87002 |
Rack Sub-assy, Roof, Rear RH
1984-08 → 1985-06
ended
|
CR21,YR20,21 HRF | ¥11,100 | |
| 63033-87003 |
Rack Sub-assy, Roof, Rear RH
1985-06 → 1985-08
ended
|
CR21,YR20 MRF E | ¥11,400 | |
| 63033-87004 |
Rack Sub-assy, Roof, Rear RH
1985-06 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥11,400 | |
| 63034 — Rack Sub-assy, Roof, Rear LH | ||||
| 63034-87001 |
Rack Sub-assy, Roof, Rear LH
1984-08 → 1985-06
ended
|
CR21,YR20 MRF E | ¥11,100 | |
| 63034-87002 |
Rack Sub-assy, Roof, Rear LH
1984-08 → 1985-06
ended
|
CR21,YR20,21 HRF | ¥11,100 | |
| 63034-87003 |
Rack Sub-assy, Roof, Rear LH
1985-06 → 1985-08
ended
|
CR21,YR20 MRF E | ¥11,400 | |
| 63034-87004 |
Rack Sub-assy, Roof, Rear LH
1985-06 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥11,400 | |
| 63403A — Support Sub-assy, Roof Rack, Center RH | ||||
| 63403-87001 |
Support Sub-assy, Roof Rack, Center RH
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥4,460 | |
| 63403-87002 |
Support Sub-assy, Roof Rack, Center RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | ¥4,460 | |
| 63403-87004 |
Support Sub-assy, Roof Rack, Center RH
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥4,500 | |
| 63404A — Support Sub-assy, Roof Rack, Center LH | ||||
| 63404-87001 |
Support Sub-assy, Roof Rack, Center LH
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥4,460 | |
| 63404-87002 |
Support Sub-assy, Roof Rack, Center LH
1984-08 → 1985-08
ended
|
CR21,YR20,21 HRF | ¥4,460 | |
| 63404-87004 |
Support Sub-assy, Roof Rack, Center LH
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥4,500 | |
| 63451B — Reinforcement, Roof Rack, NO.1 | ||||
| 63451-87002 |
Reinforcement, Roof Rack, NO.1
1984-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥1,680 | |
| 63451-87003 note |
Reinforcement, Roof Rack, NO.1
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥1,830 | |
| 63452-87002 note |
Reinforcement, Roof Rack, NO.1
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥1,570 | |
| 63452B — Reinforcement, Roof Rack, NO.2 | ||||
| 63453-87001 |
Reinforcement, Roof Rack, NO.2
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥1,670 | |
| 63453-87002 |
Reinforcement, Roof Rack, NO.2
1984-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥2,060 | |
| 63453B — Reinforcement, Roof Rack, NO.3 | ||||
| 63454-87001 |
Reinforcement, Roof Rack, NO.3
1984-08 → 1985-08
ended
|
CR21,YR20 MRF E | ¥1,830 | |
| 63454-87002 |
Reinforcement, Roof Rack, NO.3
1984-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥1,480 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
