Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

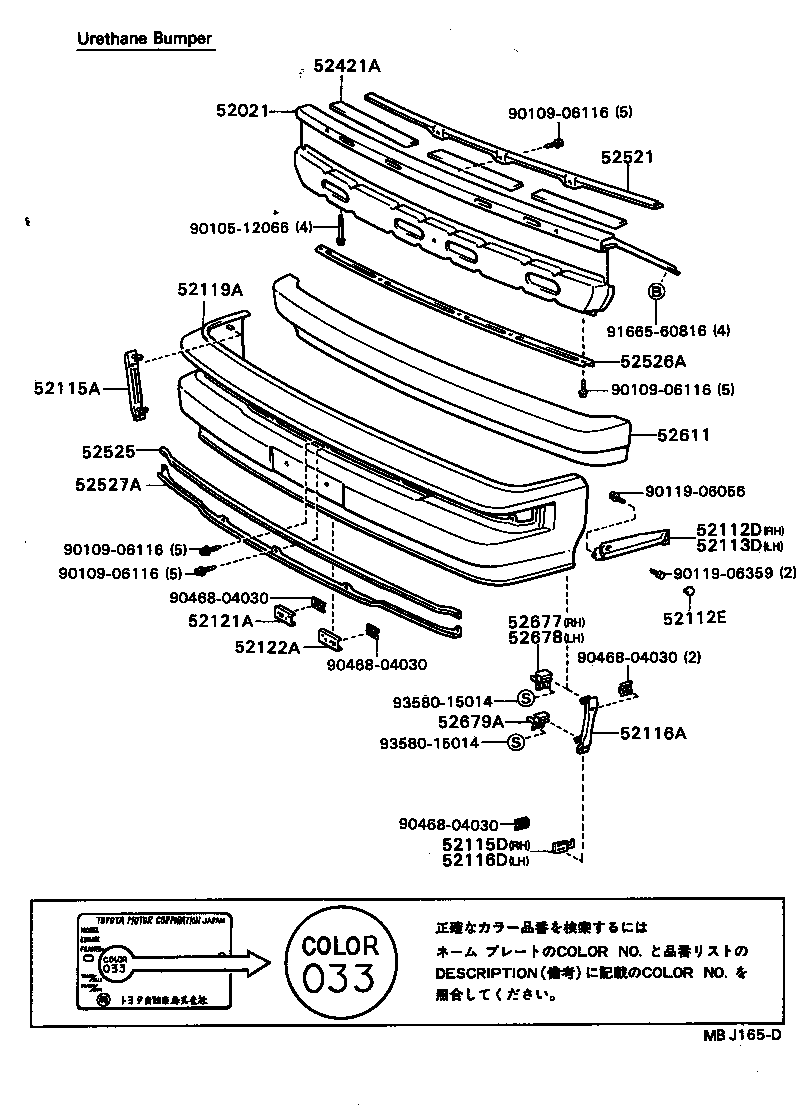

Exploded illustration MBJ165D 52421A — PAD, FRONT BUMPER (1 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (2 parts) 9010906116 — not listed in this catalogue 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (3 parts) 9010512066 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (55 parts) 9166560816 — not listed in this catalogue 52526A — RETAINER, FRONT BUMPER, LOWER NO.1 (2 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (3 parts) 9010906116 — not listed in this catalogue 52611 — ABSORBER, FRONT BUMPER ENERGY (4 parts) 52525 — RETAINER, FRONT BUMPER, LOWER CENTER (2 parts) 52527A — RETAINER, FRONT BUMPER, LOWER CENTER NO.2 (1 parts) 9011906056 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (22 parts) 52113D — EXTENSION, FRONT BUMPER, LH (22 parts) 9010906116 — not listed in this catalogue 9011906359 — not listed in this catalogue 9010906116 — not listed in this catalogue 9046804030 — not listed in this catalogue 52112E — PLUG, HOLE(FOR FRONT BUMPER EXTENSION) (19 parts) 52121A — BRACKET, FRONT LICENSE PLATE MOUNTING, RH (1 parts) 52677 — SUPPORT, FRONT BUMPER SIDE, NO.2, RH (1 parts) 52678 — SUPPORT, FRONT BUMPER SIDE, NO.2, LH (1 parts) 52122A — BRACKET, FRONT LICENSE PLATE MOUNTING, LH (1 parts) 9046804030 — not listed in this catalogue 9046804030 — not listed in this catalogue 9358015014 — not listed in this catalogue 52679A — SUPPORT, FRONT BUMPER SIDE, NO.3 (1 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (3 parts) 9358015014 — not listed in this catalogue 9046804030 — not listed in this catalogue 52115D — SUPPORT, FRONT BUMPER SIDE, NO.2 RH (1 parts) 52116D — SUPPORT, FRONT BUMPER SIDE, NO.2 LH (1 parts)
MBJ165D · 20 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
146 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-28020 note Reinforcement Sub-assy, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 ¥38,400
52021-28040 note Reinforcement Sub-assy, Front Bumper
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥39,400
52112D — Extension, Front Bumper, RH
52102-29125 Extension, Front Bumper, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥9,300
52102-87002-01 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥2,530
52102-87003-03 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-04 note Extension, Front Bumper, RH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-05 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-06 note Extension, Front Bumper, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-08 note Extension, Front Bumper, RH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-13 note Extension, Front Bumper, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-14 note Extension, Front Bumper, RH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-16 note Extension, Front Bumper, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-18 note Extension, Front Bumper, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥3,760
52102-87003-28 note Extension, Front Bumper, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-44 note Extension, Front Bumper, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87003-54 note Extension, Front Bumper, RH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52102-87004 note Extension, Front Bumper, RH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
52102-87005 note Extension, Front Bumper, RH
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥2,510
52102-87006 note Extension, Front Bumper, RH
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥2,510
52102-87007-05 note Extension, Front Bumper, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥2,510
52102-95D01 note Extension, Front Bumper, RH
1986-10 → 1986-11 ended
CR30,YR30 E —
52102-95D02 note Extension, Front Bumper, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥2,480
52112-28020 Extension, Front Bumper, RH
1983-05 → 1985-08 ended
YR21 G ¥2,980
52112-87003 note Extension, Front Bumper, RH
1983-09 → 1983-11 ended
YR20 MRF 5F G ¥5,900
52112E — Plug, Hole(FOR FRONT BUMPER EXTENSION)
90950-01482-01 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥250
90950-01483-03 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-04 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-05 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-06 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-08 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-13 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-14 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-15 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥240
90950-01483-16 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-18 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥240
90950-01483-25 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥240
90950-01483-28 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-34 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01483-44 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥240
90950-01568 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥240
90950-01569 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1986-10 → 1986-11 ended
CR30,YR30 E ¥240
90950-01571 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E ¥250
90950-01597 note Plug, Hole(FOR FRONT BUMPER EXTENSION)
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥250
52113D — Extension, Front Bumper, LH
52103-29185 Extension, Front Bumper, LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥9,300
52103-87002-01 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥2,530
52103-87003-03 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-04 note Extension, Front Bumper, LH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-05 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-06 note Extension, Front Bumper, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-08 note Extension, Front Bumper, LH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-13 note Extension, Front Bumper, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-14 note Extension, Front Bumper, LH
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-16 note Extension, Front Bumper, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-18 note Extension, Front Bumper, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥3,760
52103-87003-28 note Extension, Front Bumper, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-44 note Extension, Front Bumper, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87003-54 note Extension, Front Bumper, LH
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,760
52103-87004 note Extension, Front Bumper, LH
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E ¥3,760
52103-87005 note Extension, Front Bumper, LH
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥2,510
52103-87006 note Extension, Front Bumper, LH
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥2,510
52103-87007-05 note Extension, Front Bumper, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥2,510
52103-95D00 note Extension, Front Bumper, LH
1986-10 → 1986-11 ended
CR30,YR30 E —
52103-95D01 note Extension, Front Bumper, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥2,480
52113-28010 Extension, Front Bumper, LH
1983-05 → 1985-08 ended
YR21 G ¥2,980
52113-87002 note Extension, Front Bumper, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥5,900
52115A — Support, Front Bumper Side, RH
52115-87001 Support, Front Bumper Side, RH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥780
52675-28010 note Support, Front Bumper Side, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥890
52675-28020 note Support, Front Bumper Side, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,080
52115D — Support, Front Bumper Side, NO.2 RH
52115-28010 note Support, Front Bumper Side, NO.2 RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥470
52116A — Support, Front Bumper Side, LH
52116-87001 Support, Front Bumper Side, LH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥780
52675-28010 note Support, Front Bumper Side, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥890
52675-28020 note Support, Front Bumper Side, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,080
52116D — Support, Front Bumper Side, NO.2 LH
52115-28010 note Support, Front Bumper Side, NO.2 LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥470
52119A — Cover, Front Bumper
52119-28010 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥38,000
52119-28020-03 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-04 note Cover, Front Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥68,400
52119-28020-05 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-07 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q —
52119-28020-08 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-12 note Cover, Front Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-22 note Cover, Front Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
52119-28030-03 note Cover, Front Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥74,800
52119-28030-06 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥67,900
52119-28030-16 note Cover, Front Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥74,800
52119-28030-16 note Cover, Front Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥74,800
52119-28060 note Cover, Front Bumper
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥47,600
52119-28070-02 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
52119-28070-03 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-04 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-05 note Cover, Front Bumper
1987-04 → 1987-09 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-05 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-06 note Cover, Front Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-08 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-14 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-15 note Cover, Front Bumper
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-16 note Cover, Front Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-18 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-23 note Cover, Front Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
52119-28070-24 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-25 note Cover, Front Bumper
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-34 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-87001 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥27,100
52119-87002-03 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87002-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87002-05 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥47,400
52119-87002-07 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥47,400
52119-87002-18 note Cover, Front Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
52119-87002-22 note Cover, Front Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87004-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥52,100
52119-87004-12 note Cover, Front Bumper
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥47,200
52119-87004-22 note Cover, Front Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥52,100
52119-87008 note Cover, Front Bumper
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥47,400
52119-87008 note Cover, Front Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥47,400
52119-87011 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G ¥30,700
52119-87012-03 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-04 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-06 note Cover, Front Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-08 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-13 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-16 note Cover, Front Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-18 note Cover, Front Bumper
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥49,500
52119-87012-18 note Cover, Front Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥49,500
52119-87012-28 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-34 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-44 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-95D00 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥49,500
52119-95D01 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR30,YR30 E ¥85,300
52121A — Bracket, Front License Plate Mounting, RH
52121-28010 note Bracket, Front License Plate Mounting, RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥880
52122A — Bracket, Front License Plate Mounting, LH
52122-28020 note Bracket, Front License Plate Mounting, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥880
52421A — Pad, Front Bumper
52421-28010 note Pad, Front Bumper
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥260
52521 — Retainer, Front Bumper, Upper Center
52521-28010 note Retainer, Front Bumper, Upper Center
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,480
52521-28020 note Retainer, Front Bumper, Upper Center
1985-08 → 1986-01 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,680
52521-28030 note Retainer, Front Bumper, Upper Center
1986-01 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,720
52525 — Retainer, Front Bumper, Lower Center
52525-28010 note Retainer, Front Bumper, Lower Center
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,960
52525-28020 note Retainer, Front Bumper, Lower Center
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,020
52526A — Retainer, Front Bumper, Lower NO.1
52526-28010 note Retainer, Front Bumper, Lower NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 ¥3,100
52526-28020 note Retainer, Front Bumper, Lower NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,130
52527A — Retainer, Front Bumper, Lower Center NO.2
52527-28010 note Retainer, Front Bumper, Lower Center NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,700
52611 — Absorber, Front Bumper Energy
52611-28010 note Absorber, Front Bumper Energy
1982-11 → 1983-12 ended
CR21,YR20,21 ¥14,600
52611-28020 note Absorber, Front Bumper Energy
1983-12 → 1985-08 ended
CR21,YR20,21 ¥14,200
52611-28030 note Absorber, Front Bumper Energy
1985-08 → 1985-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥16,800
52611-28040 note Absorber, Front Bumper Energy
1985-11 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥16,800
52677 — Support, Front Bumper Side, NO.2, RH
52677-28010 note Support, Front Bumper Side, NO.2, RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥450
52678 — Support, Front Bumper Side, NO.2, LH
52677-28010 note Support, Front Bumper Side, NO.2, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥450
52679A — Support, Front Bumper Side, NO.3
52679-28010 note Support, Front Bumper Side, NO.3
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
