Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

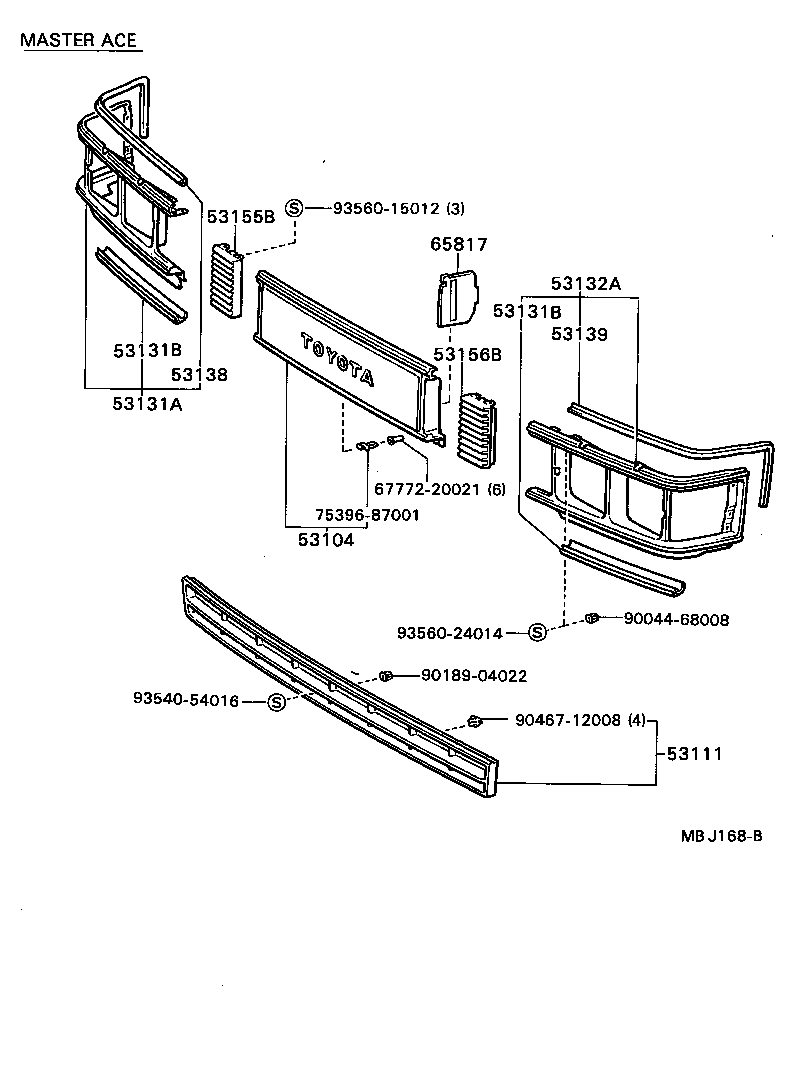

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53104 — Garnish Sub-assy, Front Panel, Center | ||||
| 53101-87007 note |
Garnish Sub-assy, Front Panel, Center
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥23,800 | |
| 53101-87008 note |
Garnish Sub-assy, Front Panel, Center
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥27,800 | |
| 53101-87009 note |
Garnish Sub-assy, Front Panel, Center
1985-08 → 1988-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | ¥27,800 | |
| 53101-87010 note |
Garnish Sub-assy, Front Panel, Center
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥25,700 | |
| 53101-87011 note |
Garnish Sub-assy, Front Panel, Center
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥20,100 | |
| 53101-87012 note |
Garnish Sub-assy, Front Panel, Center
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥22,100 | |
| 53111 — Grille, Radiator | ||||
| 53111-28020-03 note |
Grille, Radiator
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥7,100 | |
| 53111-28030 note |
Grille, Radiator
1985-08 → 1988-08
ended
|
YR20 6S,08S HRF E;YR20 +6 | ¥7,100 | |
| 53111-29195 note |
Grille, Radiator
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥5,700 | |
| 53131A — Door, Headlamp, RH | ||||
| 53031-29155 note |
Door, Headlamp, RH
1982-11 → 1985-08
ended
|
CR21,YR20 D | ¥15,800 | |
| 53031-29165 note |
Door, Headlamp, RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥16,800 | |
| 53031-29175 |
Door, Headlamp, RH
1982-11 → 1988-08
ended
|
CR26,36,KR26,YR26 D,R | ¥17,800 | |
| 53031-29185 |
Door, Headlamp, RH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥18,700 | |
| 53031-29195 note |
Door, Headlamp, RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥13,800 | |
| 53031-87021 note |
Door, Headlamp, RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥16,800 | |
| 53031-87024 note |
Door, Headlamp, RH
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥15,900 | |
| 53031-87025 note |
Door, Headlamp, RH
1985-08 → 1988-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | ¥18,700 | |
| 53031-87026 note |
Door, Headlamp, RH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥18,700 | |
| 53031-87027 note |
Door, Headlamp, RH
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥22,000 | |
| 53031-87028 note |
Door, Headlamp, RH
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥22,000 | |
| 53131B — Weatherstrip, Headlamp Ornament | ||||
| 53147-87001 note |
Weatherstrip, Headlamp Ornament
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 53147-87001 |
Weatherstrip, Headlamp Ornament
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥650 | |
| 53147-87003 note |
Weatherstrip, Headlamp Ornament
1982-11 → 1985-08
ended
|
CR21,YR20,21 | — | |
| 53147-87004 |
Weatherstrip, Headlamp Ornament
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥650 | |
| 53132A — Door, Headlamp, LH | ||||
| 53032-29155 note |
Door, Headlamp, LH
1982-11 → 1985-08
ended
|
CR21,YR20 D | ¥15,800 | |
| 53032-29165 note |
Door, Headlamp, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥16,800 | |
| 53032-29175 |
Door, Headlamp, LH
1982-11 → 1988-08
ended
|
CR26,36,KR26,YR26 D,R | ¥17,800 | |
| 53032-29185 |
Door, Headlamp, LH
1982-11 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥18,700 | |
| 53032-29195 note |
Door, Headlamp, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥13,800 | |
| 53032-87021 note |
Door, Headlamp, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 53032-87023 note |
Door, Headlamp, LH
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥15,900 | |
| 53032-87024 note |
Door, Headlamp, LH
1985-08 → 1988-08
ended
|
YR20 MRF G;CR21,30,YR30 G;YR20 +3 | ¥18,700 | |
| 53032-87025 note |
Door, Headlamp, LH
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥18,700 | |
| 53032-87026 note |
Door, Headlamp, LH
1985-08 → 1988-08
ended
|
CR21,28,37,YR20,28,36 B,D | ¥22,000 | |
| 53032-87027 note |
Door, Headlamp, LH
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥22,000 | |
| 53138 — Protector, Headlamp Door, RH | ||||
| 53139-87004 |
Protector, Headlamp Door, RH
1982-11 → 1983-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 53139-87004 note |
Protector, Headlamp Door, RH
1983-08 → 1985-08
ended
|
CR21,YR20,21 | ¥650 | |
| 53139-87005 |
Protector, Headlamp Door, RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥650 | |
| 53139-87005 note |
Protector, Headlamp Door, RH
1983-08 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 53145-87002 note |
Protector, Headlamp Door, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥660 | |
| 53145-87003 note |
Protector, Headlamp Door, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥650 | |
| 53139 — Protector, Headlamp Door, LH | ||||
| 53139-87004 |
Protector, Headlamp Door, LH
1982-11 → 1983-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 53139-87004 note |
Protector, Headlamp Door, LH
1983-08 → 1985-08
ended
|
CR21,YR20,21 | ¥650 | |
| 53139-87005 note |
Protector, Headlamp Door, LH
1983-08 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 53139-87005 |
Protector, Headlamp Door, LH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥650 | |
| 53145-87002 note |
Protector, Headlamp Door, LH
1985-08 → 1985-11
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥660 | |
| 53146-87005 note |
Protector, Headlamp Door, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥650 | |
| 53146-87006 note |
Protector, Headlamp Door, LH
1985-11 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥660 | |
| 53155B — Bezel, Headlamp, Outer RH | ||||
| 53155-87001 note |
Bezel, Headlamp, Outer RH
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥2,300 | |
| 53156B — Bezel, Headlamp, Outer LH | ||||
| 53156-87001 note |
Bezel, Headlamp, Outer LH
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥2,300 | |
| 65817 — Pad, Cover Top Panel End | ||||
| 65817-87001 note |
Pad, Cover Top Panel End
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
