Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

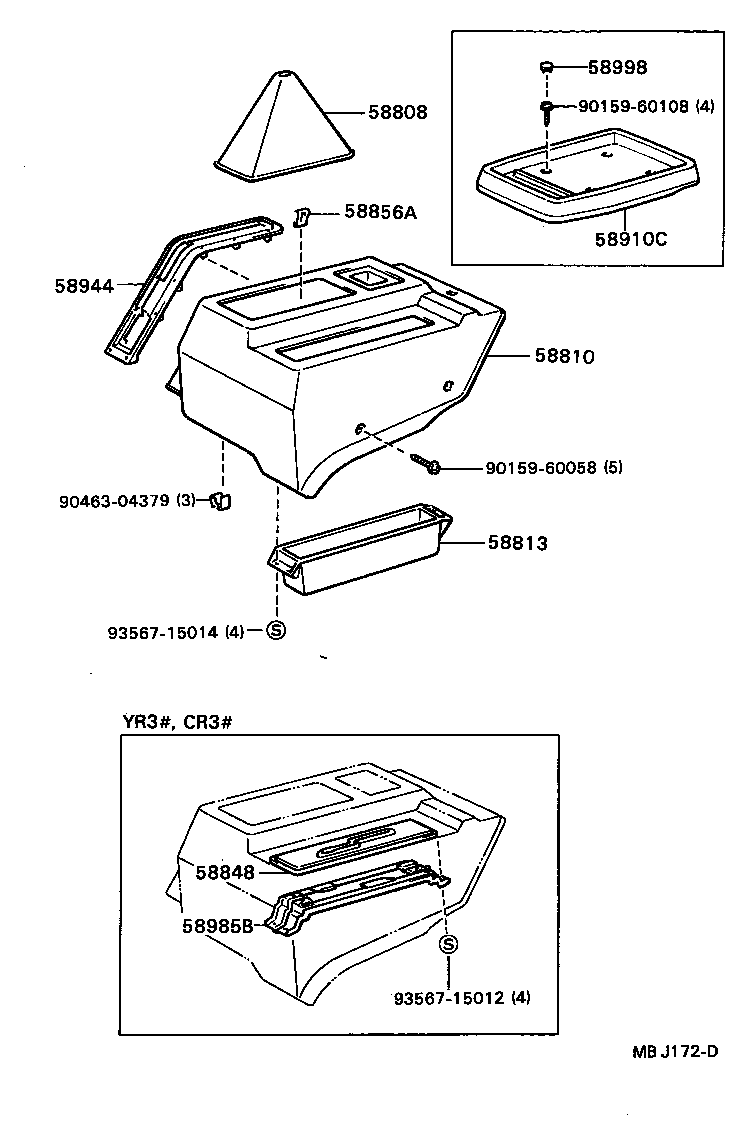

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58808 — Cover Sub-assy, Shifting Hole | ||||
| 58808-87001-02 note |
Cover Sub-assy, Shifting Hole
1984-08 → 1985-08
ended
|
CR21,26,YR2# 5F | ¥1,580 | |
| 58808-87001-03 note |
Cover Sub-assy, Shifting Hole
1982-11 → 1984-08
ended
|
CR21,YR20,21 5F (E,Q,X) | ¥1,580 | |
| 58808-87001-04 note |
Cover Sub-assy, Shifting Hole
1984-08 → 1985-08
ended
|
CR21,YR20,21 5F (E,Q,X) | ¥1,580 | |
| 58808-87001-04 note |
Cover Sub-assy, Shifting Hole
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥1,580 | |
| 58808-87001-05 note |
Cover Sub-assy, Shifting Hole
1982-11 → 1984-08
ended
|
CR2#,YR2# 5F | ¥1,580 | |
| 58808-87002-04 note |
Cover Sub-assy, Shifting Hole
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 5F (E,Q) | ¥1,740 | |
| 58808-87002-06 note |
Cover Sub-assy, Shifting Hole
1985-08 → 1988-08
ended
|
CR21,26,28,3#,YR20,21,26,3# 5F (B,D,E,G,N,Q) | ¥1,740 | |
| 58810 — Console Assy | ||||
| 58811-87005-02 note |
Console Assy
1984-08 → 1985-08
ended
|
CR2#,YR2# 4FC,5F | ¥15,700 | |
| 58811-87005-03 note |
Console Assy
1982-11 → 1984-08
ended
|
CR21,YR20 E | ¥15,700 | |
| 58811-87005-04 note |
Console Assy
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥15,700 | |
| 58811-87005-04 note |
Console Assy
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥15,700 | |
| 58811-87005-05 note |
Console Assy
1982-11 → 1984-08
ended
|
CR2#,YR2# 02S,05S,08S | ¥15,700 | |
| 58811-87007-03 note |
Console Assy
1982-11 → 1984-08
ended
|
YR20,21 07S | — | |
| 58811-87007-05 note |
Console Assy
1982-11 → 1984-08
ended
|
YR20,21 07S | ¥15,700 | |
| 58811-87011-04 note |
Console Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥15,100 | |
| 58811-87011-06 note |
Console Assy
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥15,100 | |
| 58811-87013-04 note |
Console Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21 Q | ¥14,900 | |
| 58811-87013-06 note |
Console Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21 Q | ¥14,900 | |
| 58813 — Box, Console, Upper | ||||
| 58813-87001-04 note |
Box, Console, Upper
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,Q | ¥5,800 | |
| 58813-87001-06 note |
Box, Console, Upper
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥5,800 | |
| 58848 — Cover, Shift Lever Hole | ||||
| 58848-95D01 |
Cover, Shift Lever Hole
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥1,180 | |
| 58856A — Holder, Console Box | ||||
| 58856-28010 |
Holder, Console Box
1985-08 → 1988-08
ended
|
CR21,26,28,3#,YR20,21,26,3# 5F (B,D,E,G,N,Q) | ¥390 | |
| 58910C — Box Assy, Console, Rear | ||||
| 58911-87001-06 note |
Box Assy, Console, Rear
1986-08 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥18,100 | |
| 58944 — Cover, Parking Brake Hole | ||||
| 58941-87005-01 note |
Cover, Parking Brake Hole
1982-11 → 1985-08
ended
|
CR21,26,YR2# 4FC,5F | ¥1,570 | |
| 58941-87010-01 note |
Cover, Parking Brake Hole
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥1,550 | |
| 58985B — Retainer, Console Box, NO.1 | ||||
| 58985-95D01 |
Retainer, Console Box, NO.1
1985-10 → 1986-08
ended
|
CR3#,YR30 | ¥1,130 | |
| 58985-95D02 |
Retainer, Console Box, NO.1
1986-08 → 1988-08
ended
|
CR3#,YR3# | ¥1,140 | |
| 58998 — Plug, Rear Console Hole | ||||
| 90950-01541-06 note |
Plug, Rear Console Hole
1986-08 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥240 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
