Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

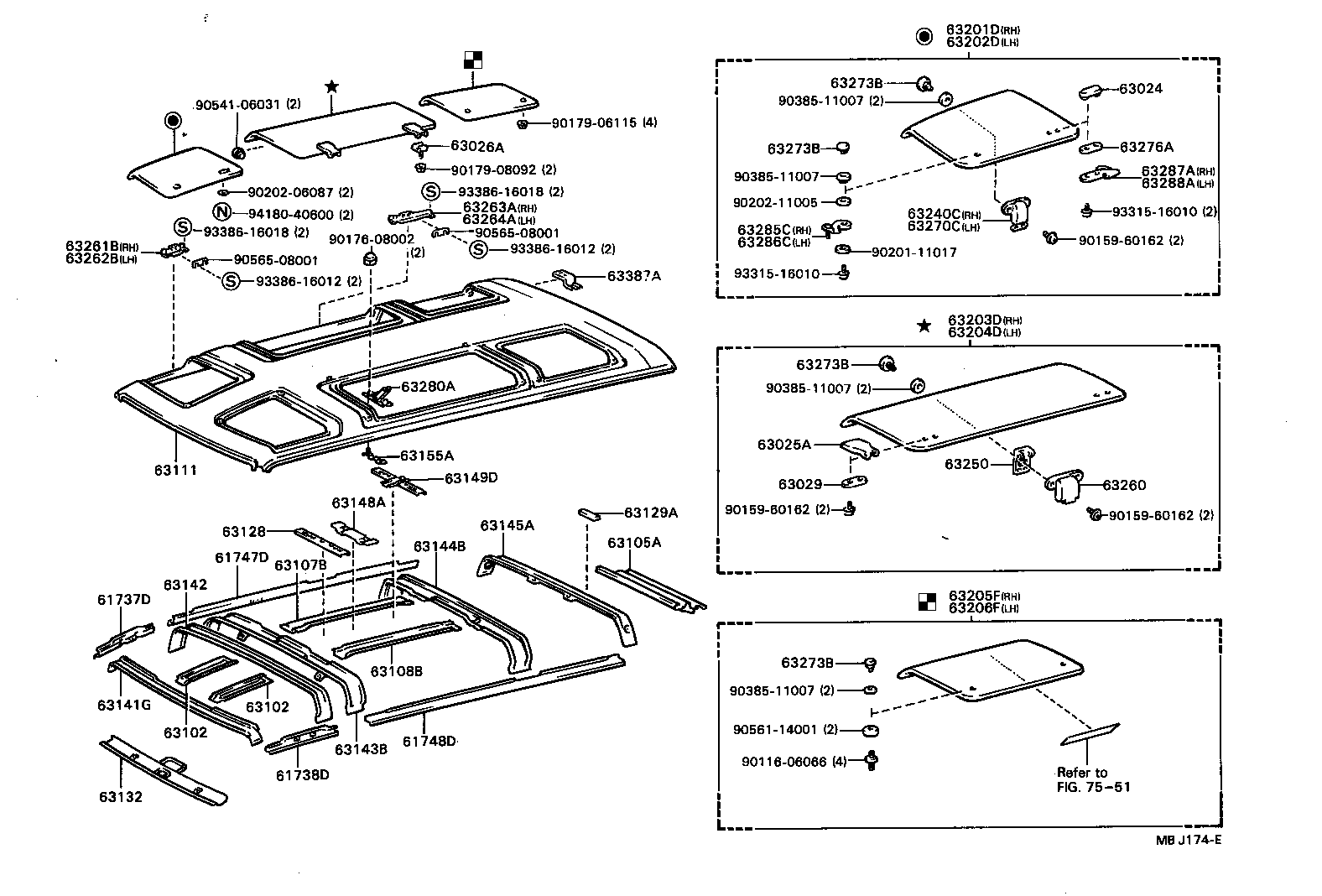

Exploded illustration MBJ174E 63201D — GLASS SUB-ASSY, ROOF WINDOW, NO.1 RH (2 parts) 63202D — GLASS SUB-ASSY, ROOF WINDOW, NO.1 LH (2 parts) 63273B — RETAINER, ROOF WINDOW HINGE (1 parts) 63024 — SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 (1 parts) 9038511007 — not listed in this catalogue 9054106031 — not listed in this catalogue 9017906115 — not listed in this catalogue 63026A — HINGE SUB-ASSY, ROOF WINDOW FEMALE (1 parts) 63276A — SEAL, ROOF WINDOW HINGE (1 parts) 63273B — RETAINER, ROOF WINDOW HINGE (1 parts) 9017908092 — not listed in this catalogue 63287A — HINGE, ROOF WINDOW, NO.2 RH (1 parts) 9038511007 — not listed in this catalogue 63288A — HINGE, ROOF WINDOW, NO.2 LH (1 parts) 9020206087 — not listed in this catalogue 9338616018 — not listed in this catalogue 9020211005 — not listed in this catalogue 63263A — SUPPORT, ROOF WINDOW LOCK, NO.2 RH (1 parts) 9331516010 — not listed in this catalogue 63240C — HANDLE ASSY, ROOF WINDOW LOCK, RH (1 parts) 9418040600 — not listed in this catalogue 63264A — SUPPORT, ROOF WINDOW LOCK, NO.2 LH (1 parts) 63270C — HANDLE ASSY, ROOF WINDOW LOCK, LH (1 parts) 63285C — HINGE, ROOF WINDOW, NO.1 RH (1 parts) 9338616018 — not listed in this catalogue 9056508001 — not listed in this catalogue 9017608002 — not listed in this catalogue 9015960162 — not listed in this catalogue 63286C — HINGE, ROOF WINDOW, NO.1 LH (1 parts) 63261B — SUPPORT, ROOF WINDOW LOCK, NO.1 RH (1 parts) 9338616012 — not listed in this catalogue 9020111017 — not listed in this catalogue 63262B — SUPPORT, ROOF WINDOW LOCK, NO.1 LH (1 parts) 9056508001 — not listed in this catalogue 9331516010 — not listed in this catalogue 63387A — BRACKET, ROOF HEADLINING HOLDER (3 parts) 9338616012 — not listed in this catalogue 63203D — GLASS SUB-ASSY, ROOF WINDOW, NO.2 RH (2 parts) 63204D — GLASS SUB-ASSY, ROOF WINDOW, NO.2 LH (2 parts) 63273B — RETAINER, ROOF WINDOW HINGE (1 parts) 63280A — BALANCER ASSY, ROOF WINDOW (1 parts) 9038511007 — not listed in this catalogue 63025A — HINGE SUB-ASSY, ROOF WINDOW MALE (2 parts) 63155A — PLATE, ROOF PANEL REINFORCEMENT (1 parts) 63250 — BASE ASSY, REMOVABLE ROOF LOCK (1 parts) 63111 — PANEL, ROOF (15 parts) 63149D — REINFORCEMENT, ROOF PANEL, NO.8 (1 parts) 63029 — SEAL SUB-ASSY, ROOF WINDOW HINGE (1 parts) 63260 — HANDLE ASSY, REMOVABLE ROOF LOCK (1 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 9015960162 — not listed in this catalogue 63129A — CUSHION, ROOF REINFORCEMENT (1 parts) 9015960162 — not listed in this catalogue 63145A — REINFORCEMENT, ROOF PANEL, NO.5 (1 parts) 63128 — REINFORCEMENT, ROOF PANEL, NO.6 (1 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (10 parts) 63144B — REINFORCEMENT, ROOF PANEL, NO.4 (1 parts) 61747D — REINFORCEMENT, ROOF SIDE, INNER REAR RH (1 parts) 63107B — REINFORCEMENT SUB-ASSY, ROOF PANEL, RH (1 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (6 parts) 63205F — GLASS SUB-ASSY, ROOF WINDOW, NO.3 RH (2 parts) 61737D — REINFORCEMENT, ROOF SIDE, INNER RH (1 parts) 63206F — GLASS SUB-ASSY, ROOF WINDOW, NO.3 LH (2 parts) 63273B — RETAINER, ROOF WINDOW HINGE (1 parts) 63108B — REINFORCEMENT SUB-ASSY, ROOF PANEL, LH (1 parts) 9038511007 — not listed in this catalogue 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63102 — REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT (2 parts) 9056114001 — not listed in this catalogue 63102 — REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT (2 parts) 61748D — REINFORCEMENT, ROOF SIDE, INNER REAR LH (1 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (4 parts) 9011606066 — not listed in this catalogue 61738D — REINFORCEMENT, ROOF SIDE, INNER LH (1 parts) 7551 — not listed in this catalogue 63132 — PANEL, WINDSHIELD HEADER, INNER (2 parts)
MBJ174E · 50 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
61737D — Reinforcement, Roof Side, Inner RH
61737-87003 note Reinforcement, Roof Side, Inner RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,810
61738D — Reinforcement, Roof Side, Inner LH
61738-87001 note Reinforcement, Roof Side, Inner LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,810
61747D — Reinforcement, Roof Side, Inner Rear RH
61747-87001 note Reinforcement, Roof Side, Inner Rear RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥2,690
61748D — Reinforcement, Roof Side, Inner Rear LH
61748-87001 note Reinforcement, Roof Side, Inner Rear LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥2,690
63024 — Seal Sub-assy, Roof Window Hinge, NO.1
63024-95700 Seal Sub-assy, Roof Window Hinge, NO.1
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,020
63025A — Hinge Sub-assy, Roof Window Male
63023-95700 note Hinge Sub-assy, Roof Window Male
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,140
63025-95702 note Hinge Sub-assy, Roof Window Male
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,140
63026A — Hinge Sub-assy, Roof Window Female
63026-95701 Hinge Sub-assy, Roof Window Female
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,120
63029 — Seal Sub-assy, Roof Window Hinge
63029-87001 Seal Sub-assy, Roof Window Hinge
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥620
63102 — Reinforcement Sub-assy, Roof Panel, Front
63123-87002 note Reinforcement Sub-assy, Roof Panel, Front
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,490
63124-87002 note Reinforcement Sub-assy, Roof Panel, Front
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,490
63105A — Frame Sub-assy, Back Door Opening
63105-87002 Frame Sub-assy, Back Door Opening
1982-11 → 1988-08 ended
CR2#,KR26,YR20,26,28 (MRF,SRF) (B,D,N,R) ¥13,900
63105-87003 Frame Sub-assy, Back Door Opening
1982-11 → 1988-08 ended
CR21,YR20 MRF E ¥15,400
63105-87004 Frame Sub-assy, Back Door Opening
1982-11 → 1988-08 ended
CR30,YR20,30 HRF G ¥12,800
63105-87005 Frame Sub-assy, Back Door Opening
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥13,900
63105-87006 note Frame Sub-assy, Back Door Opening
1982-11 → 1985-08 ended
CR21,YR20,21 MRF (E,X) ¥18,000
63105-87007 note Frame Sub-assy, Back Door Opening
1982-11 → 1985-08 ended
CR21,YR20,21 HRF ¥12,200
63105-87007 note Frame Sub-assy, Back Door Opening
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥12,200
63105-87008 Frame Sub-assy, Back Door Opening
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28,36 HRF ¥12,200
63105-87009 Frame Sub-assy, Back Door Opening
1982-11 → 1988-08 ended
CR21,YR20,21 MRF G ¥12,800
63105-87010 note Frame Sub-assy, Back Door Opening
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥11,200
63107B — Reinforcement Sub-assy, Roof Panel, RH
63107-87003 note Reinforcement Sub-assy, Roof Panel, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥3,950
63108B — Reinforcement Sub-assy, Roof Panel, LH
63108-87002 note Reinforcement Sub-assy, Roof Panel, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥3,950
63111 — Panel, Roof
63111-87005 Panel, Roof
1982-11 → 1988-08 ended
CR21,YR20 MRF (08S,09S) ¥83,100
63111-87006 Panel, Roof
1982-11 → 1983-04 ended
CR26,YR2# HRF (05S,06S,08S) ¥87,100
63111-87006 Panel, Roof
1984-02 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# HRF (B,D,E,G,N) ¥87,100
63111-87007 note Panel, Roof
1982-11 → 1984-08 ended
CR21,YR20,21 MRF (E,X) ¥82,600
63111-87008 note Panel, Roof
1982-11 → 1983-04 ended
YR20 HRF —
63111-87008 note Panel, Roof
1984-02 → 1984-08 ended
CR21,YR20,21 HRF —
63111-87009 Panel, Roof
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28 SRF ¥72,500
63111-87010 note Panel, Roof
1983-05 → 1985-08 ended
YR21 G —
63111-87010 note Panel, Roof
1983-10 → 1983-11 ended
YR20 MRF 5F G —
63111-87011 Panel, Roof
1983-04 → 1984-02 ended
CR2#,YR20,26 HRF (05S,06S,08S) ¥86,700
63111-87012 note Panel, Roof
1983-04 → 1984-02 ended
CR21,YR20,21 HRF ¥86,700
63111-87013 note Panel, Roof
1984-08 → 1985-08 ended
CR21,YR20 MRF E ¥83,100
63111-87014 note Panel, Roof
1984-08 → 1985-08 ended
CR21,YR20,21 HRF ¥87,100
63111-87014 note Panel, Roof
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥87,100
63111-87015 note Panel, Roof
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥87,000
63128 — Reinforcement, Roof Panel, NO.6
63128-87002 note Reinforcement, Roof Panel, NO.6
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,080
63129A — Cushion, Roof Reinforcement
63129-87002 note Cushion, Roof Reinforcement
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥820
63132 — Panel, Windshield Header, Inner
63132-87004 Panel, Windshield Header, Inner
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,E,G,N,Q,X ¥3,920
63132-87005 Panel, Windshield Header, Inner
1982-11 → 1986-08 ended
KR26 R ¥4,110
63141G — Reinforcement, Roof Panel, NO.1
63141-87008 Reinforcement, Roof Panel, NO.1
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28 SRF ¥4,460
63141-87009 Reinforcement, Roof Panel, NO.1
1982-11 → 1988-08 ended
CR21,YR20,21 MRF (08S,09S) ¥3,960
63141-87010 Reinforcement, Roof Panel, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# HRF (B,D,E,G,N) ¥4,120
63141-87014 note Reinforcement, Roof Panel, NO.1
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥2,710
63142 — Reinforcement, Roof Panel, NO.2
63103-87005 note Reinforcement, Roof Panel, NO.2
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥7,100
63103-87005 Reinforcement, Roof Panel, NO.2
1983-05 → 1988-08 ended
YR21 G ¥7,100
63141-87008 Reinforcement, Roof Panel, NO.2
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28 SRF ¥4,460
63141-87009 Reinforcement, Roof Panel, NO.2
1982-11 → 1988-08 ended
CR21,YR20 MRF (08S,09S) ¥3,960
63142-87005 note Reinforcement, Roof Panel, NO.2
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥3,860
63142-87006 Reinforcement, Roof Panel, NO.2
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# HRF (B,D,E,G,N) ¥3,580
63143B — Reinforcement, Roof Panel, NO.3
63103-87006 note Reinforcement, Roof Panel, NO.3
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥6,600
63143-87002 Reinforcement, Roof Panel, NO.3
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28 SRF ¥4,920
63143-87003 Reinforcement, Roof Panel, NO.3
1982-11 → 1988-08 ended
CR21,YR20,21 MRF (08S,09S) ¥5,700
63143-87004 Reinforcement, Roof Panel, NO.3
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# HRF (B,D,E,G,N) ¥4,370
63144B — Reinforcement, Roof Panel, NO.4
63144-87002 note Reinforcement, Roof Panel, NO.4
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥4,730
63145A — Reinforcement, Roof Panel, NO.5
63127-87001 note Reinforcement, Roof Panel, NO.5
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,970
63148A — Reinforcement, Roof Panel, NO.7
63148-87002 note Reinforcement, Roof Panel, NO.7
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥740
63149D — Reinforcement, Roof Panel, NO.8
63104-87005 note Reinforcement, Roof Panel, NO.8
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,620
63155A — Plate, Roof Panel Reinforcement
63155-87001 note Plate, Roof Panel Reinforcement
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,280
63201D — Glass Sub-assy, Roof Window, NO.1 RH
63201-87008 Glass Sub-assy, Roof Window, NO.1 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥28,000
63201-87015 note Glass Sub-assy, Roof Window, NO.1 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥29,300
63202D — Glass Sub-assy, Roof Window, NO.1 LH
63202-87005 Glass Sub-assy, Roof Window, NO.1 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥28,000
63202-87006 note Glass Sub-assy, Roof Window, NO.1 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥29,300
63203D — Glass Sub-assy, Roof Window, NO.2 RH
63203-87014 Glass Sub-assy, Roof Window, NO.2 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥42,400
63203-87015 note Glass Sub-assy, Roof Window, NO.2 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥44,200
63204D — Glass Sub-assy, Roof Window, NO.2 LH
63204-87010 Glass Sub-assy, Roof Window, NO.2 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥42,400
63204-87011 note Glass Sub-assy, Roof Window, NO.2 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥44,200
63205F — Glass Sub-assy, Roof Window, NO.3 RH
63205-87009 Glass Sub-assy, Roof Window, NO.3 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥28,600
63205-87011 note Glass Sub-assy, Roof Window, NO.3 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥29,600
63206F — Glass Sub-assy, Roof Window, NO.3 LH
63206-87004 Glass Sub-assy, Roof Window, NO.3 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥28,600
63206-87006 note Glass Sub-assy, Roof Window, NO.3 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥29,600
63240C — Handle Assy, Roof Window Lock, RH
63240-87001 Handle Assy, Roof Window Lock, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥4,020
63250 — Base Assy, Removable Roof Lock
63250-87001 Base Assy, Removable Roof Lock
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,550
63260 — Handle Assy, Removable Roof Lock
63260-87005 Handle Assy, Removable Roof Lock
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥5,200
63261B — Support, Roof Window Lock, NO.1 RH
63261-87002 Support, Roof Window Lock, NO.1 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,490
63262B — Support, Roof Window Lock, NO.1 LH
63262-87001 Support, Roof Window Lock, NO.1 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,490
63263A — Support, Roof Window Lock, NO.2 RH
63263-87002 Support, Roof Window Lock, NO.2 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,780
63264A — Support, Roof Window Lock, NO.2 LH
63264-87002 Support, Roof Window Lock, NO.2 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥1,780
63270C — Handle Assy, Roof Window Lock, LH
63270-87001 Handle Assy, Roof Window Lock, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥4,020
63273B — Retainer, Roof Window Hinge
63273-87001 Retainer, Roof Window Hinge
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥390
63276A — Seal, Roof Window Hinge
63276-87001 Seal, Roof Window Hinge
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥450
63280A — Balancer Assy, Roof Window
63280-87001 Balancer Assy, Roof Window
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥2,360
63285C — Hinge, Roof Window, NO.1 RH
63285-87007 Hinge, Roof Window, NO.1 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥670
63286C — Hinge, Roof Window, NO.1 LH
63286-87001 Hinge, Roof Window, NO.1 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥670
63287A — Hinge, Roof Window, NO.2 RH
63287-87002 Hinge, Roof Window, NO.2 RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥820
63288A — Hinge, Roof Window, NO.2 LH
63288-87001 Hinge, Roof Window, NO.2 LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥820
63387A — Bracket, Roof Headlining Holder
63387-87001 Bracket, Roof Headlining Holder
1982-11 → 1985-08 ended
YR20 HRF;CR21,YR21 E,Q,X;YR20 MRF +1 ¥1,010
63387-87001 note Bracket, Roof Headlining Holder
1985-08 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20,21 +2 ¥1,010
63387-87001 note Bracket, Roof Headlining Holder
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥1,010
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
