Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

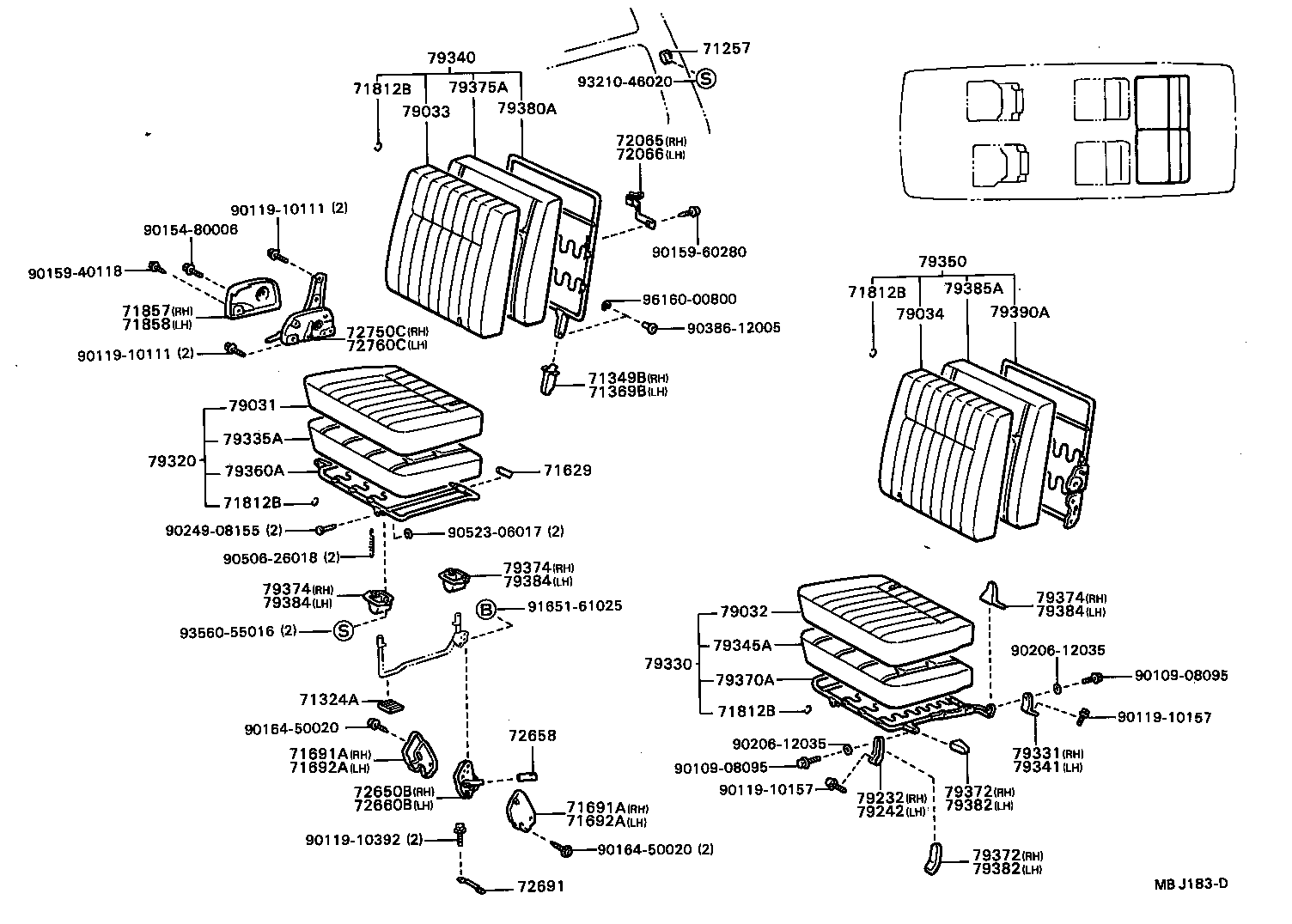

Exploded illustration MBJ183D 71257 — PLATE, REAR SEATBACK ANCHOR (2 parts) 79340 — BACK ASSY, NO.3 SEAT, RH (10 parts) 9321046020 — not listed in this catalogue 79375A — PAD, NO.3 SEATBACK, RH (4 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (1 parts) 79380A — SPRING ASSY, NO.3 SEATBACK, RH (3 parts) 79033 — COVER SUB-ASSY, NO.3 SEATBACK, RH (20 parts) 72065 — BELT SUB-ASSY, REAR SEAT HOOK, RH (8 parts) 72066 — BELT SUB-ASSY, REAR SEAT HOOK, LH (8 parts) 9011910111 — not listed in this catalogue 9015480006 — not listed in this catalogue 9015960280 — not listed in this catalogue 79350 — BACK ASSY, NO.3 SEAT, LH (10 parts) 9015940118 — not listed in this catalogue 79385A — PAD, NO.3 SEATBACK, LH (4 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (1 parts) 9616000800 — not listed in this catalogue 71857 — COVER, RECLINING HINGE, RH (5 parts) 79390A — SPRING ASSY, NO.3 SEATBACK, LH (3 parts) 79034 — COVER SUB-ASSY, NO.3 SEATBACK, LH (20 parts) 71858 — COVER, RECLINING HINGE, LH (5 parts) 9038612005 — not listed in this catalogue 72750C — ADJUSTER ASSY, NO.3 SEAT RECLINING, RH (12 parts) 72760C — ADJUSTER ASSY, NO.3 SEAT RECLINING, LH (13 parts) 9011910111 — not listed in this catalogue 71349B — COVER, REAR SEATBACK STAY, RH (2 parts) 71369B — COVER, REAR SEATBACK STAY, LH (2 parts) 79031 — COVER SUB-ASSY, NO.3 SEAT CUSHION, RH (24 parts) 79335A — PAD, NO.3 SEAT CUSHION, RH (4 parts) 79320 — CUSHION ASSY, NO.3 SEAT, RH (16 parts) 79360A — SPRING ASSY, NO.3 SEAT CUSHION, RH (1 parts) 71629 — COVER, REAR SEAT CUSHION HINGE (3 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (1 parts) 9024908155 — not listed in this catalogue 9052306017 — not listed in this catalogue 9050626018 — not listed in this catalogue 79374 — COVER, NO.3 SEAT LEG, REAR RH (6 parts) 79384 — COVER, NO.3 SEAT LEG, REAR LH (6 parts) 79374 — COVER, NO.3 SEAT LEG, REAR RH (6 parts) 79374 — COVER, NO.3 SEAT LEG, REAR RH (6 parts) 79384 — COVER, NO.3 SEAT LEG, REAR LH (6 parts) 9165161025 — not listed in this catalogue 79032 — COVER SUB-ASSY, NO.3 SEAT CUSHION, LH (24 parts) 79384 — COVER, NO.3 SEAT LEG, REAR LH (6 parts) 9356055016 — not listed in this catalogue 79345A — PAD, NO.3 SEAT CUSHION, LH (4 parts) 9020612035 — not listed in this catalogue 79330 — CUSHION ASSY, NO.3 SEAT, LH (16 parts) 9010908095 — not listed in this catalogue 79370A — SPRING ASSY, NO.3 SEAT CUSHION, LH (1 parts) 71324A — CUSHION, REAR SEAT (1 parts) 71812B — CLIP(FOR REAR SEAT CUSHION COVER) (1 parts) 9011910157 — not listed in this catalogue 9016450020 — not listed in this catalogue 72658 — KNOB, REAR SEAT HANDLE (1 parts) 9020612035 — not listed in this catalogue 79331 — LEG, NO.3 SEAT, OUTER RH (1 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (4 parts) 79341 — LEG, NO.3 SEAT, OUTER LH (1 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (4 parts) 9010908095 — not listed in this catalogue 9011910157 — not listed in this catalogue 72650B — LOCK ASSY, REAR NO.3 SEAT, RH (2 parts) 79372 — COVER, NO.3 SEAT FRONT BRACKET, RH (4 parts) 79232 — LEG, REAR NO.2 SEAT, RH (1 parts) 72660B — LOCK ASSY, REAR NO.3 SEAT, LH (2 parts) 79382 — COVER, NO.3 SEAT FRONT BRACKET, LH (4 parts) 71691A — COVER, REAR NO.3 SEAT LOCK, RH (4 parts) 79242 — LEG, REAR NO.2 SEAT, LH (1 parts) 71692A — COVER, REAR NO.3 SEAT LOCK, LH (4 parts) 9011910392 — not listed in this catalogue 9016450020 — not listed in this catalogue 79372 — COVER, NO.3 SEAT FRONT BRACKET, RH (4 parts) 79382 — COVER, NO.3 SEAT FRONT BRACKET, LH (4 parts) 72691 — STRIKER, REAR NO.3 SEAT LOCK (1 parts)
MBJ183D · 53 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
264 parts on this figure
Part number Description Fitment Price
71257 — Plate, Rear Seatback Anchor
71257-87002-03 note Plate, Rear Seatback Anchor
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,180
71257-87002-05 note Plate, Rear Seatback Anchor
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,180
71324A — Cushion, Rear Seat
71324-87002 Cushion, Rear Seat
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥940
71349B — Cover, Rear Seatback Stay, RH
71349-87002-04 note Cover, Rear Seatback Stay, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
71349-87002-06 note Cover, Rear Seatback Stay, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 —
71369B — Cover, Rear Seatback Stay, LH
71369-87002-04 note Cover, Rear Seatback Stay, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
71369-87002-06 note Cover, Rear Seatback Stay, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 —
71629 — Cover, Rear Seat Cushion Hinge
71629-87001-04 note Cover, Rear Seat Cushion Hinge
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥460
71629-87001-06 note Cover, Rear Seat Cushion Hinge
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥460
71629-87002 Cover, Rear Seat Cushion Hinge
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥1,160
71691A — Cover, Rear NO.3 Seat Lock, RH
71691-87002-04 note Cover, Rear NO.3 Seat Lock, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
71691-87002-06 note Cover, Rear NO.3 Seat Lock, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,330
71691-87003-04 note Cover, Rear NO.3 Seat Lock, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
71691-87003-06 note Cover, Rear NO.3 Seat Lock, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,330
71692A — Cover, Rear NO.3 Seat Lock, LH
71692-87002-04 note Cover, Rear NO.3 Seat Lock, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
71692-87002-06 note Cover, Rear NO.3 Seat Lock, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,330
71692-87003-04 note Cover, Rear NO.3 Seat Lock, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
71692-87003-06 note Cover, Rear NO.3 Seat Lock, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,330
71812B — Clip(FOR REAR SEAT CUSHION COVER)
71812-87401 Clip(FOR REAR SEAT CUSHION COVER)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥230
71857 — Cover, Reclining Hinge, RH
71811-87001-02 note Cover, Reclining Hinge, RH
1982-11 → 1985-08 ended
CR21,YR20,21 —
71811-87001-04 note Cover, Reclining Hinge, RH
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X —
71811-87001-04 note Cover, Reclining Hinge, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
71811-87001-06 note Cover, Reclining Hinge, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,680
71811-87001-14 note Cover, Reclining Hinge, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,680
71858 — Cover, Reclining Hinge, LH
71812-87001-02 note Cover, Reclining Hinge, LH
1982-11 → 1985-08 ended
CR21,YR20,21 —
71812-87001-04 note Cover, Reclining Hinge, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G —
71812-87001-04 note Cover, Reclining Hinge, LH
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X —
71812-87001-06 note Cover, Reclining Hinge, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,680
71812-87001-14 note Cover, Reclining Hinge, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥1,680
72065 — Belt Sub-assy, Rear Seat Hook, RH
72065-87001-04 note Belt Sub-assy, Rear Seat Hook, RH
1985-08 → 1985-11 ended
CR21,YR20,21 E ¥3,150
72065-87001-06 note Belt Sub-assy, Rear Seat Hook, RH
1985-08 → 1985-11 ended
YR20 HRF E;CR21,YR21 08S;YR20 +5 ¥3,150
72065-87002-04 note Belt Sub-assy, Rear Seat Hook, RH
1985-08 → 1985-11 ended
CR21,YR20,21 Q ¥4,460
72065-87002-06 note Belt Sub-assy, Rear Seat Hook, RH
1985-08 → 1985-11 ended
CR21,YR20,21 Q ¥4,460
72065-87003-04 note Belt Sub-assy, Rear Seat Hook, RH
1985-11 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,180
72065-87003-06 note Belt Sub-assy, Rear Seat Hook, RH
1985-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥3,180
72065-87004-04 note Belt Sub-assy, Rear Seat Hook, RH
1985-11 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥4,510
72065-87004-06 note Belt Sub-assy, Rear Seat Hook, RH
1985-11 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥4,510
72066 — Belt Sub-assy, Rear Seat Hook, LH
72065-87001-04 note Belt Sub-assy, Rear Seat Hook, LH
1985-08 → 1985-11 ended
CR21,YR20,21 E ¥3,150
72065-87001-06 note Belt Sub-assy, Rear Seat Hook, LH
1985-08 → 1985-11 ended
YR20 HRF E;CR21,YR21 08S;YR20 +5 ¥3,150
72065-87002-04 note Belt Sub-assy, Rear Seat Hook, LH
1985-08 → 1985-11 ended
CR21,YR20,21 Q ¥4,460
72065-87002-06 note Belt Sub-assy, Rear Seat Hook, LH
1985-08 → 1985-11 ended
CR21,YR20,21 Q ¥4,460
72065-87003-04 note Belt Sub-assy, Rear Seat Hook, LH
1985-11 → 1988-08 ended
CR21,30,YR20,21,30 E ¥3,180
72065-87003-06 note Belt Sub-assy, Rear Seat Hook, LH
1985-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥3,180
72065-87004-04 note Belt Sub-assy, Rear Seat Hook, LH
1985-11 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥4,510
72065-87004-06 note Belt Sub-assy, Rear Seat Hook, LH
1985-11 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥4,510
72650B — Lock Assy, Rear NO.3 Seat, RH
72660-87002 Lock Assy, Rear NO.3 Seat, RH
1985-11 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥12,000
72660-95702 Lock Assy, Rear NO.3 Seat, RH
1985-08 → 1985-11 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥11,900
72658 — Knob, Rear Seat Handle
72658-95701-01 note Knob, Rear Seat Handle
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥640
72660B — Lock Assy, Rear NO.3 Seat, LH
72650-87003 Lock Assy, Rear NO.3 Seat, LH
1985-11 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥12,000
72650-95703 Lock Assy, Rear NO.3 Seat, LH
1985-08 → 1985-11 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥11,900
72691 — Striker, Rear NO.3 Seat Lock
72691-87001 Striker, Rear NO.3 Seat Lock
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,610
72750C — Adjuster Assy, NO.3 Seat Reclining, RH
72730-87006-02 note Adjuster Assy, NO.3 Seat Reclining, RH
1982-11 → 1984-08 ended
CR21,YR20,21 08S,09S ¥35,500
72730-87006-04 note Adjuster Assy, NO.3 Seat Reclining, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥35,500
72730-87006-04 note Adjuster Assy, NO.3 Seat Reclining, RH
1982-11 → 1984-08 ended
CR21,YR20 E ¥35,500
72730-87007-02 note Adjuster Assy, NO.3 Seat Reclining, RH
1982-11 → 1984-08 ended
YR20,21 07S ¥35,600
72730-87007-04 note Adjuster Assy, NO.3 Seat Reclining, RH
1982-11 → 1984-08 ended
YR20,21 07S ¥35,600
72730-87012 Adjuster Assy, NO.3 Seat Reclining, RH
1984-08 → 1985-08 ended
CR21,YR20,21 08S,09S ¥35,200
72730-87013-02 note Adjuster Assy, NO.3 Seat Reclining, RH
1984-08 → 1985-08 ended
YR20,21 07S ¥35,400
72730-87013-04 note Adjuster Assy, NO.3 Seat Reclining, RH
1984-08 → 1985-08 ended
YR20,21 07S ¥35,400
72730-87015-04 note Adjuster Assy, NO.3 Seat Reclining, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥14,000
72730-87015-06 note Adjuster Assy, NO.3 Seat Reclining, RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥14,000
72730-87016-04 note Adjuster Assy, NO.3 Seat Reclining, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
72730-87016-06 note Adjuster Assy, NO.3 Seat Reclining, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
72760C — Adjuster Assy, NO.3 Seat Reclining, LH
72740-87006-02 note Adjuster Assy, NO.3 Seat Reclining, LH
1982-11 → 1984-08 ended
CR21,YR20,21 08S,09S —
72740-87006-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥35,500
72740-87006-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1982-11 → 1984-08 ended
CR21,YR20 E ¥35,500
72740-87007-02 note Adjuster Assy, NO.3 Seat Reclining, LH
1982-11 → 1984-08 ended
YR20,21 07S ¥35,600
72740-87007-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1982-11 → 1984-08 ended
YR20,21 07S ¥35,600
72740-87009-02 note Adjuster Assy, NO.3 Seat Reclining, LH
1984-08 → 1985-08 ended
CR21,YR20,21 08S,09S ¥35,200
72740-87009-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1984-08 → 1985-08 ended
CR21,YR20 E ¥35,200
72740-87010-02 note Adjuster Assy, NO.3 Seat Reclining, LH
1984-08 → 1985-08 ended
YR20,21 07S ¥35,400
72740-87010-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1984-08 → 1985-08 ended
YR20,21 07S ¥35,400
72740-87012-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥14,000
72740-87012-06 note Adjuster Assy, NO.3 Seat Reclining, LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥14,000
72740-87013-04 note Adjuster Assy, NO.3 Seat Reclining, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
72740-87013-06 note Adjuster Assy, NO.3 Seat Reclining, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
79031 — Cover Sub-assy, NO.3 Seat Cushion, RH
79031-87001-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1985-08 → 1986-08 ended
CR21,YR20 D —
79031-87002-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1985-08 → 1986-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79031-87003-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79031-87003-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79031-87004-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79031-87004-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79031-87010-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
CR21,YR20 D —
79031-87011-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79031-87014-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79031-87014-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79031-87015-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79031-87015-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79031-87016-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q ¥32,400
79031-87016-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q ¥32,400
79031-87021-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79031-87021-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79031-87025-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1987-04 → 1987-05 ended
CR21,30,YR20,21,30 HRF E —
79031-87025-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79031-87025-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-12 → 1987-09 ended
CR21,30,YR20,21,30 HRF E —
79031-87025-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79031-87030-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79031-87030-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79031-87031-04 note Cover Sub-assy, NO.3 Seat Cushion, RH
1987-09 → 1988-08 ended
CR21,30,YR20,21,30 HRF E —
79031-87031-06 note Cover Sub-assy, NO.3 Seat Cushion, RH
1987-09 → 1988-08 ended
CR21,30,YR21,30 E —
79032 — Cover Sub-assy, NO.3 Seat Cushion, LH
79032-87001-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1985-08 → 1986-08 ended
CR21,YR20 D —
79032-87002-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1985-08 → 1986-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79032-87003-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79032-87003-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79032-87004-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79032-87004-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79032-87010-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
CR21,YR20 D —
79032-87011-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79032-87013-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79032-87013-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79032-87014-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79032-87014-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79032-87015-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q ¥32,400
79032-87015-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q ¥32,400
79032-87020-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79032-87020-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79032-87024-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1987-04 → 1987-05 ended
CR21,30,YR20,21,30 HRF E —
79032-87024-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79032-87024-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-12 → 1987-09 ended
CR21,30,YR20,21,30 HRF E —
79032-87024-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79032-87029-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79032-87029-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79032-87030-04 note Cover Sub-assy, NO.3 Seat Cushion, LH
1987-09 → 1988-08 ended
CR21,30,YR20,21,30 HRF E —
79032-87030-06 note Cover Sub-assy, NO.3 Seat Cushion, LH
1987-09 → 1988-08 ended
CR21,30,YR21,30 E —
79033 — Cover Sub-assy, NO.3 Seatback, RH
79033-87001-06 note Cover Sub-assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,YR20 D —
79033-87002-06 note Cover Sub-assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79033-87003-04 note Cover Sub-assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79033-87003-06 note Cover Sub-assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79033-87004-04 note Cover Sub-assy, NO.3 Seatback, RH
1985-08 → 1987-06 ended
CR21,30,YR20,21,30 Q ¥32,400
79033-87004-06 note Cover Sub-assy, NO.3 Seatback, RH
1985-08 → 1987-06 ended
CR21,30,YR20,21,30 Q ¥32,400
79033-87009-04 note Cover Sub-assy, NO.3 Seatback, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79033-87009-06 note Cover Sub-assy, NO.3 Seatback, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79033-87014-04 note Cover Sub-assy, NO.3 Seatback, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79033-87014-04 note Cover Sub-assy, NO.3 Seatback, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79033-87014-04 note Cover Sub-assy, NO.3 Seatback, RH
1987-04 → 1987-05 ended
CR21,30,YR20,21,30 HRF E —
79033-87014-06 note Cover Sub-assy, NO.3 Seatback, RH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79033-87014-06 note Cover Sub-assy, NO.3 Seatback, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79033-87014-06 note Cover Sub-assy, NO.3 Seatback, RH
1986-12 → 1987-09 ended
CR21,30,YR20,21,30 HRF E —
79033-87022-04 note Cover Sub-assy, NO.3 Seatback, RH
1987-06 → 1988-01 ended
CR21,30,YR21,30 Q —
79033-87022-04 note Cover Sub-assy, NO.3 Seatback, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79033-87022-06 note Cover Sub-assy, NO.3 Seatback, RH
1987-06 → 1988-01 ended
CR21,30,YR21,30 Q —
79033-87022-06 note Cover Sub-assy, NO.3 Seatback, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79033-87023-04 note Cover Sub-assy, NO.3 Seatback, RH
1987-09 → 1988-08 ended
CR21,30,YR20,21,30 HRF E —
79033-87023-06 note Cover Sub-assy, NO.3 Seatback, RH
1987-09 → 1988-08 ended
CR21,30,YR21,30 E —
79034 — Cover Sub-assy, NO.3 Seatback, LH
79034-87001-06 note Cover Sub-assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,YR20 D —
79034-87002-06 note Cover Sub-assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79034-87003-04 note Cover Sub-assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79034-87003-06 note Cover Sub-assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79034-87004-04 note Cover Sub-assy, NO.3 Seatback, LH
1985-08 → 1987-06 ended
CR21,30,YR20,21,30 Q ¥32,400
79034-87004-06 note Cover Sub-assy, NO.3 Seatback, LH
1985-08 → 1987-06 ended
CR21,30,YR20,21,30 Q ¥32,400
79034-87009-04 note Cover Sub-assy, NO.3 Seatback, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79034-87009-06 note Cover Sub-assy, NO.3 Seatback, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79034-87014-04 note Cover Sub-assy, NO.3 Seatback, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79034-87014-04 note Cover Sub-assy, NO.3 Seatback, LH
1987-04 → 1987-05 ended
CR21,30,YR20,21,30 HRF E —
79034-87014-04 note Cover Sub-assy, NO.3 Seatback, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79034-87014-06 note Cover Sub-assy, NO.3 Seatback, LH
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
79034-87014-06 note Cover Sub-assy, NO.3 Seatback, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
79034-87014-06 note Cover Sub-assy, NO.3 Seatback, LH
1986-12 → 1987-09 ended
CR21,30,YR20,21,30 HRF E —
79034-87022-04 note Cover Sub-assy, NO.3 Seatback, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79034-87022-04 note Cover Sub-assy, NO.3 Seatback, LH
1987-06 → 1988-01 ended
CR21,30,YR21,30 Q —
79034-87022-06 note Cover Sub-assy, NO.3 Seatback, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79034-87022-06 note Cover Sub-assy, NO.3 Seatback, LH
1987-06 → 1988-01 ended
CR21,30,YR21,30 Q —
79034-87023-04 note Cover Sub-assy, NO.3 Seatback, LH
1987-09 → 1988-08 ended
CR21,30,YR20,21,30 HRF E —
79034-87023-06 note Cover Sub-assy, NO.3 Seatback, LH
1987-09 → 1988-08 ended
CR21,30,YR21,30 E —
79232 — Leg, Rear NO.2 Seat, RH
79232-87002 Leg, Rear NO.2 Seat, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥2,170
79242 — Leg, Rear NO.2 Seat, LH
79242-87002 Leg, Rear NO.2 Seat, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥2,170
79320 — Cushion Assy, NO.3 Seat, RH
79320-87001-06 note Cushion Assy, NO.3 Seat, RH
1985-08 → 1986-08 ended
CR21,YR20 D —
79320-87002-06 note Cushion Assy, NO.3 Seat, RH
1985-08 → 1986-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79320-87003-04 note Cushion Assy, NO.3 Seat, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79320-87003-06 note Cushion Assy, NO.3 Seat, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79320-87004-04 note Cushion Assy, NO.3 Seat, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79320-87004-06 note Cushion Assy, NO.3 Seat, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79320-87010-06 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,YR20 D —
79320-87011-06 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79320-87015-04 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79320-87015-06 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79320-87016-04 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79320-87016-06 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79320-87017-04 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q —
79320-87017-06 note Cushion Assy, NO.3 Seat, RH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q —
79320-87034-04 note Cushion Assy, NO.3 Seat, RH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79320-87034-06 note Cushion Assy, NO.3 Seat, RH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79330 — Cushion Assy, NO.3 Seat, LH
79330-87001-06 note Cushion Assy, NO.3 Seat, LH
1985-08 → 1986-08 ended
CR21,YR20 D —
79330-87002-06 note Cushion Assy, NO.3 Seat, LH
1985-08 → 1986-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79330-87003-04 note Cushion Assy, NO.3 Seat, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79330-87003-06 note Cushion Assy, NO.3 Seat, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E —
79330-87004-04 note Cushion Assy, NO.3 Seat, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79330-87004-06 note Cushion Assy, NO.3 Seat, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
79330-87010-06 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,YR20 D —
79330-87011-06 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79330-87012-04 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79330-87012-06 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79330-87014-04 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79330-87014-06 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79330-87016-04 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q —
79330-87016-06 note Cushion Assy, NO.3 Seat, LH
1986-08 → 1987-06 ended
CR21,30,YR21,30 Q —
79330-87033-04 note Cushion Assy, NO.3 Seat, LH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79330-87033-06 note Cushion Assy, NO.3 Seat, LH
1987-06 → 1988-08 ended
CR21,30,YR21,30 Q —
79331 — Leg, NO.3 Seat, Outer RH
79331-87001 Leg, NO.3 Seat, Outer RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥2,300
79335A — Pad, NO.3 Seat Cushion, RH
79335-87001 Pad, NO.3 Seat Cushion, RH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 —
79335-87002 Pad, NO.3 Seat Cushion, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79335-87003 Pad, NO.3 Seat Cushion, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
79335-87004 note Pad, NO.3 Seat Cushion, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥18,300
79340 — Back Assy, NO.3 Seat, RH
79340-87001-06 note Back Assy, NO.3 Seat, RH
1985-08 → 1988-08 ended
CR21,YR20 D —
79340-87002-06 note Back Assy, NO.3 Seat, RH
1985-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79340-87003-04 note Back Assy, NO.3 Seat, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79340-87003-06 note Back Assy, NO.3 Seat, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79340-87004-04 note Back Assy, NO.3 Seat, RH
1985-08 → 1988-01 ended
CR21,30,YR20,21,30 Q —
79340-87004-06 note Back Assy, NO.3 Seat, RH
1985-08 → 1988-01 ended
CR21,30,YR20,21,30 Q —
79340-87010-04 note Back Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79340-87010-06 note Back Assy, NO.3 Seat, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79340-87028-04 note Back Assy, NO.3 Seat, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79340-87028-06 note Back Assy, NO.3 Seat, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79341 — Leg, NO.3 Seat, Outer LH
79341-87001 Leg, NO.3 Seat, Outer LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥2,300
79345A — Pad, NO.3 Seat Cushion, LH
79345-87001 Pad, NO.3 Seat Cushion, LH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 —
79345-87002 Pad, NO.3 Seat Cushion, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79345-87003 Pad, NO.3 Seat Cushion, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
79345-87004 note Pad, NO.3 Seat Cushion, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥18,300
79350 — Back Assy, NO.3 Seat, LH
79350-87001-06 note Back Assy, NO.3 Seat, LH
1985-08 → 1988-08 ended
CR21,YR20 D —
79350-87002-06 note Back Assy, NO.3 Seat, LH
1985-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 —
79350-87003-04 note Back Assy, NO.3 Seat, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79350-87003-06 note Back Assy, NO.3 Seat, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79350-87004-04 note Back Assy, NO.3 Seat, LH
1985-08 → 1988-01 ended
CR21,30,YR20,21,30 Q —
79350-87004-06 note Back Assy, NO.3 Seat, LH
1985-08 → 1988-01 ended
CR21,30,YR20,21,30 Q —
79350-87010-04 note Back Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79350-87010-06 note Back Assy, NO.3 Seat, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79350-87028-04 note Back Assy, NO.3 Seat, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79350-87028-06 note Back Assy, NO.3 Seat, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 Q —
79360A — Spring Assy, NO.3 Seat Cushion, RH
79360-87001 Spring Assy, NO.3 Seat Cushion, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥18,300
79370A — Spring Assy, NO.3 Seat Cushion, LH
79370-87001 Spring Assy, NO.3 Seat Cushion, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥18,300
79372 — Cover, NO.3 Seat Front Bracket, RH
79372-87001-04 note Cover, NO.3 Seat Front Bracket, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
79372-87001-06 note Cover, NO.3 Seat Front Bracket, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 —
79372-87002-04 note Cover, NO.3 Seat Front Bracket, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
79372-87002-06 note Cover, NO.3 Seat Front Bracket, RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 —
79374 — Cover, NO.3 Seat Leg, Rear RH
79374-87001-04 note Cover, NO.3 Seat Leg, Rear RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
79374-87001-06 note Cover, NO.3 Seat Leg, Rear RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,620
79374-95700-14 note Cover, NO.3 Seat Leg, Rear RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥850
79374-95700-16 note Cover, NO.3 Seat Leg, Rear RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥850
79384-95701-14 note Cover, NO.3 Seat Leg, Rear RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥850
79384-95701-16 note Cover, NO.3 Seat Leg, Rear RH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥850
79375A — Pad, NO.3 Seatback, RH
79375-87001 Pad, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,YR20 D —
79375-87002 Pad, NO.3 Seatback, RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 —
79375-87003 Pad, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
79375-87007 note Pad, NO.3 Seatback, RH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E ¥14,300
79380A — Spring Assy, NO.3 Seatback, RH
79380-87001 Spring Assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,YR20 D —
79380-87002 Spring Assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 —
79380-87003 Spring Assy, NO.3 Seatback, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
79382 — Cover, NO.3 Seat Front Bracket, LH
79382-87001-04 note Cover, NO.3 Seat Front Bracket, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
79382-87001-06 note Cover, NO.3 Seat Front Bracket, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 —
79382-87002-04 note Cover, NO.3 Seat Front Bracket, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
79382-87002-06 note Cover, NO.3 Seat Front Bracket, LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 —
79384 — Cover, NO.3 Seat Leg, Rear LH
79374-95700-14 note Cover, NO.3 Seat Leg, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥850
79374-95700-16 note Cover, NO.3 Seat Leg, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥850
79384-87001-04 note Cover, NO.3 Seat Leg, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q —
79384-87001-06 note Cover, NO.3 Seat Leg, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,620
79384-95701-14 note Cover, NO.3 Seat Leg, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥850
79384-95701-16 note Cover, NO.3 Seat Leg, Rear LH
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥850
79385A — Pad, NO.3 Seatback, LH
79385-87001 Pad, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,YR20 D —
79385-87002 Pad, NO.3 Seatback, LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 —
79385-87003 Pad, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
79385-87009 note Pad, NO.3 Seatback, LH
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E —
79390A — Spring Assy, NO.3 Seatback, LH
79390-87001 Spring Assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,YR20 D —
79390-87002 Spring Assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 —
79390-87003 Spring Assy, NO.3 Seatback, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
