Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

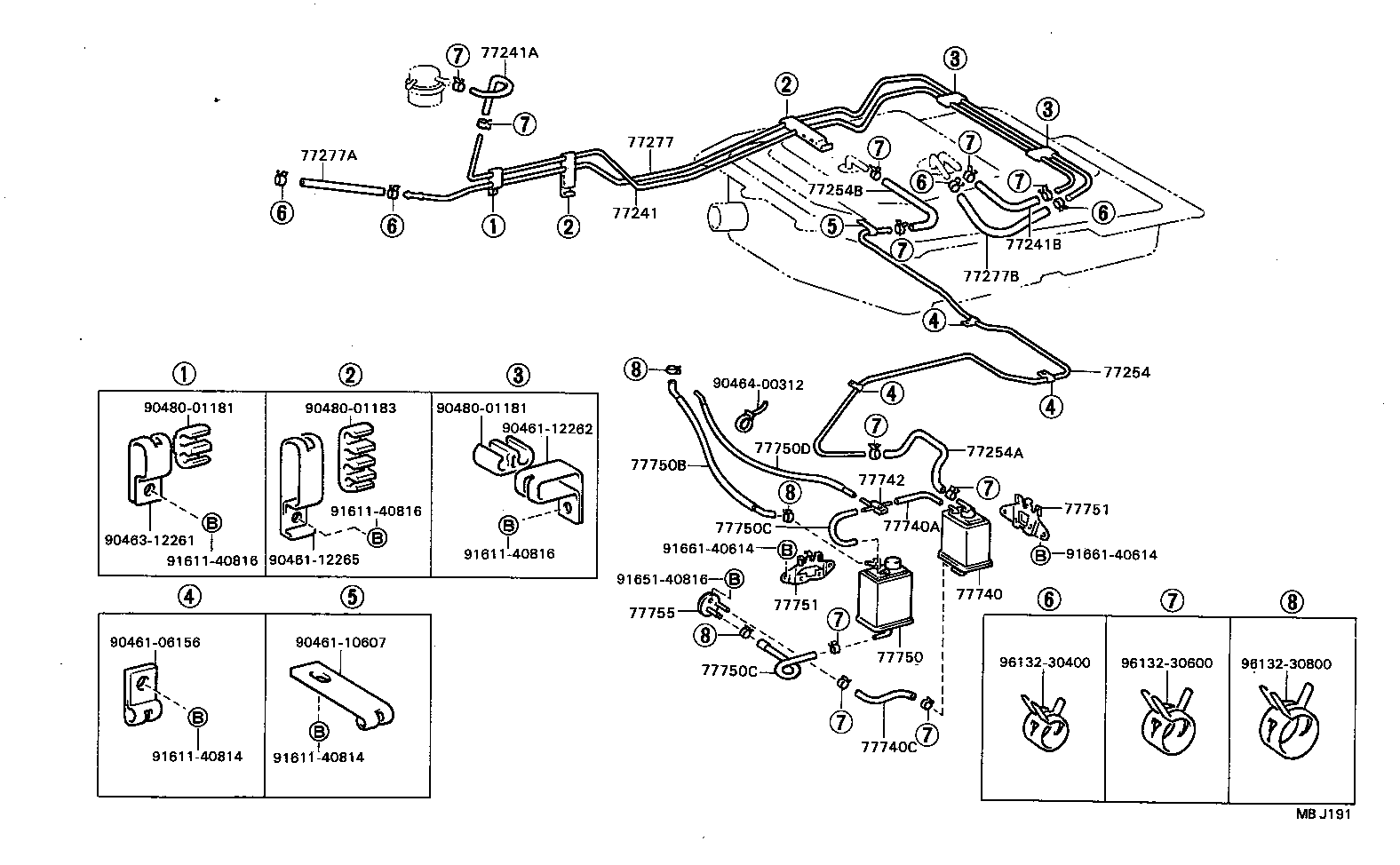

Exploded illustration MBJ191 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (5 parts) 77277 — TUBE, FUEL RETURN, NO.1 (8 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (8 parts) 77254B — HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) (2 parts) 77241 — TUBE, FUEL MAIN, NO.1 (11 parts) 77241B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) (8 parts) 77277B — HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) (10 parts) 77254 — TUBE, FUEL EMISSION, NO.1 (1 parts) 9046400312 — not listed in this catalogue 9048001181 — not listed in this catalogue 9048001183 — not listed in this catalogue 9048001181 — not listed in this catalogue 9046112262 — not listed in this catalogue 77750D — HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) (4 parts) 77254A — HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) (2 parts) 77750B — HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) (3 parts) 77742 — WAY, 3(FOR CANISTER) (1 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (4 parts) 9161140816 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (7 parts) 77750C — HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER) (3 parts) 9046312261 — not listed in this catalogue 9166140614 — not listed in this catalogue 9161140816 — not listed in this catalogue 9166140614 — not listed in this catalogue 9046112265 — not listed in this catalogue 9161140816 — not listed in this catalogue 9165140816 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (2 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (4 parts) 77755 — BRACKET, CHARCOAL CANISTER OUTLET HOSE (2 parts) 9046106156 — not listed in this catalogue 9046110607 — not listed in this catalogue 77750 — CANISTER ASSY, CHARCOAL (3 parts) 9613230400 — not listed in this catalogue 9613230600 — not listed in this catalogue 9613230800 — not listed in this catalogue 77750C — HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER) (3 parts) 77740C — HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) (6 parts) 9161140814 — not listed in this catalogue 9161140814 — not listed in this catalogue
MBJ191 · 21 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
77241 — Tube, Fuel Main, NO.1
77251-28030 Tube, Fuel Main, NO.1
1982-11 → 1982-12 ended
KR26,YR2# —
77251-28031 Tube, Fuel Main, NO.1
1982-12 → 1985-08 ended
KR26,YR20,26 ¥1,270
77251-28040 Tube, Fuel Main, NO.1
1982-11 → 1984-08 ended
CR2# —
77251-28041 Tube, Fuel Main, NO.1
1984-08 → 1988-08 ended
CR2# ¥1,470
77251-28050 Tube, Fuel Main, NO.1
1983-05 → 1988-08 ended
YR21 ¥1,470
77251-28060 Tube, Fuel Main, NO.1
1985-08 → 1986-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,070
77251-28061 Tube, Fuel Main, NO.1
1986-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,150
77251-28070 Tube, Fuel Main, NO.1
1985-10 → 1988-08 ended
CR3# ¥1,950
77251-28080 Tube, Fuel Main, NO.1
1985-10 → 1986-05 ended
YR30 ¥2,700
77251-28081 Tube, Fuel Main, NO.1
1986-05 → 1986-08 ended
YR30 —
77251-28082 Tube, Fuel Main, NO.1
1986-08 → 1988-08 ended
YR3# ¥2,490
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77279-28020 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-12 → 1988-08 ended
KR26,YR20,26,28 ¥1,020
95332-06020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-11 → 1982-12 ended
KR26,YR2# ¥350
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-11 → 1983-03 ended
CR26 ¥480
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1983-03 → 1987-02 ended
CR2#,3# ¥480
95333-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1987-02 → 1988-08 ended
CR2#,3# ¥660
77241B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1982-11 → 1983-10 ended
KR26,YR20,26 ¥350
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1983-10 → 1986-05 ended
KR26,YR20,26,28 ¥350
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-05 → 1986-11 ended
KR26,YR26 ¥350
95332-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1982-11 → 1984-08 ended
CR2# ¥480
95332-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1984-08 → 1987-02 ended
CR2#,3# ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-05 → 1986-11 ended
YR20 HRF 5F G;YR20 +4 ¥480
95333-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-11 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥480
95333-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1987-02 → 1988-08 ended
CR2#,3# ¥660
77254 — Tube, Fuel Emission, NO.1
77263-28050 Tube, Fuel Emission, NO.1
1982-11 → 1988-08 ended
KR26,YR2#,3# —
77254A — Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77249-28020 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1982-11 → 1985-08 ended
KR26,YR2# —
77249-28050 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
77254B — Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1982-11 → 1987-02 ended
KR26,YR2#,3# ¥350
95333-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1987-02 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥480
77277 — Tube, Fuel Return, NO.1
77255-28010 Tube, Fuel Return, NO.1
1982-11 → 1985-08 ended
KR26,YR20,26 ¥1,070
77255-28020 Tube, Fuel Return, NO.1
1982-11 → 1984-08 ended
CR2# —
77255-28021 Tube, Fuel Return, NO.1
1984-08 → 1988-08 ended
CR21,26,27 ¥1,350
77255-28030 Tube, Fuel Return, NO.1
1983-05 → 1986-08 ended
YR21,30 ¥1,350
77255-28031 Tube, Fuel Return, NO.1
1986-08 → 1988-08 ended
YR21,3# ¥1,740
77255-28040 Tube, Fuel Return, NO.1
1985-08 → 1986-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,450
77255-28041 Tube, Fuel Return, NO.1
1986-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,290
77255-28050 Tube, Fuel Return, NO.1
1985-10 → 1988-08 ended
CR3# ¥1,550
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-73030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1983-05 → 1988-08 ended
YR21,30 ¥2,250
90447-12038 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1985-08 ended
CR26 V4D ¥270
90447-12063 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1985-08 → 1988-08 ended
CR2#,30,36 ¥880
95332-04030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1987-02 ended
YR20,26 ¥520
95332-04040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1987-02 ended
KR26 ¥670
95332-06040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1985-08 ended
CR2# ¥760
95333-04030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥660
95333-04040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
KR26 ¥670
77277B — Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
95332-04030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1982-11 → 1986-11 ended
KR26,YR20,26,28 ¥520
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1982-11 → 1983-08 ended
CR2#,YR21 ¥350
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1984-08 → 1986-05 ended
YR21,30 ¥350
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-08 → 1983-10 ended
CR2#,YR21 ¥350
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-10 → 1984-08 ended
CR2#,YR21 ¥350
95332-06030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1984-08 → 1987-02 ended
CR2#,3# ¥590
95333-04022 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1986-11 → 1987-02 ended
YR20 HRF 5F G;YR20 +4 ¥520
95333-04030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥660
95333-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1986-05 → 1988-08 ended
YR21,3# ¥480
95333-06030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
CR2#,3# ¥580
77740 — Canister Assy, Charcoal
77704-28060 Canister Assy, Charcoal
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥9,400
77704-60050 Canister Assy, Charcoal
1982-11 → 1985-08 ended
KR26,YR2# ¥7,900
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
90999-92002 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1988-03 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥460
90999-92002 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1988-03 → 1988-08 ended
KR26 ¥460
90999-92004 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1988-03 → 1988-08 ended
YR21,3# ¥890
95411-10630 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1985-08 → 1988-03 ended
YR20 HRF 5F G;YR20 +4 ¥500
95411-10630 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1982-11 → 1985-08 ended
YR20,26 ¥500
95411-19930 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1982-11 → 1988-03 ended
KR26 ¥530
95411-19995 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1983-05 → 1988-03 ended
YR21,3# ¥1,540
77740C — Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
90445-12121 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1983-10 → 1985-08 ended
KR26 ¥370
90445-12121 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥370
95332-08020 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1982-11 → 1983-10 ended
KR26,YR2# ¥460
95332-08020 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1983-10 → 1985-08 ended
YR2# ¥460
95332-08030 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1985-10 → 1987-02 ended
YR3# ¥480
95333-08030 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1987-02 → 1988-08 ended
YR3# ¥660
77742 — Way, 3(FOR CANISTER)
90413-04005 Way, 3(FOR CANISTER)
1982-11 → 1988-08 ended
KR26,YR20,26,28 ¥190
77750 — Canister Assy, Charcoal
77704-28070 Canister Assy, Charcoal
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥9,400
77740-28080 Canister Assy, Charcoal
1982-11 → 1985-08 ended
YR20,26 ¥9,200
77740-28090 Canister Assy, Charcoal
1982-11 → 1988-08 ended
KR26 ¥9,100
77750B — Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
23829-72020 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1985-08 → 1987-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,360
23829-72050 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1987-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,170
90447-14006 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1982-11 → 1985-08 ended
YR20,26 ¥1,710
77750C — Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
23826-72010 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥860
90910-05165 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1982-11 → 1985-08 ended
KR26,YR20,26 ¥680
90910-05165 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
KR26 ¥680
77750D — Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
90447-08011 note Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥670
90999-92003 note Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
1988-03 → 1988-08 ended
KR26 ¥520
95411-10660 note Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
1982-11 → 1985-08 ended
YR20,26 ¥910
95411-19960 note Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
1982-11 → 1988-03 ended
KR26 ¥910
77751 — Bracket, Charcoal Canister Base
77751-28060 Bracket, Charcoal Canister Base
1982-11 → 1985-08 ended
KR26,YR2# ¥1,130
77751-28060 Bracket, Charcoal Canister Base
1985-08 → 1988-08 ended
KR26 ¥1,130
77751-28070 note Bracket, Charcoal Canister Base
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,220
77751-28080 note Bracket, Charcoal Canister Base
1985-08 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,130
77755 — Bracket, Charcoal Canister Outlet Hose
77755-28010 Bracket, Charcoal Canister Outlet Hose
1982-11 → 1983-06 ended
KR26,YR2# ¥610
77755-28011 Bracket, Charcoal Canister Outlet Hose
1983-06 → 1988-08 ended
KR26,YR2#,3# ¥620
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
