Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

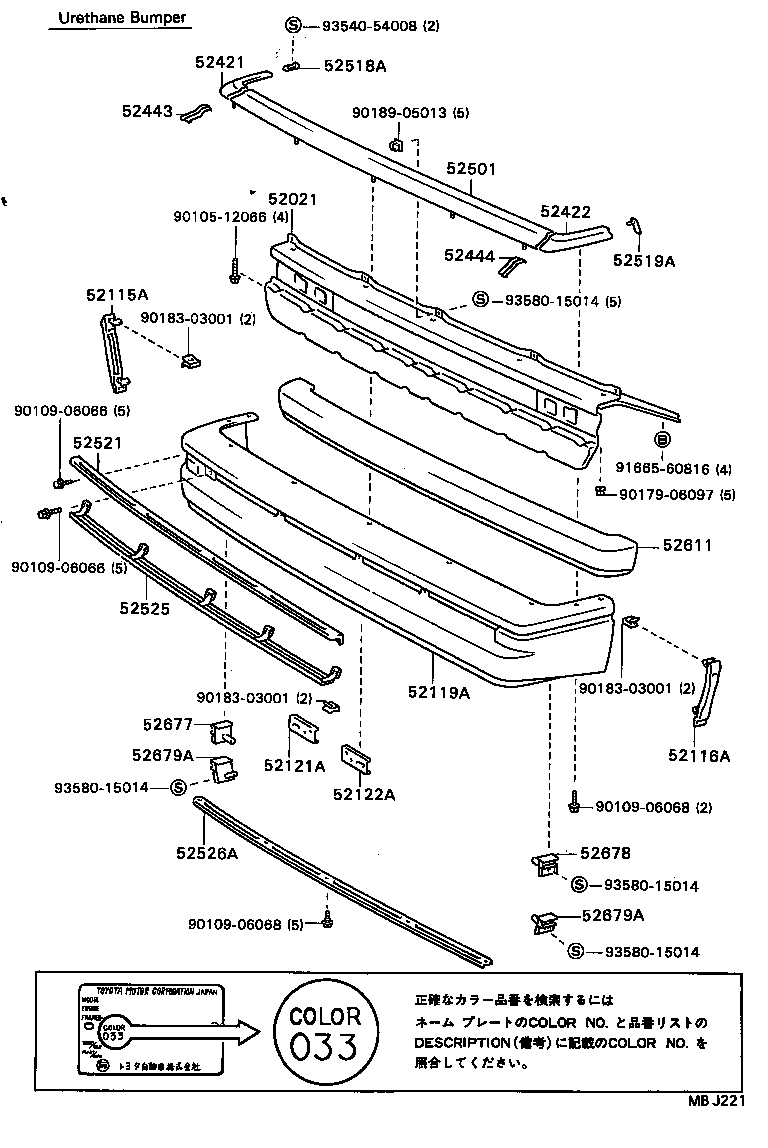

Exploded illustration MBJ221 9354054008 — not listed in this catalogue 52421 — FILLER, FRONT BUMPER MOULDING, RH (1 parts) 52518A — CAP, FRONT BUMPER FILLER, RH (1 parts) 52443 — PROTECTOR, FRONT BUMPER, RH (1 parts) 9018905013 — not listed in this catalogue 52501 — FILLER SUB-ASSY, FRONT BUMPER (1 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (2 parts) 52422 — FILLER, FRONT BUMPER MOULDING, LH (1 parts) 9010512066 — not listed in this catalogue 52444 — PROTECTOR, FRONT BUMPER, LH (1 parts) 52519A — CAP, FRONT BUMPER FILLER, LH (1 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (3 parts) 9358015014 — not listed in this catalogue 9018303001 — not listed in this catalogue 9010906066 — not listed in this catalogue 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (3 parts) 9166560816 — not listed in this catalogue 9017906097 — not listed in this catalogue 52611 — ABSORBER, FRONT BUMPER ENERGY (4 parts) 9010906066 — not listed in this catalogue 52525 — RETAINER, FRONT BUMPER, LOWER CENTER (2 parts) 9018303001 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (55 parts) 9018303001 — not listed in this catalogue 52677 — SUPPORT, FRONT BUMPER SIDE, NO.2, RH (1 parts) 52679A — SUPPORT, FRONT BUMPER SIDE, NO.3 (1 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (3 parts) 52121A — BRACKET, FRONT LICENSE PLATE MOUNTING, RH (1 parts) 9358015014 — not listed in this catalogue 52122A — BRACKET, FRONT LICENSE PLATE MOUNTING, LH (1 parts) 9010906068 — not listed in this catalogue 52526A — RETAINER, FRONT BUMPER, LOWER NO.1 (2 parts) 52678 — SUPPORT, FRONT BUMPER SIDE, NO.2, LH (1 parts) 9358015014 — not listed in this catalogue 52679A — SUPPORT, FRONT BUMPER SIDE, NO.3 (1 parts) 9010906068 — not listed in this catalogue 9358015014 — not listed in this catalogue
MBJ221 · 21 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
86 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-28020 note Reinforcement Sub-assy, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 ¥38,400
52021-28040 note Reinforcement Sub-assy, Front Bumper
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥39,400
52115A — Support, Front Bumper Side, RH
52115-87001 Support, Front Bumper Side, RH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥780
52675-28010 note Support, Front Bumper Side, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥890
52675-28020 note Support, Front Bumper Side, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,080
52116A — Support, Front Bumper Side, LH
52116-87001 Support, Front Bumper Side, LH
1982-11 → 1988-08 ended
CR21,28,30,YR20,21,28,3# ¥780
52675-28010 note Support, Front Bumper Side, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥890
52675-28020 note Support, Front Bumper Side, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,080
52119A — Cover, Front Bumper
52119-28010 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥38,000
52119-28020-03 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-04 note Cover, Front Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥68,400
52119-28020-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-05 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-07 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q —
52119-28020-08 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-12 note Cover, Front Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥68,400
52119-28020-22 note Cover, Front Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
52119-28030-03 note Cover, Front Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥74,800
52119-28030-06 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥67,900
52119-28030-16 note Cover, Front Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥74,800
52119-28030-16 note Cover, Front Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥74,800
52119-28060 note Cover, Front Bumper
1985-08 → 1988-08 ended
YR20 6S,08S HRF E;YR20 +6 ¥47,600
52119-28070-02 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E —
52119-28070-03 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-04 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-05 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-05 note Cover, Front Bumper
1987-04 → 1987-09 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-06 note Cover, Front Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-08 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-14 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-15 note Cover, Front Bumper
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-16 note Cover, Front Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-18 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-23 note Cover, Front Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E —
52119-28070-24 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-28070-25 note Cover, Front Bumper
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥85,700
52119-28070-34 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥85,700
52119-87001 note Cover, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 D,E,G,X ¥27,100
52119-87002-03 note Cover, Front Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87002-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87002-05 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥47,400
52119-87002-07 note Cover, Front Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥47,400
52119-87002-18 note Cover, Front Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E —
52119-87002-22 note Cover, Front Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥47,400
52119-87004-04 note Cover, Front Bumper
1983-05 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥52,100
52119-87004-12 note Cover, Front Bumper
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥47,200
52119-87004-22 note Cover, Front Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥52,100
52119-87008 note Cover, Front Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥47,400
52119-87008 note Cover, Front Bumper
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥47,400
52119-87011 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G ¥30,700
52119-87012-03 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-04 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-06 note Cover, Front Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-08 note Cover, Front Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-13 note Cover, Front Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-16 note Cover, Front Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-18 note Cover, Front Bumper
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥49,500
52119-87012-18 note Cover, Front Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥49,500
52119-87012-28 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-34 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-87012-44 note Cover, Front Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥49,500
52119-95D00 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥49,500
52119-95D01 note Cover, Front Bumper
1986-10 → 1986-11 ended
CR30,YR30 E ¥85,300
52121A — Bracket, Front License Plate Mounting, RH
52121-28010 note Bracket, Front License Plate Mounting, RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥880
52122A — Bracket, Front License Plate Mounting, LH
52122-28020 note Bracket, Front License Plate Mounting, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥880
52421 — Filler, Front Bumper Moulding, RH
52512-28010 note Filler, Front Bumper Moulding, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,120
52422 — Filler, Front Bumper Moulding, LH
52513-28010 note Filler, Front Bumper Moulding, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,120
52443 — Protector, Front Bumper, RH
52541-28010 note Protector, Front Bumper, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥770
52444 — Protector, Front Bumper, LH
52542-28010 note Protector, Front Bumper, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥770
52501 — Filler Sub-assy, Front Bumper
52511-28010 note Filler Sub-assy, Front Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 ¥7,000
52518A — Cap, Front Bumper Filler, RH
52518-28010 note Cap, Front Bumper Filler, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥650
52519A — Cap, Front Bumper Filler, LH
52519-28010 note Cap, Front Bumper Filler, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥650
52521 — Retainer, Front Bumper, Upper Center
52521-28010 note Retainer, Front Bumper, Upper Center
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,480
52521-28020 note Retainer, Front Bumper, Upper Center
1985-08 → 1986-01 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,680
52521-28030 note Retainer, Front Bumper, Upper Center
1986-01 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,720
52525 — Retainer, Front Bumper, Lower Center
52525-28010 note Retainer, Front Bumper, Lower Center
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,960
52525-28020 note Retainer, Front Bumper, Lower Center
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,020
52526A — Retainer, Front Bumper, Lower NO.1
52526-28010 note Retainer, Front Bumper, Lower NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 ¥3,100
52526-28020 note Retainer, Front Bumper, Lower NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,130
52611 — Absorber, Front Bumper Energy
52611-28010 note Absorber, Front Bumper Energy
1982-11 → 1983-12 ended
CR21,YR20,21 ¥14,600
52611-28020 note Absorber, Front Bumper Energy
1983-12 → 1985-08 ended
CR21,YR20,21 ¥14,200
52611-28030 note Absorber, Front Bumper Energy
1985-08 → 1985-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥16,800
52611-28040 note Absorber, Front Bumper Energy
1985-11 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥16,800
52677 — Support, Front Bumper Side, NO.2, RH
52677-28010 note Support, Front Bumper Side, NO.2, RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥450
52678 — Support, Front Bumper Side, NO.2, LH
52677-28010 note Support, Front Bumper Side, NO.2, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥450
52679A — Support, Front Bumper Side, NO.3
52679-28010 note Support, Front Bumper Side, NO.3
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
