Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

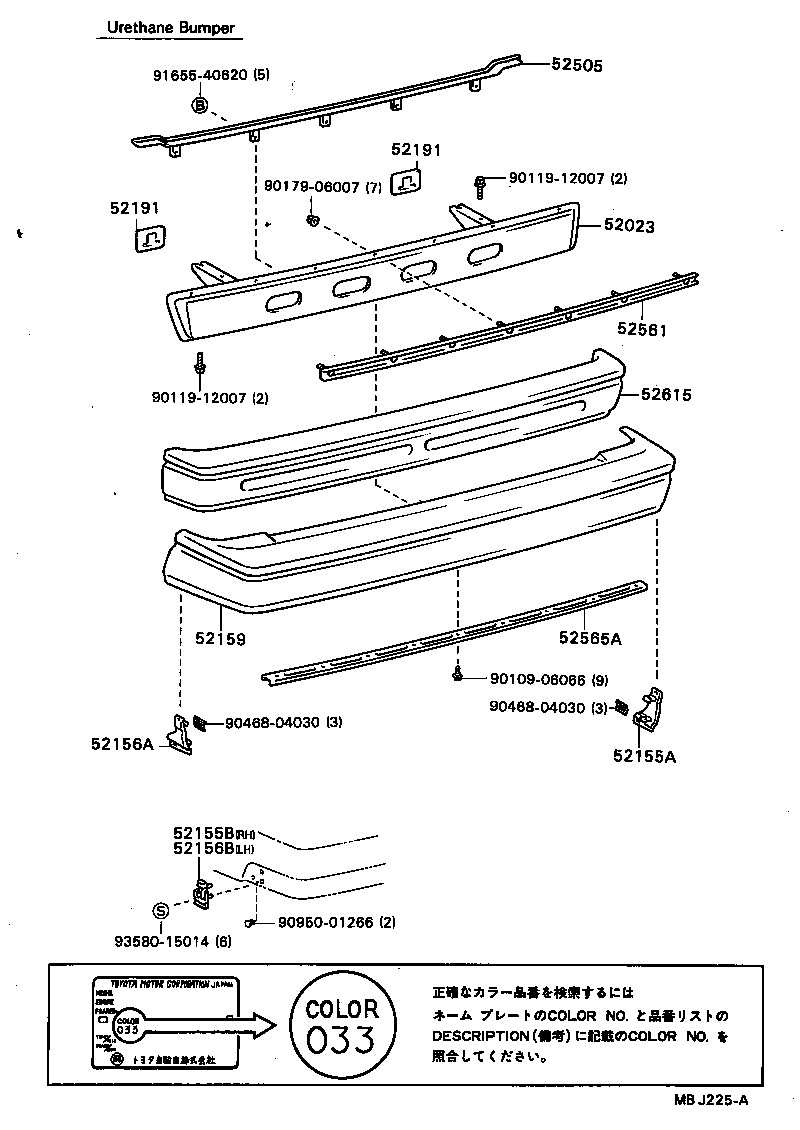

Exploded illustration MBJ225A 52505 — FILLER SUB-ASSY, REAR BUMPER (2 parts) 9165540620 — not listed in this catalogue 52191 — PACKING, REAR BUMPER STAY (3 parts) 9011912007 — not listed in this catalogue 9017906007 — not listed in this catalogue 52191 — PACKING, REAR BUMPER STAY (3 parts) 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (2 parts) 52561 — RETAINER, REAR BUMPER, UPPER CENTER (1 parts) 52615 — ABSORBER, REAR BUMPER ENERGY (2 parts) 9011912007 — not listed in this catalogue 52565A — RETAINER, REAR BUMPER, LOWER (1 parts) 52159 — COVER, REAR BUMPER (53 parts) 9010906066 — not listed in this catalogue 9046804030 — not listed in this catalogue 9046804030 — not listed in this catalogue 52156A — SUPPORT, REAR BUMPER SIDE, LH (2 parts) 52155A — SUPPORT, REAR BUMPER SIDE, RH (2 parts) 52155B — SUPPORT, REAR BUMPER SIDE, NO.2 RH (1 parts) 52156B — SUPPORT, REAR BUMPER SIDE, NO.2 LH (1 parts) 9095001266 — not listed in this catalogue 9358015014 — not listed in this catalogue
MBJ225A · 12 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
52023 — Reinforcement Sub-assy, Rear Bumper
52023-28010 note Reinforcement Sub-assy, Rear Bumper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥34,800
52023-87001 Reinforcement Sub-assy, Rear Bumper
1987-08 → 1988-08 ended
CR28 ¥26,900
52155A — Support, Rear Bumper Side, RH
52155-28020 note Support, Rear Bumper Side, RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,160
52155-87001 Support, Rear Bumper Side, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥600
52155B — Support, Rear Bumper Side, NO.2 RH
52157-28030 note Support, Rear Bumper Side, NO.2 RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥800
52156A — Support, Rear Bumper Side, LH
52155-87001 Support, Rear Bumper Side, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥600
52156-28010 note Support, Rear Bumper Side, LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,160
52156B — Support, Rear Bumper Side, NO.2 LH
52158-28020 note Support, Rear Bumper Side, NO.2 LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,030
52159 — Cover, Rear Bumper
52159-28010 note Cover, Rear Bumper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G,X ¥32,700
52159-28020-03 note Cover, Rear Bumper
1984-04 → 1984-05 ended
YR20 HRF E ¥59,200
52159-28020-03 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-03 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-04 note Cover, Rear Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-04 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-04 note Cover, Rear Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥59,200
52159-28020-05 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-06 note Cover, Rear Bumper
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥59,200
52159-28020-07 note Cover, Rear Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥65,000
52159-28020-08 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-08 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-15 note Cover, Rear Bumper
1987-04 → 1987-09 ended
CR21,30,YR21,30 E ¥59,200
52159-28020-15 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-16 note Cover, Rear Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥65,000
52159-28020-16 note Cover, Rear Bumper
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥65,000
52159-28020-18 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-22 note Cover, Rear Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥59,200
52159-28020-23 note Cover, Rear Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥59,200
52159-28020-24 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-25 note Cover, Rear Bumper
1987-09 → 1988-01 ended
CR21,30,YR21,30 E ¥59,200
52159-28020-26 note Cover, Rear Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-32 note Cover, Rear Bumper
1986-10 → 1986-11 ended
CR21,YR20,21 HRF E ¥59,200
52159-28020-32 note Cover, Rear Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥59,200
52159-28020-34 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-35 note Cover, Rear Bumper
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥59,200
52159-28020-36 note Cover, Rear Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-28020-44 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥59,200
52159-87001 note Cover, Rear Bumper
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# B,D,E,G,X ¥21,200
52159-87002-03 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-03 note Cover, Rear Bumper
1982-11 → 1985-08 ended
YR20,21 Q ¥37,900
52159-87002-04 note Cover, Rear Bumper
1983-05 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥37,900
52159-87002-04 note Cover, Rear Bumper
1983-05 → 1985-08 ended
YR20,21 Q ¥37,900
52159-87002-05 note Cover, Rear Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥37,900
52159-87002-07 note Cover, Rear Bumper
1982-11 → 1984-08 ended
YR20,21 Q ¥37,900
52159-87002-08 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-12 note Cover, Rear Bumper
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X ¥37,900
52159-87002-13 note Cover, Rear Bumper
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-16 note Cover, Rear Bumper
1985-08 → 1986-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-18 note Cover, Rear Bumper
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥37,900
52159-87002-22 note Cover, Rear Bumper
1984-08 → 1985-08 ended
YR20,21 Q ¥37,900
52159-87002-22 note Cover, Rear Bumper
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥37,900
52159-87002-26 note Cover, Rear Bumper
1986-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-28 note Cover, Rear Bumper
1986-04 → 1986-08 ended
CR21,YR20,21 HRF E ¥37,900
52159-87002-34 note Cover, Rear Bumper
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-38 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥38,000
52159-87002-44 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87002-54 note Cover, Rear Bumper
1987-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥37,900
52159-87003 note Cover, Rear Bumper
1984-04 → 1985-08 ended
YR20 HRF E —
52159-87003 note Cover, Rear Bumper
1983-10 → 1983-11 ended
YR20 MRF 5F G —
52159-87004 note Cover, Rear Bumper
1987-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥38,200
52159-95D00 note Cover, Rear Bumper
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E ¥38,100
52159-95D01 note Cover, Rear Bumper
1986-10 → 1986-11 ended
CR30,YR30 E ¥58,700
52191 — Packing, Rear Bumper Stay
52191-28010 note Packing, Rear Bumper Stay
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,610
52191-87002 Packing, Rear Bumper Stay
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,780
52191-87003 Packing, Rear Bumper Stay
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,780
52505 — Filler Sub-assy, Rear Bumper
52551-28010 note Filler Sub-assy, Rear Bumper
1982-11 → 1983-08 ended
CR21,YR20,21 ¥5,700
52551-28020 note Filler Sub-assy, Rear Bumper
1983-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥5,700
52561 — Retainer, Rear Bumper, Upper Center
52305-28010 note Retainer, Rear Bumper, Upper Center
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥2,200
52565A — Retainer, Rear Bumper, Lower
52565-28010 note Retainer, Rear Bumper, Lower
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥2,580
52615 — Absorber, Rear Bumper Energy
52615-28010 note Absorber, Rear Bumper Energy
1982-11 → 1983-12 ended
CR21,YR20,21 ¥14,500
52615-28020 note Absorber, Rear Bumper Energy
1983-12 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥14,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
