Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

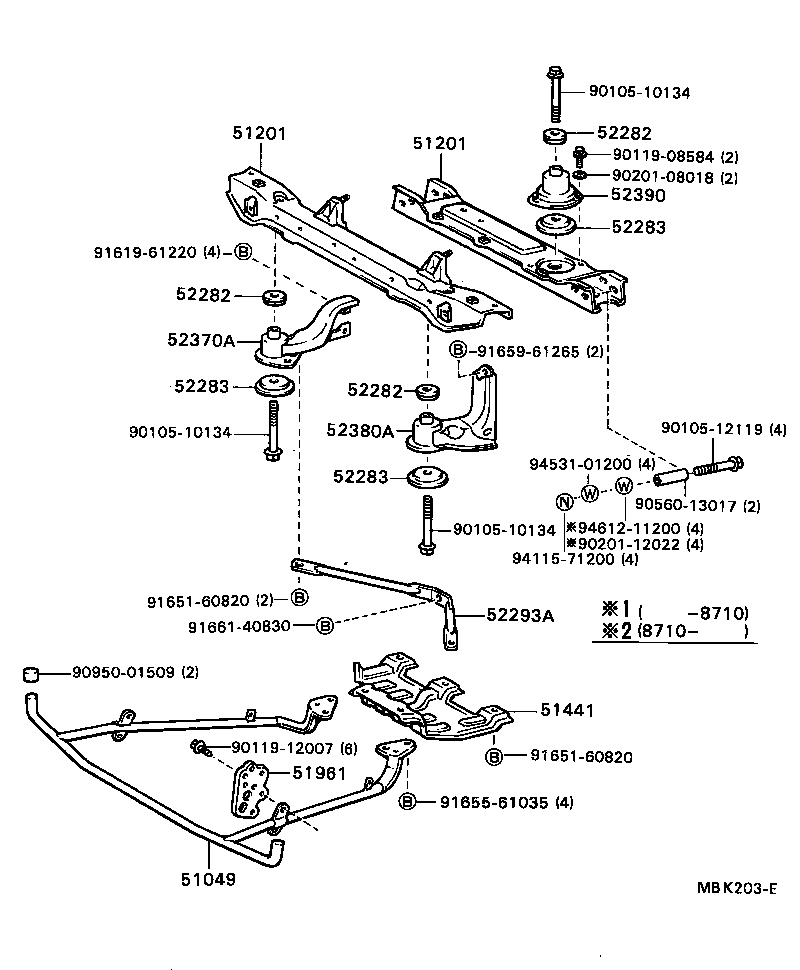

Exploded illustration MBK203E 9010510134 — not listed in this catalogue 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (6 parts) 52282 — STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER (2 parts) 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (6 parts) 9011908584 — not listed in this catalogue 9020108018 — not listed in this catalogue 52390 — SUPPORT ASSY, FRONT DIFFERENTIAL, REAR (3 parts) 52283 — STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER (4 parts) 9161961220 — not listed in this catalogue 52282 — STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER (2 parts) 52370A — SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH (3 parts) 9165961265 — not listed in this catalogue 52283 — STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER (4 parts) 52282 — STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER (2 parts) 9010512119 — not listed in this catalogue 52380A — SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH (3 parts) 9010510134 — not listed in this catalogue 9453101200 — not listed in this catalogue 52283 — STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER (4 parts) 9056013017 — not listed in this catalogue 9010510134 — not listed in this catalogue 9461211200 — not listed in this catalogue 9020112022 — not listed in this catalogue 9411571200 — not listed in this catalogue 9165160820 — not listed in this catalogue 52293A — BRACE, FRONT DIFFERENTIAL SUPPORT (1 parts) 9166140830 — not listed in this catalogue 9095001509 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (3 parts) 9011912007 — not listed in this catalogue 9165160820 — not listed in this catalogue 51961 — HOOK, NO.1 (7 parts) 9165561035 — not listed in this catalogue 51049 — BAR SUB-ASSY, UNDER GUARD, FRONT (1 parts)
MBK203E · 15 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
51049 — Bar Sub-assy, Under Guard, Front
51049-95D00 Bar Sub-assy, Under Guard, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥20,100
51201 — Crossmember Sub-assy, Front Suspension
51201-95D00 note Crossmember Sub-assy, Front Suspension
1985-10 → 1988-08 ended
CR3#,YR3# ¥23,400
51203-87001 Crossmember Sub-assy, Front Suspension
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥18,700
51203-87002 note Crossmember Sub-assy, Front Suspension
1985-08 → 1988-08 ended
CR2#,YR21,26,28;YR20 HRF (E,Q);YR20 HRF +4 ¥23,400
51203-87004 Crossmember Sub-assy, Front Suspension
1985-08 → 1988-08 ended
YR20 06S,08S HRF E;YR20 +6 ¥23,400
51203-95D00 note Crossmember Sub-assy, Front Suspension
1985-10 → 1987-08 ended
CR3#,YR3# ¥12,100
51203-95D01 note Crossmember Sub-assy, Front Suspension
1987-08 → 1988-08 ended
CR3#,YR3# ¥12,000
51441 — Cover, Engine Under, NO.1
51441-87001 note Cover, Engine Under, NO.1
1982-11 → 1984-06 ended
CR2#,KR26,YR2# ¥7,000
51441-87002 note Cover, Engine Under, NO.1
1984-06 → 1988-08 ended
CR2#,KR26,YR2# ¥7,000
51441-95D00 Cover, Engine Under, NO.1
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,300
51961 — Hook, NO.1
51970-87001 note Hook, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,490
51970-95D00 note Hook, NO.1
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,170
51980-87001 note Hook, NO.1
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥1,490
51980-87002 note Hook, NO.1
1985-08 → 1988-08 ended
CR2# ¥1,490
51980-95D00 note Hook, NO.1
1985-10 → 1986-08 ended
YR30 ¥2,170
51980-95D01 note Hook, NO.1
1986-08 → 1988-08 ended
CR3#,YR3# ¥2,170
51980-95D01 note Hook, NO.1
1985-10 → 1986-08 ended
CR3# ¥2,170
52282 — Stopper, Differential Support Member, Upper
52282-95D00 Stopper, Differential Support Member, Upper
1985-10 → 1987-07 ended
CR3#,YR3# ¥740
52282-95D01 Stopper, Differential Support Member, Upper
1987-07 → 1988-08 ended
CR3#,YR3# ¥740
52283 — Stopper, Differential Support Member, Lower
52283-95D00 note Stopper, Differential Support Member, Lower
1985-10 → 1987-07 ended
CR3#,YR3# ¥1,070
52283-95D01 note Stopper, Differential Support Member, Lower
1985-10 → 1987-07 ended
CR3#,YR3# ¥1,120
52283-95D02 note Stopper, Differential Support Member, Lower
1987-07 → 1988-08 ended
CR3#,YR3# ¥940
52283-95D03 note Stopper, Differential Support Member, Lower
1987-07 → 1988-08 ended
CR3#,YR3# ¥1,160
52293A — Brace, Front Differential Support
52293-95D00 Brace, Front Differential Support
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,060
52370A — Support Assy, Front Differential, Front RH
52370-95D00 Support Assy, Front Differential, Front RH
1985-10 → 1987-07 ended
CR3#,YR3# ¥8,000
52370-95D02 Support Assy, Front Differential, Front RH
1987-08 → 1988-08 ended
CR3#,YR3# ¥7,500
52370-95D03 Support Assy, Front Differential, Front RH
1987-07 → 1987-08 ended
CR3#,YR3# ¥8,000
52380A — Support Assy, Front Differential, Front LH
52380-95D00 Support Assy, Front Differential, Front LH
1985-10 → 1987-07 ended
CR3#,YR3# ¥8,100
52380-95D02 Support Assy, Front Differential, Front LH
1987-08 → 1988-08 ended
CR3#,YR3# ¥6,800
52380-95D03 Support Assy, Front Differential, Front LH
1987-07 → 1987-08 ended
CR3#,YR3# ¥8,100
52390 — Support Assy, Front Differential, Rear
52390-95D00 Support Assy, Front Differential, Rear
1985-10 → 1987-07 ended
CR3#,YR3# ¥4,270
52390-95D03 Support Assy, Front Differential, Rear
1987-07 → 1987-08 ended
CR3#,YR3# ¥3,380
52390-95D03 Support Assy, Front Differential, Rear
1987-08 → 1988-08 ended
CR3#,YR3# ¥3,380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
