Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

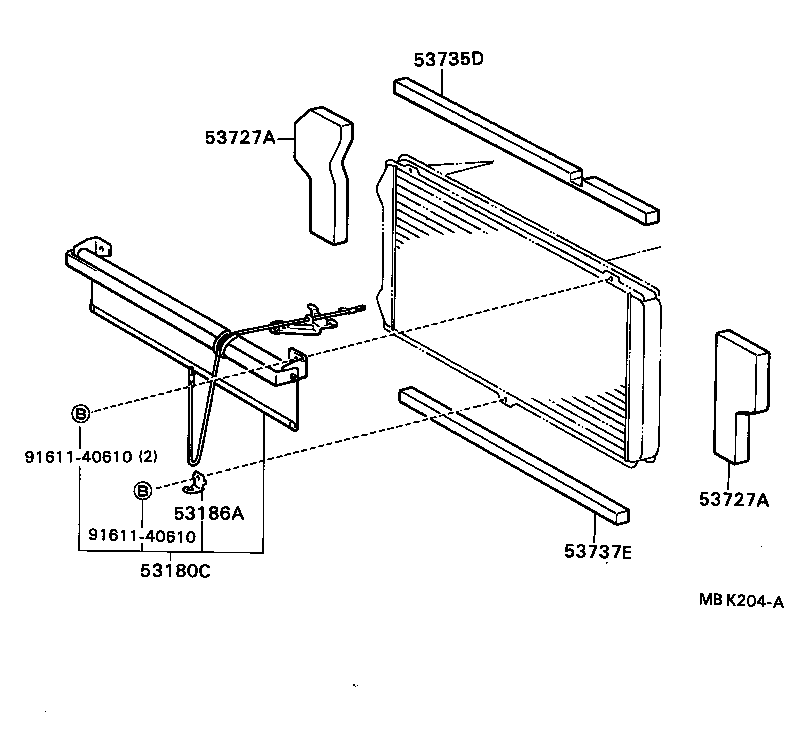

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53180C — Shutter Assy, Radiator | ||||
| 53015-95D00 |
Shutter Assy, Radiator
1985-10 → 1988-08
ended
|
CR30 | — | |
| 53180-87001 note |
Shutter Assy, Radiator
1985-08 → 1988-08
ended
|
CR21,28,YR28;CR26,27 V4D | ¥26,900 | |
| 53186A — Hook, Radiator Shutter | ||||
| 53186-95D00 |
Hook, Radiator Shutter
1985-10 → 1988-08
ended
|
CR30 | ¥440 | |
| 53727A — Shutter, Hot Air Side | ||||
| 53727-95D02 note |
Shutter, Hot Air Side
1985-10 → 1988-08
ended
|
CR30,37,YR3# | ¥1,280 | |
| 53728-95D02 note |
Shutter, Hot Air Side
1985-10 → 1988-08
ended
|
CR30,37,YR3# | ¥1,160 | |
| 53735D — Shutter, Hot Air, Upper | ||||
| 53735-95D00 |
Shutter, Hot Air, Upper
1985-10 → 1988-08
ended
|
CR30,37,YR3# | ¥1,730 | |
| 53735-95D01 |
Shutter, Hot Air, Upper
1987-08 → 1988-08
ended
|
CR30 4FC | ¥2,080 | |
| 53737E — Shutter, Hot Air, Lower | ||||
| 53737-95D00 |
Shutter, Hot Air, Lower
1985-10 → 1988-08
ended
|
CR30,37,YR3# | ¥1,490 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
