Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

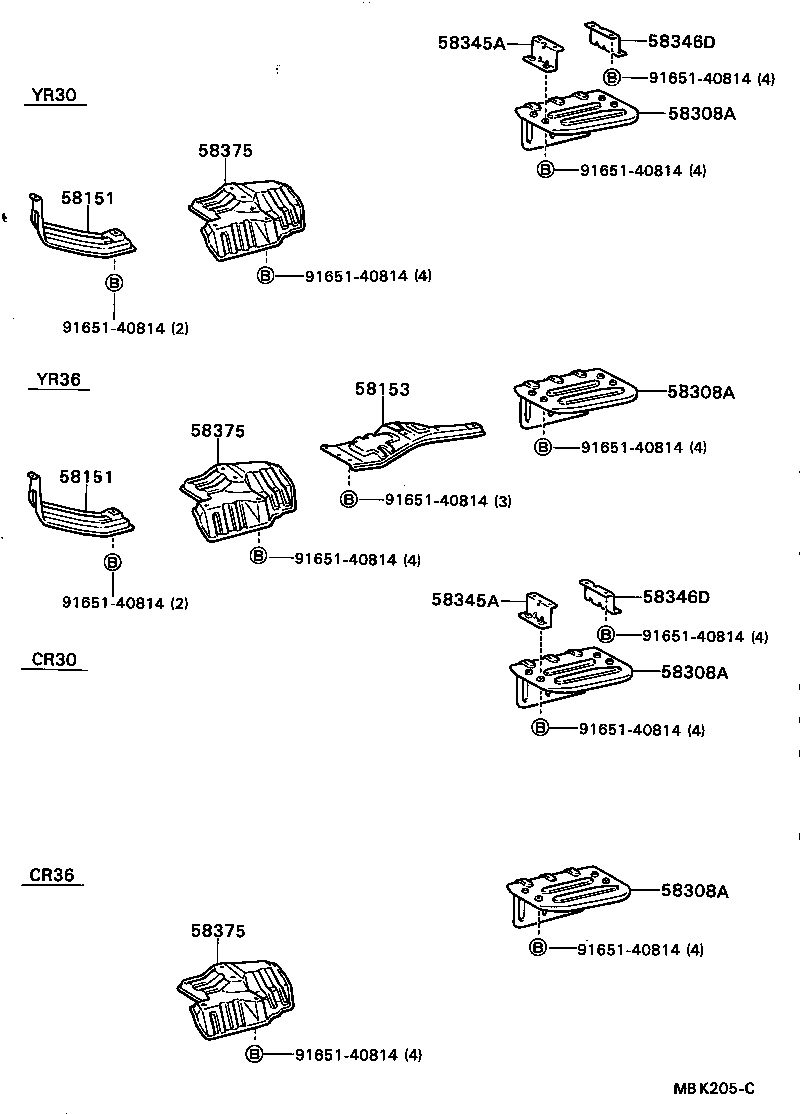

Exploded illustration MBK205C 58346D — BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 (1 parts) 58345A — BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 (1 parts) 9165140814 — not listed in this catalogue 58308A — PANEL SUB-ASSY, HEAT PROOF (2 parts) 58375 — INSULATOR, REAR FLOOR HEAT, NO.1 (4 parts) 9165140814 — not listed in this catalogue 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (2 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (2 parts) 58308A — PANEL SUB-ASSY, HEAT PROOF (2 parts) 58375 — INSULATOR, REAR FLOOR HEAT, NO.1 (4 parts) 9165140814 — not listed in this catalogue 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (2 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 58346D — BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 (1 parts) 58345A — BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 (1 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 58308A — PANEL SUB-ASSY, HEAT PROOF (2 parts) 9165140814 — not listed in this catalogue 58308A — PANEL SUB-ASSY, HEAT PROOF (2 parts) 58375 — INSULATOR, REAR FLOOR HEAT, NO.1 (4 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue
MBK205C · 14 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
58151 — Insulator, Front Floor Heat, NO.1
58151-28010 Insulator, Front Floor Heat, NO.1
1984-08 → 1988-08 ended
YR20,28 B,D,E,G ¥2,090
58151-95D00 Insulator, Front Floor Heat, NO.1
1985-10 → 1988-08 ended
YR3# 05S,08S ¥2,260
58153 — Insulator, Front Floor Heat, NO.2
58152-87001 Insulator, Front Floor Heat, NO.2
1985-08 → 1988-08 ended
YR28 ¥2,680
58152-95D00 Insulator, Front Floor Heat, NO.2
1986-08 → 1988-08 ended
YR36 ¥3,440
58308A — Panel Sub-assy, Heat Proof
58308-87002 Panel Sub-assy, Heat Proof
1982-11 → 1985-08 ended
CR21,YR20,21 ¥2,170
58308-87002 Panel Sub-assy, Heat Proof
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,170
58345A — Bracket, Rear Floor Heat Insulator, NO.1
58345-95D00 Bracket, Rear Floor Heat Insulator, NO.1
1985-10 → 1988-08 ended
CR30,YR30 ¥1,160
58346D — Bracket, Rear Floor Heat Insulator, NO.2
58346-95D00 Bracket, Rear Floor Heat Insulator, NO.2
1985-10 → 1988-08 ended
CR30,YR30 ¥1,160
58375 — Insulator, Rear Floor Heat, NO.1
58321-87004 Insulator, Rear Floor Heat, NO.1
1982-11 → 1988-08 ended
YR20,21,28 ¥22,100
58321-87005 Insulator, Rear Floor Heat, NO.1
1982-11 → 1985-06 ended
CR26,27,KR26,YR26 ¥3,830
58321-87006 Insulator, Rear Floor Heat, NO.1
1985-06 → 1988-08 ended
CR26,27,28,KR26,YR26 ¥3,810
58321-95D00 Insulator, Rear Floor Heat, NO.1
1985-10 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥4,460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
