Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

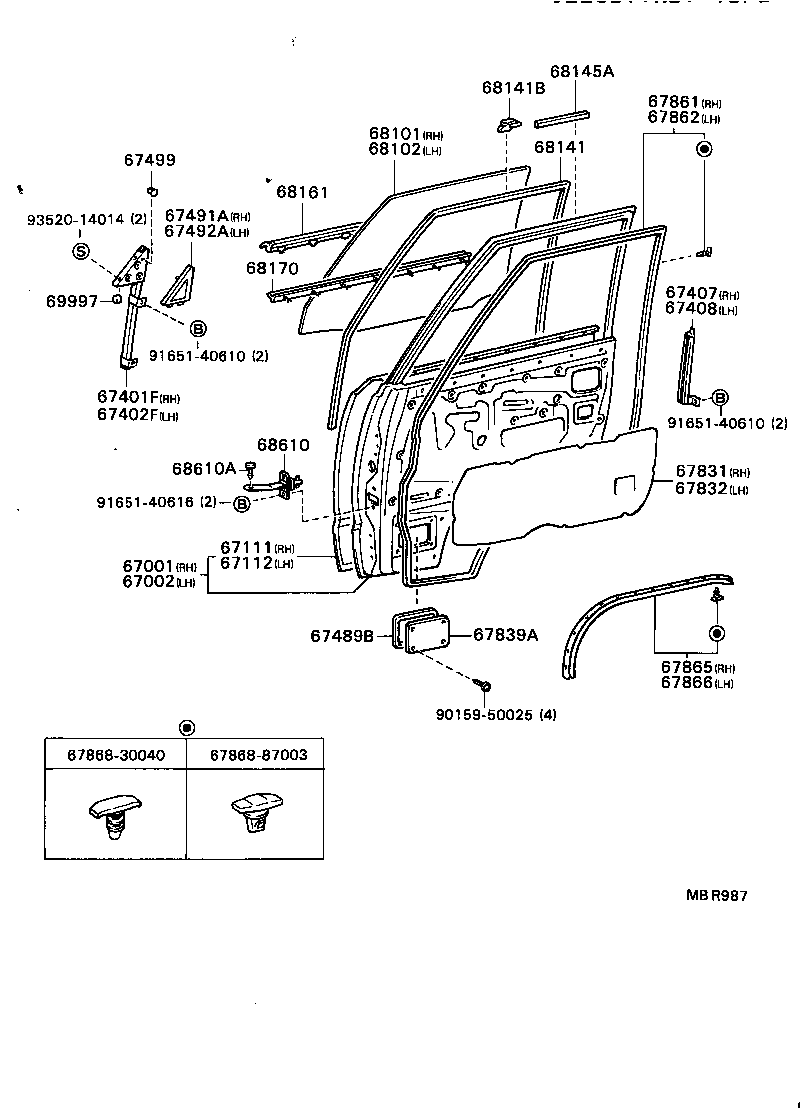

Exploded illustration MBR987 68145A — CUSHION, FRONT DOOR WINDOW (1 parts) 68141B — CLIP, DOOR GLASS RUN (3 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (1 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (1 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (4 parts) 68141 — RUN, FRONT DOOR GLASS (5 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (4 parts) 67499 — RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH (1 parts) 68161 — WEATHERSTRIP, FRONT DOOR GLASS, OUTER (3 parts) 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (1 parts) 9352014014 — not listed in this catalogue 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (1 parts) 68170 — WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER (7 parts) 67407 — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (1 parts) 69997 — SPACER, FRONT DOOR GLASS GUIDE (2 parts) 67408 — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (1 parts) 9165140610 — not listed in this catalogue 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (6 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (8 parts) 9165140610 — not listed in this catalogue 68610 — CHECK ASSY, FRONT DOOR (2 parts) 68610A — PIN(FOR FRONT DOOR CHECK) (4 parts) 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (9 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (4 parts) 9165140616 — not listed in this catalogue 67111 — PANEL, FRONT DOOR, OUTER RH (4 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (4 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (7 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (7 parts) 67839A — COVER, FRONT DOOR SERVICE HOLE, LOWER (1 parts) 67489B — PACKING, FRONT DOOR LOWER COVER (1 parts) 67865 — WEATHERSTRIP, FRONT DOOR, LOWER RH (4 parts) 67866 — WEATHERSTRIP, FRONT DOOR LOWER, LH (4 parts) 9015950025 — not listed in this catalogue 6786830040 — not listed in this catalogue 6786887003 — not listed in this catalogue
MBR987 · 29 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
101 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-87009 Panel Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D,R ¥52,000
67001-87010 Panel Sub-assy, Front Door, RH
1982-11 → 1983-09 ended
CR21,YR2# 4FC,5F ¥49,000
67001-87011 Panel Sub-assy, Front Door, RH
1983-09 → 1984-08 ended
CR21,YR2# 4FC,5F ¥49,000
67001-87012 Panel Sub-assy, Front Door, RH
1984-08 → 1985-08 ended
CR2#,YR2# E,G,N,Q,X ¥48,800
67001-87013 Panel Sub-assy, Front Door, RH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥52,200
67001-87015 note Panel Sub-assy, Front Door, RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥52,200
67001-87015 note Panel Sub-assy, Front Door, RH
1985-10 → 1988-08 ended
CR30,YR30 ¥52,200
67002 — Panel Sub-assy, Front Door, LH
67002-87009 Panel Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D,R ¥52,000
67002-87010 Panel Sub-assy, Front Door, LH
1982-11 → 1983-09 ended
CR21,YR2# 4FC,5F ¥49,000
67002-87011 Panel Sub-assy, Front Door, LH
1983-09 → 1984-08 ended
CR21,YR2# 4FC,5F ¥49,000
67002-87012 Panel Sub-assy, Front Door, LH
1984-08 → 1985-08 ended
CR2#,YR2# E,G,N,Q,X ¥48,800
67002-87013 Panel Sub-assy, Front Door, LH
1985-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥52,200
67002-87015 note Panel Sub-assy, Front Door, LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥52,200
67002-87015 note Panel Sub-assy, Front Door, LH
1985-10 → 1988-08 ended
CR30,YR30 ¥52,200
67111 — Panel, Front Door, Outer RH
67111-87004 Panel, Front Door, Outer RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥23,700
67111-87004 Panel, Front Door, Outer RH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥23,700
67111-87006 note Panel, Front Door, Outer RH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥21,200
67111-87006 note Panel, Front Door, Outer RH
1985-10 → 1988-08 ended
CR30,YR30 ¥21,200
67112 — Panel, Front Door, Outer LH
67112-87003 Panel, Front Door, Outer LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥24,200
67112-87003 Panel, Front Door, Outer LH
1985-08 → 1988-08 ended
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 ¥24,200
67112-87004 note Panel, Front Door, Outer LH
1985-08 → 1988-08 ended
CR21,YR20,21 E,Q ¥21,200
67112-87004 note Panel, Front Door, Outer LH
1985-10 → 1988-08 ended
CR30,YR30 ¥21,200
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-87001 Frame Sub-assy, Front Door, Front Lower RH
1985-11 → 1988-08 ended
CR26,27,36,37,KR26,YR26 ¥3,180
67401-87001 Frame Sub-assy, Front Door, Front Lower RH
1986-08 → 1988-08 ended
YR36 ¥3,180
67401-87001 Frame Sub-assy, Front Door, Front Lower RH
1982-11 → 1985-11 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥3,180
67401-87002 Frame Sub-assy, Front Door, Front Lower RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥3,180
67401-87003 Frame Sub-assy, Front Door, Front Lower RH
1985-11 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,200
67401-87003 note Frame Sub-assy, Front Door, Front Lower RH
1986-08 → 1988-08 ended
CR37,YR36 ¥3,200
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-87001 Frame Sub-assy, Front Door, Front Lower LH
1982-11 → 1985-11 ended
CR2#,3#,KR26,YR2#,30 B,D,G,N,R ¥3,030
67402-87001 Frame Sub-assy, Front Door, Front Lower LH
1985-11 → 1988-08 ended
CR26,27,36,37,KR26,YR26 ¥3,030
67402-87001 Frame Sub-assy, Front Door, Front Lower LH
1986-08 → 1988-08 ended
YR36 ¥3,030
67402-87002 note Frame Sub-assy, Front Door, Front Lower LH
1983-07 → 1985-08 ended
CR21,YR20,21 G ¥3,380
67402-87004 Frame Sub-assy, Front Door, Front Lower LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥3,030
67402-87005 note Frame Sub-assy, Front Door, Front Lower LH
1983-07 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥3,360
67402-87006 Frame Sub-assy, Front Door, Front Lower LH
1985-11 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥3,180
67402-87006 note Frame Sub-assy, Front Door, Front Lower LH
1986-08 → 1988-08 ended
CR37,YR36 ¥3,180
67407 — Frame Sub-assy, Front Door, Rear Lower RH
67403-87001 Frame Sub-assy, Front Door, Rear Lower RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,140
67408 — Frame Sub-assy, Front Door, Rear Lower LH
67404-87001 Frame Sub-assy, Front Door, Rear Lower LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,140
67489B — Packing, Front Door Lower Cover
67489-87001 Packing, Front Door Lower Cover
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥640
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-87001 Garnish, Front Door Lower Frame Bracket, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,830
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-87001 Garnish, Front Door Lower Frame Bracket, LH
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥2,830
67499 — Retainer, Front Door Lower Frame Bracket Garnish
67499-30010 Retainer, Front Door Lower Frame Bracket Garnish
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥510
67831 — Cover, Front Door Service Hole, RH
67801-87001 Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
YR20,21 Q —
67801-87002 Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
CR21,YR2# E,N,X ¥1,200
67801-87003 note Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
YR20,21 X ¥1,240
67801-87004 Cover, Front Door Service Hole, RH
1984-08 → 1985-08 ended
YR20,21 Q ¥1,020
67801-87005 note Cover, Front Door Service Hole, RH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥1,020
67801-87005 Cover, Front Door Service Hole, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥1,020
67831-87002 Cover, Front Door Service Hole, RH
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G,R ¥670
67831-87002 Cover, Front Door Service Hole, RH
1984-08 → 1988-08 ended
CR21,26,27,30,36,KR26,YR20,21,26,30 D,E,G,N,R,X ¥670
67831-87008 note Cover, Front Door Service Hole, RH
1984-08 → 1985-08 ended
YR20,21 X ¥660
67832 — Cover, Front Door Service Hole, LH
67802-87001 Cover, Front Door Service Hole, LH
1982-11 → 1985-08 ended
YR20,21 Q ¥870
67802-87002 Cover, Front Door Service Hole, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥1,020
67802-87002 note Cover, Front Door Service Hole, LH
1988-01 → 1988-08 ended
CR21,30,YR21,30 E ¥1,020
67831-87002 Cover, Front Door Service Hole, LH
1982-11 → 1988-08 ended
CR21,26,28,3#,KR26,YR2#,3# B,D,E,G,R,X ¥670
67839A — Cover, Front Door Service Hole, Lower
67839-87001 Cover, Front Door Service Hole, Lower
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,210
67861 — Weatherstrip, Front Door, RH
67861-87003 Weatherstrip, Front Door, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥8,800
67862 — Weatherstrip, Front Door, LH
67862-87003 Weatherstrip, Front Door, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥8,800
67865 — Weatherstrip, Front Door, Lower RH
67863-87001 Weatherstrip, Front Door, Lower RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,300
67863-87004 note Weatherstrip, Front Door, Lower RH
1984-08 → 1986-08 ended
CR26,36 V4D ¥5,100
67863-87004 note Weatherstrip, Front Door, Lower RH
1984-08 → 1986-08 ended
CR21,27,28,30,KR26,YR2#,30 ¥5,100
67863-87004 note Weatherstrip, Front Door, Lower RH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,100
67866 — Weatherstrip, Front Door Lower, LH
67864-87001 Weatherstrip, Front Door Lower, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,300
67864-87004 note Weatherstrip, Front Door Lower, LH
1984-08 → 1986-08 ended
CR26,36 V4D ¥5,100
67864-87004 note Weatherstrip, Front Door Lower, LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥5,100
67864-87004 note Weatherstrip, Front Door Lower, LH
1984-08 → 1986-08 ended
CR21,27,28,30,KR26,YR2#,30 ¥5,100
68101 — Glass Sub-assy, Front Door, RH
68111-87002 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R ¥12,900
68111-87004 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥14,600
68111-87004 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR26,27,36,YR26 N ¥14,600
68111-87005 note Glass Sub-assy, Front Door, RH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥20,000
68102 — Glass Sub-assy, Front Door, LH
68112-87002 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R ¥12,900
68112-87003 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥14,600
68112-87003 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR26,27,36,YR26 N ¥14,600
68112-87004 note Glass Sub-assy, Front Door, LH
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥20,000
68141 — Run, Front Door Glass
68141-87001 Run, Front Door Glass
1982-11 → 1984-07 ended
CR2#,KR26,YR2# ¥4,360
68141-87001 note Run, Front Door Glass
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥4,360
68141-87001 Run, Front Door Glass
1984-07 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥4,360
68141-87006 Run, Front Door Glass
1984-07 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R ¥5,100
68141-87006 note Run, Front Door Glass
1984-07 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥5,100
68141B — Clip, Door Glass Run
62367-16010 note Clip, Door Glass Run
1982-11 → 1983-02 ended
YR20 07S,08S ¥650
62367-87001 note Clip, Door Glass Run
1983-02 → 1988-08 ended
CR21,30,YR20,21,30 E,G,Q,X ¥620
62367-87001 note Clip, Door Glass Run
1985-08 → 1988-08 ended
CR28,37,YR28,36 ¥620
68145A — Cushion, Front Door Window
68145-87001 Cushion, Front Door Window
1985-11 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥130
68161 — Weatherstrip, Front Door Glass, Outer
68160-87001 Weatherstrip, Front Door Glass, Outer
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,G,N,R ¥2,930
68160-87002 note Weatherstrip, Front Door Glass, Outer
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥6,100
68210-87001 note Weatherstrip, Front Door Glass, Outer
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 E,Q,X ¥6,100
68170 — Weatherstrip Assy, Front Door Glass, Inner
68170-87007 note Weatherstrip Assy, Front Door Glass, Inner
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,620
68171-87004 Weatherstrip Assy, Front Door Glass, Inner
1983-01 → 1988-08 ended
CR26,28,36,37,KR26,YR26,28,36 B,D,R ¥2,690
68171-87004 Weatherstrip Assy, Front Door Glass, Inner
1982-11 → 1983-01 ended
CR26,KR26,YR2# ¥2,690
68171-87005 Weatherstrip Assy, Front Door Glass, Inner
1983-01 → 1985-08 ended
CR21,YR20,21 ¥2,700
68171-87005 Weatherstrip Assy, Front Door Glass, Inner
1983-01 → 1988-08 ended
CR26,27,36,YR26 N ¥2,700
68171-87005 Weatherstrip Assy, Front Door Glass, Inner
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥2,700
68220-87005 note Weatherstrip Assy, Front Door Glass, Inner
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,620
68610 — Check Assy, Front Door
68610-12030 Check Assy, Front Door
1983-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥3,700
68610-89101 Check Assy, Front Door
1982-11 → 1983-08 ended
CR2#,KR26,YR2# ¥3,540
68610A — Pin(FOR FRONT DOOR CHECK)
68617-12010 Pin(FOR FRONT DOOR CHECK)
1984-11 → 1985-07 ended
YR20 HRF 5F G;YR20 +4 ¥280
68617-22010 Pin(FOR FRONT DOOR CHECK)
1982-11 → 1984-11 ended
CR2#,KR26,YR2# ¥300
68617-90A00 Pin(FOR FRONT DOOR CHECK)
1985-07 → 1986-06 ended
YR20 0 HRF 5F +5 ¥280
68617-90A01 Pin(FOR FRONT DOOR CHECK)
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥300
69997 — Spacer, Front Door Glass Guide
53381-87701 Spacer, Front Door Glass Guide
1982-11 → 1983-12 ended
CR2#,KR26,YR2# ¥1,630
69997-87001 Spacer, Front Door Glass Guide
1983-12 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥450
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
