Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

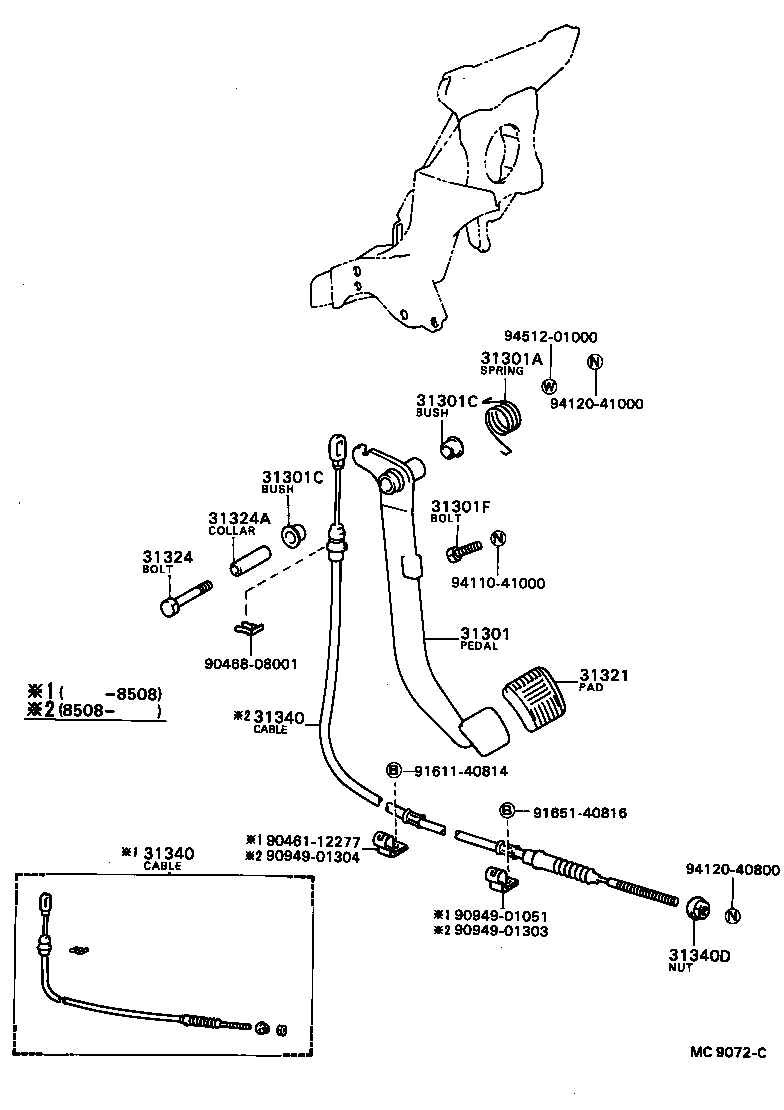

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

12 parts on this figure

Part number	Description	Fitment	Price
31301 — Pedal Sub-assy, Clutch
31301-28060	Pedal Sub-assy, Clutch 1982-11 → 1988-08 ended	CR21,26,28,3#,YR2#,3# MTM	¥2,490
31301-28070	Pedal Sub-assy, Clutch 1982-11 → 1988-08 ended	KR26	¥2,820
31301A — Spring(FOR CLUTCH PEDAL)
90508-32012	Spring(FOR CLUTCH PEDAL) 1982-11 → 1988-08 ended	CR21,26,28,3#,KR26,YR2#,3# MTM	¥300
31301C — Bush(FOR CLUTCH PEDAL)
90386-13007	Bush(FOR CLUTCH PEDAL) 1982-11 → 1988-08 ended	CR21,26,28,3#,KR26,YR2#,3# MTM	¥160
31301F — Bolt(FOR CLUTCH PEDAL STOPPER)
90101-10085	Bolt(FOR CLUTCH PEDAL STOPPER) 1982-11 → 1988-08 ended	CR21,26,28,3#,KR26,YR2#,3# MTM	¥130
31321 — Pad, Clutch Pedal
31321-14020	Pad, Clutch Pedal 1982-11 → 1988-08 ended	CR21,26,28,3#,KR26,YR2#,3# MTM	¥200
31324 — Shaft, Clutch Pedal
91111-51060	Shaft, Clutch Pedal 1982-11 → 1986-11 ended	CR21,26,28,3#,KR26,YR2#,3# MTM	¥210
91121-51060	Shaft, Clutch Pedal 1986-11 → 1988-08 ended	CR21,26,28,3#,KR26,YR2#,3# MTM (B,D,E,G,N,Q)	¥1,400
31324A — Collar, Clutch Pedal Shaft
90387-10003	Collar, Clutch Pedal Shaft 1982-11 → 1988-08 ended	CR21,26,28,3#,KR26,YR2#,3# MTM	¥370
31340 — Cable Assy, Clutch Release
31340-28030	Cable Assy, Clutch Release 1985-08 → 1988-08 ended	KR26	¥6,100
31340-29125	Cable Assy, Clutch Release 1982-11 → 1985-08 ended	KR26	¥6,400
31340D — Nut, Wire Adjust(FOR CLUTCH RELEASE CABLE)
31339-28010	Nut, Wire Adjust(FOR CLUTCH RELEASE CABLE) 1982-11 → 1988-08 ended	KR26	¥730

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
