Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

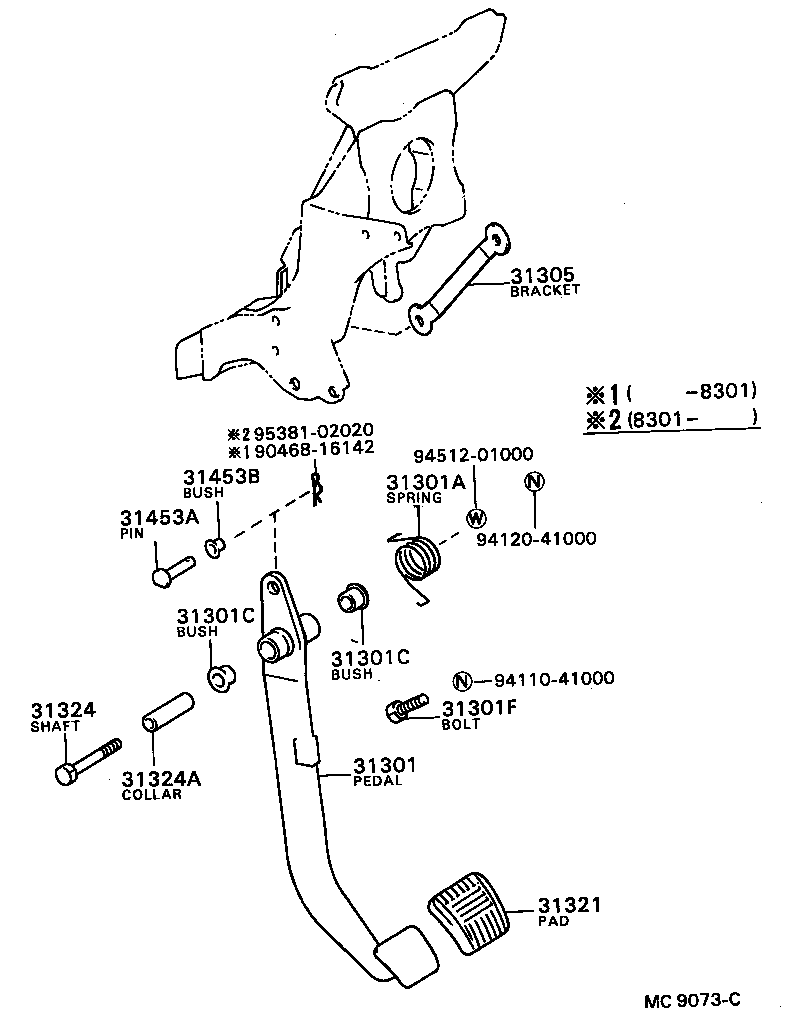

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31301 — Pedal Sub-assy, Clutch | ||||
| 31301-28060 |
Pedal Sub-assy, Clutch
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥2,490 | |
| 31301-28070 |
Pedal Sub-assy, Clutch
1982-11 → 1988-08
ended
|
KR26 | ¥2,820 | |
| 31301A — Spring(FOR CLUTCH PEDAL) | ||||
| 90508-32012 |
Spring(FOR CLUTCH PEDAL)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥300 | |
| 31301C — Bush(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
Bush(FOR CLUTCH PEDAL)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥160 | |
| 31301F — Bolt(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
Bolt(FOR CLUTCH PEDAL STOPPER)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥130 | |
| 31305 — Bracket Sub-assy, Clutch Pedal | ||||
| 55156-87002 |
Bracket Sub-assy, Clutch Pedal
1982-10 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥400 | |
| 31321 — Pad, Clutch Pedal | ||||
| 31321-14020 |
Pad, Clutch Pedal
1982-11 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥200 | |
| 31324 — Shaft, Clutch Pedal | ||||
| 91111-51060 |
Shaft, Clutch Pedal
1982-11 → 1986-11
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥210 | |
| 91121-51060 |
Shaft, Clutch Pedal
1986-11 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM (B,D,E,G,N,Q) | ¥1,400 | |
| 31324A — Collar, Clutch Pedal Shaft | ||||
| 90387-10003 |
Collar, Clutch Pedal Shaft
1982-11 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥370 | |
| 31453A — Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 note |
Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥160 | |
| 31453B — Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥240 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
