Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

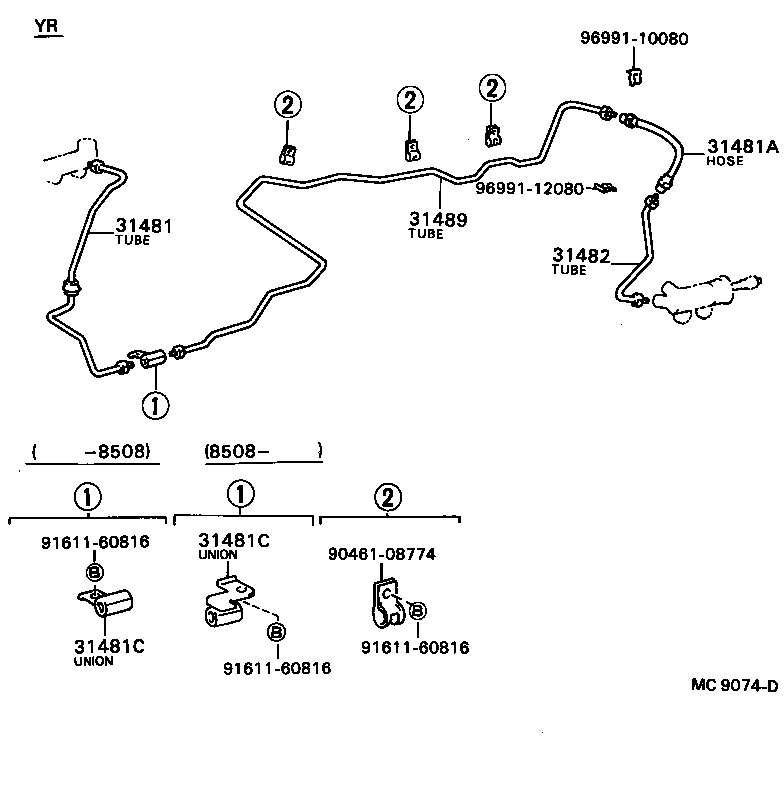

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31481 — Tube, Clutch Master Cylinder TO Flexible Hose | ||||
| 31481-28040 |
Tube, Clutch Master Cylinder TO Flexible Hose
1982-11 → 1985-08
ended
|
CR21,26,YR2# MTM | ¥1,200 | |
| 31481-28070 |
Tube, Clutch Master Cylinder TO Flexible Hose
1985-08 → 1988-08
ended
|
YR2#,3# MTM (B,D,E,G,N,Q) | ¥1,240 | |
| 31481-28100 |
Tube, Clutch Master Cylinder TO Flexible Hose
1985-08 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥1,240 | |
| 31481A — Hose, Clutch, NO.1 | ||||
| 31418-28010 |
Hose, Clutch, NO.1
1982-11 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥1,970 | |
| 31418-28020 |
Hose, Clutch, NO.1
1982-11 → 1988-08
ended
|
YR2#,3# MTM | ¥1,970 | |
| 31481C — Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) | ||||
| 90412-12008 |
Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
1982-11 → 1985-08
ended
|
CR21,26,YR2# MTM | ¥740 | |
| 90412-12016 |
Union(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
1985-08 → 1988-08
ended
|
YR2#,3# MTM (B,D,E,G,N,Q) | ¥990 | |
| 31482 — Tube, Clutch Release Cylinder TO Flexible Hose | ||||
| 31482-28030 |
Tube, Clutch Release Cylinder TO Flexible Hose
1982-11 → 1988-08
ended
|
YR2#,3# MTM | ¥540 | |
| 31482-28040 |
Tube, Clutch Release Cylinder TO Flexible Hose
1982-11 → 1984-07
ended
|
CR2# | ¥490 | |
| 31488-28010 |
Tube, Clutch Release Cylinder TO Flexible Hose
1984-07 → 1985-08
ended
|
CR21,26 5F | ¥590 | |
| 31489 — Tube, Tube Connector TO Flexible Hose | ||||
| 31489-28050 |
Tube, Tube Connector TO Flexible Hose
1982-11 → 1985-08
ended
|
YR2# MTM | — | |
| 31489-28060 |
Tube, Tube Connector TO Flexible Hose
1982-11 → 1985-08
ended
|
CR21,26 5F | ¥2,530 | |
| 31489-28070 |
Tube, Tube Connector TO Flexible Hose
1985-08 → 1988-08
ended
|
YR2#,3# MTM (B,D,E,G,N,Q) | ¥1,950 | |
| 31489-28080 |
Tube, Tube Connector TO Flexible Hose
1985-08 → 1988-08
ended
|
CR21,26,28 5F | ¥1,950 | |
| 31489-28090 |
Tube, Tube Connector TO Flexible Hose
1985-10 → 1988-08
ended
|
CR3# 5F | ¥2,360 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
