Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

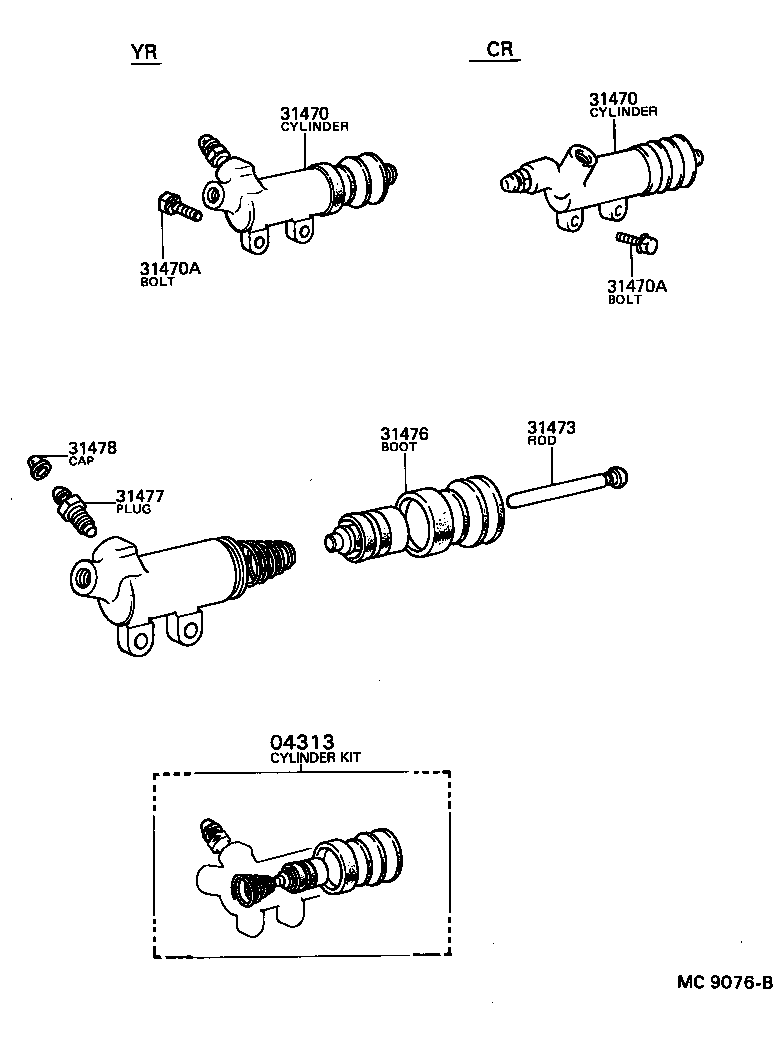

| 04313 — Cylinder Kit, Clutch Release | ||||
| 04313-22020 |
Cylinder Kit, Clutch Release
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR20,26,28 MTM | ¥1,040 | |
| 04313-30120 |
Cylinder Kit, Clutch Release
1983-05 → 1988-08
ended
|
YR21,3# 5F | ¥1,090 | |
| 31470 — Cylinder Assy, Clutch Release | ||||
| 31470-28030 |
Cylinder Assy, Clutch Release
1982-11 → 1985-08
ended
|
CR21,26 5F | ¥8,400 | |
| 31470-28040 |
Cylinder Assy, Clutch Release
1985-08 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥7,200 | |
| 31470-30230 |
Cylinder Assy, Clutch Release
1983-05 → 1988-08
ended
|
YR21,3# 5F | ¥7,500 | |
| 31470-35050 |
Cylinder Assy, Clutch Release
1982-11 → 1988-08
ended
|
YR20,26,28 MTM | ¥7,600 | |
| 31470A — Bolt(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-60825 note |
Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥140 | |
| 31473 — Rod, Clutch Release Cylinder Push, NO.1 | ||||
| 31473-22010 |
Rod, Clutch Release Cylinder Push, NO.1
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥720 | |
| 31476 — Boot, Clutch Release Cylinder | ||||
| 31476-22010 |
Boot, Clutch Release Cylinder
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥230 | |
| 31477 — Plug, Bleeder(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
Plug, Bleeder(FOR RELEASE CYLINDER)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥180 | |
| 31478 — Cap, Bleeder Plug(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR RELEASE CYLINDER)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# MTM | ¥160 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
