Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

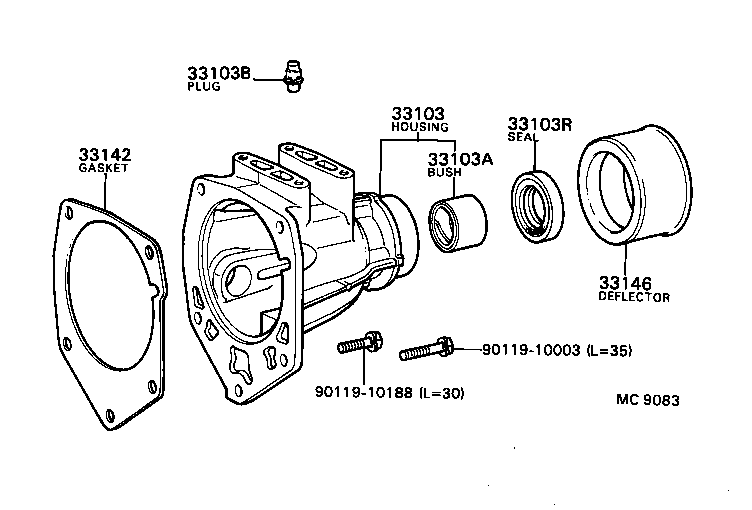

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33103 — Housing Sub-assy, Extension(MTM) | ||||
| 33103-27010 |
Housing Sub-assy, Extension(MTM)
1982-11 → 1988-08
ended
|
KR26 | ¥13,400 | |
| 33103-27020 |
Housing Sub-assy, Extension(MTM)
1982-11 → 1988-08
ended
|
YR26 D | ¥13,400 | |
| 33103-28010 |
Housing Sub-assy, Extension(MTM)
1982-11 → 1988-08
ended
|
CR21,26,28,YR2# 5F,5H | ¥24,200 | |
| 33103A — Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
1982-11 → 1988-08
ended
|
CR21,26,28,KR26,YR2# MTM | ¥1,630 | |
| 33103B — Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03075 |
Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥430 | |
| 33103R — Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38040 |
Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
1986-09 → 1988-08
ended
|
CR21,26,28,KR26,YR2# MTM (B,D,E,G,N,Q) | ¥410 | |
| 90311-38043 |
Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
1982-11 → 1986-09
ended
|
CR21,26,28,KR26,YR2# MTM | ¥290 | |
| 33142 — Gasket, Extension Housing(MTM) | ||||
| 33138-28020 |
Gasket, Extension Housing(MTM)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥660 | |
| 33142-26010 |
Gasket, Extension Housing(MTM)
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥300 | |
| 33146 — Deflector, Extension Housing Dust(MTM) | ||||
| 33146-30010 |
Deflector, Extension Housing Dust(MTM)
1982-11 → 1988-08
ended
|
CR21,26,28,KR26,YR2# MTM | ¥1,680 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
