Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration MC9088C 33518B — RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) (1 parts) 33523 — PIN, SHIFT LEVER (FOR COLUMN SHIFT) (1 parts) 33518B — RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) (1 parts) 33513 — SHAFT, CONTROL SHAFT BRACKET, UPPER (2 parts) 33517 — RETAINER, CONTROL SHAFT UPPER SPRING (1 parts) 33523E — RING, E (FOR SHIFT LEVER PIN) (1 parts) 33517 — RETAINER, CONTROL SHAFT UPPER SPRING (1 parts) 33518A — WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) (1 parts) 33504 — KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) (1 parts) 33530 — LEVER ASSY, SHIFT (FOR COLUMN SHIFT) (1 parts) 33513A — SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) (1 parts) 33518A — WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) (1 parts) 33518 — BUSH, UPPER CONTROL SHAFT PIECE (1 parts) 33562A — PIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER) (1 parts) 33518 — BUSH, UPPER CONTROL SHAFT PIECE (1 parts) 33696 — SEAT, SELECT SPRING (1 parts) 33513C — BOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT) (1 parts) 33513 — SHAFT, CONTROL SHAFT BRACKET, UPPER (2 parts) 33696A — SPRING, COMPRESSION (1 parts) 33522 — SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) (1 parts) 33593 — HOLDER, SPRING (FOR SELECT LEVER) (1 parts) 33513A — SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) (1 parts) 9165140820 — not listed in this catalogue 9453100500 — not listed in this catalogue 33501 — SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) (2 parts) 33562 — STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT (1 parts) 33641B — BUSH (FOR SELECTING LINK) (1 parts) 33513B — SPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT) (1 parts) 33641B — BUSH (FOR SELECTING LINK) (1 parts) 33705 — SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) (1 parts) 33573 — COVER, CONTROL SHAFT DUST, LOWER (1 parts) 33789 — COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT) (2 parts) 33744G — BUSH (FOR SHIFTING, NO.1) (1 parts) 33744G — BUSH (FOR SHIFTING, NO.1) (1 parts) 33578A — RING, SNAP (FOR CONTROL SHAFT LOWER BUSH SEAT) (1 parts) 9161140612 — not listed in this catalogue 33731 — ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) (2 parts) 33578 — SEAT, CONTROL SHAFT LOWER BUSH, NO.1 (1 parts) 9451200800 — not listed in this catalogue 33789 — COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT) (2 parts) 9411041000 — not listed in this catalogue 33686 — COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT) (1 parts) 9412040800 — not listed in this catalogue 33572 — BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) (1 parts) 9451201000 — not listed in this catalogue 33740 — END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) (3 parts) 33641 — LINK, SELECTING (FOR COLUMN SHIFT) (2 parts) 33506 — RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) (2 parts) 9461310800 — not listed in this catalogue 33744 — LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) (1 parts) 9411040800 — not listed in this catalogue 33536 — SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) (1 parts) 33711A — BUSH (FOR CONTROL SHAFT LEVER) (1 parts) 9017908146 — not listed in this catalogue 33535 — LEVER, CONTROL SELECT (FOR COLUMN SHIFT) (1 parts) 9017908146 — not listed in this catalogue 33741 — ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) (3 parts) 9058014002 — not listed in this catalogue 9412040800 — not listed in this catalogue 33573 — COVER, CONTROL SHAFT DUST, LOWER (1 parts) 9412040100 — not listed in this catalogue 33740 — END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) (3 parts) 33711G — BOLT, CONTROL SHAFT LEVER LOCK (1 parts) 33711 — LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) (2 parts) 9017908146 — not listed in this catalogue 9017908146 — not listed in this catalogue

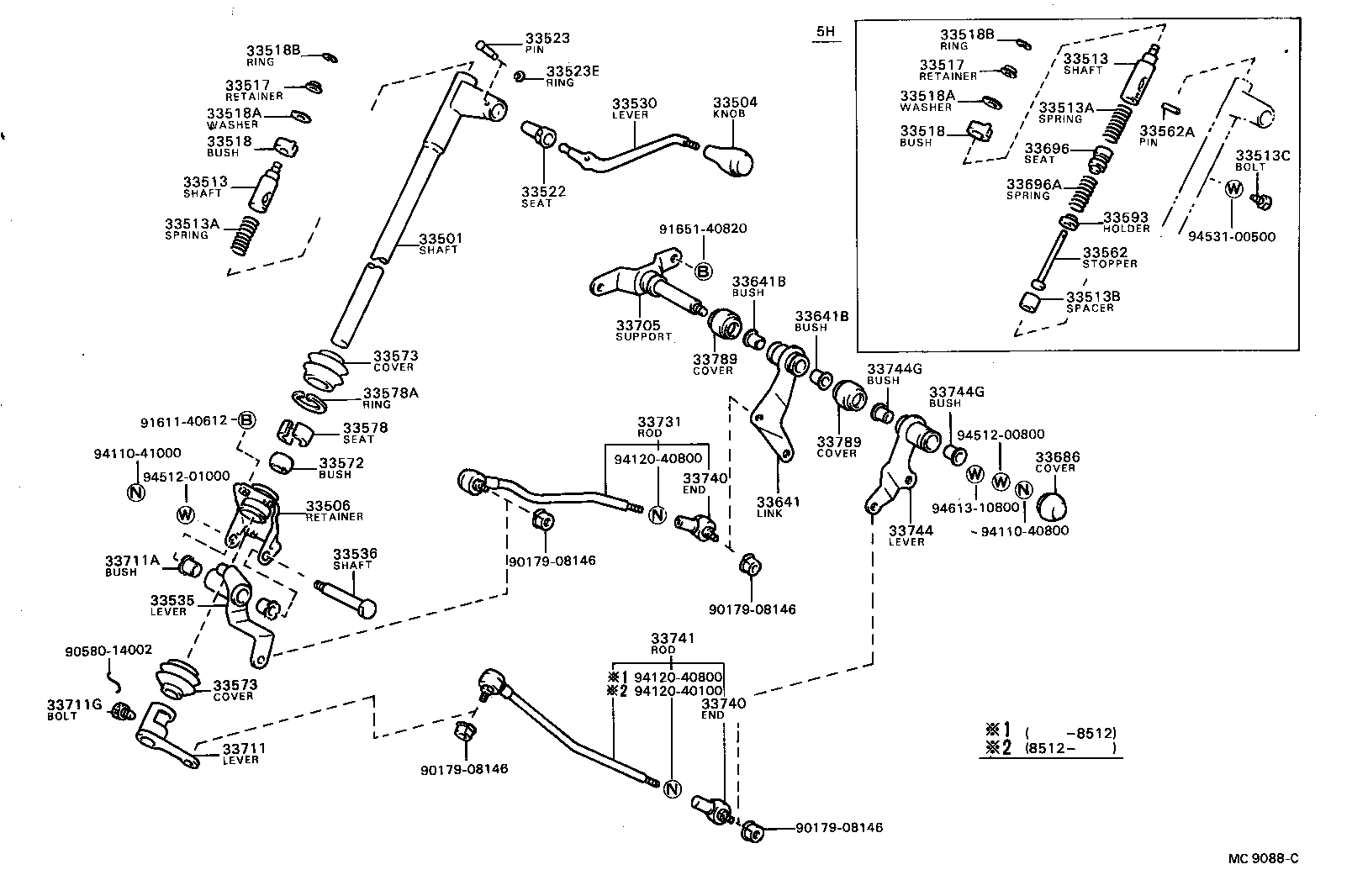

MC9088C · 50 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
33501 — Shaft Sub-assy, Control (FOR COLUMN SHIFT)
33501-28030 Shaft Sub-assy, Control (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR26 4H ¥4,270
33501-28040 Shaft Sub-assy, Control (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥4,220
33504 — Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT)
33504-30110 Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥680
33506 — Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT)
33506-28020 Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
KR26,YR20,26 D,R —
33506-28050 Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥3,610
33513 — Shaft, Control Shaft Bracket, Upper
33513-26020 Shaft, Control Shaft Bracket, Upper
1982-11 → 1988-08 ended
YR20,28 5H ¥1,460
33513-36020 Shaft, Control Shaft Bracket, Upper
1982-11 → 1988-08 ended
KR26,YR26 4H ¥840
33513A — Spring, Compression (FOR BRACKET UPPER SHAFT)
90501-14395 Spring, Compression (FOR BRACKET UPPER SHAFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥230
33513B — Spacer (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
90560-11015 Spacer (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥170
33513C — Bolt (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
90109-05012 Bolt (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥220
33517 — Retainer, Control Shaft Upper Spring
33517-30010 Retainer, Control Shaft Upper Spring
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥260
33518 — Bush, Upper Control Shaft Piece
33518-36010 Bush, Upper Control Shaft Piece
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥730
33518A — Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH)
33515-30010 Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥320
33518B — Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019 Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥220
33522 — Seat, Shift Lever Plate (FOR COLUMN SHIFT)
33522-36010 Seat, Shift Lever Plate (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥390
33523 — Pin, Shift Lever (FOR COLUMN SHIFT)
90249-07001 Pin, Shift Lever (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥240
33523E — Ring, E (FOR SHIFT LEVER PIN)
96160-00500 Ring, E (FOR SHIFT LEVER PIN)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥100
33530 — Lever Assy, Shift (FOR COLUMN SHIFT)
33541-28050 Lever Assy, Shift (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,330
33535 — Lever, Control Select (FOR COLUMN SHIFT)
33534-28020 Lever, Control Select (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,260
33536 — Shaft, Control Select Lever (FOR COLUMN SHIFT)
33536-28010 Shaft, Control Select Lever (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥670
33562 — Stopper, Control Shaft Upper Bracket Shaft
33562-26010 Stopper, Control Shaft Upper Bracket Shaft
1982-11 → 1988-08 ended
YR20,28 5H ¥320
33562A — Pin (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
90254-03006 Pin (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
1982-11 → 1988-08 ended
YR20,28 5H ¥100
33572 — Bush, Control Shaft Lower (FOR COLUMN SHIFT)
33572-28010 Bush, Control Shaft Lower (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥680
33573 — Cover, Control Shaft Dust, Lower
33573-28010 Cover, Control Shaft Dust, Lower
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥710
33578 — Seat, Control Shaft Lower Bush, NO.1
33578-28010 Seat, Control Shaft Lower Bush, NO.1
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥370
33578A — Ring, Snap (FOR CONTROL SHAFT LOWER BUSH SEAT)
96151-02800 Ring, Snap (FOR CONTROL SHAFT LOWER BUSH SEAT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥150
33593 — Holder, Spring (FOR SELECT LEVER)
33593-26030 Holder, Spring (FOR SELECT LEVER)
1982-11 → 1988-08 ended
YR20,28 5H ¥380
33641 — Link, Selecting (FOR COLUMN SHIFT)
33641-28040 Link, Selecting (FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
KR26,YR20,26 D,R ¥1,970
33641-28050 Link, Selecting (FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥1,970
33641B — Bush (FOR SELECTING LINK)
90386-15110 Bush (FOR SELECTING LINK)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥200
33686 — Cover, Control Lever Dust (FOR COLUMN SHIFT)
33686-28010 Cover, Control Lever Dust (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥460
33696 — Seat, Select Spring
33696-26020 Seat, Select Spring
1982-11 → 1988-08 ended
YR20,28 5H ¥410
33696A — Spring, Compression
90501-18049 Spring, Compression
1982-11 → 1988-08 ended
YR20,28 5H ¥280
33705 — Support Sub-assy, Cross Shaft (FOR BODY SIDE)
33705-28020 Support Sub-assy, Cross Shaft (FOR BODY SIDE)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥1,430
33711 — Lever, Control Shaft (FOR COLUMN SHIFT)
33527-28020 Lever, Control Shaft (FOR COLUMN SHIFT)
1982-11 → 1985-07 ended
KR26,YR20,26 D,R —
33527-28100 Lever, Control Shaft (FOR COLUMN SHIFT)
1985-07 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,420
33711A — Bush (FOR CONTROL SHAFT LEVER)
90386-13007 Bush (FOR CONTROL SHAFT LEVER)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥160
33711G — Bolt, Control Shaft Lever Lock
33218-35010 Bolt, Control Shaft Lever Lock
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥360
33731 — Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT)
33720-28030 Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
KR26,YR20,26 D,R ¥2,290
33720-28060 Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,320
33740 — End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
33740-26010 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
1984-02 → 1985-12 ended
KR26,YR20,26,28 4H,5H ¥840
33740-35011 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
1982-11 → 1984-02 ended
KR26,YR20,26 D,R ¥1,550
33740-36050 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
1985-12 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥900
33741 — Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
33710-28040 Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
1982-11 → 1985-07 ended
KR26,YR20,26 D,R ¥2,290
33710-28041 Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
1985-07 → 1985-08 ended
KR26,YR20,26 D,R —
33710-28060 Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,320
33744 — Lever, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
33744-28030 Lever, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥1,970
33744G — Bush (FOR SHIFTING, NO.1)
90386-15110 Bush (FOR SHIFTING, NO.1)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥200
33789 — Cover, Cross Shaft Dust(FOR COLUMN SHIFT)
33789-36010 note Cover, Cross Shaft Dust(FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥810
33789-36030 note Cover, Cross Shaft Dust(FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥770
