Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

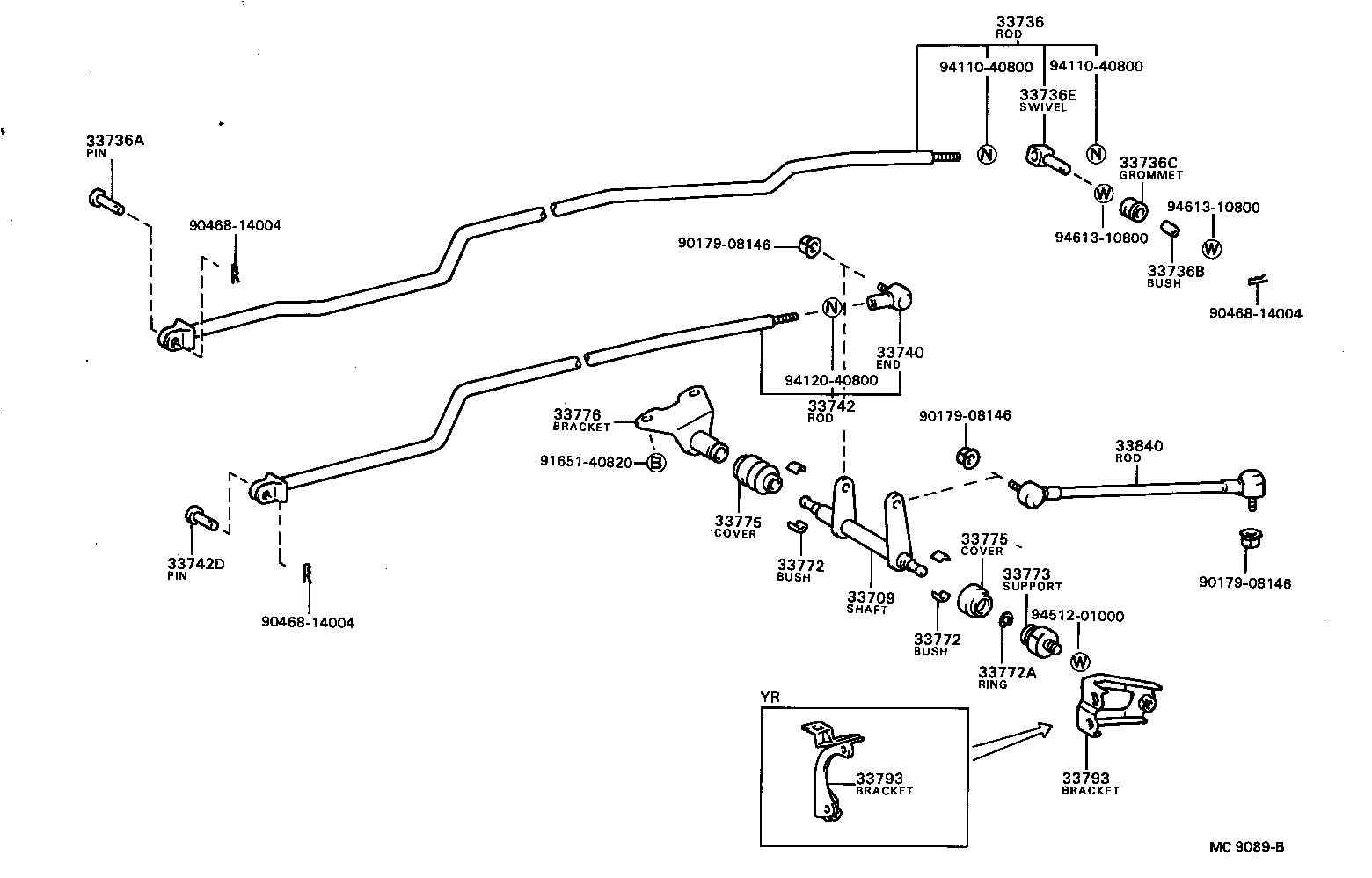

Exploded illustration MC9089B 33736 — ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) (6 parts) 9411040800 — not listed in this catalogue 9411040800 — not listed in this catalogue 33736E — SWIVEL, CONNECTING ROD (1 parts) 33736A — PIN, W/HOLE (1 parts) 33736C — GROMMET(FOR GEAR SELECTING ROD, NO.2) (1 parts) 9461310800 — not listed in this catalogue 9046814004 — not listed in this catalogue 9461310800 — not listed in this catalogue 9017908146 — not listed in this catalogue 33736B — BUSH(FOR GEAR SELECTING ROD, NO.2) (1 parts) 9046814004 — not listed in this catalogue 33740 — END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) (3 parts) 9412040800 — not listed in this catalogue 33742 — ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) (2 parts) 33776 — BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) (1 parts) 9017908146 — not listed in this catalogue 33840 — ROD ASSY, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) (3 parts) 9165140820 — not listed in this catalogue 33775 — COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) (4 parts) 33775 — COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) (4 parts) 33742D — PIN, W/HOLE (1 parts) 33772 — BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) (1 parts) 33773 — SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) (1 parts) 9017908146 — not listed in this catalogue 33709 — SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT) (1 parts) 9451201000 — not listed in this catalogue 9046814004 — not listed in this catalogue 33772 — BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) (1 parts) 33772A — RING, SNAP (FOR CROSS SHAFT SUPPORT BUSH) (1 parts) 33793 — BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT) (2 parts) 33793 — BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT) (2 parts)
MC9089B · 19 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
33709 — Shaft Sub-assy, Cross, NO.1 (FOR COLUMN SHIFT)
33709-28040 Shaft Sub-assy, Cross, NO.1 (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR26 4H ¥2,530
33736 — Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
33790-28060 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
YR20 D —
33790-28070 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
KR26 —
33790-28080 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
YR26 D —
33790-28110 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
YR20,28 5H ¥5,900
33790-28120 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
KR26 ¥3,620
33790-28130 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
YR26 D ¥3,620
33736A — Pin, W/Hole
90240-08028 Pin, W/Hole
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥160
33736B — Bush(FOR GEAR SELECTING ROD, NO.2)
90389-08005 Bush(FOR GEAR SELECTING ROD, NO.2)
1982-11 → 1988-08 ended
KR26,YR26 4H ¥140
33736C — Grommet(FOR GEAR SELECTING ROD, NO.2)
90480-17015 Grommet(FOR GEAR SELECTING ROD, NO.2)
1982-11 → 1988-08 ended
KR26,YR26 4H ¥350
33736E — Swivel, Connecting Rod
33723-10020 Swivel, Connecting Rod
1982-11 → 1988-08 ended
KR26,YR26 4H ¥750
33740 — End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
33740-26010 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
1984-02 → 1985-12 ended
KR26,YR20,26,28 4H,5H ¥840
33740-35011 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
1982-11 → 1984-02 ended
KR26,YR20,26 D,R ¥1,550
33740-36050 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
1985-12 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥900
33742 — Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT)
33730-28060 Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT)
1982-11 → 1985-08 ended
KR26,YR20,26 D,R —
33730-28090 Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT)
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥5,700
33742D — Pin, W/Hole
90240-08028 Pin, W/Hole
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥160
33772 — Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT)
33772-20010 Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥370
33772A — Ring, Snap (FOR CROSS SHAFT SUPPORT BUSH)
96151-01600 Ring, Snap (FOR CROSS SHAFT SUPPORT BUSH)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H —
33773 — Support, Cross Shaft, NO.1 (FOR COLUM SHIFT)
33773-20020 Support, Cross Shaft, NO.1 (FOR COLUM SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥680
33775 — Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
33775-20020 note Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR26 4H ¥210
33775-20040 note Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR26 4H ¥710
33775-28030 note Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥500
33775-28040 note Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥740
33776 — Bracket, Cross Shaft, NO.1 (FOR COLUMN SHIFT)
33776-28030 Bracket, Cross Shaft, NO.1 (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,060
33793 — Bracket, Cross Shaft, NO.2(FOR COLUMN SHIFT)
33793-27010 Bracket, Cross Shaft, NO.2(FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥1,870
33793-28050 Bracket, Cross Shaft, NO.2(FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26 ¥1,920
33840 — Rod Assy, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
33840-28050 Rod Assy, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR20,28 5H ¥2,510
33840-28060 Rod Assy, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
KR26 ¥2,520
33840-28070 Rod Assy, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
1982-11 → 1988-08 ended
YR26 D ¥2,530
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
