Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

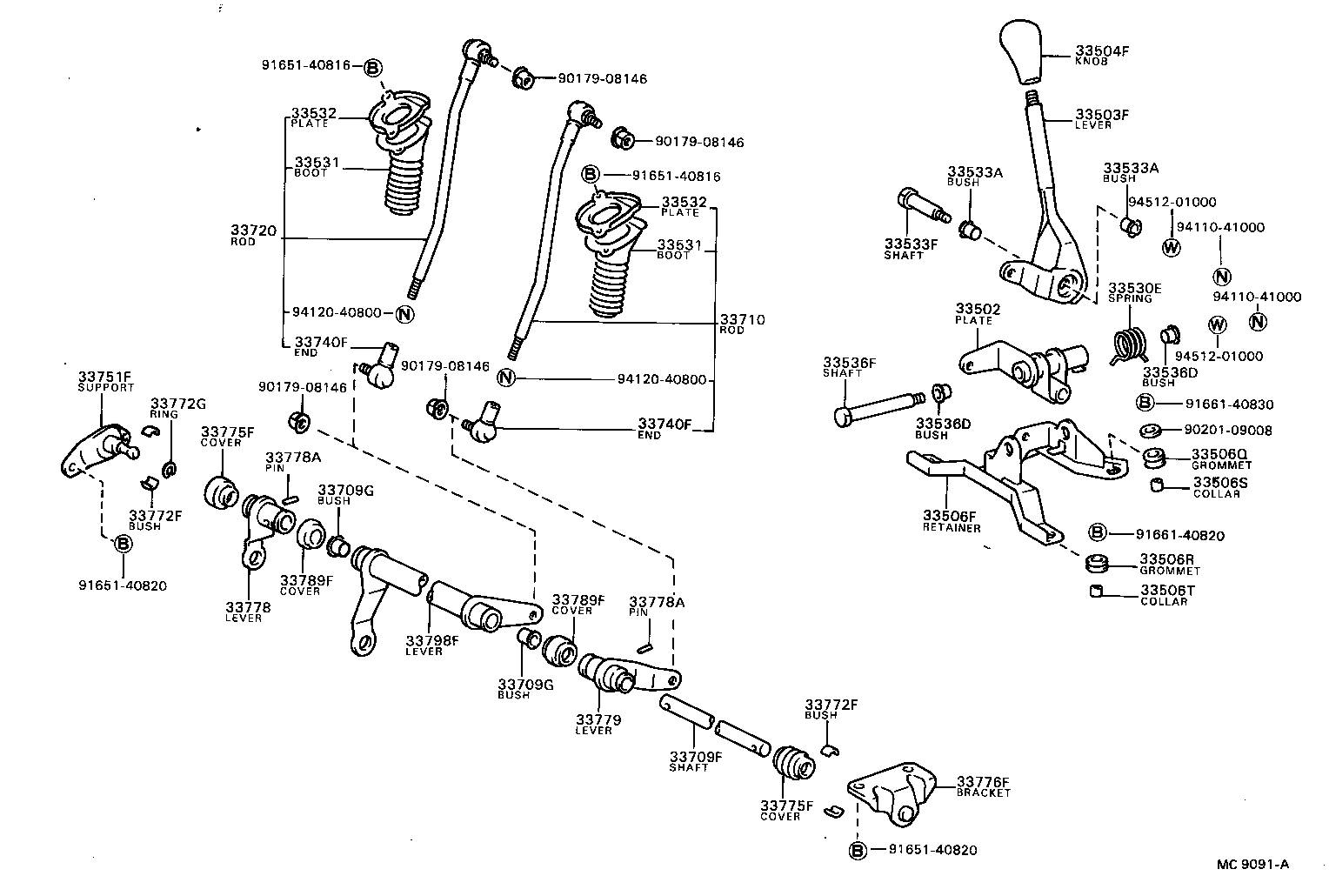

Exploded illustration MC9091A 33504F — KNOB SUB-ASSY, SHIFT LEVER (23 parts) 9165140816 — not listed in this catalogue 9017908146 — not listed in this catalogue 33532 — PLATE, DUST BOOT (1 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (16 parts) 9017908146 — not listed in this catalogue 33531 — BOOT, DUST (FOR CONTROL SHIFT LEVER) (1 parts) 33533A — BUSH (FOR BELLCRANK SHAFT) (1 parts) 33533A — BUSH (FOR BELLCRANK SHAFT) (1 parts) 9165140816 — not listed in this catalogue 33532 — PLATE, DUST BOOT (1 parts) 9451201000 — not listed in this catalogue 9411041000 — not listed in this catalogue 33720 — ROD ASSY, SHIFT LEVER HOUSING (1 parts) 33531 — BOOT, DUST (FOR CONTROL SHIFT LEVER) (1 parts) 33533F — SHAFT, BELLCRANK (FOR FLOOR SHIFT) (1 parts) 33530E — SPRING, TENSION (FOR SELECT RETURN) (1 parts) 9411041000 — not listed in this catalogue 33502 — PLATE SUB-ASSY, SHIFT LEVER (8 parts) 9412040800 — not listed in this catalogue 33710 — ROD ASSY, GEAR SHIFTING, NO.1 (1 parts) 33740F — END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) (2 parts) 9451201000 — not listed in this catalogue 33536F — SHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT) (1 parts) 9017908146 — not listed in this catalogue 33536D — BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) (3 parts) 33751F — SUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT) (1 parts) 9412040800 — not listed in this catalogue 9017908146 — not listed in this catalogue 33772G — RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) (1 parts) 9166140830 — not listed in this catalogue 33536D — BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) (3 parts) 33740F — END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) (2 parts) 9020109008 — not listed in this catalogue 33775F — COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) (3 parts) 33506Q — GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) (1 parts) 33778A — PIN(FOR CROSS SHAFT LEVER, NO.1) (2 parts) 33506S — COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER) (1 parts) 33709G — BUSH (FOR CROSS SHAFT, NO.1 (2 parts) 33506F — RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) (9 parts) 33772F — BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) (1 parts) 9166140820 — not listed in this catalogue 33506R — GROMMET, NO.2(FOR CONTROL SHIFT LEVER RETAINER) (1 parts) 33789F — COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) (2 parts) 9165140820 — not listed in this catalogue 33506T — COLLAR, NO.2(FOR CONTROL SHIFT LEVER RETAINER) (1 parts) 33789F — COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) (2 parts) 33778A — PIN(FOR CROSS SHAFT LEVER, NO.1) (2 parts) 33778 — LEVER, CROSS SHAFT, NO.1 (2 parts) 33798F — LEVER, CROSS SHAFT, NO.3 (2 parts) 33709G — BUSH (FOR CROSS SHAFT, NO.1 (2 parts) 33772F — BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) (1 parts) 33779 — ARM, SHIFT LEVER HOUSING, NO.2 (2 parts) 33709F — SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) (1 parts) 33776F — BRACKET, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) (2 parts) 33775F — COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) (3 parts) 9165140820 — not listed in this catalogue
MC9091A · 40 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
33502 — Plate Sub-assy, Shift Lever
33502-28010 Plate Sub-assy, Shift Lever
1982-11 → 1985-08 ended
CR21,27,YR2# 4FC —
33502-28030 Plate Sub-assy, Shift Lever
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥4,630
33502-28050 Plate Sub-assy, Shift Lever
1985-08 → 1986-08 ended
YR20 MRF 4FC G;CR21,27,28,YR26,28 +2 ¥6,700
33502-28070 Plate Sub-assy, Shift Lever
1985-08 → 1987-08 ended
CR21,30 4FC TD ¥7,100
33502-28070 Plate Sub-assy, Shift Lever
1987-08 → 1988-08 ended
CR21,28,30 4FC ¥7,100
33502-28080 Plate Sub-assy, Shift Lever
1986-08 → 1987-08 ended
YR20 MRF 4FC G;CR21,27,28,YR26,28 +2 ¥7,100
33502-28080 Plate Sub-assy, Shift Lever
1987-08 → 1988-08 ended
CR27,YR26,28 4FC;YR20 MRF 4FC +1 ¥7,100
33502-28080 Plate Sub-assy, Shift Lever
1985-08 → 1988-08 ended
YR20,21,3# 4FC (B,E,Q) ¥7,100
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33503-28030 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
YR2# 4FC —
33503-28031 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1984-08 → 1985-08 ended
CR21,27,YR2# 4FC —
33503-28050 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥2,730
33503-28060 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1983-04 → 1984-08 ended
CR21,YR21 5F —
33503-28061 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1984-08 → 1985-08 ended
CR21,26,YR2# 5F ¥2,420
33503-28061 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
CR21 5F DSL ¥2,420
33503-28061 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
CR26,28,36,YR20,21,26,3# 5F (B,D,E,G,N,Q) ¥2,420
33503-28061 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1987-08 → 1988-08 ended
CR26,36,YR20,21,26,3# 5F (B,D,E,G,N,Q) ¥2,420
33503-28090 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
CR21 5F TD ¥4,440
33503-28090 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1987-08 → 1988-08 ended
CR21,28 5F ¥4,440
33503-28090 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-10 → 1988-08 ended
CR30,37 5F ¥4,440
33503-28120 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
YR20 MRF 4FC G;CR21,27,28,YR26,28 +2 ¥4,670
33503-28120 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1987-08 → 1988-08 ended
CR27,YR26,28 4FC;YR20 MRF 4FC +1 ¥4,670
33503-28130 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-08 → 1988-08 ended
YR20,21,3# 4FC (B,E,Q) ¥4,670
33503-28140 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1985-08 → 1988-08 ended
CR21,30 HRF 4FC ¥4,670
33503-28180 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1987-08 → 1988-08 ended
CR21,28 4FC (B,G) ¥4,650
33504F — Knob Sub-assy, Shift Lever
33504-14070-05 note Knob Sub-assy, Shift Lever
1982-11 → 1984-08 ended
CR26,YR20,26 5F (D,G,N) ¥2,730
33504-14070-22 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
CR21,26,YR20,26 5F (D,G,N) ¥2,730
33504-14070-25 note Knob Sub-assy, Shift Lever
1985-08 → 1988-08 ended
CR21,26,28,3#,YR20,26,3# 5F (B,D,G,N) ¥2,730
33504-24010-05 note Knob Sub-assy, Shift Lever
1982-11 → 1984-08 ended
CR21,YR20,21 5F ¥3,000
33504-24010-12 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
YR21 5F ¥3,000
33504-24010-12 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
CR21,YR20 5F (E,Q,X) ¥3,000
33504-24010-23 note Knob Sub-assy, Shift Lever
1982-11 → 1984-08 ended
YR20,21 5F (G,Q,X) ¥3,000
33504-24010-24 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
YR21 5F ¥3,000
33504-24010-24 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
CR21,YR20 5F (E,Q,X) ¥3,000
33504-24010-25 note Knob Sub-assy, Shift Lever
1985-08 → 1986-05 ended
CR21,30,YR20,21,30 5F (E,Q) ¥3,000
33504-24010-40 note Knob Sub-assy, Shift Lever
1986-05 → 1988-08 ended
CR21,30,YR20,21,30 5F (E,Q) ¥3,000
33504-24010-44 note Knob Sub-assy, Shift Lever
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 5F (E,Q) ¥3,000
33504-28010 note Knob Sub-assy, Shift Lever
1983-10 → 1983-11 ended
YR20 MRF 5F G —
33542-10020-02 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
CR21,YR20,21 4FC (E,Q,X) ¥2,630
33542-10020-14 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
CR21,YR20,21 4FC (E,Q,X) ¥2,630
33542-12110-12 note Knob Sub-assy, Shift Lever
1984-08 → 1985-08 ended
CR21,27,YR20,26 4FC (G,N) —
33542-24030-05 note Knob Sub-assy, Shift Lever
1982-11 → 1984-08 ended
YR20,21 4FC ¥4,900
33542-24030-23 note Knob Sub-assy, Shift Lever
1982-11 → 1984-08 ended
YR20,21 4FC (E,Q,X) ¥4,900
33542-30110-25 note Knob Sub-assy, Shift Lever
1982-11 → 1984-08 ended
YR20,26 4FC (G,N) ¥4,890
33542-32010-05 note Knob Sub-assy, Shift Lever
1985-08 → 1988-08 ended
YR20 MRF 4FC G;CR21,27,28,YR26,28 +2 ¥2,530
33542-32040-05 note Knob Sub-assy, Shift Lever
1985-08 → 1988-08 ended
CR21,30,YR20,21 4FC (E,Q) ¥4,890
33542-32040-05 note Knob Sub-assy, Shift Lever
1985-10 → 1988-08 ended
YR3# 4FC ¥4,890
33542-32040-14 note Knob Sub-assy, Shift Lever
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 4FC (E,Q) ¥4,890
33506F — Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506-28030 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥5,200
33506-28040 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1984-08 → 1985-08 ended
CR21,26,YR2# 5F ¥5,100
33506-28040 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1983-04 → 1984-08 ended
CR21,YR21 5F ¥5,100
33506-28060 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1985-10 → 1988-08 ended
CR30,37 5F ¥6,100
33506-28060 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1987-08 → 1988-08 ended
CR21,28 5F ¥6,100
33506-28060 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
CR21 5F TD ¥6,100
33506-28090 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
CR21 5F DSL ¥7,300
33506-28090 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1985-08 → 1987-08 ended
CR26,28,36,YR20,21,26,3# 5F (B,D,E,G,N,Q) ¥7,300
33506-28090 Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
1987-08 → 1988-08 ended
CR26,36,YR20,21,26,3# 5F (B,D,E,G,N,Q) ¥7,300
33506Q — Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90480-13012 Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
1982-11 → 1988-08 ended
CR21,26,28,3#,YR20,21,26,3# 5F ¥270
33506R — Grommet, NO.2(FOR CONTROL SHIFT LEVER RETAINER)
90480-13014 Grommet, NO.2(FOR CONTROL SHIFT LEVER RETAINER)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥280
33506S — Collar, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90387-09011 Collar, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
1982-11 → 1988-08 ended
CR21,26,28,3#,YR20,21,26,3# 5F ¥230
33506T — Collar, NO.2(FOR CONTROL SHIFT LEVER RETAINER)
90387-09013 Collar, NO.2(FOR CONTROL SHIFT LEVER RETAINER)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥240
33530E — Spring, Tension (FOR SELECT RETURN)
90508-32013 Spring, Tension (FOR SELECT RETURN)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥280
33531 — Boot, Dust (FOR CONTROL SHIFT LEVER)
33531-28010 Boot, Dust (FOR CONTROL SHIFT LEVER)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥1,620
33532 — Plate, Dust Boot
33532-28010 Plate, Dust Boot
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33533A — Bush (FOR BELLCRANK SHAFT)
90386-13007 Bush (FOR BELLCRANK SHAFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥160
33533F — Shaft, Bellcrank (FOR FLOOR SHIFT)
33533-28020 Shaft, Bellcrank (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥640
33536D — Bush, Control Select Lever Shaft (FOR FLOOR SHIFT)
90386-12013 Bush, Control Select Lever Shaft (FOR FLOOR SHIFT)
1983-04 → 1984-08 ended
CR21,YR21 5F ¥260
90386-12013 Bush, Control Select Lever Shaft (FOR FLOOR SHIFT)
1984-08 → 1988-08 ended
CR21,26,28,3#,YR20,21,26,3# 5F ¥260
90386-13007 Bush, Control Select Lever Shaft (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥160
33536F — Shaft, Control Select Lever (FOR FLOOR SHIFT)
33536-28020 Shaft, Control Select Lever (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥990
33709F — Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33771-28050 Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33709G — Bush (For Cross Shaft, NO.1
90386-13007 note Bush (For Cross Shaft, NO.1
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥160
90386-15110 note Bush (For Cross Shaft, NO.1
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥200
33710 — Rod Assy, Gear Shifting, NO.1
33710-28050 Rod Assy, Gear Shifting, NO.1
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥4,260
33720 — Rod Assy, Shift Lever Housing
33720-28040 Rod Assy, Shift Lever Housing
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥4,260
33740F — End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
33740-26010 End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
1984-02 → 1988-08 ended
CR26,YR20,26 5F ¥840
33740-35011 End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
1982-11 → 1984-02 ended
CR26,YR20,26 5F ¥1,550
33751F — Support, Gear Shift Link Lever (FOR FLOOR SHIFT)
33751-28030 Support, Gear Shift Link Lever (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33772F — Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT)
33772-20010 Bush, Cross Shaft Support, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥370
33772G — Ring, Snap (FOR CROSS SAFT SUPPORT BUSH)
96151-01600 Ring, Snap (FOR CROSS SAFT SUPPORT BUSH)
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33775F — Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT)
33775-20040 note Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥710
33775-28030 note Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥500
33775-28040 note Cover, Cross Shaft Dust, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥740
33776F — Bracket, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
33776-28030 note Bracket, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥2,060
33776-28050 note Bracket, Cross Shaft, NO.1 (FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥2,650
33778 — Lever, Cross Shaft, NO.1
33778-28050 note Lever, Cross Shaft, NO.1
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥2,590
33778-28060 note Lever, Cross Shaft, NO.1
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33778A — Pin(FOR CROSS SHAFT LEVER, NO.1)
90256-06001 note Pin(FOR CROSS SHAFT LEVER, NO.1)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥370
90256-08001 note Pin(FOR CROSS SHAFT LEVER, NO.1)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥240
33779 — Arm, Shift Lever Housing, NO.2
33779-28050 note Arm, Shift Lever Housing, NO.2
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33779-28060 note Arm, Shift Lever Housing, NO.2
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33789F — Cover, Cross Shaft Dust, NO.1(FOR FLOOR SHIFT)
33789-36010 note Cover, Cross Shaft Dust, NO.1(FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥810
33789-36030 note Cover, Cross Shaft Dust, NO.1(FOR FLOOR SHIFT)
1982-11 → 1984-08 ended
CR26,YR20,26 5F ¥770
33798F — Lever, Cross Shaft, NO.3
33798-28030 note Lever, Cross Shaft, NO.3
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
33798-28050 note Lever, Cross Shaft, NO.3
1982-11 → 1984-08 ended
CR26,YR20,26 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
