Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

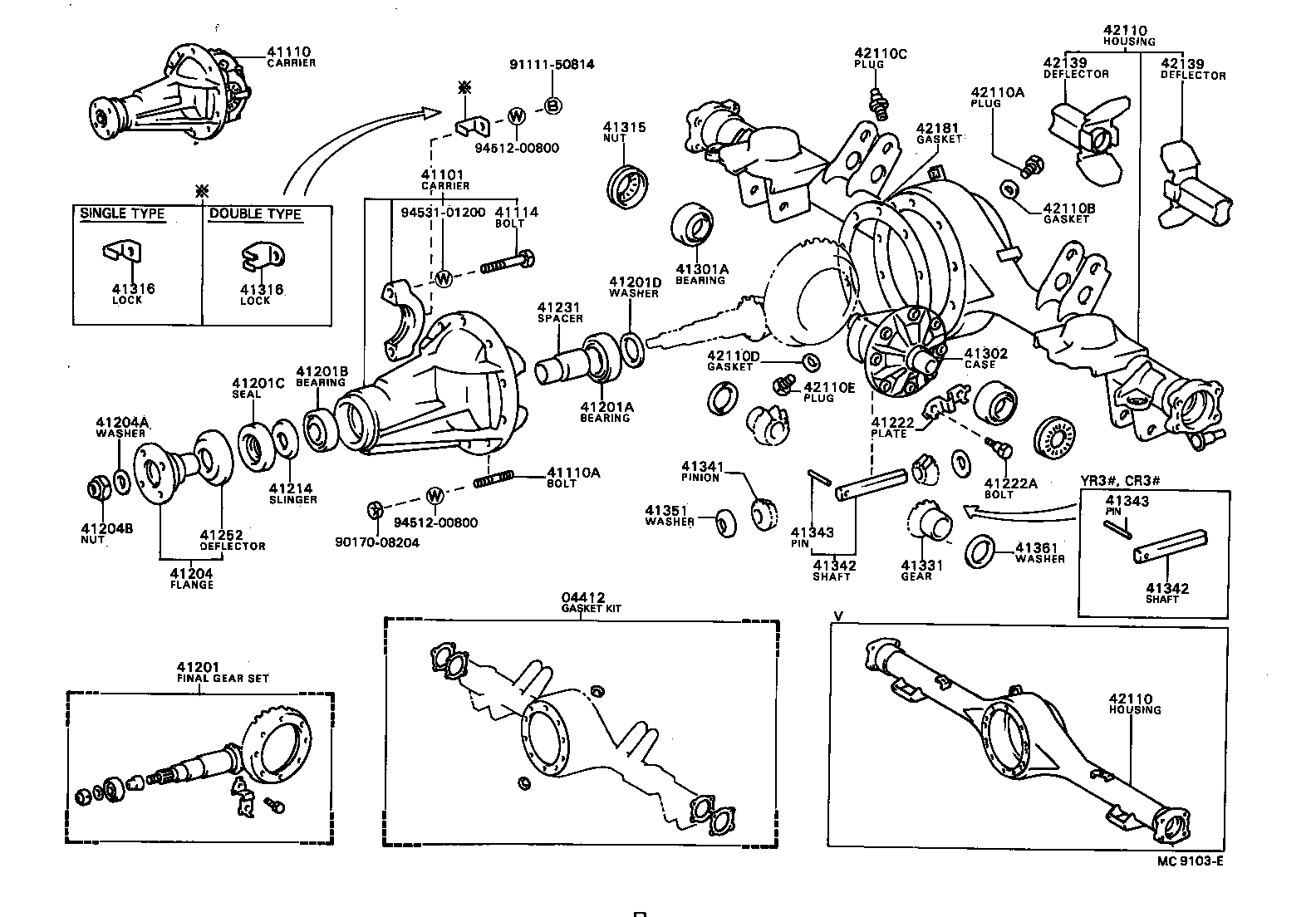

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04412 — Gasket Kit, Rear Differential Carrier | ||||
| 04412-20030 |
Gasket Kit, Rear Differential Carrier
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥730 | |
| 04412-30010 |
Gasket Kit, Rear Differential Carrier
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥720 | |
| 41101 — Carrier Sub-assy, Differential, Rear | ||||
| 41101-30010 |
Carrier Sub-assy, Differential, Rear
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥39,400 | |
| 41101-30031 |
Carrier Sub-assy, Differential, Rear
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥37,800 | |
| 41110 — Carrier Assy, Differential, Rear | ||||
| 41110-20241 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
CR21 MRF 5F;YR20 MTM +1 | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1985-08 → 1987-08
ended
|
CR28,YR21,28 MTM | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1984-08 → 1985-08
ended
|
YR20 4FC 08S | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1984-08 → 1985-08
ended
|
YR20 5F | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1983-05 → 1985-08
ended
|
YR21 4FC | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1983-04 → 1985-08
ended
|
CR21 5F | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1987-08 → 1988-08
ended
|
YR21,28 MTM | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1982-11 → 1984-08
ended
|
YR20 5F Q;YR20 MRF +2 | ¥180,000 | |
| 41110-20241 note |
Carrier Assy, Differential, Rear
1982-11 → 1984-08
ended
|
YR20 4FC (E,G,X) | ¥180,000 | |
| 41110-20251 note |
Carrier Assy, Differential, Rear
1983-05 → 1985-08
ended
|
YR21 5F | ¥182,000 | |
| 41110-20251 note |
Carrier Assy, Differential, Rear
1982-11 → 1984-08
ended
|
YR20 MTM (D,E,G,X) | ¥182,000 | |
| 41110-20251 note |
Carrier Assy, Differential, Rear
1984-08 → 1985-08
ended
|
YR20 MTM (08S,09S) | ¥182,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
CR21 HRF | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
YR20 HRF 5F (E,Q) | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
YR20 MRF 4FC;YR20 HRF +2 | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1987-08 → 1988-08
ended
|
CR28 5F | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1984-08 → 1985-08
ended
|
CR21 5F E | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
YR26;YR21,28 4FC | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1982-11 → 1984-08
ended
|
CR21,YR26;YR20 4FC Q | ¥187,000 | |
| 41110-21020 note |
Carrier Assy, Differential, Rear
1984-08 → 1985-08
ended
|
YR26;YR20 4FC (E,Q,X) | ¥187,000 | |
| 41110-22110 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
CR28,YR20 HRF 4FC (B,E,Q) | ¥189,000 | |
| 41110-22110 note |
Carrier Assy, Differential, Rear
1982-11 → 1985-08
ended
|
CR26;CR21,27 4FC | ¥189,000 | |
| 41110-22110 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
CR26,27;CR21 4FC G | ¥189,000 | |
| 41110-27030 note |
Carrier Assy, Differential, Rear
1985-08 → 1988-08
ended
|
KR26 | ¥188,000 | |
| 41110-27030 note |
Carrier Assy, Differential, Rear
1982-11 → 1985-08
ended
|
CR21,KR26 (4FC,4H) (D,E,R) | ¥188,000 | |
| 41110-28070 note |
Carrier Assy, Differential, Rear
1985-10 → 1988-08
ended
|
YR3# 5F | ¥186,000 | |
| 41110-28080 note |
Carrier Assy, Differential, Rear
1985-10 → 1988-08
ended
|
CR30;YR3# 4FC | ¥185,000 | |
| 41110-28080 note |
Carrier Assy, Differential, Rear
1987-08 → 1988-08
ended
|
CR37 | ¥185,000 | |
| 41110-28090 note |
Carrier Assy, Differential, Rear
1985-10 → 1988-08
ended
|
CR36 | ¥186,000 | |
| 41110-28100 note |
Carrier Assy, Differential, Rear
1985-10 → 1988-08
ended
|
YR3# 5F | ¥247,000 | |
| 41110-28110 note |
Carrier Assy, Differential, Rear
1985-10 → 1988-08
ended
|
CR30;YR3# 4FC | ¥247,000 | |
| 41110-28120 note |
Carrier Assy, Differential, Rear
1985-10 → 1988-08
ended
|
CR36 | ¥250,000 | |
| 41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥230 | |
| 41114 — Bolt, Rear Differential Bearing Cap | ||||
| 90101-12376 |
Bolt, Rear Differential Bearing Cap
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥610 | |
| 41201 — Final Gear Kit, Differential, Rear | ||||
| 41201-29167 note |
Final Gear Kit, Differential, Rear
1982-11 → 1983-02
ended
|
YR20 MTM (D,E,G,X) | ¥59,500 | |
| 41201-29168 note |
Final Gear Kit, Differential, Rear
1984-08 → 1985-08
ended
|
YR20 MTM (08S,09S) | ¥59,700 | |
| 41201-29168 note |
Final Gear Kit, Differential, Rear
1983-02 → 1984-08
ended
|
YR20 MTM (D,E,G,X) | ¥59,700 | |
| 41201-29168 note |
Final Gear Kit, Differential, Rear
1983-05 → 1985-08
ended
|
YR21 5F | ¥59,700 | |
| 41201-29216 note |
Final Gear Kit, Differential, Rear
1982-11 → 1983-02
ended
|
YR26;YR20 4FC Q | ¥70,000 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1983-02 → 1984-08
ended
|
CR21,YR26;YR20 4FC Q | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
CR21 HRF | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
YR20 HRF 5F (E,Q) | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1987-08 → 1988-08
ended
|
CR28 5F | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1984-08 → 1985-08
ended
|
YR26;YR20 4FC (E,Q,X) | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1984-08 → 1985-08
ended
|
CR21 5F E | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
YR20 MRF 4FC;YR20 HRF +2 | ¥66,800 | |
| 41201-29217 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
YR26;YR21,28 4FC | ¥66,800 | |
| 41201-29306 note |
Final Gear Kit, Differential, Rear
1982-11 → 1983-02
ended
|
KR26 | ¥63,200 | |
| 41201-29307 note |
Final Gear Kit, Differential, Rear
1983-02 → 1985-08
ended
|
CR21,KR26 (4FC,4H) (D,E,R) | ¥63,100 | |
| 41201-29307 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
KR26 | ¥63,100 | |
| 41201-39187 note |
Final Gear Kit, Differential, Rear
1987-08 → 1988-08
ended
|
CR37 | ¥63,000 | |
| 41201-39187 note |
Final Gear Kit, Differential, Rear
1985-10 → 1988-08
ended
|
CR30;YR3# 4FC | ¥63,000 | |
| 41201-39218 note |
Final Gear Kit, Differential, Rear
1982-11 → 1983-02
ended
|
YR20 5F Q;YR20 MRF +2 | ¥66,100 | |
| 41201-39218 note |
Final Gear Kit, Differential, Rear
1982-11 → 1983-02
ended
|
YR20 4FC (E,G,X) | ¥66,100 | |
| 41201-39286 note |
Final Gear Kit, Differential, Rear
1982-11 → 1983-02
ended
|
CR26 | ¥62,600 | |
| 41201-39287 note |
Final Gear Kit, Differential, Rear
1983-02 → 1985-08
ended
|
CR26;CR21,27 4FC | ¥65,900 | |
| 41201-39287 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
CR28,YR20 HRF 4FC (B,E,Q) | ¥65,900 | |
| 41201-39287 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
CR26,27;CR21 4FC G | ¥65,900 | |
| 41201-39298 note |
Final Gear Kit, Differential, Rear
1985-10 → 1988-08
ended
|
CR36 | ¥66,700 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1985-08 → 1988-08
ended
|
CR21 MRF 5F;YR20 MTM +1 | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1987-08 → 1988-08
ended
|
YR21,28 MTM | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1983-02 → 1984-08
ended
|
YR20 4FC (E,G,X) | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1984-08 → 1985-08
ended
|
YR20 4FC 08S | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1984-08 → 1985-08
ended
|
YR20 5F | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1983-05 → 1985-08
ended
|
YR21 4FC | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1983-04 → 1985-08
ended
|
CR21 5F | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1983-02 → 1984-08
ended
|
YR20 5F Q;YR20 MRF +2 | ¥60,000 | |
| 41201-39555 note |
Final Gear Kit, Differential, Rear
1985-08 → 1987-08
ended
|
CR28,YR21,28 MTM | ¥60,000 | |
| 41201-39565 note |
Final Gear Kit, Differential, Rear
1985-10 → 1988-08
ended
|
YR3# 5F | ¥63,000 | |
| 41201A — Bearing (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
Bearing (FOR REAR DRIVE PINION REAR)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,550 | |
| 90366-35031 note |
Bearing (FOR REAR DRIVE PINION REAR)
1985-10 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,470 | |
| 90366-35055 note |
Bearing (FOR REAR DRIVE PINION REAR)
1985-10 → 1986-04
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,810 | |
| 97609-32307 |
Bearing (FOR REAR DRIVE PINION REAR)
1982-11 → 1985-10
ended
|
CR2#,KR26,YR2# | ¥2,470 | |
| 41201B — Bearing (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30008 |
Bearing (FOR REAR DRIVE PINION FRONT)
1982-11 → 1985-10
ended
|
CR2#,KR26,YR2# | ¥1,760 | |
| 90366-30022 |
Bearing (FOR REAR DRIVE PINION FRONT)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥1,850 | |
| 90366-30022 |
Bearing (FOR REAR DRIVE PINION FRONT)
1985-10 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,850 | |
| 41201C — Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥430 | |
| 41201D — Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35396 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35397 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35398 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35399 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35400 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35401 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35402 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35403 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35404 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35434 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥210 | |
| 90201-35435 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥210 | |
| 90201-35436 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥210 | |
| 90201-35437 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥210 | |
| 90201-35438 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35439 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35440 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 90201-35441 note |
Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 41204 — Flange Sub-assy, Rear Drive Pinion Companion, Rear | ||||
| 41204-20030 |
Flange Sub-assy, Rear Drive Pinion Companion, Rear
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥4,950 | |
| 41204-35050 |
Flange Sub-assy, Rear Drive Pinion Companion, Rear
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥4,380 | |
| 41204A — Washer, Plate (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
Washer, Plate (FOR REAR DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥330 | |
| 41204B — Nut (FOR REAR DRIVE PINION) | ||||
| 90179-18001 note |
Nut (FOR REAR DRIVE PINION)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥250 | |
| 41214 — Slinger, Rear Differential Drive Pinion Oil | ||||
| 41214-30021 |
Slinger, Rear Differential Drive Pinion Oil
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥900 | |
| 41222 — Plate, Rear Differential Ring Gear Set Bolt Lock | ||||
| 41222-28010 |
Plate, Rear Differential Ring Gear Set Bolt Lock
1985-12 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥130 | |
| 41222-30030 |
Plate, Rear Differential Ring Gear Set Bolt Lock
1982-11 → 1985-12
ended
|
CR2#,KR26,YR2# | ¥240 | |
| 41222-35030 |
Plate, Rear Differential Ring Gear Set Bolt Lock
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥120 | |
| 41222A — Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
Bolt (FOR REAR DIFFERENTIAL RING GEAR SET)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥120 | |
| 41231 — Spacer, Rear Differential Drive Pinion Bearing | ||||
| 41231-22010 |
Spacer, Rear Differential Drive Pinion Bearing
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥580 | |
| 41231-22020 |
Spacer, Rear Differential Drive Pinion Bearing
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥680 | |
| 41252 — Deflector, Dust (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
Deflector, Dust (FOR REAR DIFFERENTIAL)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥460 | |
| 41301A — Bearing(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45011 |
Bearing(FOR REAR DIFFERENTIAL CASE)
1987-07 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥2,610 | |
| 90368-45066 |
Bearing(FOR REAR DIFFERENTIAL CASE)
1982-11 → 1987-07
ended
|
CR2#,KR26,YR2# | ¥2,360 | |
| 90368-45066 |
Bearing(FOR REAR DIFFERENTIAL CASE)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,360 | |
| 90368-50024 note |
Bearing(FOR REAR DIFFERENTIAL CASE)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,940 | |
| 41302 — Case Sub-assy, Rear Differential | ||||
| 41302-22011 note |
Case Sub-assy, Rear Differential
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥42,400 | |
| 41311-30022 |
Case Sub-assy, Rear Differential
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥19,800 | |
| 41311-30050 |
Case Sub-assy, Rear Differential
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥17,500 | |
| 41315 — Nut, Rear Differential Bearing Adjusting | ||||
| 41315-30010 |
Nut, Rear Differential Bearing Adjusting
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥450 | |
| 41315-35010 |
Nut, Rear Differential Bearing Adjusting
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥520 | |
| 41316 — Lock, Rear Differential Bearing Adjusting Nut | ||||
| 41316-30010 note |
Lock, Rear Differential Bearing Adjusting Nut
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥110 | |
| 41317-30010 note |
Lock, Rear Differential Bearing Adjusting Nut
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥130 | |
| 41331 — Gear, Rear Differential Side | ||||
| 41305-22010 note |
Gear, Rear Differential Side
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥13,300 | |
| 41331-30021 |
Gear, Rear Differential Side
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥5,400 | |
| 41331-30030 |
Gear, Rear Differential Side
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥5,100 | |
| 41341 — Pinion, Rear Differential | ||||
| 41341-14031 note |
Pinion, Rear Differential
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,570 | |
| 41341-30011 |
Pinion, Rear Differential
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥2,160 | |
| 41341-30020 |
Pinion, Rear Differential
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,830 | |
| 41342 — Shaft, Rear Differential Pinion | ||||
| 41342-22020 |
Shaft, Rear Differential Pinion
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥1,240 | |
| 41342-30011 |
Shaft, Rear Differential Pinion
1988-05 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥1,690 | |
| 41342-39015 |
Shaft, Rear Differential Pinion
1982-11 → 1988-05
ended
|
CR2#,KR26,YR2# | ¥1,550 | |
| 41343 — Pin, Rear Differential Pinion Shaft | ||||
| 90250-06058 |
Pin, Rear Differential Pinion Shaft
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥160 | |
| 41351 — Washer, Rear Differential Pinion Thrust | ||||
| 41351-30032 |
Washer, Rear Differential Pinion Thrust
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥240 | |
| 41351-30060 |
Washer, Rear Differential Pinion Thrust
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥140 | |
| 41361 — Washer, Rear Differential Side Gear Thrust, NO.1 | ||||
| 41361-22020 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥220 | |
| 41361-22030 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥220 | |
| 41361-22040 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥220 | |
| 41361-22140 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥210 | |
| 41361-22150 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥210 | |
| 41361-22160 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥210 | |
| 41361-28020 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28030 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28040 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28050 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28060 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28070 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28080 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28090 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28100 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28110 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1987-02
ended
|
CR3#,YR3# | ¥730 | |
| 41361-28130 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28140 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28150 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28160 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28170 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28180 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28190 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28200 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28210 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-28220 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥710 | |
| 41361-30040 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥240 | |
| 41361-30050 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥240 | |
| 41361-30060 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥240 | |
| 41361-30070 note |
Washer, Rear Differential Side Gear Thrust, NO.1
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥240 | |
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-28090 |
Housing Assy, Rear Axle
1982-11 → 1986-08
ended
|
CR21,YR20,21 | ¥58,800 | |
| 42110-28091 |
Housing Assy, Rear Axle
1986-08 → 1988-08
ended
|
CR21,YR21;YR20 HRF E;YR20 HRF +4 | ¥58,900 | |
| 42110-28100 |
Housing Assy, Rear Axle
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | — | |
| 42110-28120 |
Housing Assy, Rear Axle
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥59,400 | |
| 42110-28130 |
Housing Assy, Rear Axle
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥57,800 | |
| 42110-28160 |
Housing Assy, Rear Axle
1986-08 → 1988-08
ended
|
CR30,YR30 | ¥61,500 | |
| 42110-28180 |
Housing Assy, Rear Axle
1985-10 → 1986-08
ended
|
CR30,YR30 | ¥60,200 | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
1986-09 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥180 | |
| 90341-18049 |
Plug (FOR REAR AXLE HOUSING FILLER)
1982-11 → 1986-09
ended
|
CR2#,3#,KR26,YR2#,3# | ¥260 | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥100 | |
| 42110C — Plug, Breather (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥370 | |
| 42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥100 | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥350 | |
| 42139 — Deflector, Rear Axle Housing Oil | ||||
| 42108-22010 |
Deflector, Rear Axle Housing Oil
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,970 | |
| 42108-30010 |
Deflector, Rear Axle Housing Oil
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥1,720 | |
| 42181 — Gasket, Rear Differential Carrier | ||||
| 42181-30010 |
Gasket, Rear Differential Carrier
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥260 | |
| 42181-30020 |
Gasket, Rear Differential Carrier
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
