Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

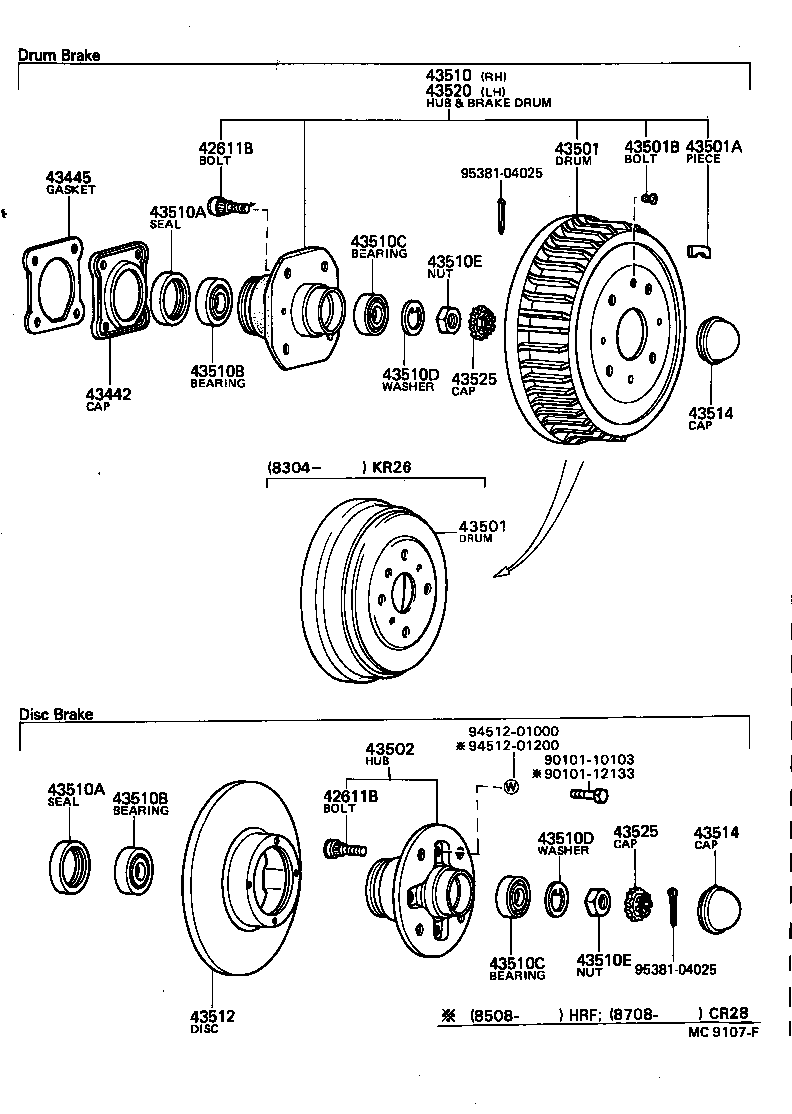

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42611B — Bolt, Hub (FOR FRONT AXLE) | ||||
| 90942-02035 note |
Bolt, Hub (FOR FRONT AXLE)
1982-11 → 1983-09
ended
|
CR26,KR26,YR26 D,R | ¥240 | |
| 90942-02036 note |
Bolt, Hub (FOR FRONT AXLE)
1982-11 → 1983-09
ended
|
CR2#,KR26,YR2# | ¥250 | |
| 90942-02047 note |
Bolt, Hub (FOR FRONT AXLE)
1983-09 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥230 | |
| 90942-02047 |
Bolt, Hub (FOR FRONT AXLE)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥230 | |
| 90942-02048 note |
Bolt, Hub (FOR FRONT AXLE)
1983-09 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥460 | |
| 43442 — Cap, Knuckle Grease Retainer, Inner | ||||
| 43442-20030 |
Cap, Knuckle Grease Retainer, Inner
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥340 | |
| 43445 — Gasket, Knuckle Grease Retainer Cap | ||||
| 43445-20030 |
Gasket, Knuckle Grease Retainer Cap
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥260 | |
| 43501 — Drum Sub-assy, Front Brake | ||||
| 42431-20031 |
Drum Sub-assy, Front Brake
1982-11 → 1983-04
ended
|
CR26,KR26,YR26 D,R | ¥13,600 | |
| 42431-20031 |
Drum Sub-assy, Front Brake
1983-04 → 1985-08
ended
|
CR26,YR26 D | ¥13,600 | |
| 43512-27010 |
Drum Sub-assy, Front Brake
1983-04 → 1985-08
ended
|
KR26 | ¥12,700 | |
| 43501A — Piece, Balance (FOR FRONT BRAKE DRUM) | ||||
| 90937-01045 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1982-11 → 1983-04
ended
|
CR26,KR26,YR26 D,R | — | |
| 90937-01045 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
CR26,YR26 D | — | |
| 90937-01046 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1982-11 → 1983-04
ended
|
CR26,KR26,YR26 D,R | — | |
| 90937-01046 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
CR26,YR26 D | — | |
| 90937-01047 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1982-11 → 1983-04
ended
|
CR26,KR26,YR26 D,R | — | |
| 90937-01047 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
CR26,YR26 D | — | |
| 90937-01117 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
KR26 | ¥130 | |
| 90937-01118 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
KR26 | ¥130 | |
| 90937-01119 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
KR26 | ¥130 | |
| 90937-01146 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
KR26 | ¥250 | |
| 90937-01215 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
KR26 | ¥630 | |
| 90937-01217 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1982-11 → 1983-04
ended
|
CR26,KR26,YR26 D,R | — | |
| 90937-01217 note |
Piece, Balance (FOR FRONT BRAKE DRUM)
1983-04 → 1985-08
ended
|
CR26,YR26 D | — | |
| 43501B — Bolt, Set (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10007 |
Bolt, Set (FOR FRONT BRAKE DRUM SETTING)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥110 | |
| 43502 — Hub Sub-assy, Front Axle | ||||
| 43502-20010 |
Hub Sub-assy, Front Axle
1987-08 → 1988-08
ended
|
YR20 ) HRF 5F +5 | ¥13,500 | |
| 43502-20010 |
Hub Sub-assy, Front Axle
1985-08 → 1988-08
ended
|
CR21 MRF | ¥13,500 | |
| 43502-20010 |
Hub Sub-assy, Front Axle
1985-08 → 1987-08
ended
|
YR20 E,N,R) HRF 5F +5 | ¥13,500 | |
| 43502-20010 |
Hub Sub-assy, Front Axle
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥13,500 | |
| 43502-28020 |
Hub Sub-assy, Front Axle
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥14,400 | |
| 43502-28030 note |
Hub Sub-assy, Front Axle
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥12,100 | |
| 43502-28030 note |
Hub Sub-assy, Front Axle
1987-08 → 1988-08
ended
|
CR28 | ¥12,100 | |
| 43510 — Hub And Brake Drum Assy, Front Axle, RH | ||||
| 43510-20080 |
Hub And Brake Drum Assy, Front Axle, RH
1982-12 → 1983-04
ended
|
CR26,KR26,YR26 D,R | ¥21,600 | |
| 43510-20080 |
Hub And Brake Drum Assy, Front Axle, RH
1983-04 → 1985-08
ended
|
CR26,YR26 D | ¥21,600 | |
| 43510-27020 |
Hub And Brake Drum Assy, Front Axle, RH
1983-04 → 1985-08
ended
|
KR26 | — | |
| 43510A — Seal, Oil (FOR FRONT AXLE HUB) | ||||
| 90311-48001 |
Seal, Oil (FOR FRONT AXLE HUB)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥490 | |
| 90311-66002 |
Seal, Oil (FOR FRONT AXLE HUB)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥770 | |
| 43510B — Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) | ||||
| 90366-50011 |
Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,420 | |
| 90368-31067 |
Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,760 | |
| 43510C — Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-19037 |
Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,630 | |
| 90368-45087 |
Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥3,060 | |
| 43510D — Washer, Claw (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20005 |
Washer, Claw (FOR STEERING KNUCKLE WASHER)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥190 | |
| 90214-42030 |
Washer, Claw (FOR STEERING KNUCKLE WASHER)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥190 | |
| 43510E — Nut (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
Nut (FOR STEERING KNUCKLE)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥300 | |
| 43512 — Disc, Front | ||||
| 43512-28020 note |
Disc, Front
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R,X | ¥11,700 | |
| 43512-28020 note |
Disc, Front
1985-08 → 1987-08
ended
|
YR20 E,N,R) HRF 5F +5 | ¥11,700 | |
| 43512-28020 note |
Disc, Front
1985-08 → 1988-08
ended
|
CR21 MRF | ¥11,700 | |
| 43512-28020 note |
Disc, Front
1987-08 → 1988-08
ended
|
YR20 ) HRF 5F +5 | ¥11,700 | |
| 43512-28030 note |
Disc, Front
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥11,100 | |
| 43512-28030 note |
Disc, Front
1982-11 → 1984-08
ended
|
YR20 Q;CR21,YR21 | ¥11,100 | |
| 43512-28030 note |
Disc, Front
1984-08 → 1985-08
ended
|
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 | ¥11,100 | |
| 43512-28040 |
Disc, Front
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥12,200 | |
| 43512-28050 note |
Disc, Front
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;CR21,YR20,21 +2 | ¥11,400 | |
| 43512-28050 note |
Disc, Front
1987-08 → 1988-08
ended
|
CR28 | ¥11,400 | |
| 43514 — Cap, Front Hub Grease | ||||
| 43514-27010 |
Cap, Front Hub Grease
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥410 | |
| 43520 — Hub And Brake Drum Assy, Front Axle, LH | ||||
| 43510-20080 |
Hub And Brake Drum Assy, Front Axle, LH
1982-11 → 1983-04
ended
|
CR26,KR26,YR26 D,R | ¥21,600 | |
| 43510-20080 |
Hub And Brake Drum Assy, Front Axle, LH
1983-04 → 1985-08
ended
|
CR26,YR26 D | ¥21,600 | |
| 43510-27020 |
Hub And Brake Drum Assy, Front Axle, LH
1983-04 → 1985-08
ended
|
KR26 | — | |
| 43525 — Cap, Front Wheel Adjusting Lock | ||||
| 43525-22010 |
Cap, Front Wheel Adjusting Lock
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥240 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
