Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

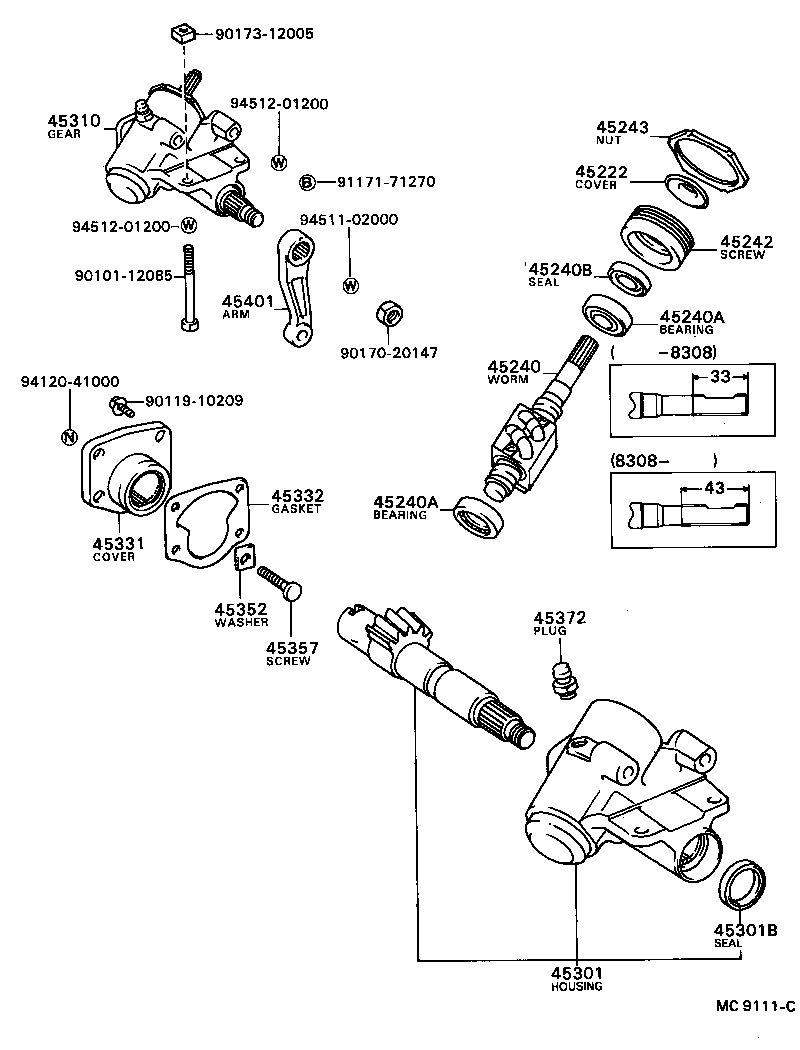

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45222 — Cover, Steering Gear Dust | ||||
| 45222-27020 |
Cover, Steering Gear Dust
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥360 | |
| 45222-28010 |
Cover, Steering Gear Dust
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | — | |
| 45240 — Worm Assy, Steering | ||||
| 45240-28020 |
Worm Assy, Steering
1982-11 → 1983-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | — | |
| 45240-28021 |
Worm Assy, Steering
1983-08 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | — | |
| 45240A — Bearing(FOR STEERING WORM) | ||||
| 90363-19001 |
Bearing(FOR STEERING WORM)
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥1,670 | |
| 45240B — Seal, Oil(FOR STEERING WORM) | ||||
| 90311-19008 |
Seal, Oil(FOR STEERING WORM)
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥170 | |
| 45242 — Screw, Worm Bearing Adjusting | ||||
| 45242-28030 |
Screw, Worm Bearing Adjusting
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥4,360 | |
| 45243 — Nut, Worm Bearing Adjusting Screw Lock | ||||
| 45243-28010 |
Nut, Worm Bearing Adjusting Screw Lock
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥930 | |
| 45301 — Housing Sub-assy, Steering Gear | ||||
| 45301-28030 |
Housing Sub-assy, Steering Gear
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥39,100 | |
| 45301B — Seal, Oil(FOR SECTOR SHAFT) | ||||
| 90311-34001 |
Seal, Oil(FOR SECTOR SHAFT)
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥220 | |
| 45310 — Housing Assy, Steering Gear | ||||
| 45310-28030 |
Housing Assy, Steering Gear
1982-11 → 1983-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | — | |
| 45310-28031 |
Housing Assy, Steering Gear
1983-08 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥69,200 | |
| 45331 — Cover, Sector Shaft End | ||||
| 45304-28020 |
Cover, Sector Shaft End
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | — | |
| 45332 — Gasket, Sector Shaft End Cover | ||||
| 45332-28020 |
Gasket, Sector Shaft End Cover
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥270 | |
| 45352 — Washer, Sector Shaft Thrust | ||||
| 45352-20010 note |
Washer, Sector Shaft Thrust
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥240 | |
| 45357 — Screw, Sector Shaft Adjusting | ||||
| 45357-28020 |
Screw, Sector Shaft Adjusting
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥610 | |
| 45372 — Plug, Steering Gear Housing Oil | ||||
| 90930-03058 |
Plug, Steering Gear Housing Oil
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥650 | |
| 45401 — Arm Sub-assy, Pitman | ||||
| 45411-28020 |
Arm Sub-assy, Pitman
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥5,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
