Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

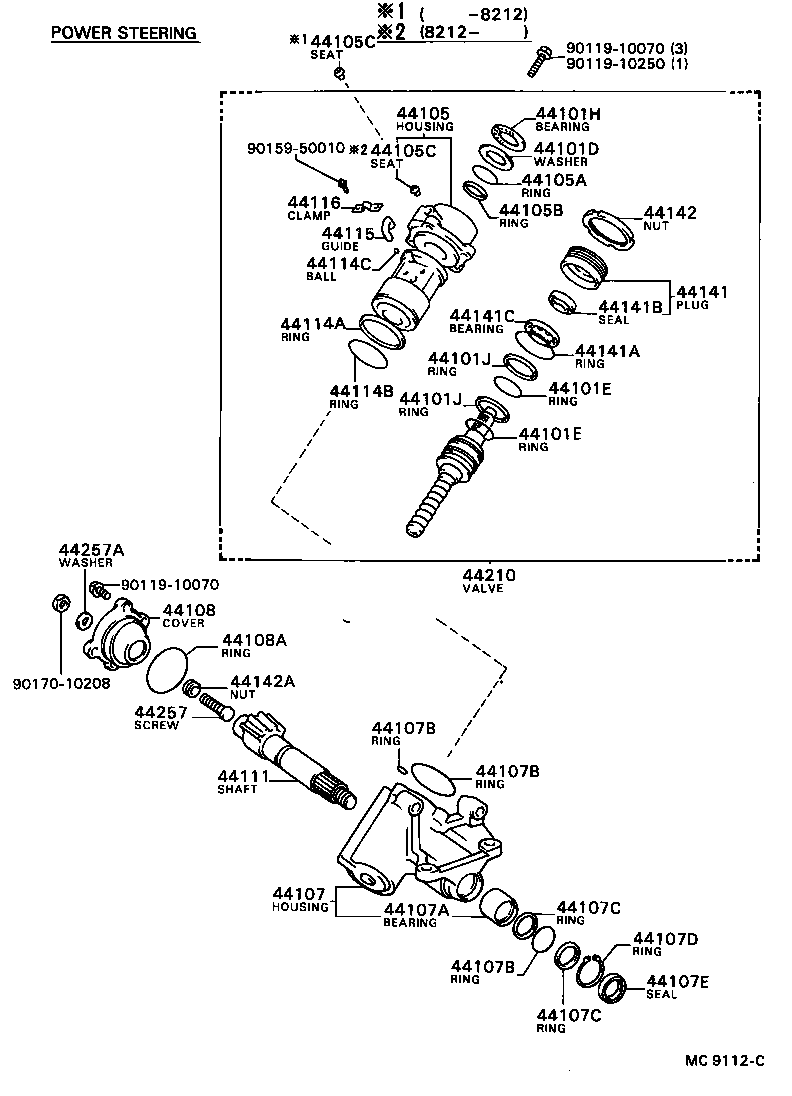

Exploded illustration MC9112C 44105C — SEAT, UNION(FOR VALVE BODY HOUSING) (3 parts) 9011910070 — not listed in this catalogue 9011910250 — not listed in this catalogue 44105 — HOUSING SUB-ASSY, VALVE (2 parts) 44101H — BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) (1 parts) 9015950010 — not listed in this catalogue 44105C — SEAT, UNION(FOR VALVE BODY HOUSING) (3 parts) 44101D — WASHER, PLATE(FOR STEERING WORM) (1 parts) 44105A — RING, O(FOR VALVE HOUSING) (1 parts) 44116 — CLAMP, BALL GUIDE (1 parts) 44105B — RING(FOR VALVE HOUSING) (1 parts) 44142 — NUT, LOCK (1 parts) 44115 — GUIDE, BALL (1 parts) 44114C — BALL(FOR POWER PISTON NUT) (1 parts) 44141 — PLUG, ADJUSTER (1 parts) 44141B — SEAL, OIL(FOR ADJUSTER PLUG) (1 parts) 44141C — BEARING(FOR ADJUSTER PLUG) (2 parts) 44114A — RING(FOR POWER PISTON NUT) (1 parts) 44141A — RING, O(FOR ADJUSTER PLUG) (1 parts) 44101J — RING(FOR STEERING WORM) (1 parts) 44101E — RING, O(FOR STEERING WORM) (1 parts) 44114B — RING, O(FOR POWER PISTON NUT) (1 parts) 44101J — RING(FOR STEERING WORM) (1 parts) 44101E — RING, O(FOR STEERING WORM) (1 parts) 44257A — WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) (1 parts) 44210 — VALVE ASSY, POWER STEERING CONTROL (3 parts) 9011910070 — not listed in this catalogue 44108 — COVER SUB-ASSY, SIDE (1 parts) 44108A — RING, O(FOR SIDE COVER) (1 parts) 44142A — NUT, LOCK, NO.1 (1 parts) 9017010208 — not listed in this catalogue 44257 — SCREW, CROSS SHAFT ADJUSTING (1 parts) 44107B — RING, O(FOR POWER STEERING GEAR HOUSING) (3 parts) 44107B — RING, O(FOR POWER STEERING GEAR HOUSING) (3 parts) 44111 — SHAFT, CROSS (1 parts) 44107 — HOUSING SUB-ASSY, POWER STEERING GEAR (1 parts) 44107C — RING(FOR POWER STEERING GEAR HOUSING) (2 parts) 44107A — BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) (1 parts) 44107D — RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) (1 parts) 44107B — RING, O(FOR POWER STEERING GEAR HOUSING) (3 parts) 44107E — SEAL, OIL(FOR POWER STEERING GEAR HOUSING) (1 parts) 44107C — RING(FOR POWER STEERING GEAR HOUSING) (2 parts)
MC9112C · 37 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
44101D — Washer, Plate(FOR STEERING WORM)
90201-30003 Washer, Plate(FOR STEERING WORM)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥980
44101E — Ring, O(FOR STEERING WORM)
90301-44001 Ring, O(FOR STEERING WORM)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥280
44101H — Bearing, Thrust Needle Roller(FOR STEERING WORM)
90374-30003 Bearing, Thrust Needle Roller(FOR STEERING WORM)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥950
44101J — Ring(FOR STEERING WORM)
90562-47002 Ring(FOR STEERING WORM)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥130
44105 — Housing Sub-assy, Valve
44105-27010 Housing Sub-assy, Valve
1982-12 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥15,500
44105-35010 Housing Sub-assy, Valve
1982-11 → 1982-12 ended
YR2# 4FC,5F —
44105A — Ring, O(FOR VALVE HOUSING)
90301-32002 Ring, O(FOR VALVE HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥280
44105B — Ring(FOR VALVE HOUSING)
90562-30002 Ring(FOR VALVE HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥170
44105C — Seat, Union(FOR VALVE BODY HOUSING)
90410-03005 note Seat, Union(FOR VALVE BODY HOUSING)
1982-12 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥190
90410-06006 note Seat, Union(FOR VALVE BODY HOUSING)
1982-12 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥200
90410-06030 Seat, Union(FOR VALVE BODY HOUSING)
1982-11 → 1982-12 ended
YR2# 4FC,5F ¥310
44107 — Housing Sub-assy, Power Steering Gear
44107-28010 Housing Sub-assy, Power Steering Gear
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F —
44107A — Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING)
90364-30002 Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,130
44107B — Ring, O(FOR POWER STEERING GEAR HOUSING)
90301-32001 note Ring, O(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥350
90301-62002 note Ring, O(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥370
96711-19010 note Ring, O(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥160
44107C — Ring(FOR POWER STEERING GEAR HOUSING)
90562-29001 note Ring(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥670
90562-30001 note Ring(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥580
44107D — Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING)
90521-41001 Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥540
44107E — Seal, Oil(FOR POWER STEERING GEAR HOUSING)
90312-30001 Seal, Oil(FOR POWER STEERING GEAR HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥340
44108 — Cover Sub-assy, Side
44108-22020 Cover Sub-assy, Side
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥11,300
44108A — Ring, O(FOR SIDE COVER)
90301-58001 Ring, O(FOR SIDE COVER)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥590
44111 — Shaft, Cross
44111-28010 Shaft, Cross
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥19,600
44114A — Ring(FOR POWER PISTON NUT)
90562-58001 Ring(FOR POWER PISTON NUT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥880
44114B — Ring, O(FOR POWER PISTON NUT)
90301-53001 Ring, O(FOR POWER PISTON NUT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥340
44114C — Ball(FOR POWER PISTON NUT)
90360-06021 Ball(FOR POWER PISTON NUT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥140
44115 — Guide, Ball
44115-14010 Guide, Ball
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥320
44116 — Clamp, Ball Guide
44116-14010 Clamp, Ball Guide
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥160
44141 — Plug, Adjuster
44104-22011 Plug, Adjuster
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,170
44141A — Ring, O(FOR ADJUSTER PLUG)
90301-51001 Ring, O(FOR ADJUSTER PLUG)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥320
44141B — Seal, Oil(FOR ADJUSTER PLUG)
90311-19002 Seal, Oil(FOR ADJUSTER PLUG)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥190
44141C — Bearing(FOR ADJUSTER PLUG)
90369-22001 Bearing(FOR ADJUSTER PLUG)
1982-11 → 1983-12 ended
CR21,YR2# 4FC,5F ¥2,420
90369-22004 Bearing(FOR ADJUSTER PLUG)
1983-12 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,420
44142 — Nut, Lock
44142-22010 Nut, Lock
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,330
44142A — Nut, Lock, NO.1
44142-22020 Nut, Lock, NO.1
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥450
44210 — Valve Assy, Power Steering Control
44120-27020 Valve Assy, Power Steering Control
1982-12 → 1985-08 ended
CR26,27,YR2# E,G,N,Q,X ¥56,600
44120-27020 Valve Assy, Power Steering Control
1982-12 → 1985-08 ended
CR21 ¥56,600
44120-28010 Valve Assy, Power Steering Control
1982-11 → 1982-12 ended
YR2# 4FC,5F —
44257 — Screw, Cross Shaft Adjusting
45357-22010 Screw, Cross Shaft Adjusting
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥370
44257A — Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW)
90210-10001 Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥440
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
