Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

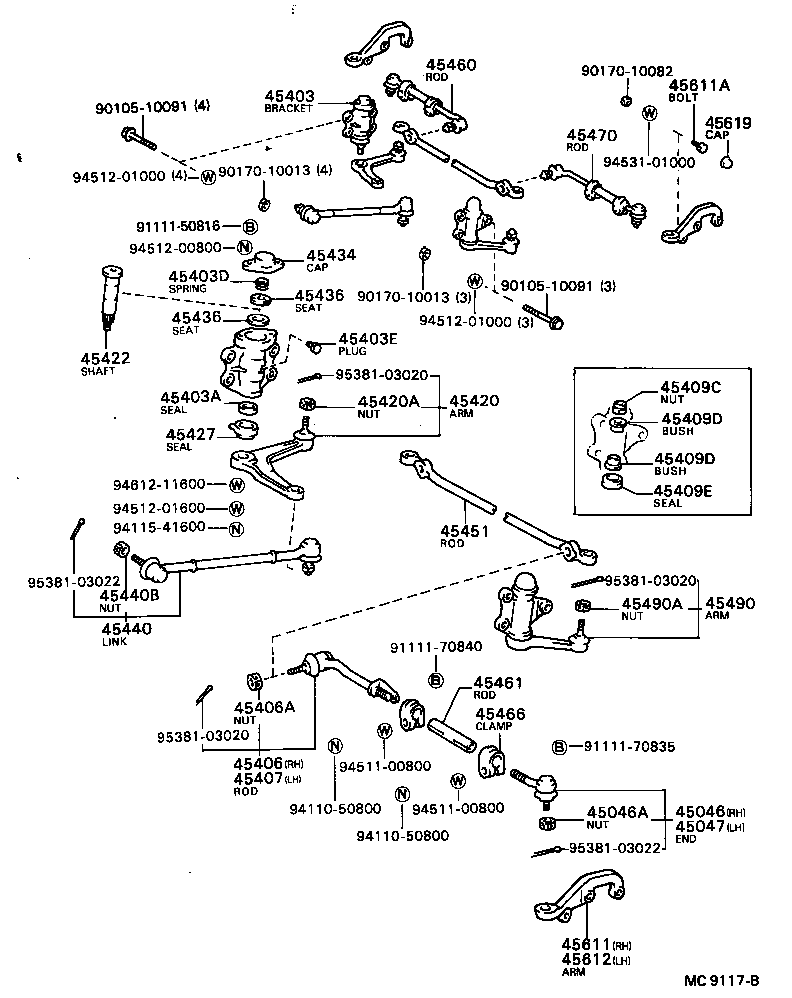

Exploded illustration MC9117B 45460 — ROD ASSY, TIE, RH (3 parts) 9017010082 — not listed in this catalogue 45611A — BOLT, KNUCKLE STOPPER (1 parts) 45403 — BRACKET SUB-ASSY, CENTER ARM (1 parts) 9010510091 — not listed in this catalogue 45619 — COVER, KNUCKLE STOPPER (1 parts) 45470 — ROD ASSY, TIE, LH (3 parts) 9453101000 — not listed in this catalogue 9017010013 — not listed in this catalogue 9451201000 — not listed in this catalogue 9111150816 — not listed in this catalogue 9451200800 — not listed in this catalogue 45434 — CAP, CENTER ARM BRACKET (1 parts) 45403D — SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET) (1 parts) 9010510091 — not listed in this catalogue 45436 — SEAT, CENTER ARM SHAFT (2 parts) 9017010013 — not listed in this catalogue 45436 — SEAT, CENTER ARM SHAFT (2 parts) 9451201000 — not listed in this catalogue 45403E — PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT) (1 parts) 45422 — SHAFT, CENTER ARM (1 parts) 9538103020 — not listed in this catalogue 45409C — NUT(FOR IDLER ARM SUPPORT) (2 parts) 45403A — SEAL, OIL(FOR CENTER ARM BRACKET) (1 parts) 45420A — NUT, CASTLE(FOR STEERING CENTER ARM) (1 parts) 45420 — ARM ASSY, STEERING CENTER (2 parts) 45409D — BUSH(FOR IDLER ARM) (1 parts) 45427 — SEAL, CENTER ARM DUST, LOWER (1 parts) 45409D — BUSH(FOR IDLER ARM) (1 parts) 9461211600 — not listed in this catalogue 45409E — SEAL, DUST(FOR IDLER ARM SUPPORT) (1 parts) 9451201600 — not listed in this catalogue 9411541600 — not listed in this catalogue 45451 — ROD, STEERING RELAY (2 parts) 9538103020 — not listed in this catalogue 9538103022 — not listed in this catalogue 45440B — NUT, CASTLE(FOR STEERING DRAG LINK) (1 parts) 45490 — ARM ASSY, STEERING IDLER (1 parts) 45490A — NUT, CASTLE(FOR IDLER ARM) (1 parts) 45440 — LINK ASSY, STEERING DRAG (2 parts) 9111170840 — not listed in this catalogue 45461 — ROD, STEERING TIE (1 parts) 45406A — NUT, CASTLE(FOR TIE ROD) (1 parts) 45466 — CLAMP, TIE ROD END (2 parts) 9538103020 — not listed in this catalogue 9111170835 — not listed in this catalogue 45406 — ROD SUB-ASSY, TIE, RH (1 parts) 9451100800 — not listed in this catalogue 45407 — ROD SUB-ASSY, TIE, LH (1 parts) 9411050800 — not listed in this catalogue 9451100800 — not listed in this catalogue 45046A — NUT, CASTLE(FOR TIE ROD END) (3 parts) 45046 — END SUB-ASSY, TIE ROD, RH (1 parts) 45047 — END SUB-ASSY, TIE ROD, LH (1 parts) 9411050800 — not listed in this catalogue 9538103022 — not listed in this catalogue 45611 — ARM, STEERING KNUCKLE, RH (2 parts) 45612 — ARM, STEERING KNUCKLE, LH (2 parts)
MC9117B · 34 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
45046 — End Sub-assy, Tie Rod, RH
45046-29075 End Sub-assy, Tie Rod, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,200
45046A — Nut, Castle(FOR TIE ROD END)
90171-12028 Nut, Castle(FOR TIE ROD END)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥130
90171-12028 Nut, Castle(FOR TIE ROD END)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥130
90171-14042 Nut, Castle(FOR TIE ROD END)
1985-10 → 1988-08 ended
CR3#,YR3# ¥190
45047 — End Sub-assy, Tie Rod, LH
45046-29075 End Sub-assy, Tie Rod, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,200
45403 — Bracket Sub-assy, Center Arm
45403-28020 Bracket Sub-assy, Center Arm
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥13,200
45403A — Seal, Oil(FOR CENTER ARM BRACKET)
90311-25004 Seal, Oil(FOR CENTER ARM BRACKET)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥200
45403D — Spring, Compression(FOR CENTER ARM SHAFT SET)
90501-30369 Spring, Compression(FOR CENTER ARM SHAFT SET)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥250
45403E — Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT)
90345-06014 Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
45406 — Rod Sub-assy, Tie, RH
45406-29135 Rod Sub-assy, Tie, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥4,820
45406A — Nut, Castle(FOR TIE ROD)
90171-12028 Nut, Castle(FOR TIE ROD)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥130
45407 — Rod Sub-assy, Tie, LH
45406-29135 Rod Sub-assy, Tie, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥4,820
45409C — Nut(FOR IDLER ARM SUPPORT)
94182-11400 Nut(FOR IDLER ARM SUPPORT)
1982-11 → 1983-04 ended
CR26,KR26,YR2# ¥310
94184-61400 Nut(FOR IDLER ARM SUPPORT)
1983-04 → 1985-08 ended
CR2#,KR26,YR2# ¥240
45409D — Bush(FOR IDLER ARM)
90385-18068 Bush(FOR IDLER ARM)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥680
45409E — Seal, Dust(FOR IDLER ARM SUPPORT)
90304-31012 Seal, Dust(FOR IDLER ARM SUPPORT)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥550
45420 — Arm Assy, Steering Center
45402-29035 Arm Assy, Steering Center
1982-11 → 1985-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥15,100
45402-29045 note Arm Assy, Steering Center
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥14,400
45420A — Nut, Castle(FOR STEERING CENTER ARM)
90171-12028 Nut, Castle(FOR STEERING CENTER ARM)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥130
45422 — Shaft, Center Arm
45422-26010 Shaft, Center Arm
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,050
45427 — Seal, Center Arm Dust, Lower
45427-28010 Seal, Center Arm Dust, Lower
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥670
45434 — Cap, Center Arm Bracket
45434-26011 Cap, Center Arm Bracket
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥620
45436 — Seat, Center Arm Shaft
45436-26010 note Seat, Center Arm Shaft
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥350
45436-28010 note Seat, Center Arm Shaft
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥260
45440 — Link Assy, Steering Drag
45440-29135 Link Assy, Steering Drag
1982-11 → 1985-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥14,100
45440-29145 note Link Assy, Steering Drag
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥14,100
45440B — Nut, Castle(FOR STEERING DRAG LINK)
90171-14042 Nut, Castle(FOR STEERING DRAG LINK)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥190
45451 — Rod, Steering Relay
45451-28030 Rod, Steering Relay
1982-11 → 1985-08 ended
CR21,YR20,21 ¥8,100
45451-28040 Rod, Steering Relay
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥8,100
45460 — Rod Assy, Tie, RH
45460-29255 Rod Assy, Tie, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥13,600
45460-29295 Rod Assy, Tie, RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,330
45460-29315 Rod Assy, Tie, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥4,330
45461 — Rod, Steering Tie
45465-28020 Rod, Steering Tie
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥740
45466 — Clamp, Tie Rod End
45466-22010 Clamp, Tie Rod End
1985-08 → 1988-08 ended
YR20 3# HRF (E,Q);YR20 +5 ¥300
45466-28010 Clamp, Tie Rod End
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥330
45470 — Rod Assy, Tie, LH
45460-29295 Rod Assy, Tie, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,330
45470-29065 Rod Assy, Tie, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥13,600
45470-29085 Rod Assy, Tie, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥4,330
45490 — Arm Assy, Steering Idler
45490-29435 Arm Assy, Steering Idler
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥10,900
45490A — Nut, Castle(FOR IDLER ARM)
90171-12028 Nut, Castle(FOR IDLER ARM)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥130
45611 — Arm, Steering Knuckle, RH
45611-28020 Arm, Steering Knuckle, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥7,200
45611-28030 Arm, Steering Knuckle, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,700
45611A — Bolt, Knuckle Stopper
90106-10032 Bolt, Knuckle Stopper
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥170
45612 — Arm, Steering Knuckle, LH
45612-28020 Arm, Steering Knuckle, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥7,200
45612-28030 Arm, Steering Knuckle, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,700
45619 — Cover, Knuckle Stopper
45619-14020 Cover, Knuckle Stopper
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥480
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
