Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

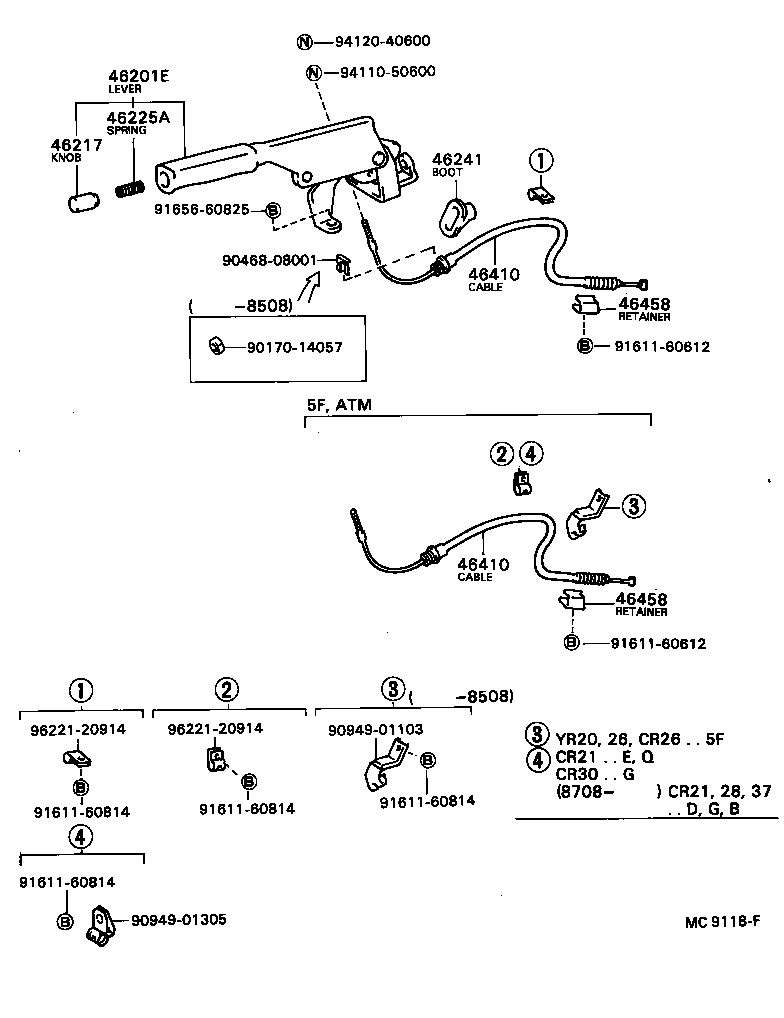

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46201E — Lever Sub-assy, Parking Brake | ||||
| 46201-28020-02 note |
Lever Sub-assy, Parking Brake
1984-08 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,G,N,R | ¥7,200 | |
| 46201-28020-05 note |
Lever Sub-assy, Parking Brake
1982-11 → 1984-08
ended
|
CR26,KR26,YR20,26 D,G,N,R | ¥7,200 | |
| 46201-28021-05 note |
Lever Sub-assy, Parking Brake
1985-08 → 1987-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥7,300 | |
| 46201-28021-05 note |
Lever Sub-assy, Parking Brake
1987-08 → 1988-02
ended
|
CR2#,36,KR26,YR20,26,28,3# B,D,G,N | ¥7,300 | |
| 46201-28022-03 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥7,200 | |
| 46201-28022-04 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥7,200 | |
| 46201-28022-05 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥7,200 | |
| 46201-28030-02 note |
Lever Sub-assy, Parking Brake
1984-08 → 1985-08
ended
|
YR21;CR21,YR20 E,Q,X | ¥10,000 | |
| 46201-28030-03 note |
Lever Sub-assy, Parking Brake
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥10,000 | |
| 46201-28030-04 note |
Lever Sub-assy, Parking Brake
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥10,000 | |
| 46201-28030-04 note |
Lever Sub-assy, Parking Brake
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥10,000 | |
| 46201-28030-05 note |
Lever Sub-assy, Parking Brake
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥10,000 | |
| 46201-28031-04 note |
Lever Sub-assy, Parking Brake
1985-08 → 1988-02
ended
|
YR20,21,30 E,Q | ¥10,000 | |
| 46201-28031-05 note |
Lever Sub-assy, Parking Brake
1985-08 → 1988-02
ended
|
YR20,21,30 E,Q | ¥10,000 | |
| 46201-28032-04 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
YR20,21,30 E,Q | ¥10,000 | |
| 46201-28032-05 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
YR20,21,30 E,Q | ¥10,000 | |
| 46201-28050-04 note |
Lever Sub-assy, Parking Brake
1985-08 → 1988-02
ended
|
CR21,30 E,Q | ¥10,000 | |
| 46201-28050-05 note |
Lever Sub-assy, Parking Brake
1985-08 → 1988-02
ended
|
CR21,30 E,Q | ¥10,000 | |
| 46201-28051-04 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
CR21,30 E,Q | ¥10,000 | |
| 46201-28051-05 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
CR21,30 E,Q | ¥10,000 | |
| 46201-28060-05 note |
Lever Sub-assy, Parking Brake
1987-08 → 1988-02
ended
|
CR21,28,30,37 B,D,G | ¥7,300 | |
| 46201-28060-05 note |
Lever Sub-assy, Parking Brake
1985-10 → 1987-08
ended
|
CR30 G | ¥7,300 | |
| 46201-28061-04 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
CR21,28,30,37 B,D,G | ¥7,200 | |
| 46201-28061-05 note |
Lever Sub-assy, Parking Brake
1988-02 → 1988-08
ended
|
CR21,28,30,37 B,D,G | ¥7,200 | |
| 46217 — Knob, Parking Brake Release Rod | ||||
| 46217-10020-02 note |
Knob, Parking Brake Release Rod
1984-08 → 1985-04
ended
|
CR2#,KR26,YR2# | ¥250 | |
| 46217-10020-23 note |
Knob, Parking Brake Release Rod
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥250 | |
| 46217-10020-24 note |
Knob, Parking Brake Release Rod
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥250 | |
| 46217-10020-24 note |
Knob, Parking Brake Release Rod
1984-08 → 1985-04
ended
|
CR21,YR20,21 E,Q,X | ¥250 | |
| 46217-10020-25 note |
Knob, Parking Brake Release Rod
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥250 | |
| 46217-12020-04 note |
Knob, Parking Brake Release Rod
1988-02 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥230 | |
| 46217-12020-15 note |
Knob, Parking Brake Release Rod
1988-02 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥250 | |
| 46217-20020-05 note |
Knob, Parking Brake Release Rod
1985-08 → 1988-02
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥260 | |
| 46217-20020-24 note |
Knob, Parking Brake Release Rod
1985-08 → 1988-02
ended
|
CR21,30,YR20,21,30 E,Q | ¥230 | |
| 46217-20020-32 note |
Knob, Parking Brake Release Rod
1985-04 → 1985-08
ended
|
YR20 HRF 5F G;CR2#,KR26,YR21,26;YR20 +4 | ¥260 | |
| 46217-20020-34 note |
Knob, Parking Brake Release Rod
1985-04 → 1985-08
ended
|
YR20 5F (E,Q);CR21,YR21 E,Q,X;YR20 +5 | ¥260 | |
| 46225A — Spring, Compression(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
Spring, Compression(FOR PARKING BRAKE PAWL ROD)
1985-04 → 1988-08
ended
|
YR20 # HRF 5F +5 | ¥160 | |
| 90501-10745 |
Spring, Compression(FOR PARKING BRAKE PAWL ROD)
1982-11 → 1985-04
ended
|
CR2#,KR26,YR2# | ¥160 | |
| 46241 — Boot, Parking Brake Lever | ||||
| 46241-28010 |
Boot, Parking Brake Lever
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥430 | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-28040 |
Cable Assy, Parking Brake, NO.1
1982-11 → 1985-08
ended
|
KR26,YR20,26 D,R | ¥3,570 | |
| 46410-28041 |
Cable Assy, Parking Brake, NO.1
1985-08 → 1988-08
ended
|
KR26,YR20,26,28 4H,5H | ¥3,550 | |
| 46410-28050 |
Cable Assy, Parking Brake, NO.1
1982-11 → 1985-08
ended
|
YR2# 4FC,5F | ¥3,570 | |
| 46410-28051 |
Cable Assy, Parking Brake, NO.1
1985-08 → 1988-08
ended
|
YR28 05S | ¥3,550 | |
| 46410-28051 |
Cable Assy, Parking Brake, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥3,550 | |
| 46410-28060 |
Cable Assy, Parking Brake, NO.1
1982-11 → 1985-08
ended
|
CR2# | ¥3,710 | |
| 46410-28061 |
Cable Assy, Parking Brake, NO.1
1985-08 → 1987-08
ended
|
CR2#,36 DSL | ¥3,730 | |
| 46410-28061 |
Cable Assy, Parking Brake, NO.1
1987-08 → 1988-08
ended
|
CR26,27,36 | ¥3,730 | |
| 46410-28090 |
Cable Assy, Parking Brake, NO.1
1985-08 → 1988-08
ended
|
CR21,30 HRF | ¥3,550 | |
| 46410-28090 |
Cable Assy, Parking Brake, NO.1
1987-08 → 1988-08
ended
|
CR21,28,37 B,D,G | ¥3,550 | |
| 46458 — Retainer, Cable | ||||
| 46458-28010 |
Retainer, Cable
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥190 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
