Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

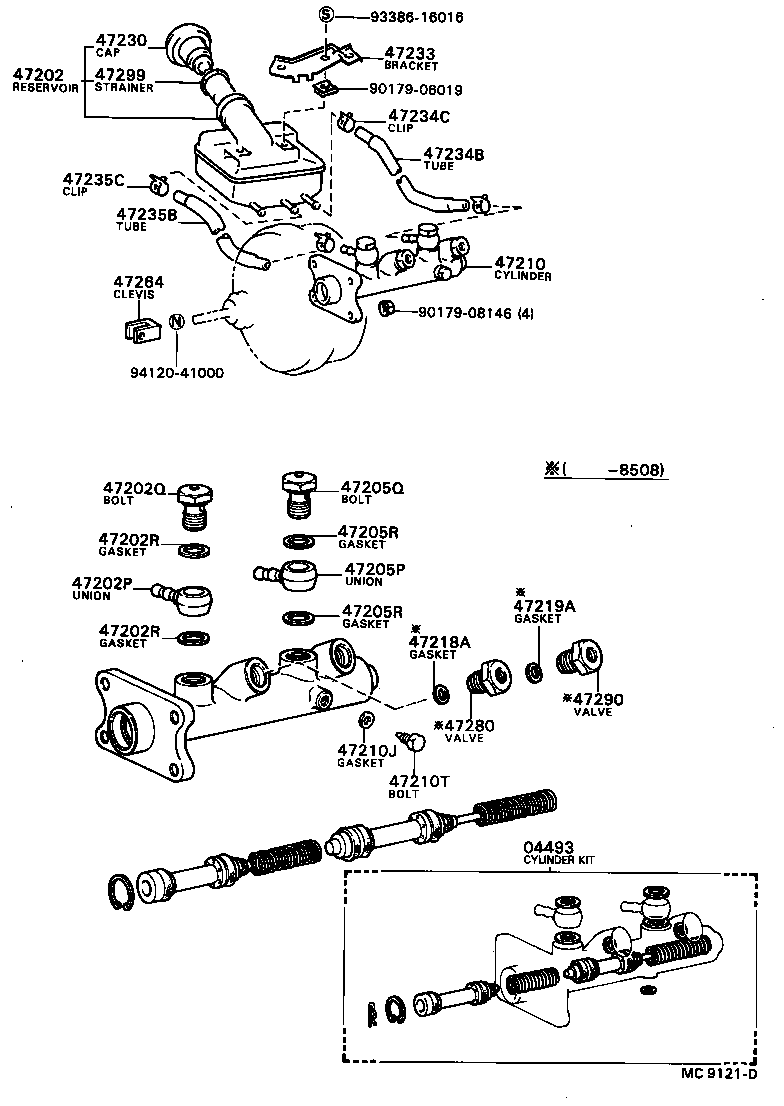

Exploded illustration MC9121D 9338616016 — not listed in this catalogue 47230 — CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER (1 parts) 47233 — BRACKET, RESERVOIR (2 parts) 47202 — RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER (6 parts) 47299 — STRAINER, BRAKE MASTER CYLINDER RESERVOIR (1 parts) 9017906019 — not listed in this catalogue 47234C — CLIP(FOR RESERVOIR TUBE NO.1) (2 parts) 47234B — TUBE, RESERVOIR, NO.1 (3 parts) 47235C — CLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2) (2 parts) 47235B — TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 (3 parts) 47210 — CYLINDER ASSY, MASTER, W/O BOOSTER (4 parts) 47264 — CLEVIS, MASTER CYLINDER PUSH ROD (1 parts) 9017908146 — not listed in this catalogue 9412041000 — not listed in this catalogue 47205Q — BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE) (1 parts) 47202Q — BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47205R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE) (1 parts) 47202R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47205P — UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) (1 parts) 47202P — UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47219A — GASKET(FOR FLUID OUTLET PLUG REAR SIDE) (1 parts) 47205R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE) (1 parts) 47202R — GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) (1 parts) 47218A — GASKET(FOR FLUID OUTLET PLUG) (1 parts) 47290 — VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) (1 parts) 47280 — VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK (1 parts) 47210J — GASKET(FOR MASTER CYLINDER) (1 parts) 47210T — BOLT(FOR BRAKE MASTER CYLINDER) (1 parts) 04493 — CYLINDER KIT, BRAKE MASTER (4 parts)
MC9121D · 25 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
04493 — Cylinder Kit, Brake Master
04493-27060 note Cylinder Kit, Brake Master
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R ¥8,000
04493-27070 note Cylinder Kit, Brake Master
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥8,000
04493-28060 Cylinder Kit, Brake Master
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥6,100
04493-28070 Cylinder Kit, Brake Master
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥7,300
47202 — Reservoir Sub-assy, Brake Master Cylinder
47220-28040 Reservoir Sub-assy, Brake Master Cylinder
1982-11 → 1983-01 ended
CR26,YR2# MTM ¥8,600
47220-28041 Reservoir Sub-assy, Brake Master Cylinder
1983-01 → 1985-08 ended
CR21,26,YR2# MTM ¥8,700
47220-28050 Reservoir Sub-assy, Brake Master Cylinder
1982-11 → 1983-01 ended
YR26 4FC;KR26,YR20 4FC,4H ¥8,600
47220-28051 Reservoir Sub-assy, Brake Master Cylinder
1983-01 → 1985-08 ended
YR26 4FC;CR21,27,KR26,YR20,21 4FC,4H ¥8,700
47220-28100 Reservoir Sub-assy, Brake Master Cylinder
1985-08 → 1988-08 ended
CR21,26,28,3#,YR2#,3# MTM (B,D,E,G,N,Q) ¥8,800
47220-28110 Reservoir Sub-assy, Brake Master Cylinder
1985-08 → 1988-08 ended
YR20 ,4H MRF 4FC;YR20,26 +4 ¥8,800
47202P — Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
90405-10003 Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,820
47202Q — Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
90401-16002 Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥600
47202R — Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242 Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥190
47205P — Union, Reservoir(FOR BRAKE MASTER CYLINDER REAR SIDE)
90405-10003 Union, Reservoir(FOR BRAKE MASTER CYLINDER REAR SIDE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥1,820
47205Q — Bolt, Rsvr Union, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)
90401-16002 Bolt, Rsvr Union, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥600
47205R — Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER REAR SIDE)
90430-16242 Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER REAR SIDE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR20,21,28,3# ¥190
47210 — Cylinder Assy, Master, W/O Booster
47201-28040 note Cylinder Assy, Master, W/O Booster
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥31,700
47201-28050 note Cylinder Assy, Master, W/O Booster
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R ¥31,700
47201-28080 Cylinder Assy, Master, W/O Booster
1985-08 → 1988-08 ended
CR21,30,36,YR20,21,3# ¥32,800
47201-28120 Cylinder Assy, Master, W/O Booster
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥30,900
47210J — Gasket(FOR MASTER CYLINDER)
90430-06104 Gasket(FOR MASTER CYLINDER)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥100
47210T — Bolt(FOR BRAKE MASTER CYLINDER)
90109-06008 Bolt(FOR BRAKE MASTER CYLINDER)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥60
47218A — Gasket(FOR FLUID OUTLET PLUG)
90430-09253 Gasket(FOR FLUID OUTLET PLUG)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
47219A — Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
90430-09253 Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
47230 — Cap Assy, Brake Master Cylinder Reservoir Filler
47230-28010 Cap Assy, Brake Master Cylinder Reservoir Filler
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥630
47233 — Bracket, Reservoir
47233-28020 Bracket, Reservoir
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥930
47233-28040 Bracket, Reservoir
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥940
47234B — Tube, Reservoir, NO.1
47234-28030 Tube, Reservoir, NO.1
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,330
47234-28030 Tube, Reservoir, NO.1
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥1,330
47234-28060 Tube, Reservoir, NO.1
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,020
47234C — Clip(FOR RESERVOIR TUBE NO.1)
90467-16002 Clip(FOR RESERVOIR TUBE NO.1)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥200
90467-16141 Clip(FOR RESERVOIR TUBE NO.1)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥200
47235B — Tube, Brake Master Cyrinder Reservoir, NO.2
47235-28030 Tube, Brake Master Cyrinder Reservoir, NO.2
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,330
47235-28030 Tube, Brake Master Cyrinder Reservoir, NO.2
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥1,330
47235-28060 Tube, Brake Master Cyrinder Reservoir, NO.2
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,530
47235C — Clip(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
90467-16002 Clip(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥200
90467-16141 Clip(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥200
47264 — Clevis, Master Cylinder Push Rod
47264-10080 Clevis, Master Cylinder Push Rod
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥700
47280 — Valve Assy, Brake Master Cylinder Outlet Check
47280-26030 Valve Assy, Brake Master Cylinder Outlet Check
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥850
47290 — Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
47280-26030 Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥850
47299 — Strainer, Brake Master Cylinder Reservoir
47299-28010 Strainer, Brake Master Cylinder Reservoir
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥430
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
