Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

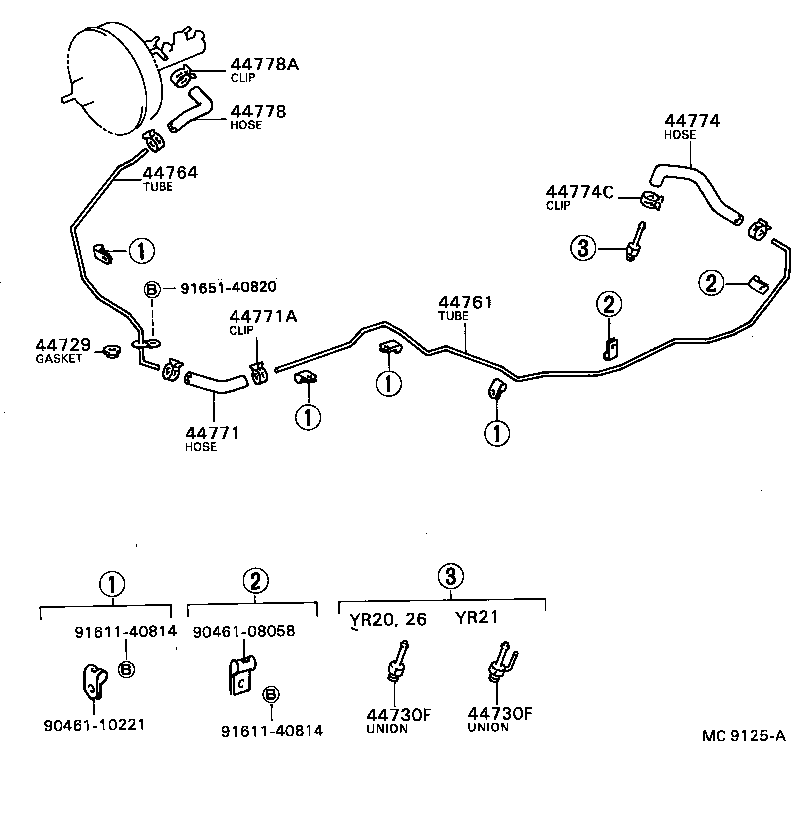

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44729 — Gasket, Vacuum Tube | ||||
| 44729-25010 |
Gasket, Vacuum Tube
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥300 | |
| 44730F — Union, Vacuum Hose(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1982-11 → 1985-08
ended
|
KR26,YR20,26 | ¥580 | |
| 90404-51007 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1985-08 → 1988-08
ended
|
KR26,YR26,28 | ¥580 | |
| 90404-51031 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥580 | |
| 90404-51047 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1983-05 → 1985-08
ended
|
YR21 | ¥260 | |
| 90404-51054 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1985-08 → 1988-08
ended
|
YR21,3# | ¥260 | |
| 44761 — Tube, Intake Manifold OR Vacuum Pump TO Connector | ||||
| 44761-28050 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1982-11 → 1983-05
ended
|
KR26,YR2# | ¥3,970 | |
| 44761-28051 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1983-05 → 1985-08
ended
|
KR26,YR20,26 | — | |
| 44761-28060 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1983-05 → 1983-08
ended
|
YR21 | ¥4,350 | |
| 44761-28061 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1983-08 → 1985-08
ended
|
YR21 | — | |
| 44761-28080 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥4,360 | |
| 44761-28100 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-08 → 1988-08
ended
|
CR2#,3# | ¥3,610 | |
| 44761-28110 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-10 → 1988-08
ended
|
YR3# | ¥6,500 | |
| 44761-28120 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-08 → 1988-08
ended
|
YR21 | ¥6,300 | |
| 44764 — Tube, Booster Vacuum | ||||
| 44764-28010 |
Tube, Booster Vacuum
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥2,630 | |
| 44764-28010 |
Tube, Booster Vacuum
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,630 | |
| 44764-28040 |
Tube, Booster Vacuum
1985-08 → 1988-08
ended
|
CR2#,3# | ¥2,260 | |
| 44771 — Hose, Vacuum Tube Connector | ||||
| 44771-28010 |
Hose, Vacuum Tube Connector
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥810 | |
| 44771-28010 |
Hose, Vacuum Tube Connector
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥810 | |
| 44771-28030 |
Hose, Vacuum Tube Connector
1985-08 → 1988-08
ended
|
CR2#,3# | ¥990 | |
| 44771A — Clip(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
Clip(FOR VACUUM TUBE CONNECTOR HOSE)
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥200 | |
| 90467-16141 |
Clip(FOR VACUUM TUBE CONNECTOR HOSE)
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥200 | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44774-28070 |
Hose, Union TO Connector Tube
1986-11 → 1988-08
ended
|
YR26,28 | ¥3,280 | |
| 44774-28070 |
Hose, Union TO Connector Tube
1982-11 → 1986-11
ended
|
YR20,26,28 | ¥3,280 | |
| 44774-28080 |
Hose, Union TO Connector Tube
1983-05 → 1988-08
ended
|
YR21,3# | ¥1,430 | |
| 44774-28090 |
Hose, Union TO Connector Tube
1982-11 → 1988-08
ended
|
KR26 | ¥1,480 | |
| 44774-28100 |
Hose, Union TO Connector Tube
1985-08 → 1988-08
ended
|
CR2#,3# | ¥1,290 | |
| 44774C — Clip(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
1985-08 → 1986-11
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥200 | |
| 90467-16002 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
1986-11 → 1988-08
ended
|
KR26,YR21,26,28,3# | ¥200 | |
| 90467-16141 |
Clip(FOR UNION TO CONNECTOR TUBE HOSE)
1982-11 → 1985-08
ended
|
KR26,YR2# | ¥200 | |
| 44778 — Hose, Connector TO Check Valve | ||||
| 44778-28010 |
Hose, Connector TO Check Valve
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,010 | |
| 44778-28010 |
Hose, Connector TO Check Valve
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥1,010 | |
| 44778-28030 |
Hose, Connector TO Check Valve
1985-08 → 1988-08
ended
|
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 | ¥870 | |
| 44778A — Clip(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
1985-08 → 1988-08
ended
|
YR20 MRF (D,G);YR20 HRF +3 | ¥200 | |
| 90467-16141 |
Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
