Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

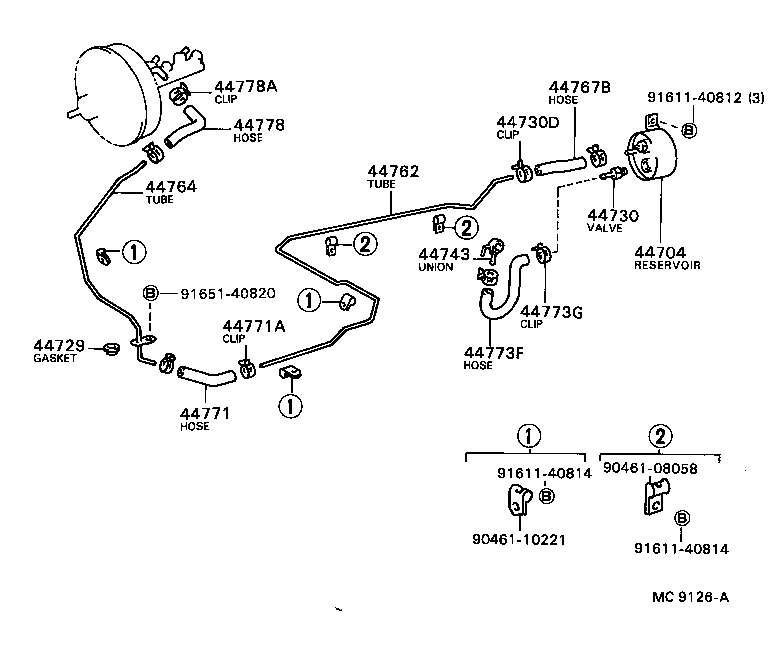

Exploded illustration MC9126A 44778A — CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) (2 parts) 44767B — HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) (1 parts) 9161140812 — not listed in this catalogue 44730D — CLIP(FOR VACUUM HOSE, NO.1) (2 parts) 44778 — HOSE, CONNECTOR TO CHECK VALVE (3 parts) 44762 — TUBE, BOOSTER VACUUM (1 parts) 44764 — TUBE, BOOSTER VACUUM (3 parts) 44730 — VALVE ASSY, VACUUM CHECK(FOR BRAKE) (9 parts) 44704 — RESERVOIR SUB-ASSY, VACUUM (3 parts) 44743 — UNION(FOR VACUUM PUMP) (4 parts) 9165140820 — not listed in this catalogue 44773G — CLIP(FOR UNION TO CHECK VALVE HOSE) (2 parts) 44771A — CLIP(FOR VACUUM TUBE CONNECTOR HOSE) (2 parts) 44729 — GASKET, VACUUM TUBE (1 parts) 44773F — HOSE, UNION TO CHECK VALVE (2 parts) 44771 — HOSE, VACUUM TUBE CONNECTOR (3 parts) 9046108058 — not listed in this catalogue 9161140814 — not listed in this catalogue 9046110221 — not listed in this catalogue 9161140814 — not listed in this catalogue
MC9126A · 14 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
44704 — Reservoir Sub-assy, Vacuum
44704-28010 Reservoir Sub-assy, Vacuum
1983-04 → 1985-08 ended
CR21 ¥6,800
44704-28020 Reservoir Sub-assy, Vacuum
1982-11 → 1985-08 ended
CR26,27 —
44704-28030 Reservoir Sub-assy, Vacuum
1985-08 → 1988-08 ended
CR2#,3# ¥6,200
44729 — Gasket, Vacuum Tube
44729-25010 Gasket, Vacuum Tube
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥300
44730 — Valve Assy, Vacuum Check(FOR BRAKE)
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,380
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
KR26,YR21,26,28,3# ¥1,380
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-11 ended
YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥2,190
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
YR21,3# ¥2,190
44730-20060 note Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08 ended
KR26,YR2# ¥2,920
44730-22090 note Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08 ended
KR26,YR2# ¥2,300
44730-24020 Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥2,190
44730-28010 Valve Assy, Vacuum Check(FOR BRAKE)
1987-05 → 1988-08 ended
KR26,YR21,26,28,3# ¥1,360
44730-60040 Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1988-08 ended
CR2#,3# ¥5,500
44730D — Clip(FOR VACUUM HOSE, NO.1)
90467-16002 Clip(FOR VACUUM HOSE, NO.1)
1985-08 → 1988-08 ended
CR2#,3# ¥200
90467-16141 Clip(FOR VACUUM HOSE, NO.1)
1982-11 → 1985-08 ended
CR2# ¥200
44743 — Union(FOR VACUUM PUMP)
90405-09064 Union(FOR VACUUM PUMP)
1982-11 → 1984-08 ended
CR2# ¥520
90405-09064 Union(FOR VACUUM PUMP)
1984-08 → 1988-08 ended
CR21,26,28,3# 5F ¥520
90405-09065 note Union(FOR VACUUM PUMP)
1982-11 → 1985-08 ended
CR2# ¥980
90405-09113 note Union(FOR VACUUM PUMP)
1985-08 → 1988-08 ended
CR2#,3# ¥550
44762 — Tube, Booster Vacuum
44762-28010 Tube, Booster Vacuum
1982-11 → 1985-08 ended
CR2# —
44764 — Tube, Booster Vacuum
44764-28010 Tube, Booster Vacuum
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,630
44764-28010 Tube, Booster Vacuum
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥2,630
44764-28040 Tube, Booster Vacuum
1985-08 → 1988-08 ended
CR2#,3# ¥2,260
44767B — Hose(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE)
95441-09160 Hose(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE)
1982-11 → 1985-08 ended
CR2# ¥740
44771 — Hose, Vacuum Tube Connector
44771-28010 Hose, Vacuum Tube Connector
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥810
44771-28010 Hose, Vacuum Tube Connector
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥810
44771-28030 Hose, Vacuum Tube Connector
1985-08 → 1988-08 ended
CR2#,3# ¥990
44771A — Clip(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16002 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥200
90467-16141 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥200
44773F — Hose, Union TO Check Valve
44750-28020 Hose, Union TO Check Valve
1982-11 → 1985-08 ended
CR2# ¥2,420
44773-28020 Hose, Union TO Check Valve
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥1,600
44773G — Clip(FOR UNION TO CHECK VALVE HOSE)
90467-16002 Clip(FOR UNION TO CHECK VALVE HOSE)
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥200
90467-16141 Clip(FOR UNION TO CHECK VALVE HOSE)
1982-11 → 1985-08 ended
CR2# ¥200
44778 — Hose, Connector TO Check Valve
44778-28010 Hose, Connector TO Check Valve
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,010
44778-28010 Hose, Connector TO Check Valve
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥1,010
44778-28030 Hose, Connector TO Check Valve
1985-08 → 1988-08 ended
CR21,3#,YR21,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥870
44778A — Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002 Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥200
90467-16141 Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
