Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

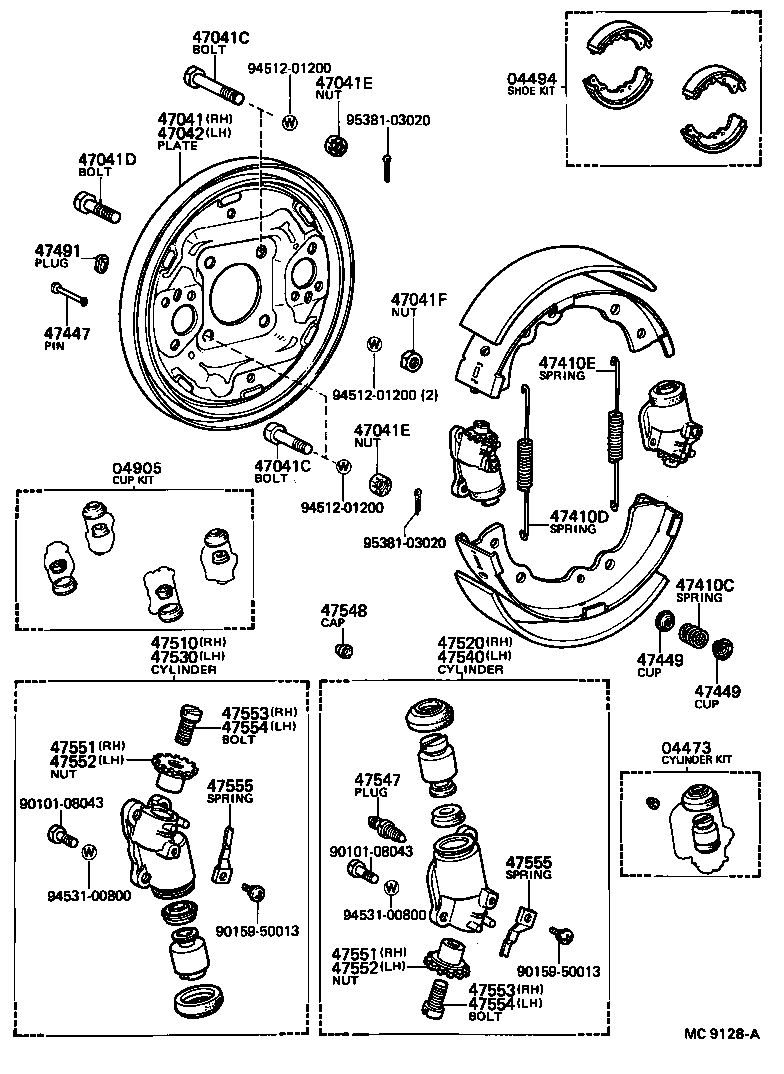

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04473 — Cylinder Kit, Front Wheel | ||||
| 04473-27010 |
Cylinder Kit, Front Wheel
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥2,210 | |
| 04494 — Shoe Kit, Front Brake | ||||
| 04494-28020 |
Shoe Kit, Front Brake
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥9,800 | |
| 04496-28020 note |
Shoe Kit, Front Brake
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | — | |
| 04905 — Cup Kit, Front Wheel Cylinder | ||||
| 04905-20040 |
Cup Kit, Front Wheel Cylinder
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥1,220 | |
| 47041 — Plate Sub-assy, Brake Backing, Front RH | ||||
| 47041-28040 |
Plate Sub-assy, Brake Backing, Front RH
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥5,100 | |
| 47041C — Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12001 note |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥570 | |
| 47041D — Bolt(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12060 |
Bolt(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥350 | |
| 47041E — Nut(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
Nut(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥110 | |
| 47041F — Nut(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
Nut(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥110 | |
| 47042 — Plate Sub-assy, Brake Backing, Front LH | ||||
| 47042-28040 |
Plate Sub-assy, Brake Backing, Front LH
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥5,100 | |
| 47410C — Spring(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-18017 |
Spring(FOR FRONT BRAKE SHOE HOLD DOWN)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥190 | |
| 47410D — Spring, Tension(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-20014 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥350 | |
| 47410E — Spring, Tension(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-20014 |
Spring, Tension(FOR FRONT BRAKE SHOE RETURN)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥350 | |
| 47447 — Pin, Shoe Hold Down Spring(FOR FRONT BRAKE) | ||||
| 47447-30010 |
Pin, Shoe Hold Down Spring(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥230 | |
| 47449 — Cup, Shoe Hold Down Spring(FOR FRONT BRAKE) | ||||
| 47449-30020 |
Cup, Shoe Hold Down Spring(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥120 | |
| 47491 — Plug, Hole(FOR FRONT BRAKE) | ||||
| 47491-20020 |
Plug, Hole(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥240 | |
| 47510 — Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER) | ||||
| 47520-29125 |
Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥5,500 | |
| 47520 — Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER) | ||||
| 47510-29205 |
Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥5,500 | |
| 47530 — Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER) | ||||
| 47540-29125 |
Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥5,500 | |
| 47540 — Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER) | ||||
| 47530-29205 |
Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥5,500 | |
| 47547 — Plug, Bleeder(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
Plug, Bleeder(FOR FRONT DRUM BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥180 | |
| 47548 — Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥160 | |
| 47551 — Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) | ||||
| 47551-20010 note |
Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥810 | |
| 47552 — Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) | ||||
| 47552-20010 note |
Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥810 | |
| 47553 — Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE) | ||||
| 47553-20010 note |
Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥620 | |
| 47554 — Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE) | ||||
| 47554-20010 note |
Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥620 | |
| 47555 — Spring, Adjuster Lock(FOR FRONT BRAKE) | ||||
| 47555-20011 |
Spring, Adjuster Lock(FOR FRONT BRAKE)
1982-11 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥250 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
