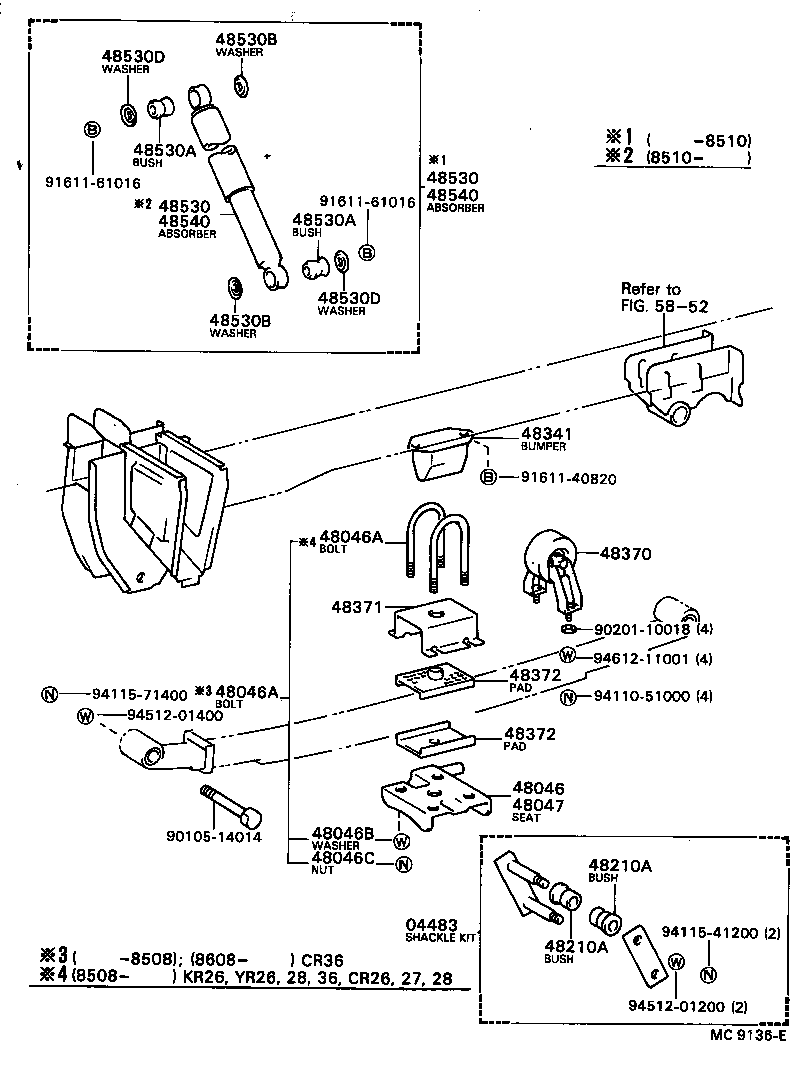

Exploded illustration MC9136E 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (3 parts) 48530D — WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 (2 parts) 48530A — BUSH(FOR REAR SHOCK ABSORBER) (2 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (26 parts) 9161161016 — not listed in this catalogue 48540 — ABSORBER ASSY, SHOCK, REAR LH (26 parts) 9161161016 — not listed in this catalogue 48530 — ABSORBER ASSY, SHOCK, REAR RH (26 parts) 48530A — BUSH(FOR REAR SHOCK ABSORBER) (2 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (26 parts) 48530D — WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 (2 parts) 5852 — not listed in this catalogue 48530B — WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 (3 parts) 48341 — BUMPER, REAR SPRING (4 parts) 9161140820 — not listed in this catalogue 48046A — BOLT, U(FOR REAR SPRING) (9 parts) 48370 — DAMPER ASSY, LEAF SPRING DYNAMIC (1 parts) 48371 — RETAINER, REAR SPRING PAD (6 parts) 9020110018 — not listed in this catalogue 9461211001 — not listed in this catalogue 48372 — PAD, REAR SPRING (1 parts) 48046A — BOLT, U(FOR REAR SPRING) (9 parts) 9411571400 — not listed in this catalogue 9411051000 — not listed in this catalogue 9451201400 — not listed in this catalogue 48372 — PAD, REAR SPRING (1 parts) 48046 — SEAT SUB-ASSY, SPRING U BOLT, RH (3 parts) 48047 — SEAT SUB-ASSY, SPRING U BOLT, LH (3 parts) 48046B — WASHER(FOR REAR SPRING U BOLT) (2 parts) 9010514014 — not listed in this catalogue 48046C — NUT(FOR REAR SPRING U BOLT) (4 parts) 48210A — BUSH(FOR REAR SPRING SHACKLE UPPER) (1 parts) 04483 — SHACKLE KIT, REAR SPRING (1 parts) 9411541200 — not listed in this catalogue 48210A — BUSH(FOR REAR SPRING SHACKLE UPPER) (1 parts) 9451201200 — not listed in this catalogue
MC9136E · 24 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
04483 — Shackle Kit, Rear Spring
04483-27021 Shackle Kit, Rear Spring
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥4,390
48046 — Seat Sub-assy, Spring U Bolt, RH
48046-26023 Seat Sub-assy, Spring U Bolt, RH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥3,700
48046-28030 Seat Sub-assy, Spring U Bolt, RH
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥2,900
48046-28040 Seat Sub-assy, Spring U Bolt, RH
1985-10 → 1988-08 ended
CR36,37,YR36 ¥2,900
48046A — Bolt, U(FOR REAR SPRING)
90117-13013 note Bolt, U(FOR REAR SPRING)
1985-08 → 1988-08 ended
CR28,KR26,YR28 ¥1,340
90117-13017 note Bolt, U(FOR REAR SPRING)
1985-08 → 1986-01 ended
CR26,27,YR26 ¥1,460
90117-13018 note Bolt, U(FOR REAR SPRING)
1986-01 → 1988-08 ended
CR26,27,YR26 ¥1,330
90117-14053 note Bolt, U(FOR REAR SPRING)
1985-10 → 1988-08 ended
CR36,37,YR36 ¥1,460
90118-13091 Bolt, U(FOR REAR SPRING)
1982-11 → 1983-02 ended
CR26,YR26 ¥1,400
90118-13091 Bolt, U(FOR REAR SPRING)
1983-02 → 1985-08 ended
KR26 ¥1,400
90118-13103 Bolt, U(FOR REAR SPRING)
1983-02 → 1985-08 ended
CR26,27,YR26 ¥950
90118-13152 Bolt, U(FOR REAR SPRING)
1982-11 → 1983-02 ended
KR26 ¥1,700
90118-14227 Bolt, U(FOR REAR SPRING)
1985-10 → 1988-08 ended
CR36 ¥1,890
48046B — Washer(FOR REAR SPRING U BOLT)
94512-01300 Washer(FOR REAR SPRING U BOLT)
1982-11 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28 ¥170
94512-01400 Washer(FOR REAR SPRING U BOLT)
1985-10 → 1988-08 ended
CR36,37,YR36 ¥100
48046C — Nut(FOR REAR SPRING U BOLT)
94110-51300 Nut(FOR REAR SPRING U BOLT)
1982-11 → 1985-10 ended
CR26,27,28,KR26,YR26,28 ¥170
94110-51300 Nut(FOR REAR SPRING U BOLT)
1985-10 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥170
94110-51400 Nut(FOR REAR SPRING U BOLT)
1985-10 → 1988-08 ended
CR36 ¥170
94110-51400 Nut(FOR REAR SPRING U BOLT)
1986-08 → 1988-08 ended
CR37,YR36 ¥170
48047 — Seat Sub-assy, Spring U Bolt, LH
48047-26023 Seat Sub-assy, Spring U Bolt, LH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥3,380
48047-28020 Seat Sub-assy, Spring U Bolt, LH
1985-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥2,900
48047-28030 Seat Sub-assy, Spring U Bolt, LH
1985-10 → 1988-08 ended
CR36,37,YR36 ¥2,900
48210A — Bush(FOR REAR SPRING SHACKLE UPPER)
90385-15001 Bush(FOR REAR SPRING SHACKLE UPPER)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥350
48341 — Bumper, Rear Spring
48341-28040 Bumper, Rear Spring
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥1,830
48341-35020 Bumper, Rear Spring
1982-11 → 1987-08 ended
CR26,27,28,36,KR26,YR26,28,36 ¥2,030
48341-35020 Bumper, Rear Spring
1987-08 → 1988-08 ended
CR26,27,36,37,KR26,YR26,28,36 ¥2,030
48341-35030 Bumper, Rear Spring
1987-08 → 1988-08 ended
CR28 ¥2,030
48370 — Damper Assy, Leaf Spring Dynamic
48370-28010 Damper Assy, Leaf Spring Dynamic
1987-08 → 1988-08 ended
CR36,37,YR36 ¥12,800
48371 — Retainer, Rear Spring Pad
48371-28040 Retainer, Rear Spring Pad
1982-11 → 1988-08 ended
CR28,KR26,YR28 ¥640
48371-28050 Retainer, Rear Spring Pad
1982-11 → 1988-08 ended
CR26,27,YR26 ¥740
48371-28070 Retainer, Rear Spring Pad
1985-10 → 1987-08 ended
CR36 ¥1,180
48371-28071 Retainer, Rear Spring Pad
1987-08 → 1988-08 ended
CR36 ¥1,810
48371-28080 Retainer, Rear Spring Pad
1986-08 → 1987-08 ended
YR36 ¥1,820
48371-28081 Retainer, Rear Spring Pad
1987-08 → 1988-08 ended
CR37,YR36 ¥1,810
48372 — Pad, Rear Spring
48372-28010 Pad, Rear Spring
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥760
48530 — Absorber Assy, Shock, Rear RH
48531-28080 Absorber Assy, Shock, Rear RH
1985-11 → 1988-02 ended
CR26,27,28,KR26,YR26,28 ¥7,100
48531-28150 Absorber Assy, Shock, Rear RH
1985-08 → 1988-02 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,000
48531-28160 note Absorber Assy, Shock, Rear RH
1985-08 → 1988-02 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,100
48531-28160 Absorber Assy, Shock, Rear RH
1985-08 → 1988-02 ended
CR21,YR20,21 E,Q ¥8,100
48531-28170 note Absorber Assy, Shock, Rear RH
1985-08 → 1988-02 ended
CR21,YR20,21 E,Q ¥8,000
48531-28180 Absorber Assy, Shock, Rear RH
1985-10 → 1988-02 ended
CR30,YR30 E,Q ¥8,000
48531-28200 Absorber Assy, Shock, Rear RH
1985-10 → 1988-02 ended
CR36 ¥8,100
48531-28250 Absorber Assy, Shock, Rear RH
1985-10 → 1988-02 ended
CR30,YR30 G —
48531-28280 Absorber Assy, Shock, Rear RH
1986-08 → 1988-02 ended
CR37,YR36 ¥8,100
48531-80016 Absorber Assy, Shock, Rear RH
1982-11 → 1984-08 ended
CR21,YR20,21 ¥8,000
48531-80018 Absorber Assy, Shock, Rear RH
1985-08 → 1985-11 ended
CR26,27,28,KR26,YR26,28 ¥7,100
48531-80018 Absorber Assy, Shock, Rear RH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥7,100
48531-80018 Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥7,100
48531-80048 Absorber Assy, Shock, Rear RH
1984-08 → 1985-08 ended
CR21 D ¥8,000
48531-80048 Absorber Assy, Shock, Rear RH
1984-08 → 1985-08 ended
YR20,21 MRF (D,G) ¥8,000
48531-80052 Absorber Assy, Shock, Rear RH
1984-08 → 1985-08 ended
CR21 E,G ¥8,100
48531-80052 Absorber Assy, Shock, Rear RH
1984-08 → 1985-08 ended
YR20,21 E,Q,X;YR20 HRF 5F +1 ¥8,100
48531-80053 note Absorber Assy, Shock, Rear RH
1984-08 → 1985-08 ended
CR21,YR20,21 ¥7,000
48531-80210 note Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,000
48531-80215 note Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR21,YR20,21 E,Q ¥8,000
48531-80215 note Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,000
48531-80220 note Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR21,YR20,21 E,Q ¥8,000
48531-80235 note Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR30,YR30 E,Q ¥8,000
48531-80240 Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR36 ¥8,100
48531-80250 note Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR30,YR30 G ¥8,000
48531-80255 Absorber Assy, Shock, Rear RH
1988-02 → 1988-08 ended
CR37,YR36 ¥8,100
48530A — Bush(FOR REAR SHOCK ABSORBER)
90385-16001 Bush(FOR REAR SHOCK ABSORBER)
1982-11 → 1987-08 ended
CR2#,36,KR26,YR2#,36 ¥670
90385-16004 Bush(FOR REAR SHOCK ABSORBER)
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥620
48530B — Washer, Rear Shock Absorber Cushion, NO.1
90948-02002 note Washer, Rear Shock Absorber Cushion, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥170
90948-02045 note Washer, Rear Shock Absorber Cushion, NO.1
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥320
90948-03004 Washer, Rear Shock Absorber Cushion, NO.1
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥200
48530D — Washer, Rear Shock Absorber Cushion, NO.3
90948-03007 Washer, Rear Shock Absorber Cushion, NO.3
1985-08 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥110
90948-03007 Washer, Rear Shock Absorber Cushion, NO.3
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
48540 — Absorber Assy, Shock, Rear LH
48531-28080 Absorber Assy, Shock, Rear LH
1985-11 → 1988-02 ended
CR26,27,28,KR26,YR26,28 ¥7,100
48531-28150 Absorber Assy, Shock, Rear LH
1985-08 → 1988-02 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,000
48531-28160 note Absorber Assy, Shock, Rear LH
1985-08 → 1988-02 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,100
48531-28160 Absorber Assy, Shock, Rear LH
1985-08 → 1988-02 ended
CR21,YR20,21 E,Q ¥8,100
48531-28170 note Absorber Assy, Shock, Rear LH
1985-08 → 1988-02 ended
CR21,YR20,21 E,Q ¥8,000
48531-28180 Absorber Assy, Shock, Rear LH
1985-10 → 1988-02 ended
CR30,YR30 E,Q ¥8,000
48531-28200 Absorber Assy, Shock, Rear LH
1985-10 → 1988-02 ended
CR36 ¥8,100
48531-28250 Absorber Assy, Shock, Rear LH
1985-10 → 1988-02 ended
CR30,YR30 G —
48531-28280 Absorber Assy, Shock, Rear LH
1986-08 → 1988-02 ended
CR37,YR36 ¥8,100
48531-80016 Absorber Assy, Shock, Rear LH
1982-11 → 1984-08 ended
CR21,YR20,21 ¥8,000
48531-80018 Absorber Assy, Shock, Rear LH
1985-08 → 1985-11 ended
CR26,27,28,KR26,YR26,28 ¥7,100
48531-80018 Absorber Assy, Shock, Rear LH
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 ¥7,100
48531-80018 Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥7,100
48531-80048 Absorber Assy, Shock, Rear LH
1984-08 → 1985-08 ended
CR21 D ¥8,000
48531-80048 Absorber Assy, Shock, Rear LH
1984-08 → 1985-08 ended
YR20,21 MRF (D,G) ¥8,000
48531-80052 Absorber Assy, Shock, Rear LH
1984-08 → 1985-08 ended
CR21 E,G ¥8,100
48531-80052 Absorber Assy, Shock, Rear LH
1984-08 → 1985-08 ended
YR20,21 E,Q,X;YR20 HRF 5F +1 ¥8,100
48531-80053 note Absorber Assy, Shock, Rear LH
1984-08 → 1985-08 ended
CR21,YR20,21 ¥7,000
48531-80210 note Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,000
48531-80215 note Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR21,YR20,21 E,Q ¥8,000
48531-80215 note Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥8,000
48531-80220 note Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR21,YR20,21 E,Q ¥8,000
48531-80235 note Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR30,YR30 E,Q ¥8,000
48531-80240 Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR36 ¥8,100
48531-80250 note Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR30,YR30 G ¥8,000
48531-80255 Absorber Assy, Shock, Rear LH
1988-02 → 1988-08 ended
CR37,YR36 ¥8,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
