Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

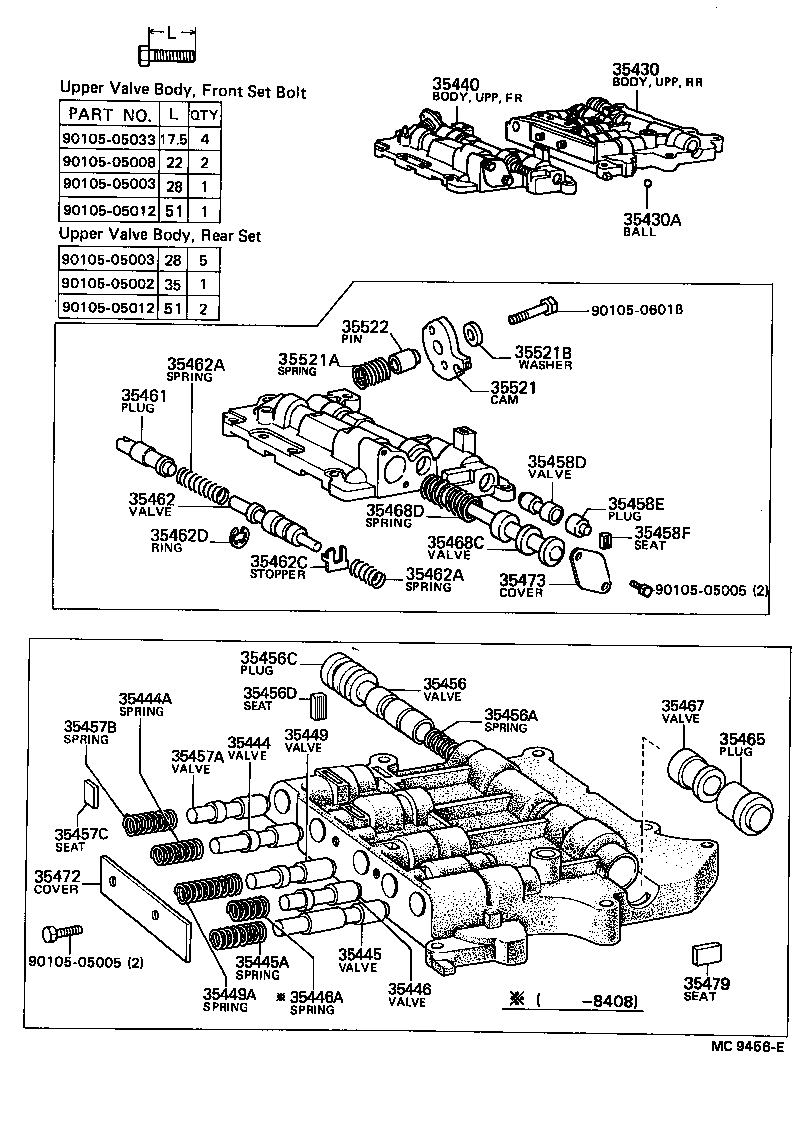

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35430 — Body Assy, Rear Upper Valve | ||||
| 35430-14020 |
Body Assy, Rear Upper Valve
1983-05 → 1983-07
ended
|
YR21 4FC | ¥30,900 | |
| 35430-28020 |
Body Assy, Rear Upper Valve
1984-08 → 1988-08
ended
|
YR20,26,28 4FC | ¥30,600 | |
| 35430-28020 |
Body Assy, Rear Upper Valve
1985-08 → 1988-08
ended
|
YR3# 4FC | ¥30,600 | |
| 35430-28040 |
Body Assy, Rear Upper Valve
1983-07 → 1984-08
ended
|
YR21 4FC | ¥31,500 | |
| 35430-28041 |
Body Assy, Rear Upper Valve
1984-08 → 1988-08
ended
|
YR21 4FC | ¥31,700 | |
| 35430-30100 |
Body Assy, Rear Upper Valve
1982-11 → 1984-08
ended
|
YR20,26 4FC | — | |
| 35430-30110 |
Body Assy, Rear Upper Valve
1984-08 → 1985-08
ended
|
CR21,27 4FC | ¥30,600 | |
| 35430-30110 |
Body Assy, Rear Upper Valve
1985-08 → 1988-08
ended
|
CR27,28 4FC | ¥30,600 | |
| 35430-30110 |
Body Assy, Rear Upper Valve
1985-08 → 1988-08
ended
|
CR21,30 4FC | ¥30,600 | |
| 35430A — Ball (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 note |
Ball (FOR REAR UPPER VALVE BODY)
1982-11 → 1988-04
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥340 | |
| 35495-22020 note |
Ball (FOR REAR UPPER VALVE BODY)
1988-04 → 1988-08
ended
|
YR20 MRF 4FC;YR20 HRF +3 | ¥260 | |
| 90360-06023 note |
Ball (FOR REAR UPPER VALVE BODY)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥170 | |
| 35440 — Body Assy, Front Upper Valve | ||||
| 35440-14010 |
Body Assy, Front Upper Valve
1983-05 → 1984-08
ended
|
YR21 4FC | ¥19,300 | |
| 35440-14021 |
Body Assy, Front Upper Valve
1985-10 → 1988-08
ended
|
YR3# 4FC | — | |
| 35440-20020 |
Body Assy, Front Upper Valve
1984-08 → 1984-09
ended
|
CR21 4FC | ¥19,200 | |
| 35440-20021 |
Body Assy, Front Upper Valve
1984-09 → 1985-08
ended
|
CR21,27 4FC | ¥19,300 | |
| 35440-20021 |
Body Assy, Front Upper Valve
1985-08 → 1988-08
ended
|
CR21,30 4FC | ¥19,300 | |
| 35440-20021 |
Body Assy, Front Upper Valve
1985-08 → 1988-08
ended
|
CR27,28 4FC | ¥19,300 | |
| 35440-28030 |
Body Assy, Front Upper Valve
1984-08 → 1986-07
ended
|
YR21 4FC | ¥21,300 | |
| 35440-28031 |
Body Assy, Front Upper Valve
1986-07 → 1988-08
ended
|
YR21 4FC | ¥19,200 | |
| 35440-28040 |
Body Assy, Front Upper Valve
1984-08 → 1984-09
ended
|
YR20,26 4FC | ¥19,200 | |
| 35440-28041 |
Body Assy, Front Upper Valve
1984-09 → 1988-08
ended
|
YR20 MRF 4FC;YR20,26,28 (HRF,SRF) +2 | ¥19,400 | |
| 35440-30060 |
Body Assy, Front Upper Valve
1982-11 → 1984-08
ended
|
YR20,26 4FC | ¥19,200 | |
| 35444 — Valve, Intermediate Modulator | ||||
| 35444-22010 |
Valve, Intermediate Modulator
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥850 | |
| 35444A — Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥220 | |
| 35445 — Valve, Low Modulator | ||||
| 35445-22010 |
Valve, Low Modulator
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥940 | |
| 35445A — Spring, Compression (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
Spring, Compression (FOR LOW MODULATOR VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥230 | |
| 35446 — Valve, Governor Modulator | ||||
| 35446-20010 |
Valve, Governor Modulator
1984-08 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥710 | |
| 35446-22010 |
Valve, Governor Modulator
1982-11 → 1984-08
ended
|
YR2# 4FC | ¥720 | |
| 35446A — Spring, Compression (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
Spring, Compression (FOR GOVERNOR MODULATOR VALVE)
1982-11 → 1984-08
ended
|
YR2# 4FC | ¥200 | |
| 35449 — Valve, Sequence | ||||
| 35447-22010 note |
Valve, Sequence
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥720 | |
| 35449-22010 note |
Valve, Sequence
1985-08 → 1988-08
ended
|
CR21,27,28,30 4FC | ¥820 | |
| 35449A — Spring, Compression (FOR SEQUENCE VALVE) | ||||
| 90501-12055 note |
Spring, Compression (FOR SEQUENCE VALVE)
1987-08 → 1988-08
ended
|
CR27,YR21 4FC | ¥220 | |
| 90501-12055 note |
Spring, Compression (FOR SEQUENCE VALVE)
1985-08 → 1987-08
ended
|
CR27,28,YR21 4FC | ¥220 | |
| 90501-12055 note |
Spring, Compression (FOR SEQUENCE VALVE)
1985-08 → 1987-08
ended
|
CR21 4FC DSL | ¥220 | |
| 90501-12055 |
Spring, Compression (FOR SEQUENCE VALVE)
1983-07 → 1985-08
ended
|
YR21 4FC | ¥220 | |
| 90501-12726 |
Spring, Compression (FOR SEQUENCE VALVE)
1983-07 → 1985-08
ended
|
CR21,27,YR20,26 4FC | ¥230 | |
| 90501-12726 |
Spring, Compression (FOR SEQUENCE VALVE)
1982-11 → 1983-07
ended
|
YR2# 4FC | ¥230 | |
| 90501-12726 |
Spring, Compression (FOR SEQUENCE VALVE)
1985-08 → 1988-08
ended
|
YR20 MRF 4FC;YR20,26,28,3# (HRF,SRF) +2 | ¥230 | |
| 90501-12726 note |
Spring, Compression (FOR SEQUENCE VALVE)
1985-08 → 1988-08
ended
|
CR21,27,28,30 4FC | ¥230 | |
| 35456 — Valve, 2-3 Shift | ||||
| 35456-22010 |
Valve, 2-3 Shift
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥2,230 | |
| 35456A — Spring, Compression (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
Spring, Compression (FOR 2-3 SHIFT VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥200 | |
| 35456C — Plug (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
Plug (FOR 2-3 SHIFT VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥570 | |
| 35456D — Seat (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
Seat (FOR 2-3 SHIFT VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥280 | |
| 35457A — Valve, Detent Regulator | ||||
| 35457-22010 |
Valve, Detent Regulator
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥940 | |
| 35457B — Spring, Compression (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09022 |
Spring, Compression (FOR DETENT REGULATOR VALVE)
1982-11 → 1988-08
ended
|
YR20,26,28,3# 4FC | ¥220 | |
| 90501-09025 |
Spring, Compression (FOR DETENT REGULATOR VALVE)
1984-08 → 1985-08
ended
|
CR21,27 4FC | ¥200 | |
| 90501-09025 |
Spring, Compression (FOR DETENT REGULATOR VALVE)
1985-08 → 1988-08
ended
|
CR27,28 4FC | ¥200 | |
| 90501-09025 |
Spring, Compression (FOR DETENT REGULATOR VALVE)
1985-08 → 1988-08
ended
|
CR21,30 4FC | ¥200 | |
| 90501-09739 |
Spring, Compression (FOR DETENT REGULATOR VALVE)
1983-05 → 1988-08
ended
|
YR21 4FC | ¥230 | |
| 35457C — Seat (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
Seat (FOR DETENT REGULATOR VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥280 | |
| 35458D — Valve, Cut Back | ||||
| 35458-22010 |
Valve, Cut Back
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥1,010 | |
| 35458E — Plug (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
Plug (FOR CUT BACK VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥480 | |
| 35458F — Seat (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
Seat (FOR CUT BACK VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥260 | |
| 35461 — Plug, Down Shift | ||||
| 35408-30010 |
Plug, Down Shift
1982-11 → 1988-08
ended
|
YR2#,3# 4FC | ¥1,970 | |
| 35408-30030 |
Plug, Down Shift
1984-08 → 1988-08
ended
|
CR21,27,28,30 4FC | — | |
| 35462 — Valve, Throttle | ||||
| 35462-22011 |
Valve, Throttle
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥2,590 | |
| 35462A — Spring, Compression (FOR THROTTLE VALVE) | ||||
| 90501-07680 note |
Spring, Compression (FOR THROTTLE VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥220 | |
| 90501-12011 note |
Spring, Compression (FOR THROTTLE VALVE)
1982-11 → 1984-08
ended
|
YR2# 4FC | ¥320 | |
| 90501-12029 note |
Spring, Compression (FOR THROTTLE VALVE)
1984-08 → 1988-08
ended
|
CR21,27,28,30 4FC | ¥300 | |
| 90501-12077 note |
Spring, Compression (FOR THROTTLE VALVE)
1984-08 → 1988-08
ended
|
YR2#,3# 4FC | ¥1,000 | |
| 35462C — Stopper, Valve Vibrating | ||||
| 35422-22010 |
Stopper, Valve Vibrating
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥260 | |
| 35462D — Ring, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
Ring, E (FOR THROTTLE VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥110 | |
| 35465 — Plug, Intermediate Shift Valve | ||||
| 35465-22010 |
Plug, Intermediate Shift Valve
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥1,630 | |
| 35467 — Valve, Intermediate Shift | ||||
| 35467-22010 |
Valve, Intermediate Shift
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥970 | |
| 35468C — Valve, Secondary Regulator | ||||
| 35204-30010 |
Valve, Secondary Regulator
1986-07 → 1988-08
ended
|
YR21 4FC | ¥4,110 | |
| 35468-14010 |
Valve, Secondary Regulator
1983-05 → 1986-07
ended
|
YR21 4FC | — | |
| 35468-22010 |
Valve, Secondary Regulator
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR20,26,28,3# 4FC | ¥2,940 | |
| 35468D — Spring, Compression (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
Spring, Compression (FOR SECONDARY REGULATOR VALVE)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥550 | |
| 35472 — Cover, Valve Body, NO.2 | ||||
| 35472-22010 |
Cover, Valve Body, NO.2
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥360 | |
| 35473 — Cover, Transmission Valve Body | ||||
| 35473-22010 |
Cover, Transmission Valve Body
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥720 | |
| 35479 — Seat, Intermediate Shift Valve | ||||
| 35479-22010 |
Seat, Intermediate Shift Valve
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥260 | |
| 35521 — Cam, Throttle Valve | ||||
| 35521-20010 |
Cam, Throttle Valve
1984-08 → 1988-08
ended
|
CR21,27,28,30 4FC | ¥2,290 | |
| 35521-22030 |
Cam, Throttle Valve
1982-11 → 1988-08
ended
|
YR20,26,28 4FC | ¥1,870 | |
| 35521-30010 |
Cam, Throttle Valve
1983-05 → 1988-08
ended
|
YR21,3# 4FC | ¥1,950 | |
| 35521A — Spring (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
Spring (FOR THROTTLE VALVE CAM RETURN)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥260 | |
| 35521B — Washer (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
Washer (FOR THROTTLE VALVE CAM SET)
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥160 | |
| 35522 — Pin, Throttle Valve Cam | ||||
| 35522-22010 |
Pin, Throttle Valve Cam
1982-11 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥1,120 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
