Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

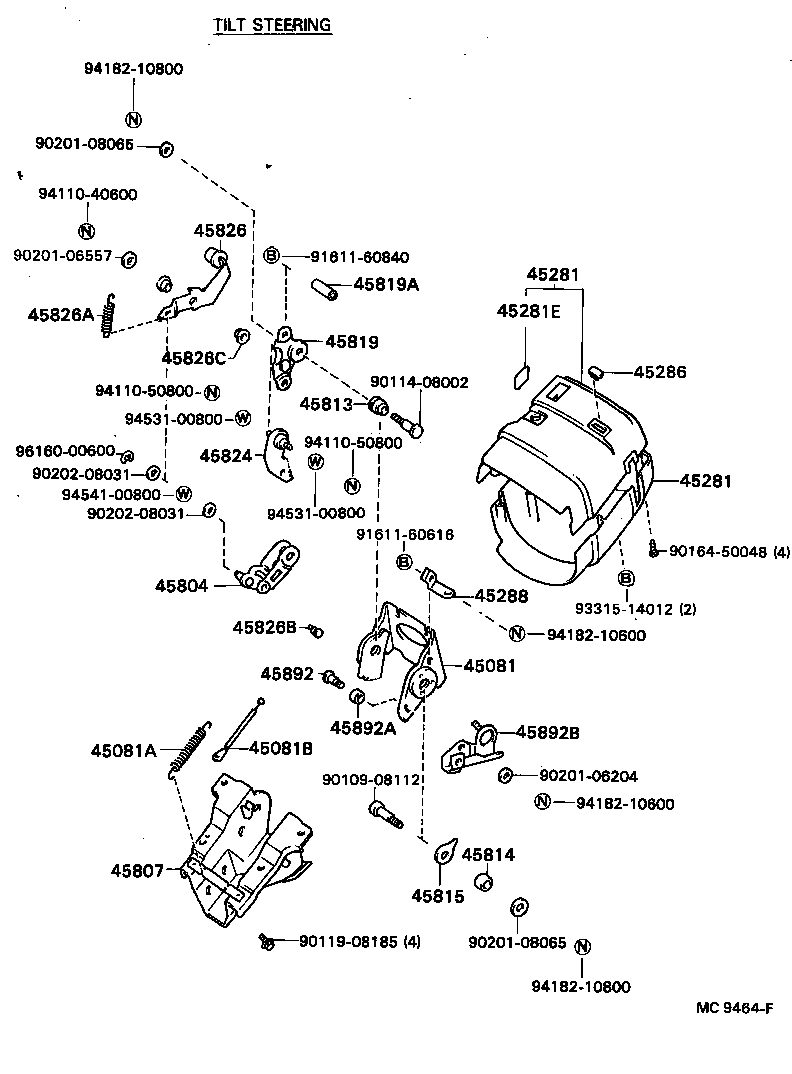

Exploded illustration MC9464F 9418210800 — not listed in this catalogue 9020108065 — not listed in this catalogue 9411040600 — not listed in this catalogue 45826 — LEVER, STEERING TILT (6 parts) 9020106557 — not listed in this catalogue 9161160840 — not listed in this catalogue 45281 — HOUSING, STEERING COLUMN (48 parts) 45819A — COLLAR(FOR TILT LEVER RETAINER) (5 parts) 45281E — PLATE, SAFETY CAUTION (1 parts) 45826A — SPRING, TENSION(FOR STEERING TILT LEVER) (5 parts) 45819 — RETAINER, TILT LEVER (5 parts) 45826C — BUSH(FOR STEERING TILT LEVER) (5 parts) 45286 — COVER, STEERING COLUMN (2 parts) 9011408002 — not listed in this catalogue 9411050800 — not listed in this catalogue 45813 — COLLAR, TILT STEERING SUPPORT, NO.1 (25 parts) 9453100800 — not listed in this catalogue 9411050800 — not listed in this catalogue 9616000600 — not listed in this catalogue 45824 — PAWL, TILT STEERING (5 parts) 9020208031 — not listed in this catalogue 45281 — HOUSING, STEERING COLUMN (48 parts) 9454100800 — not listed in this catalogue 9453100800 — not listed in this catalogue 9020208031 — not listed in this catalogue 9161160616 — not listed in this catalogue 9016450048 — not listed in this catalogue 45804 — LEVER SUB-ASSY, STEERING TILT (5 parts) 45288 — PLATE, STEERING COLUMN COVER (6 parts) 9331514012 — not listed in this catalogue 45826B — PIN(FOR STEERING TILT LEVER) (5 parts) 9418210600 — not listed in this catalogue 45081 — SUPPORT SUB-ASSY, TILT STEERING (6 parts) 45892 — BOLT, TILT STEERING SUPPORT STOPPER (5 parts) 45892A — COVER, TILT STEERING SUPPORT STOPPER (5 parts) 45892B — SUPPORT, TILT STEERING COLUMN COVER (5 parts) 45081B — CORD(FOR TILT STEERING) (5 parts) 45081A — SPRING, TENSION(FOR TILT STEERING) (5 parts) 9020106204 — not listed in this catalogue 9010908112 — not listed in this catalogue 9418210600 — not listed in this catalogue 45814 — COLLAR, TILT STEERING SUPPORT, NO.2 (10 parts) 45807 — BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT (5 parts) 45815 — SHIM, TILT STEERING SUPPORT (25 parts) 9011908185 — not listed in this catalogue 9020108065 — not listed in this catalogue 9418210800 — not listed in this catalogue
MC9464F · 23 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
194 parts on this figure
Part number Description Fitment Price
45081 — Support Sub-assy, Tilt Steering
45081-28010 Support Sub-assy, Tilt Steering
1982-11 → 1983-08 ended
CR21,YR2# 4FC,5F ¥3,620
45081-35010 Support Sub-assy, Tilt Steering
1983-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥3,610
45081-35010 Support Sub-assy, Tilt Steering
1985-08 → 1986-12 ended
CR26 N ¥3,610
45081-35010 Support Sub-assy, Tilt Steering
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥3,610
45081-35010 Support Sub-assy, Tilt Steering
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥3,610
45081-35010 Support Sub-assy, Tilt Steering
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥3,610
45081A — Spring, Tension(FOR TILT STEERING)
90506-23009 Spring, Tension(FOR TILT STEERING)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥230
90506-23009 Spring, Tension(FOR TILT STEERING)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥230
90506-23009 Spring, Tension(FOR TILT STEERING)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥230
90506-23009 Spring, Tension(FOR TILT STEERING)
1985-08 → 1986-12 ended
CR26 N ¥230
90506-23009 Spring, Tension(FOR TILT STEERING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥230
45081B — Cord(FOR TILT STEERING)
90945-02034 note Cord(FOR TILT STEERING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥550
90945-02034 note Cord(FOR TILT STEERING)
1985-08 → 1986-12 ended
CR26 N ¥550
90945-02034 note Cord(FOR TILT STEERING)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥550
90945-02034 note Cord(FOR TILT STEERING)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥550
90945-02034 note Cord(FOR TILT STEERING)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥550
45281 — Housing, Steering Column
45286-28070-02 note Housing, Steering Column
1982-11 → 1985-08 ended
KR26,YR26 4H ¥2,170
45286-28070-05 note Housing, Steering Column
1985-08 → 1988-08 ended
KR26,YR26 4H ¥2,170
45286-28110-02 note Housing, Steering Column
1982-11 → 1985-08 ended
YR20 D ¥2,170
45286-28110-05 note Housing, Steering Column
1985-08 → 1988-08 ended
YR20,28 5H ¥2,170
45286-28120-02 note Housing, Steering Column
1982-11 → 1983-08 ended
CR21,YR2# 05S,08S ¥5,200
45286-28120-03 note Housing, Steering Column
1982-11 → 1983-08 ended
YR20,21 07S ¥5,200
45286-28120-04 note Housing, Steering Column
1982-11 → 1983-08 ended
CR21,YR20 E ¥5,200
45286-28120-05 note Housing, Steering Column
1982-11 → 1983-08 ended
YR20,21 07S ¥5,200
45286-28121-02 note Housing, Steering Column
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,290
45286-28121-02 note Housing, Steering Column
1983-08 → 1984-08 ended
CR21,YR2# 05S,08S ¥2,290
45286-28121-03 note Housing, Steering Column
1983-08 → 1984-08 ended
YR20,21 07S ¥2,290
45286-28121-04 note Housing, Steering Column
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥2,290
45286-28121-04 note Housing, Steering Column
1983-08 → 1984-08 ended
CR21,YR20 E ¥2,290
45286-28121-05 note Housing, Steering Column
1983-08 → 1984-08 ended
YR20,21 07S —
45286-28121-14 note Housing, Steering Column
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥2,290
45286-28121-15 note Housing, Steering Column
1985-08 → 1986-12 ended
CR26 N ¥2,290
45286-28121-15 note Housing, Steering Column
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥2,290
45286-28121-15 note Housing, Steering Column
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,290
45286-28121-15 note Housing, Steering Column
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥2,290
45286-28130-02 note Housing, Steering Column
1982-11 → 1985-08 ended
CR2#,YR2# 02S,05S,08S ¥2,290
45286-28130-04 note Housing, Steering Column
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥2,290
45286-28130-04 note Housing, Steering Column
1982-11 → 1985-08 ended
YR20 E ¥2,290
45286-28130-05 note Housing, Steering Column
1985-08 → 1988-08 ended
YR28 05S ¥2,290
45286-28130-05 note Housing, Steering Column
1985-08 → 1988-08 ended
YR20 MRF G;YR20 HRF +3 ¥2,290
45286-28130-05 note Housing, Steering Column
1985-08 → 1988-08 ended
CR21,36,37,YR36 B,D,G ¥2,290
45287-28050-02 note Housing, Steering Column
1982-11 → 1983-08 ended
CR21,YR2# 05S,08S ¥3,810
45287-28050-03 note Housing, Steering Column
1982-11 → 1983-08 ended
YR20,21 07S ¥3,810
45287-28050-04 note Housing, Steering Column
1982-11 → 1983-08 ended
CR21,YR20 E ¥5,200
45287-28050-05 note Housing, Steering Column
1982-11 → 1983-08 ended
YR20,21 07S ¥3,810
45287-28051-02 note Housing, Steering Column
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥3,460
45287-28051-02 note Housing, Steering Column
1983-08 → 1984-08 ended
CR21,YR2# 05S,08S ¥3,460
45287-28051-03 note Housing, Steering Column
1983-08 → 1984-08 ended
YR20,21 07S ¥3,470
45287-28051-04 note Housing, Steering Column
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥3,460
45287-28051-04 note Housing, Steering Column
1983-08 → 1984-08 ended
CR21,YR20 E ¥3,460
45287-28051-05 note Housing, Steering Column
1983-08 → 1984-08 ended
YR20,21 07S ¥3,470
45287-28051-14 note Housing, Steering Column
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥3,470
45287-28051-15 note Housing, Steering Column
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥3,470
45287-28051-15 note Housing, Steering Column
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥3,470
45287-28051-15 note Housing, Steering Column
1985-08 → 1986-12 ended
CR26 N ¥3,470
45287-28051-15 note Housing, Steering Column
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥3,470
45287-28060-02 note Housing, Steering Column
1982-11 → 1985-08 ended
CR2#,YR2# 02S,05S,08S ¥3,480
45287-28060-04 note Housing, Steering Column
1982-11 → 1985-08 ended
CR21,YR20 E ¥3,480
45287-28060-04 note Housing, Steering Column
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥3,480
45287-28060-05 note Housing, Steering Column
1985-08 → 1988-08 ended
YR20 MRF G;YR20 HRF +3 ¥3,480
45287-28060-05 note Housing, Steering Column
1985-08 → 1988-08 ended
CR21,36,37,YR36 B,D,G ¥3,480
45287-28060-05 note Housing, Steering Column
1985-08 → 1988-08 ended
YR28 05S ¥3,480
45287-28070-02 note Housing, Steering Column
1982-11 → 1985-08 ended
KR26,YR20,26 D,R ¥3,470
45287-28070-05 note Housing, Steering Column
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥3,470
45281E — Plate, Safety Caution
45283-22010 Plate, Safety Caution
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥150
45286 — Cover, Steering Column
45286-28100-14 note Cover, Steering Column
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥350
45286-28100-15 note Cover, Steering Column
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥350
45288 — Plate, Steering Column Cover
45288-28020 Plate, Steering Column Cover
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥340
45288-28020 Plate, Steering Column Cover
1985-08 → 1986-12 ended
CR26 N ¥340
45288-28020 Plate, Steering Column Cover
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥340
45288-28020 Plate, Steering Column Cover
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥340
45288-28020 Plate, Steering Column Cover
1986-12 → 1987-11 ended
YR20 HRF E;YR20 MRF +5 ¥340
45288-28021 Plate, Steering Column Cover
1987-11 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥330
45804 — Lever Sub-assy, Steering Tilt
45804-30010 Lever Sub-assy, Steering Tilt
1985-08 → 1986-12 ended
CR26 N ¥2,780
45804-30010 Lever Sub-assy, Steering Tilt
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,780
45804-30010 Lever Sub-assy, Steering Tilt
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥2,780
45804-30010 Lever Sub-assy, Steering Tilt
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,780
45804-30010 Lever Sub-assy, Steering Tilt
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥2,780
45807 — Bracket Sub-assy, Steering Column Upper Support
45807-28020 Bracket Sub-assy, Steering Column Upper Support
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥3,210
45807-28020 Bracket Sub-assy, Steering Column Upper Support
1985-08 → 1986-12 ended
CR26 N ¥3,210
45807-28020 Bracket Sub-assy, Steering Column Upper Support
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥3,210
45807-28020 Bracket Sub-assy, Steering Column Upper Support
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥3,210
45807-28020 Bracket Sub-assy, Steering Column Upper Support
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥3,210
45813 — Collar, Tilt Steering Support, NO.1
45813-22010 note Collar, Tilt Steering Support, NO.1
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,130
45813-22010 note Collar, Tilt Steering Support, NO.1
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,130
45813-22010 note Collar, Tilt Steering Support, NO.1
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,130
45813-22010 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
CR26 N ¥1,130
45813-22010 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,130
45813-22020 note Collar, Tilt Steering Support, NO.1
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,140
45813-22020 note Collar, Tilt Steering Support, NO.1
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,140
45813-22020 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,140
45813-22020 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
CR26 N ¥1,140
45813-22020 note Collar, Tilt Steering Support, NO.1
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,140
45813-22030 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
CR26 N ¥1,140
45813-22030 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,140
45813-22030 note Collar, Tilt Steering Support, NO.1
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,140
45813-22030 note Collar, Tilt Steering Support, NO.1
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,140
45813-22030 note Collar, Tilt Steering Support, NO.1
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,140
45813-22040 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
CR26 N ¥1,140
45813-22040 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,140
45813-22040 note Collar, Tilt Steering Support, NO.1
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,140
45813-22040 note Collar, Tilt Steering Support, NO.1
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,140
45813-22040 note Collar, Tilt Steering Support, NO.1
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,140
45813-22050 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,170
45813-22050 note Collar, Tilt Steering Support, NO.1
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,170
45813-22050 note Collar, Tilt Steering Support, NO.1
1985-08 → 1986-12 ended
CR26 N ¥1,170
45813-22050 note Collar, Tilt Steering Support, NO.1
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,170
45813-22050 note Collar, Tilt Steering Support, NO.1
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,170
45814 — Collar, Tilt Steering Support, NO.2
45814-22010 note Collar, Tilt Steering Support, NO.2
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥760
45814-22010 note Collar, Tilt Steering Support, NO.2
1985-08 → 1986-12 ended
CR26 N ¥760
45814-22010 note Collar, Tilt Steering Support, NO.2
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥760
45814-22010 note Collar, Tilt Steering Support, NO.2
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥760
45814-22010 note Collar, Tilt Steering Support, NO.2
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥760
45814-22020 note Collar, Tilt Steering Support, NO.2
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥850
45814-22020 note Collar, Tilt Steering Support, NO.2
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥850
45814-22020 note Collar, Tilt Steering Support, NO.2
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥850
45814-22020 note Collar, Tilt Steering Support, NO.2
1985-08 → 1986-12 ended
CR26 N ¥850
45814-22020 note Collar, Tilt Steering Support, NO.2
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥850
45815 — Shim, Tilt Steering Support
45815-22060 note Shim, Tilt Steering Support
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥280
45815-22060 note Shim, Tilt Steering Support
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥280
45815-22060 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥280
45815-22060 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
CR26 N ¥280
45815-22060 note Shim, Tilt Steering Support
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥280
45815-22070 note Shim, Tilt Steering Support
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥300
45815-22070 note Shim, Tilt Steering Support
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥300
45815-22070 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
CR26 N ¥300
45815-22070 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥300
45815-22070 note Shim, Tilt Steering Support
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥300
45815-22080 note Shim, Tilt Steering Support
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥350
45815-22080 note Shim, Tilt Steering Support
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥350
45815-22080 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥350
45815-22080 note Shim, Tilt Steering Support
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥350
45815-22080 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
CR26 N ¥350
45815-22090 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥360
45815-22090 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
CR26 N ¥360
45815-22090 note Shim, Tilt Steering Support
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥360
45815-22090 note Shim, Tilt Steering Support
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥360
45815-22090 note Shim, Tilt Steering Support
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥360
45815-22100 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥430
45815-22100 note Shim, Tilt Steering Support
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥430
45815-22100 note Shim, Tilt Steering Support
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥430
45815-22100 note Shim, Tilt Steering Support
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥430
45815-22100 note Shim, Tilt Steering Support
1985-08 → 1986-12 ended
CR26 N ¥430
45819 — Retainer, Tilt Lever
45809-30021 Retainer, Tilt Lever
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥640
45809-30021 Retainer, Tilt Lever
1985-08 → 1986-12 ended
CR26 N ¥640
45809-30021 Retainer, Tilt Lever
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥640
45809-30021 Retainer, Tilt Lever
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥640
45809-30021 Retainer, Tilt Lever
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥640
45819A — Collar(FOR TILT LEVER RETAINER)
90387-08002 Collar(FOR TILT LEVER RETAINER)
1985-08 → 1986-12 ended
CR26 N ¥220
90387-08002 Collar(FOR TILT LEVER RETAINER)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥220
90387-08002 Collar(FOR TILT LEVER RETAINER)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥220
90387-08002 Collar(FOR TILT LEVER RETAINER)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥220
90387-08002 Collar(FOR TILT LEVER RETAINER)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥220
45824 — Pawl, Tilt Steering
45890-30020 Pawl, Tilt Steering
1985-08 → 1986-12 ended
CR26 N ¥990
45890-30020 Pawl, Tilt Steering
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥990
45890-30020 Pawl, Tilt Steering
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥990
45890-30020 Pawl, Tilt Steering
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥990
45890-30020 Pawl, Tilt Steering
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥990
45826 — Lever, Steering Tilt
45826-28010 Lever, Steering Tilt
1982-11 → 1983-08 ended
CR21,YR2# 4FC,5F —
45826-28011 Lever, Steering Tilt
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥2,030
45826-28011 Lever, Steering Tilt
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,030
45826-28011 Lever, Steering Tilt
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥2,030
45826-28011 Lever, Steering Tilt
1985-08 → 1986-12 ended
CR26 N ¥2,030
45826-28011 Lever, Steering Tilt
1983-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,030
45826A — Spring, Tension(FOR STEERING TILT LEVER)
90507-14001 Spring, Tension(FOR STEERING TILT LEVER)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥320
90507-14001 Spring, Tension(FOR STEERING TILT LEVER)
1985-08 → 1986-12 ended
CR26 N ¥320
90507-14001 Spring, Tension(FOR STEERING TILT LEVER)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥320
90507-14001 Spring, Tension(FOR STEERING TILT LEVER)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥320
90507-14001 Spring, Tension(FOR STEERING TILT LEVER)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥320
45826B — Pin(FOR STEERING TILT LEVER)
72538-12010 Pin(FOR STEERING TILT LEVER)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥250
72538-12010 Pin(FOR STEERING TILT LEVER)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥250
72538-12010 Pin(FOR STEERING TILT LEVER)
1985-08 → 1986-12 ended
CR26 N ¥250
72538-12010 Pin(FOR STEERING TILT LEVER)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥250
72538-12010 Pin(FOR STEERING TILT LEVER)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥250
45826C — Bush(FOR STEERING TILT LEVER)
90386-08123 Bush(FOR STEERING TILT LEVER)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥180
90386-08123 Bush(FOR STEERING TILT LEVER)
1985-08 → 1986-12 ended
CR26 N ¥180
90386-08123 Bush(FOR STEERING TILT LEVER)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥180
90386-08123 Bush(FOR STEERING TILT LEVER)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥180
90386-08123 Bush(FOR STEERING TILT LEVER)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥180
45892 — Bolt, Tilt Steering Support Stopper
45898-22010 Bolt, Tilt Steering Support Stopper
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥430
45898-22010 Bolt, Tilt Steering Support Stopper
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥430
45898-22010 Bolt, Tilt Steering Support Stopper
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥430
45898-22010 Bolt, Tilt Steering Support Stopper
1985-08 → 1986-12 ended
CR26 N ¥430
45898-22010 Bolt, Tilt Steering Support Stopper
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥430
45892A — Cover, Tilt Steering Support Stopper
45899-22020 Cover, Tilt Steering Support Stopper
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥430
45899-22020 Cover, Tilt Steering Support Stopper
1985-08 → 1986-12 ended
CR26 N ¥430
45899-22020 Cover, Tilt Steering Support Stopper
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥430
45899-22020 Cover, Tilt Steering Support Stopper
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥430
45899-22020 Cover, Tilt Steering Support Stopper
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥430
45892B — Support, Tilt Steering Column Cover
45289-28020 Support, Tilt Steering Column Cover
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,080
45289-28020 Support, Tilt Steering Column Cover
1985-08 → 1986-12 ended
CR26 N ¥1,080
45289-28020 Support, Tilt Steering Column Cover
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,080
45289-28020 Support, Tilt Steering Column Cover
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,080
45289-28020 Support, Tilt Steering Column Cover
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,080
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
