Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

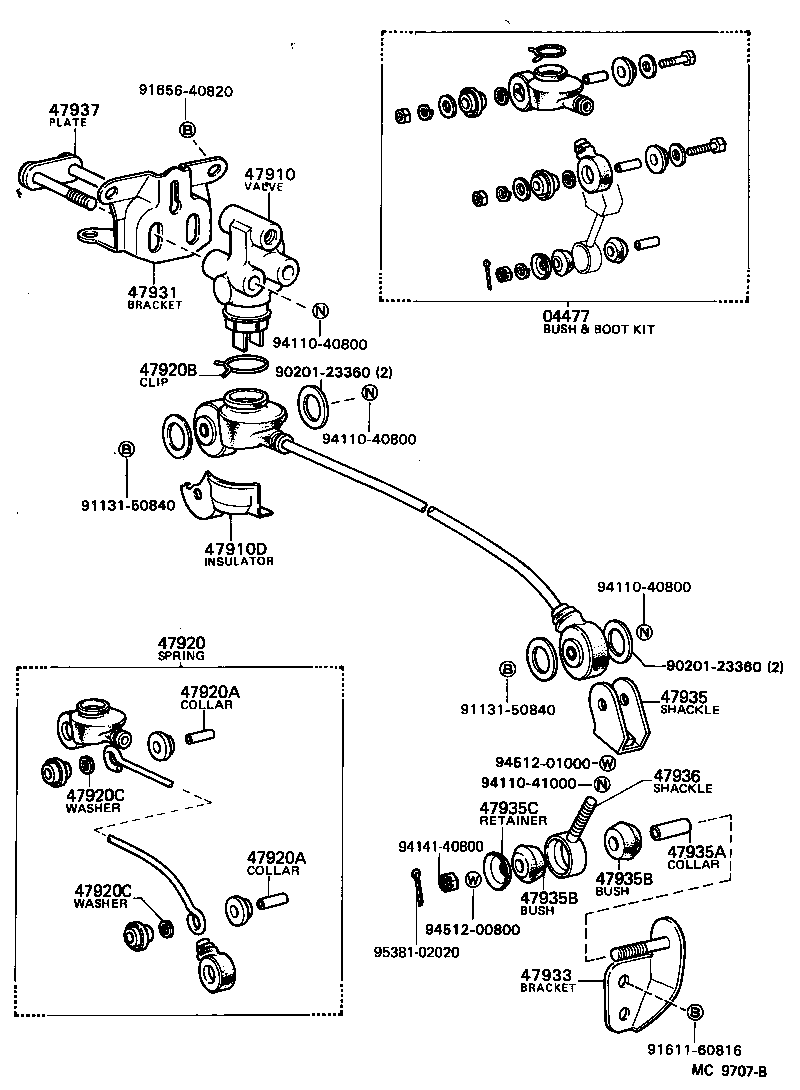

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04477 — Bush & Boot Kit, Load Sensing Spring | ||||
| 04477-60010 |
Bush & Boot Kit, Load Sensing Spring
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥5,300 | |
| 47910 — Valve Assy, Load Sensing Proportioning | ||||
| 47910-28030 |
Valve Assy, Load Sensing Proportioning
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥16,200 | |
| 47910-28090 |
Valve Assy, Load Sensing Proportioning
1985-10 → 1986-03
ended
|
CR3#,YR30 | ¥14,400 | |
| 47910-28091 |
Valve Assy, Load Sensing Proportioning
1986-03 → 1988-08
ended
|
CR3#,YR3# | ¥14,200 | |
| 47910-28091 |
Valve Assy, Load Sensing Proportioning
1986-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥14,200 | |
| 47910-28100 |
Valve Assy, Load Sensing Proportioning
1985-08 → 1986-03
ended
|
CR26,27,28,KR26,YR26,28 | ¥14,400 | |
| 47910-28101 |
Valve Assy, Load Sensing Proportioning
1986-03 → 1986-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥14,400 | |
| 47910D — Insulator, Load Sensing Valve Heat | ||||
| 44786-28020 |
Insulator, Load Sensing Valve Heat
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | — | |
| 44786-28040 |
Insulator, Load Sensing Valve Heat
1985-08 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28,3# | ¥670 | |
| 47920 — Spring Assy, Load Sensing | ||||
| 47920-28020 |
Spring Assy, Load Sensing
1982-11 → 1988-08
ended
|
CR26,27,28,KR26,YR26,28 | ¥5,500 | |
| 47920-28040 |
Spring Assy, Load Sensing
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥5,400 | |
| 47920-28050 |
Spring Assy, Load Sensing
1985-10 → 1988-08
ended
|
CR30,YR30 | ¥5,400 | |
| 47920A — Collar(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
Collar(FOR LOAD SENSING SPRING)
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥170 | |
| 47920B — Clip(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
Clip(FOR LOAD SENSING VALVE BOOT)
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥120 | |
| 47920C — Washer(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
Washer(FOR LOAD SENSING SPRING)
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥120 | |
| 47931 — Bracket, Load Sensing Valve | ||||
| 47931-28020 |
Bracket, Load Sensing Valve
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥4,130 | |
| 47933 — Bracket, Load Sensing Shackle, NO.1 | ||||
| 47933-26020 |
Bracket, Load Sensing Shackle, NO.1
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥820 | |
| 47933-28020 |
Bracket, Load Sensing Shackle, NO.1
1985-08 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥930 | |
| 47935 — Shackle, Load Sensing Spring, NO.1 | ||||
| 47935-35010 |
Shackle, Load Sensing Spring, NO.1
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥1,690 | |
| 47935A — Collar(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
Collar(FOR LOAD SENSING SPRING SHACKLE)
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥170 | |
| 47935B — Bush(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
Bush(FOR LOAD SENSING SPRING SHACKLE)
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥410 | |
| 47935C — Retainer(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
Retainer(FOR LOAD SENSING SPRING SHACKLE)
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥430 | |
| 90948-02033 |
Retainer(FOR LOAD SENSING SPRING SHACKLE)
1985-08 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥430 | |
| 47936 — Shackle, Load Sensing Spring, NO.2 | ||||
| 47936-27010 |
Shackle, Load Sensing Spring, NO.2
1982-11 → 1985-08
ended
|
CR26,27,KR26,YR26 | ¥1,250 | |
| 47936-28010 |
Shackle, Load Sensing Spring, NO.2
1985-08 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥1,070 | |
| 47937 — Plate, Load Sensing Valve Set | ||||
| 47937-60010 |
Plate, Load Sensing Valve Set
1982-11 → 1988-08
ended
|
CR26,27,28,3#,KR26,YR26,28,3# | ¥430 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
