Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

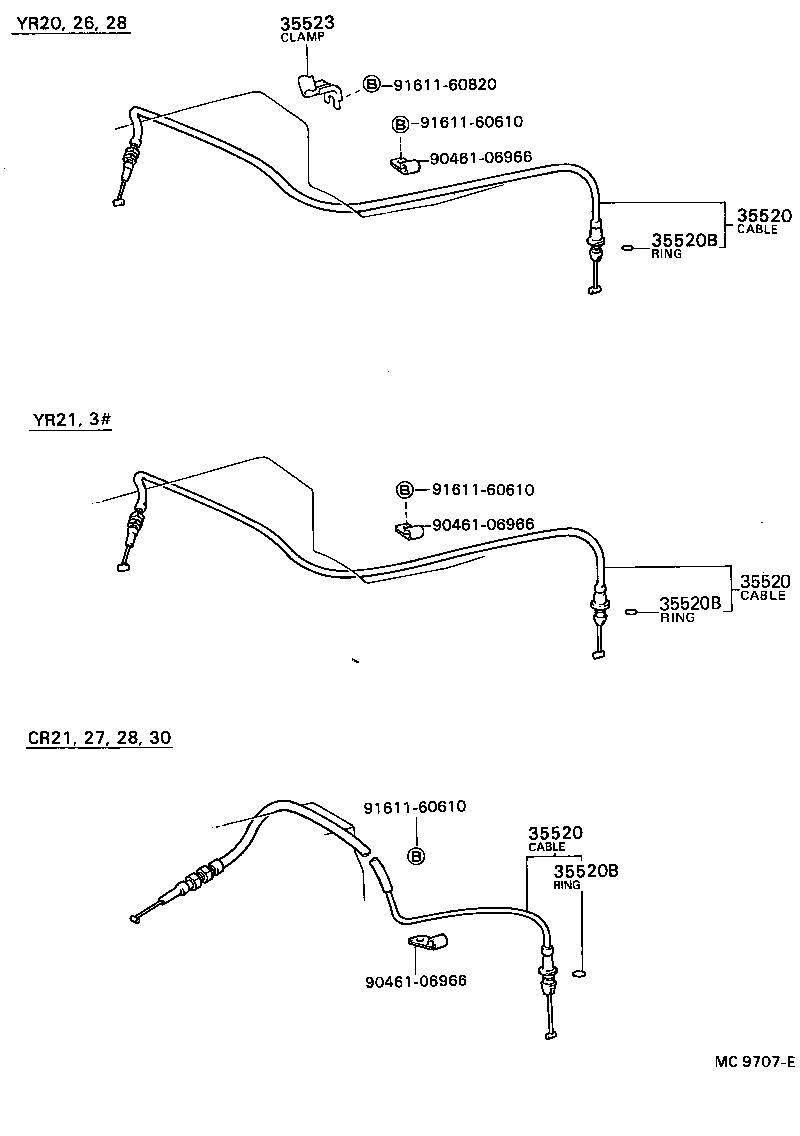

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35520 — Cable Assy, Throttle | ||||
| 35520-20100 |
Cable Assy, Throttle
1984-08 → 1988-08
ended
|
CR21,27,28,30 4FC | ¥5,500 | |
| 35520-28010 |
Cable Assy, Throttle
1983-05 → 1985-08
ended
|
YR21 4FC | ¥5,300 | |
| 35520-28011 |
Cable Assy, Throttle
1985-08 → 1988-08
ended
|
YR21,3# 4FC | ¥5,300 | |
| 35520-30030 |
Cable Assy, Throttle
1982-11 → 1988-08
ended
|
YR20,26,28 4FC | ¥5,800 | |
| 35520B — Ring, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
Ring, O(FOR THROTTLE CABLE)
1983-04 → 1988-08
ended
|
CR21,27,28,30,YR2#,3# 4FC | ¥220 | |
| 90301-09063 |
Ring, O(FOR THROTTLE CABLE)
1982-11 → 1983-04
ended
|
YR2# 4FC | ¥220 | |
| 35523 — Clamp, Throttle Cable | ||||
| 35523-28010 |
Clamp, Throttle Cable
1982-11 → 1988-08
ended
|
YR20,26,28 4FC | ¥670 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
