Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

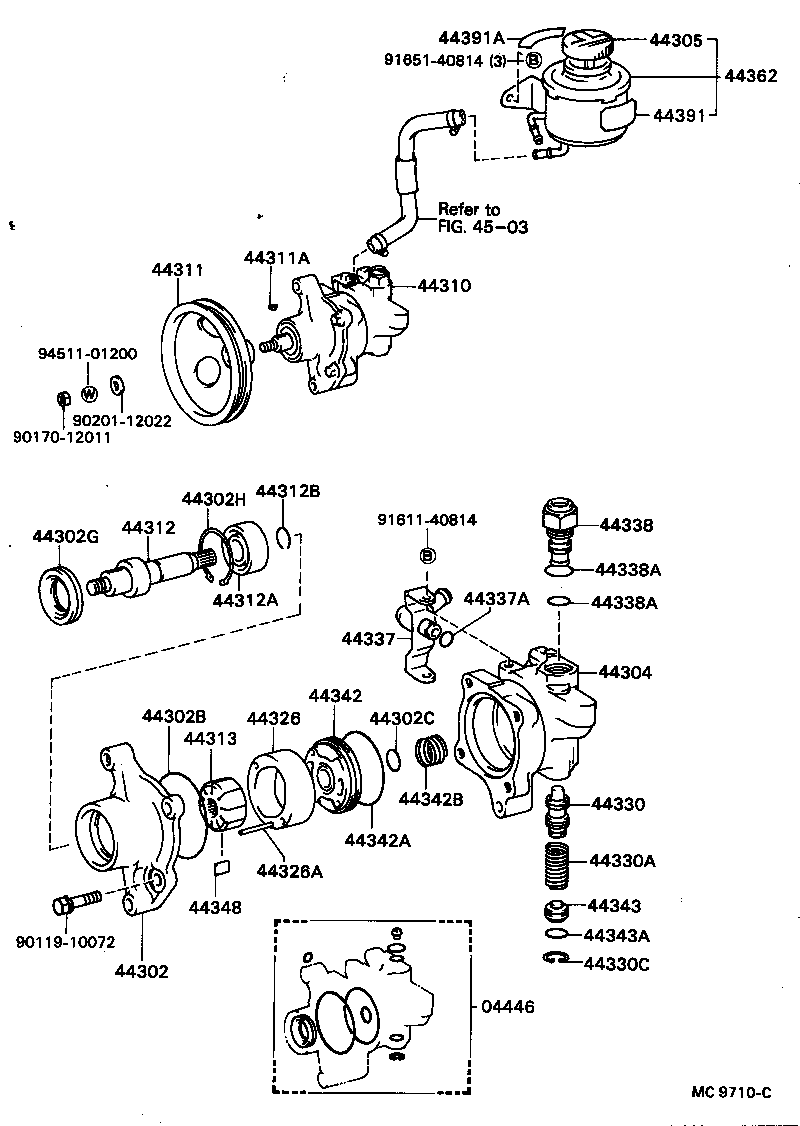

Exploded illustration MC9710C 44391A — PLATE, OIL RESERVOIR CAUTION (2 parts) 44305 — CAP SUB-ASSY, VANE PUMP OIL RESERVOIR (2 parts) 9165140814 — not listed in this catalogue 44362 — RESERVOIR, OIL(FOR VANE PUMP) (6 parts) 44391 — PLATE, POWER STEERING OIL RESERVOIR CAUTION (1 parts) 4503 — not listed in this catalogue 44311A — KEY, VANE PUMP PULLEY (2 parts) 44311 — PULLEY, VANE PUMP (4 parts) 44310 — PUMP ASSY, VANE (9 parts) 9451101200 — not listed in this catalogue 9020112022 — not listed in this catalogue 9017012011 — not listed in this catalogue 44312B — RING, SNAP, NO.1(FOR VANE PUMP SHAFT) (2 parts) 44302H — RING, SNAP, NO.1(FOR VANE PUMP HOUSING) (2 parts) 9161140814 — not listed in this catalogue 44338 — UNION, PRESSURE PORT (4 parts) 44312 — SHAFT, VANE PUMP (2 parts) 44302G — SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) (2 parts) 44338A — RING, O(FOR PRESSURE PORT UNION) (4 parts) 44337A — RING, O(FOR POWER STEERING SUCTION PORT) (2 parts) 44312A — BEARING(FOR VANE PUMP SHAFT) (2 parts) 44338A — RING, O(FOR PRESSURE PORT UNION) (4 parts) 44337 — UNION, POWER STEERING SUCTION PORT (4 parts) 44304 — HOUSING SUB-ASSY, VANE PUMP, REAR (9 parts) 44342 — PLATE, VANE PUMP SIDE, REAR (2 parts) 44302B — RING, O, NO.1(FOR VANE PUMP HOUSING) (2 parts) 44302C — RING, O, NO.2(FOR VANE PUMP HOUSING) (2 parts) 44326 — RING, CAM(FOR VANE PUMP) (10 parts) 44313 — ROTOR, VANE PUMP (10 parts) 44342B — SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) (2 parts) 44330 — VALVE ASSY, FLOW CONTROL (12 parts) 44342A — RING, O(FOR VANE PUMP SIDE PLATE REAR) (2 parts) 44330A — SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) (3 parts) 44326A — PIN, STRAIGHT(FOR VANE PUMP CAM RING) (2 parts) 44343 — SEAT, FLOW CONTROL SPRING (3 parts) 44348 — PLATE, VANE PUMP (10 parts) 44343A — RING, O(FOR FLOW CONTROL SPRING SEAT) (2 parts) 9011910072 — not listed in this catalogue 44330C — RING, SNAP(FOR FLOW CONTROL VALVE) (2 parts) 44302 — HOUSING SUB-ASSY, VANE PUMP, FRONT (2 parts) 04446 — GASKET KIT, POWER STEERING PUMP (2 parts)
MC9710C · 34 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
127 parts on this figure
Part number Description Fitment Price
04446 — Gasket Kit, Power Steering Pump
04446-14010 Gasket Kit, Power Steering Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥4,160
04446-14010 Gasket Kit, Power Steering Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥4,160
44302 — Housing Sub-assy, Vane Pump, Front
44302-14010 Housing Sub-assy, Vane Pump, Front
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥15,500
44302-14010 Housing Sub-assy, Vane Pump, Front
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥15,500
44302B — Ring, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001 Ring, O, NO.1(FOR VANE PUMP HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥350
90301-60001 Ring, O, NO.1(FOR VANE PUMP HOUSING)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥350
44302C — Ring, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016 Ring, O, NO.2(FOR VANE PUMP HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥300
96711-19016 Ring, O, NO.2(FOR VANE PUMP HOUSING)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥300
44302G — Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
90311-24001 Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥220
90311-24001 Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥220
44302H — Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
90521-44002 Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥580
90521-44002 Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥580
44304 — Housing Sub-assy, Vane Pump, Rear
44304-27010 Housing Sub-assy, Vane Pump, Rear
1983-04 → 1983-12 ended
CR21 —
44304-27011 Housing Sub-assy, Vane Pump, Rear
1983-12 → 1985-05 ended
CR21,27;CR26 N ¥35,200
44304-28010 Housing Sub-assy, Vane Pump, Rear
1982-11 → 1983-12 ended
YR2# 4FC,5F —
44304-28011 Housing Sub-assy, Vane Pump, Rear
1983-12 → 1985-08 ended
YR2# 4FC,5F ¥37,000
44304-28011 Housing Sub-assy, Vane Pump, Rear
1985-08 → 1986-10 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥37,000
44304-28012 Housing Sub-assy, Vane Pump, Rear
1986-10 → 1988-08 ended
YR20 HRF E;YR21,26,28,3#;YR20 HRF +4 ¥35,200
44304-28020 Housing Sub-assy, Vane Pump, Rear
1985-05 → 1985-08 ended
CR21,27;CR26 N ¥35,100
44304-28020 Housing Sub-assy, Vane Pump, Rear
1985-08 → 1986-10 ended
CR2#,3# ¥35,100
44304-28021 Housing Sub-assy, Vane Pump, Rear
1986-10 → 1988-08 ended
CR2#,3# ¥35,100
44305 — Cap Sub-assy, Vane Pump Oil Reservoir
44305-30020 Cap Sub-assy, Vane Pump Oil Reservoir
1985-08 → 1988-08 ended
CR2#,3#,YR21,3# ¥1,950
44305-32010 Cap Sub-assy, Vane Pump Oil Reservoir
1982-11 → 1988-08 ended
YR20,26,28 ¥1,560
44310 — Pump Assy, Vane
44320-27021 Pump Assy, Vane
1983-04 → 1983-12 ended
CR21 ¥90,800
44320-27022 Pump Assy, Vane
1983-12 → 1985-05 ended
CR21,27;CR26 N ¥82,200
44320-27040 Pump Assy, Vane
1985-08 → 1988-08 ended
CR2#,3# ¥82,900
44320-28010 Pump Assy, Vane
1982-11 → 1983-12 ended
YR20,26 4FC,5F ¥82,200
44320-28011 Pump Assy, Vane
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥82,400
44320-28011 Pump Assy, Vane
1983-12 → 1985-08 ended
YR20,26 4FC,5F ¥82,400
44320-28020 Pump Assy, Vane
1983-05 → 1983-12 ended
YR21 ¥82,100
44320-28021 Pump Assy, Vane
1983-12 → 1988-08 ended
YR21,3# ¥82,200
44320-28040 Pump Assy, Vane
1985-05 → 1985-08 ended
CR21,27;CR26 N ¥82,100
44311 — Pulley, Vane Pump
44311-12010 Pulley, Vane Pump
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥7,600
44311-12010 Pulley, Vane Pump
1985-08 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥7,600
44311-27010 Pulley, Vane Pump
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥7,800
44311-27010 Pulley, Vane Pump
1985-08 → 1988-08 ended
CR2#,3# ¥7,800
44311A — Key, Vane Pump Pulley
90280-05008 Key, Vane Pump Pulley
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥220
90280-05008 Key, Vane Pump Pulley
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥220
44312 — Shaft, Vane Pump
44312-12010 Shaft, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥3,340
44312-12010 Shaft, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,340
44312A — Bearing(FOR VANE PUMP SHAFT)
90363-17004 Bearing(FOR VANE PUMP SHAFT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,240
90363-17004 Bearing(FOR VANE PUMP SHAFT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,240
44312B — Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
90520-15001 Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥240
90520-15001 Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥240
44313 — Rotor, Vane Pump
44313-12010 note Rotor, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥7,900
44313-12010 note Rotor, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥7,900
44313-12020 note Rotor, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥7,900
44313-12020 note Rotor, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥7,900
44313-12030 note Rotor, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥7,900
44313-12030 note Rotor, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥7,900
44313-12040 note Rotor, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥7,900
44313-12040 note Rotor, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥7,900
44313-12050 note Rotor, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥7,900
44313-12050 note Rotor, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥7,900
44326 — Ring, Cam(FOR VANE PUMP)
44325-12010 note Ring, Cam(FOR VANE PUMP)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,700
44325-12010 note Ring, Cam(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,700
44325-12020 note Ring, Cam(FOR VANE PUMP)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,700
44325-12020 note Ring, Cam(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,700
44325-12030 note Ring, Cam(FOR VANE PUMP)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,700
44325-12030 note Ring, Cam(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,700
44325-12040 note Ring, Cam(FOR VANE PUMP)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,700
44325-12040 note Ring, Cam(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,700
44325-12050 note Ring, Cam(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,700
44325-12050 note Ring, Cam(FOR VANE PUMP)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,700
44326A — Pin, Straight(FOR VANE PUMP CAM RING)
90250-05008 note Pin, Straight(FOR VANE PUMP CAM RING)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥240
90250-05008 note Pin, Straight(FOR VANE PUMP CAM RING)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥240
44330 — Valve Assy, Flow Control
44330-12130 note Valve Assy, Flow Control
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,100
44330-12130 note Valve Assy, Flow Control
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
44330-12140 note Valve Assy, Flow Control
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,100
44330-12140 note Valve Assy, Flow Control
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
44330-12150 note Valve Assy, Flow Control
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,100
44330-12150 note Valve Assy, Flow Control
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
44330-12160 note Valve Assy, Flow Control
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,100
44330-12160 note Valve Assy, Flow Control
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
44330-12170 note Valve Assy, Flow Control
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,100
44330-12170 note Valve Assy, Flow Control
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
44330-12180 note Valve Assy, Flow Control
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥8,100
44330-12180 note Valve Assy, Flow Control
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
44330A — Spring, Compression(FOR FLOW CONTROL VALVE)
90501-12103 Spring, Compression(FOR FLOW CONTROL VALVE)
1986-10 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥160
90501-12447 Spring, Compression(FOR FLOW CONTROL VALVE)
1985-08 → 1986-10 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥660
90501-12447 Spring, Compression(FOR FLOW CONTROL VALVE)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥660
44330C — Ring, Snap(FOR FLOW CONTROL VALVE)
96151-01700 Ring, Snap(FOR FLOW CONTROL VALVE)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥260
96151-01700 Ring, Snap(FOR FLOW CONTROL VALVE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥260
44337 — Union, Power Steering Suction Port
44337-27010 Union, Power Steering Suction Port
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR20,26 4FC,5F ¥2,570
44337-27010 Union, Power Steering Suction Port
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,570
44337-27030 Union, Power Steering Suction Port
1985-08 → 1988-08 ended
CR2#,3# ¥2,300
44337-28010 Union, Power Steering Suction Port
1983-05 → 1988-08 ended
YR21,3# ¥2,530
44337A — Ring, O(FOR POWER STEERING SUCTION PORT)
96711-19013 Ring, O(FOR POWER STEERING SUCTION PORT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥240
96711-19013 Ring, O(FOR POWER STEERING SUCTION PORT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥240
44338 — Union, Pressure Port
44308-14040 Union, Pressure Port
1982-12 → 1984-08 ended
YR2# 4FC,5F ¥9,200
44308-14041 Union, Pressure Port
1984-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥9,100
44308-14041 Union, Pressure Port
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥9,100
44308-22020 Union, Pressure Port
1982-11 → 1982-12 ended
YR2# 4FC,5F ¥9,100
44338A — Ring, O(FOR PRESSURE PORT UNION)
90301-22001 note Ring, O(FOR PRESSURE PORT UNION)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥590
90301-22001 note Ring, O(FOR PRESSURE PORT UNION)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥590
96711-19014 note Ring, O(FOR PRESSURE PORT UNION)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥210
96711-19014 note Ring, O(FOR PRESSURE PORT UNION)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥210
44342 — Plate, Vane Pump Side, Rear
44341-12010 Plate, Vane Pump Side, Rear
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥6,800
44341-12010 Plate, Vane Pump Side, Rear
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥6,800
44342A — Ring, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002 Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥300
90301-53002 Ring, O(FOR VANE PUMP SIDE PLATE REAR)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥300
44342B — Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
90501-23014 Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥350
90501-23014 Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥350
44343 — Seat, Flow Control Spring
44343-12010 Seat, Flow Control Spring
1985-08 → 1986-10 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,240
44343-12010 Seat, Flow Control Spring
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,240
44343-12040 Seat, Flow Control Spring
1986-10 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥670
44343A — Ring, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014 Ring, O(FOR FLOW CONTROL SPRING SEAT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥210
96711-19014 Ring, O(FOR FLOW CONTROL SPRING SEAT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥210
44348 — Plate, Vane Pump
44345-12010 note Plate, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥660
44345-12010 note Plate, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥660
44345-12020 note Plate, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥660
44345-12020 note Plate, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥660
44345-12030 note Plate, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥660
44345-12030 note Plate, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥660
44345-12040 note Plate, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥660
44345-12040 note Plate, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥660
44345-12050 note Plate, Vane Pump
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥660
44345-12050 note Plate, Vane Pump
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥660
44362 — Reservoir, Oil(FOR VANE PUMP)
44360-28011 Reservoir, Oil(FOR VANE PUMP)
1982-11 → 1985-08 ended
YR20,26 4FC,5F ¥10,000
44360-28011 Reservoir, Oil(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥10,000
44360-28020 Reservoir, Oil(FOR VANE PUMP)
1983-04 → 1985-08 ended
CR21,27;CR26 N —
44360-28030 Reservoir, Oil(FOR VANE PUMP)
1983-05 → 1985-08 ended
YR21 ¥10,000
44360-28040 Reservoir, Oil(FOR VANE PUMP)
1985-08 → 1988-08 ended
CR2#,30,36 ¥10,200
44360-28051 Reservoir, Oil(FOR VANE PUMP)
1985-08 → 1988-08 ended
YR21,3# ¥10,200
44391 — Plate, Power Steering Oil Reservoir Caution
44391-30020 Plate, Power Steering Oil Reservoir Caution
1985-08 → 1986-10 ended
CR2#,3#,YR21,3# ¥240
44391A — Plate, Oil Reservoir Caution
44391-14010 Plate, Oil Reservoir Caution
1986-10 → 1988-08 ended
CR2#,3#,YR21,3# ¥240
44391-20010 Plate, Oil Reservoir Caution
1985-08 → 1986-10 ended
CR2#,3#,YR21,3# ¥230
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
